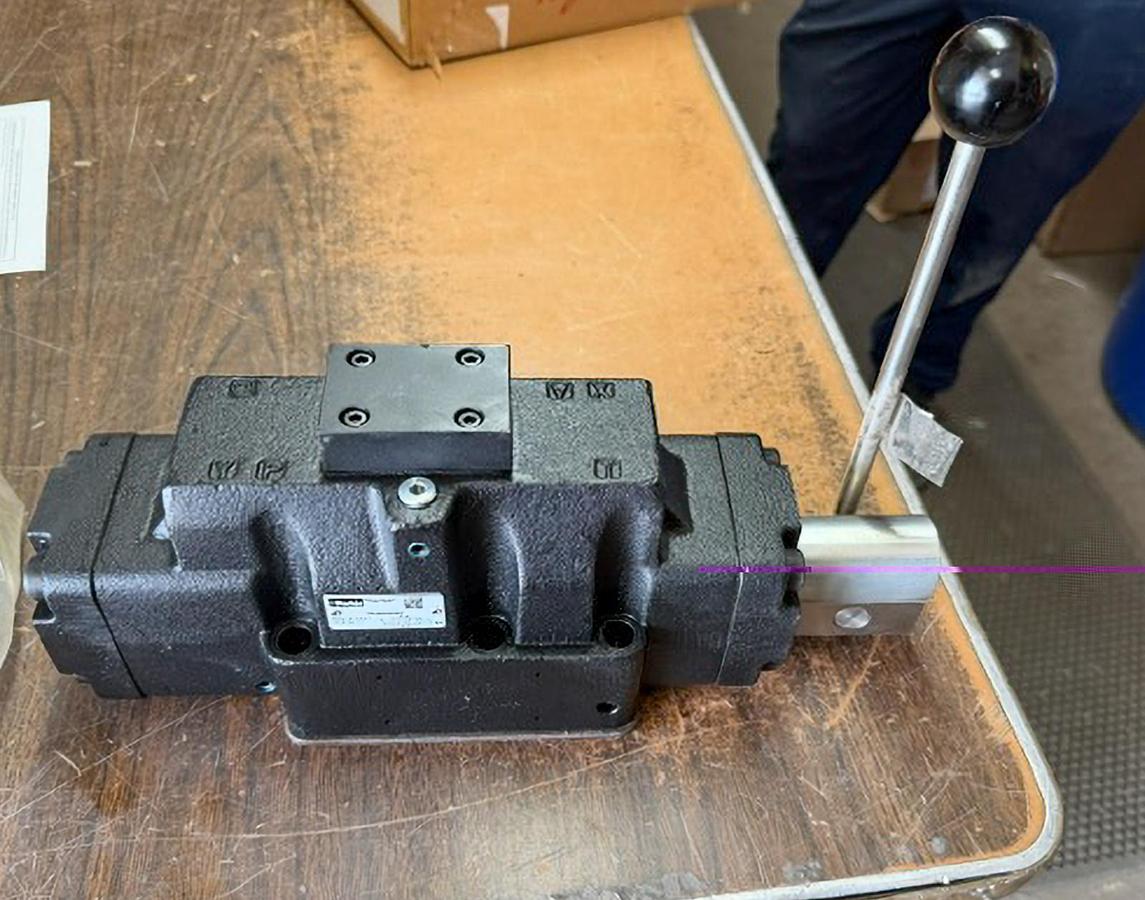

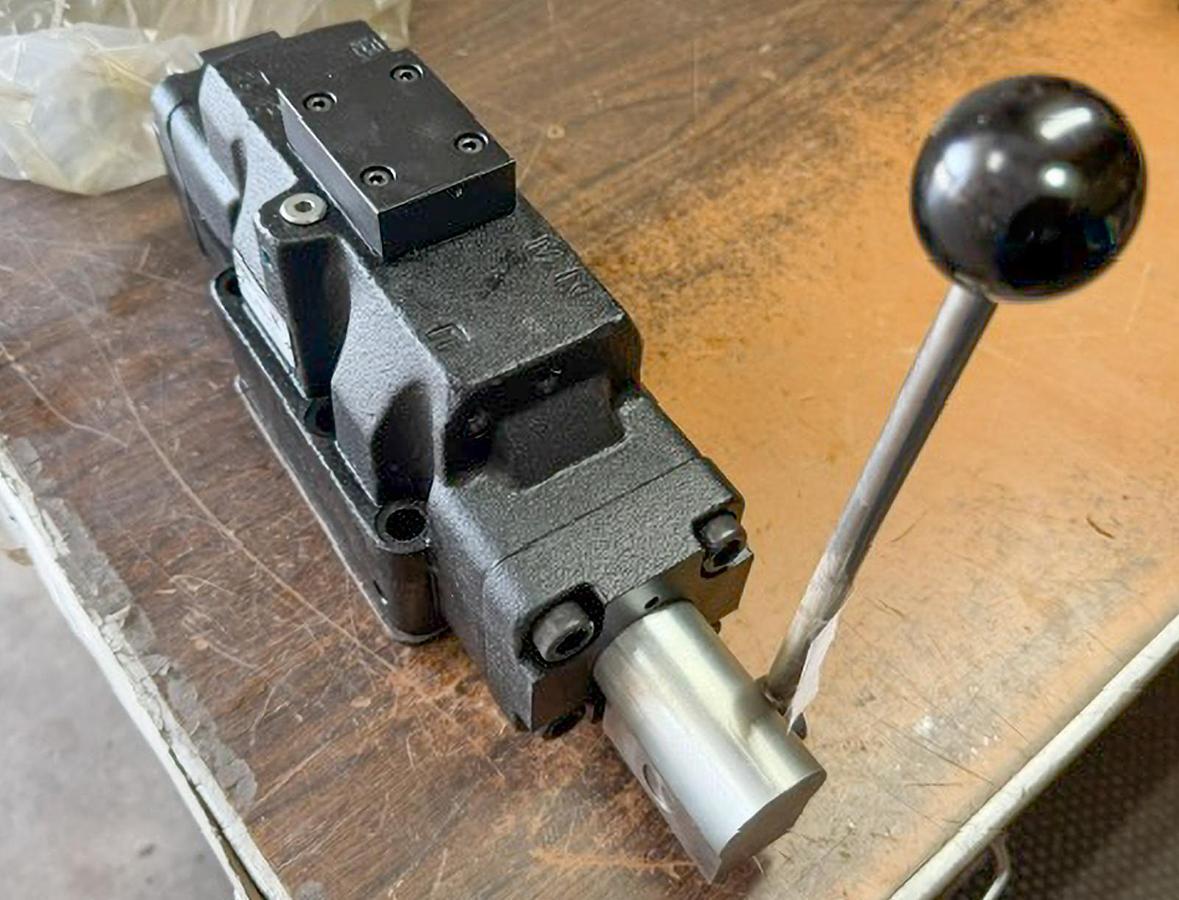

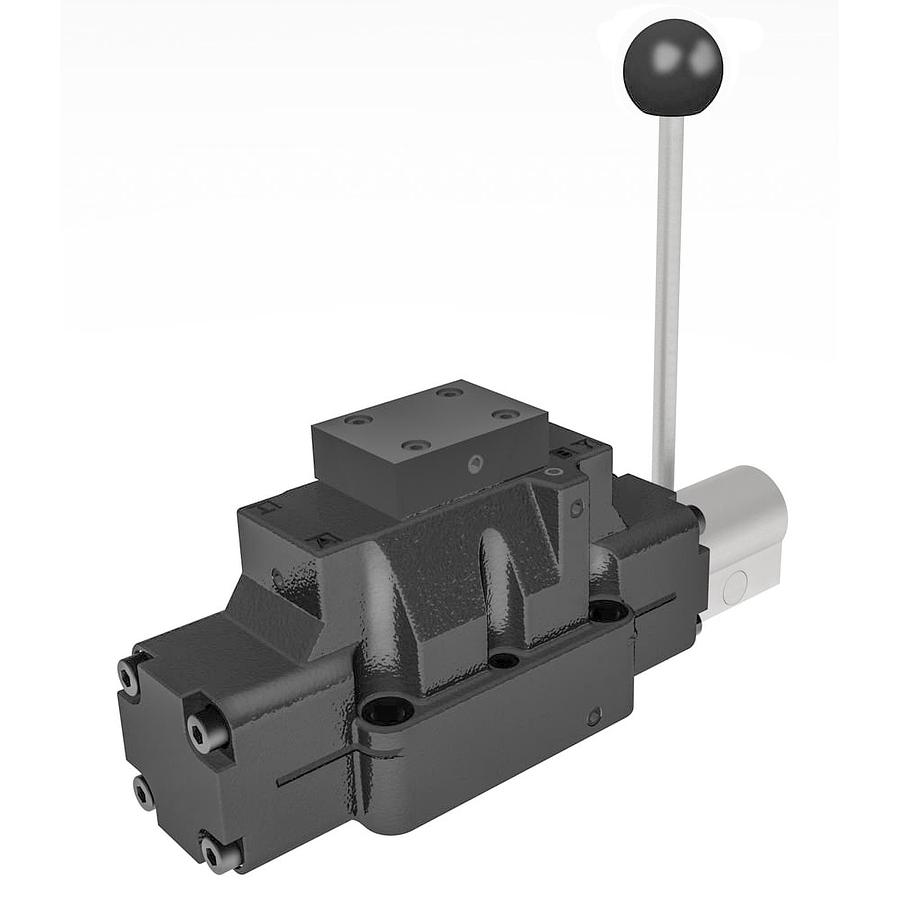

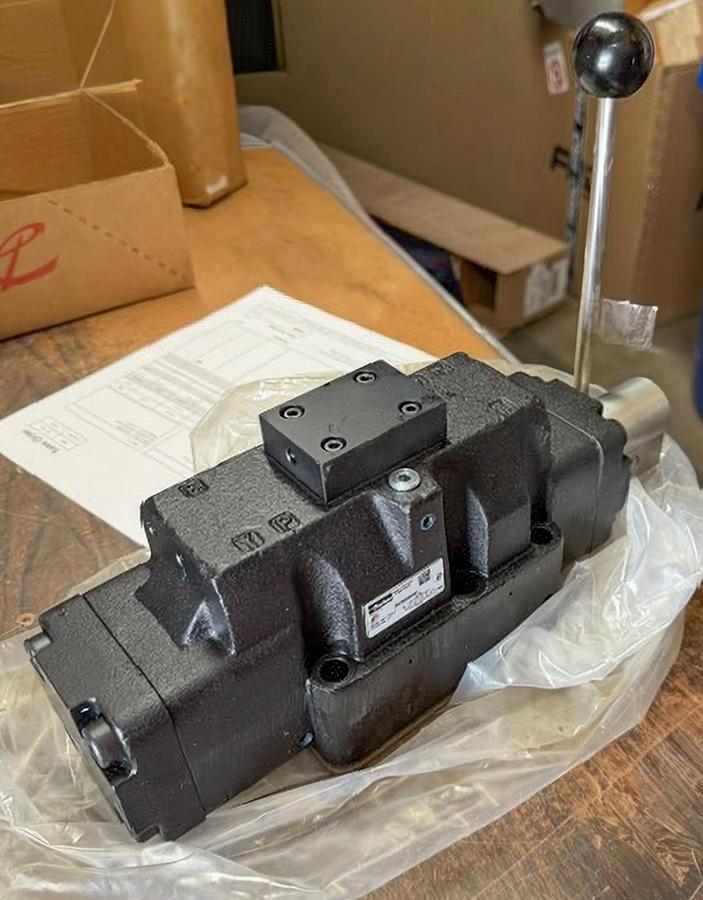

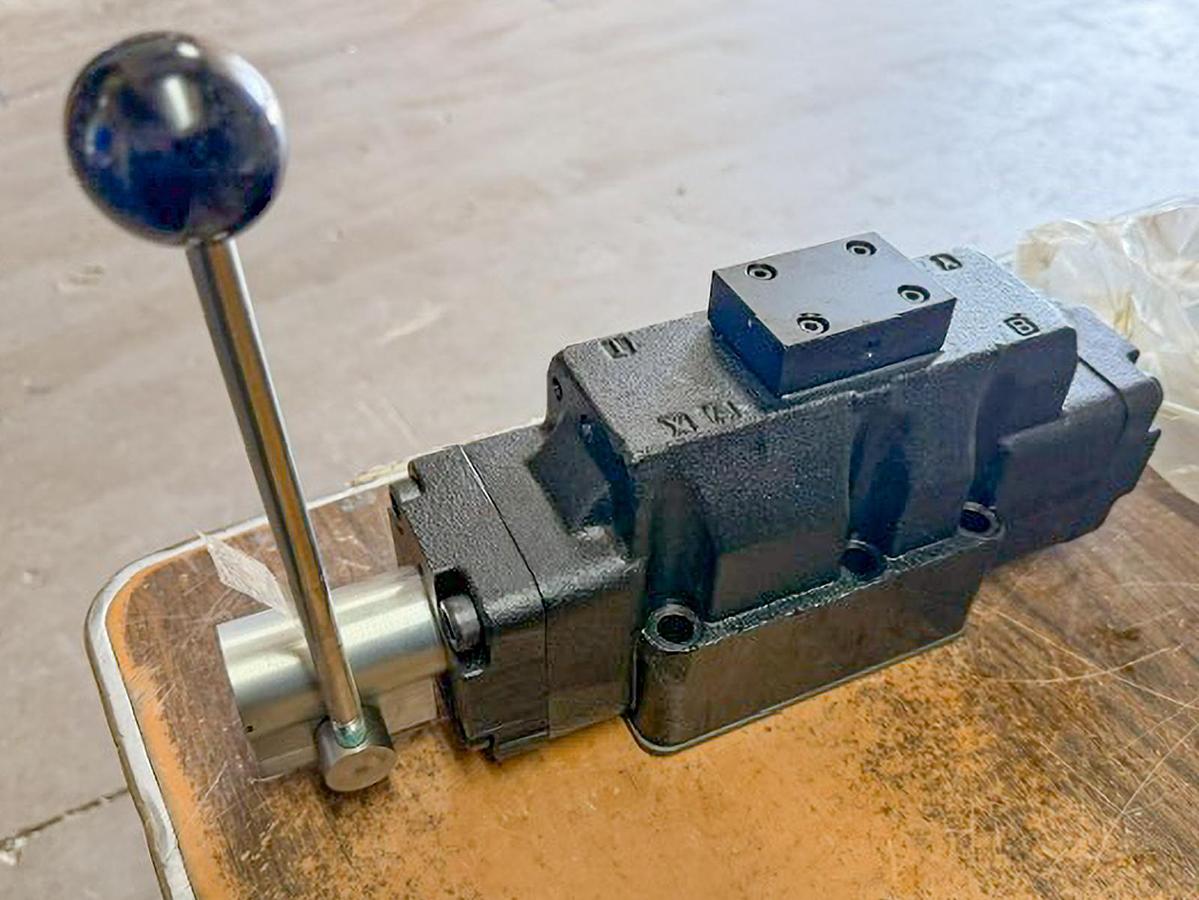

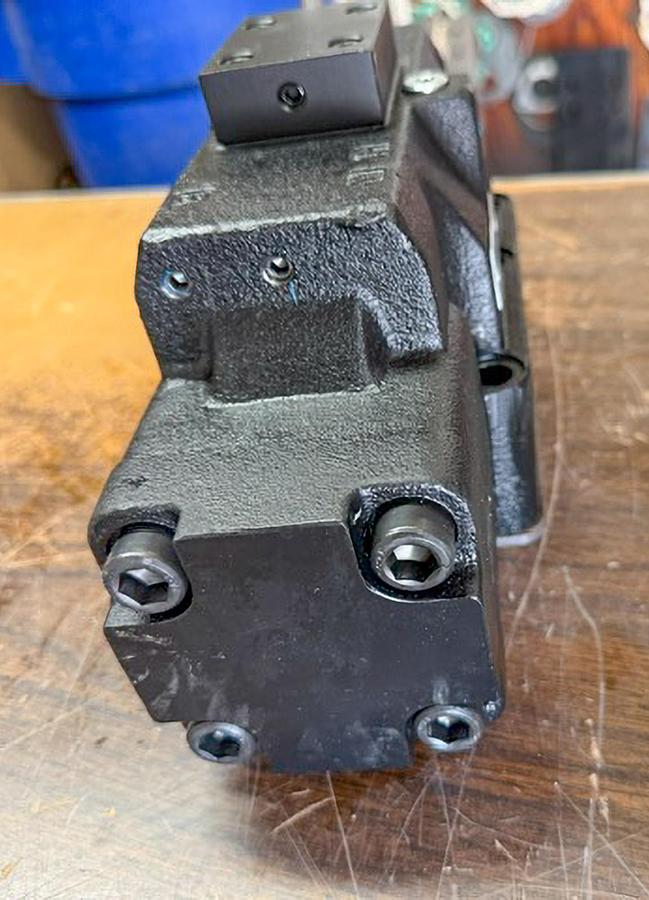

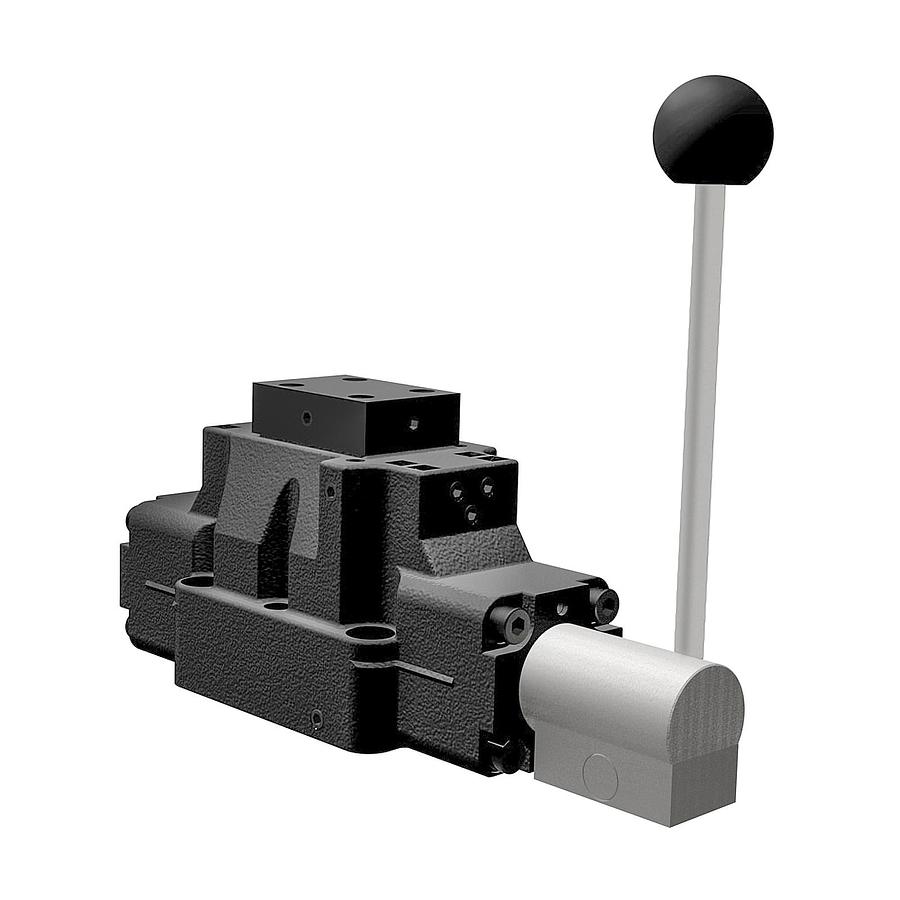

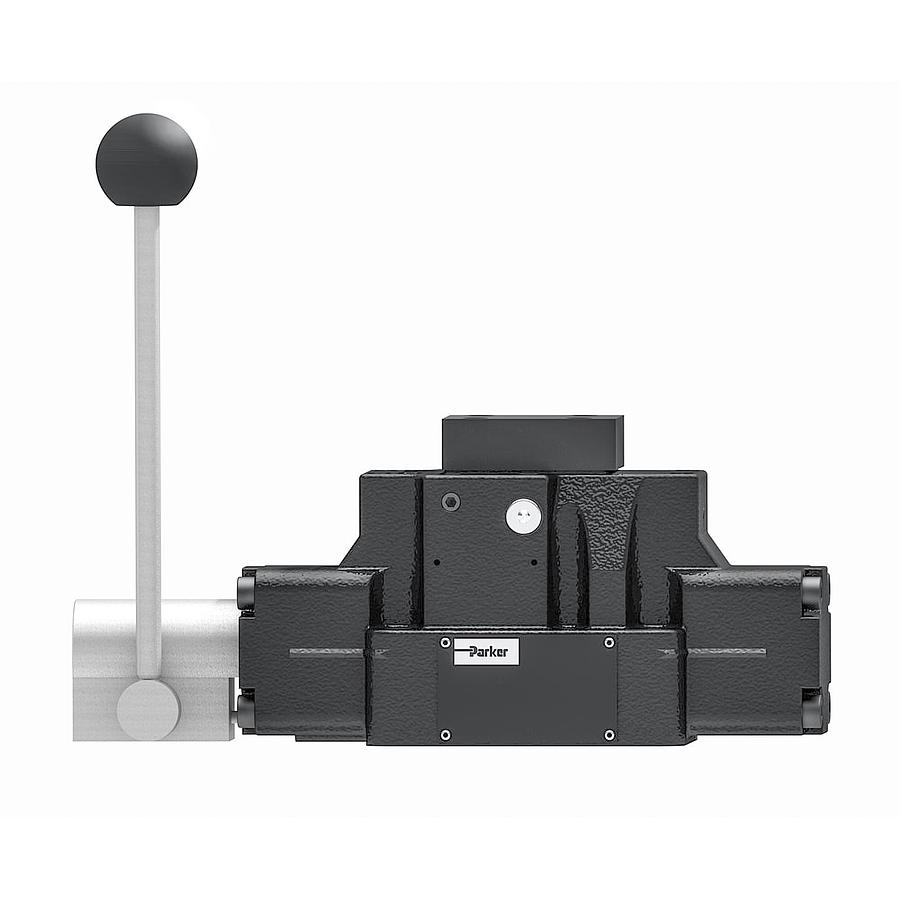

Directional Control Valve Series D4L D9L Manual Hydraulic Control Valve

Directional Control Valve – Series D4L / D9L Manual Hydraulic Control Valve

• Series D4L (NG16 / CETOP 07 / NFPA D07)
• Series D9L (NG25 / CETOP 08 / NFPA D08)
• Hand Lever Operation
• Direct Acting Directional Control Valve
• Subplate Mounting Design
• Suitable For Unrestricted Mounting Positions (Horizontal Preferred)

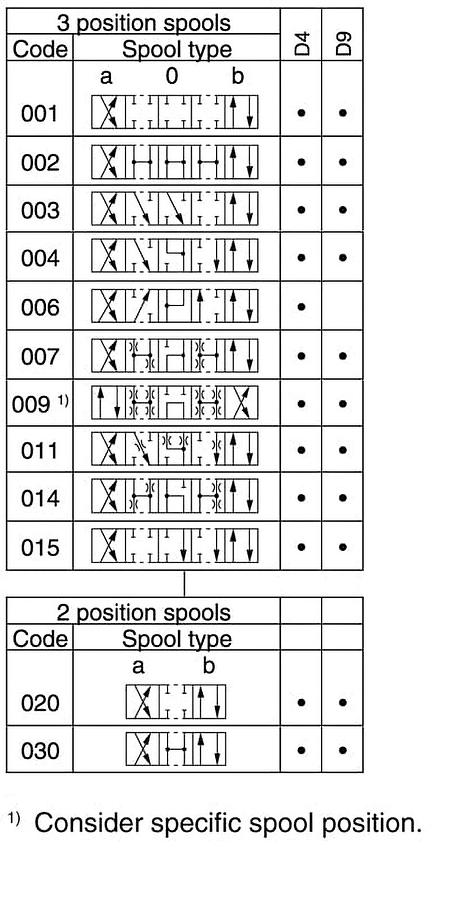

• Function of 2-Way, 3-Way
• Manual Actuation Type

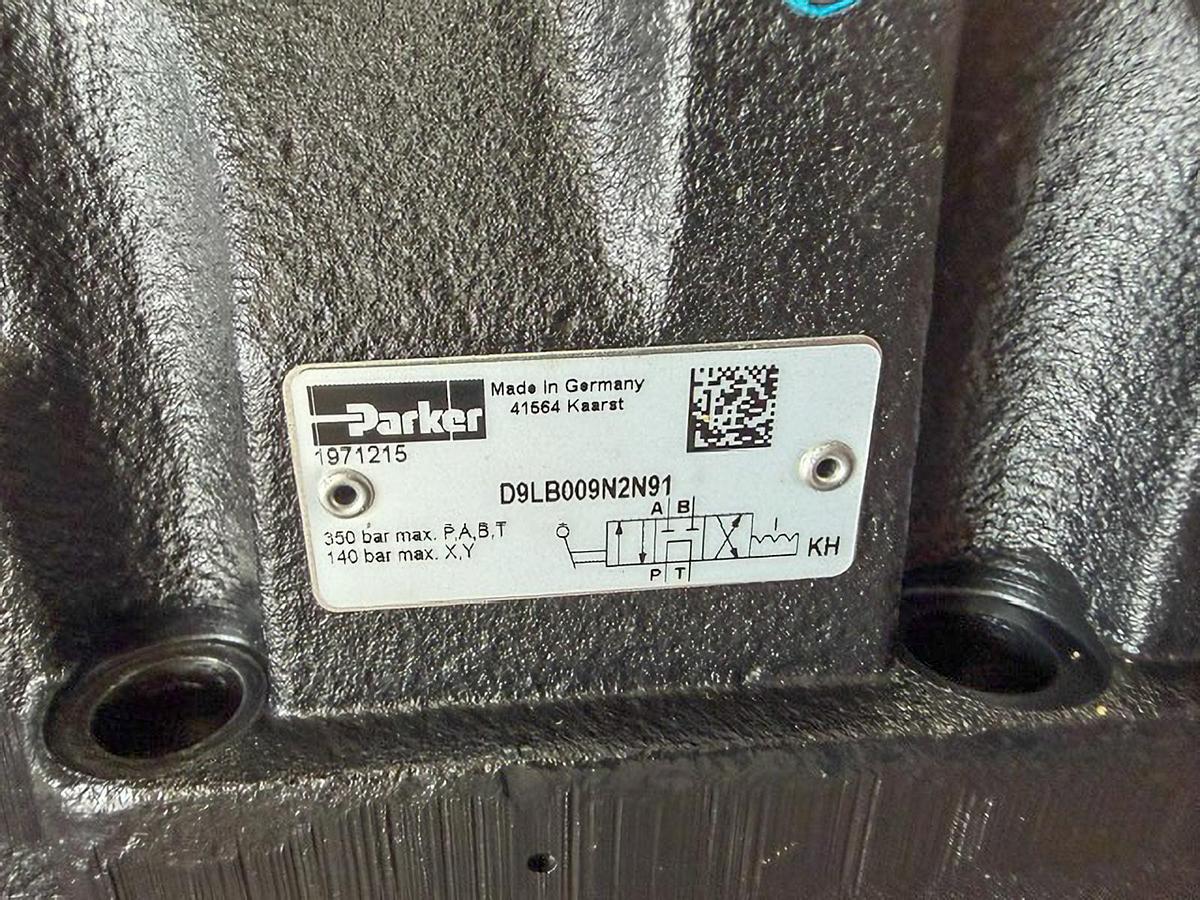

• Part Number: D9LB009N2N

Performance:

• Maximum Operating Pressure: 350 bar
• Maximum Flow Capacity:
• D4L: 300 L/min
• D9L: 700 L/min
• Operating Temperature Range:
• Minimum: -25°C (-13°F)
• Maximum: 60°C (140°F)

Fluid Compatibility:

• Hydraulic Oil According to DIN 51524
• Water Glycol Fluid

Construction:

• Cast Iron Body
• Seal Material:
• NBR
• FPM

Weights:

• D4L: 9.0 kg (19.8 lbs)
• D9L: 17.0 kg (37.5 lbs)

Applications:

• Drill Rigs
• Hydraulic Power Units
• Construction Equipment
• Industrial Machinery
• Material Handling Equipment
• Mobile Hydraulic Systems
• Agricultural Equipment

Location:

Mifflinburg, PA, USA
