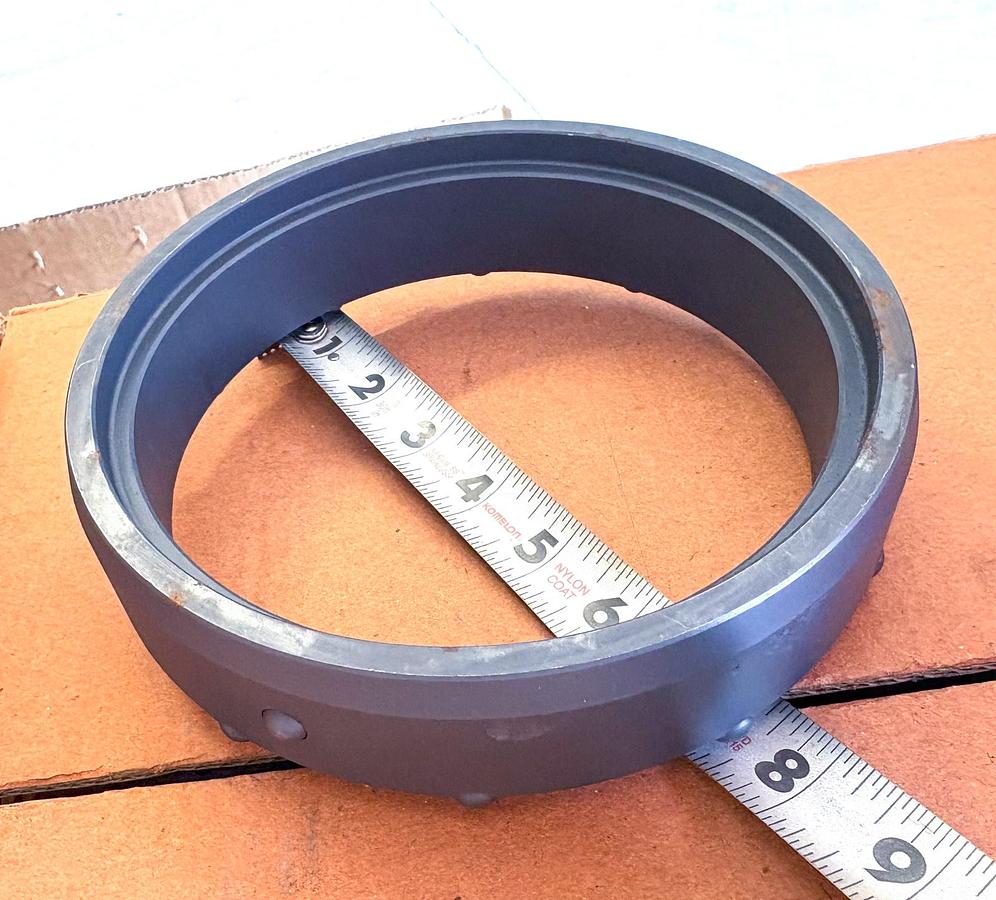

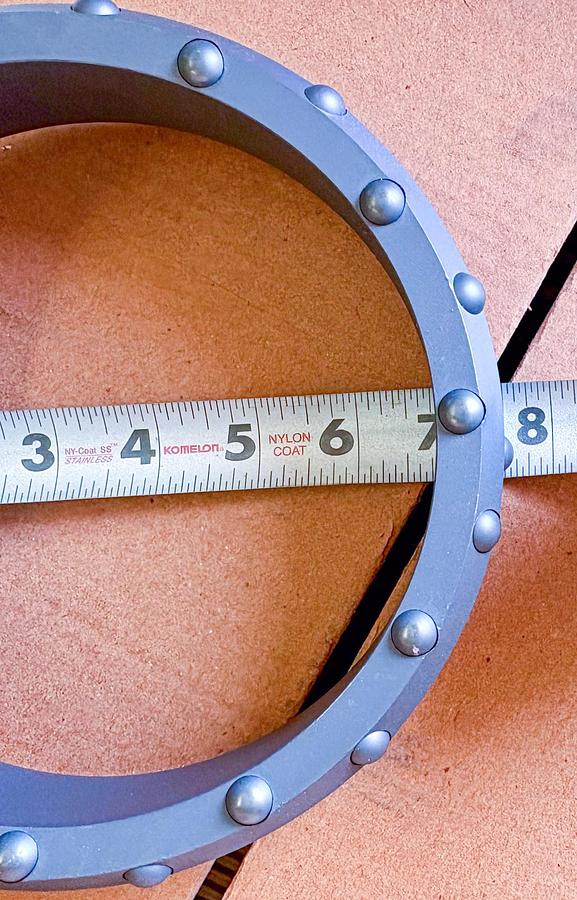

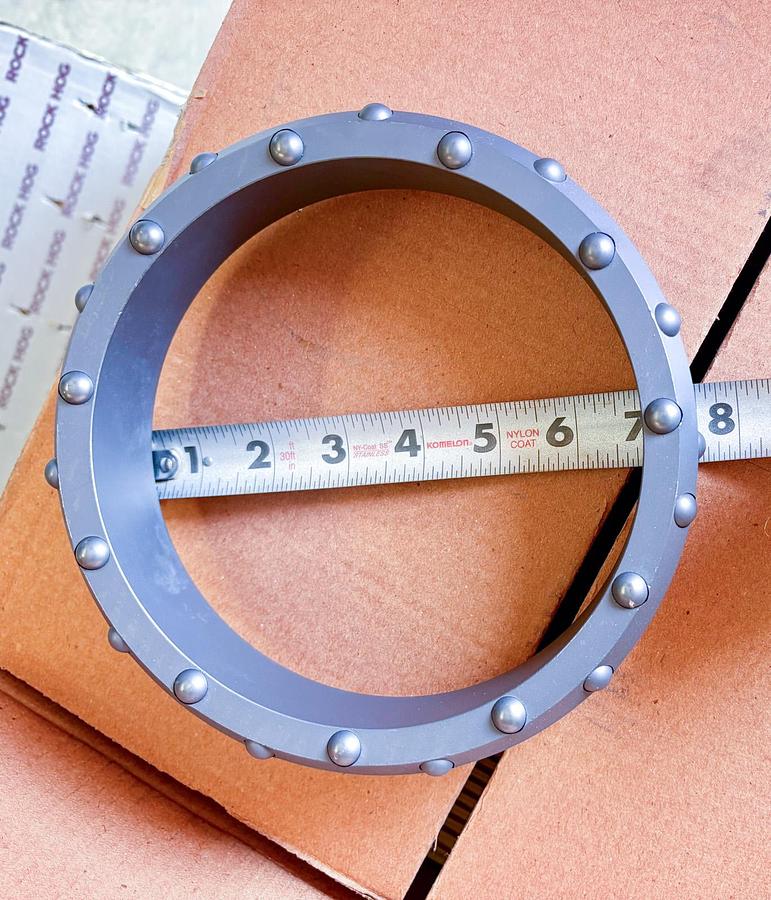

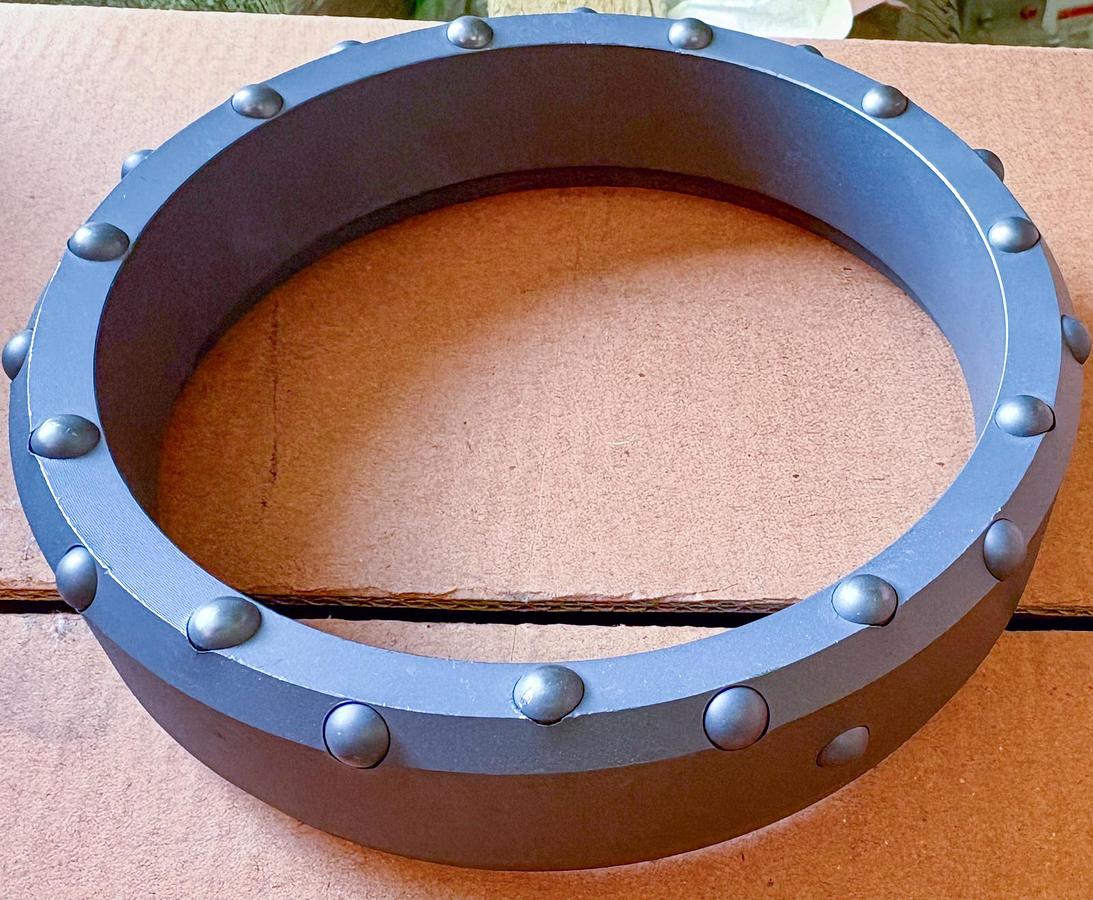

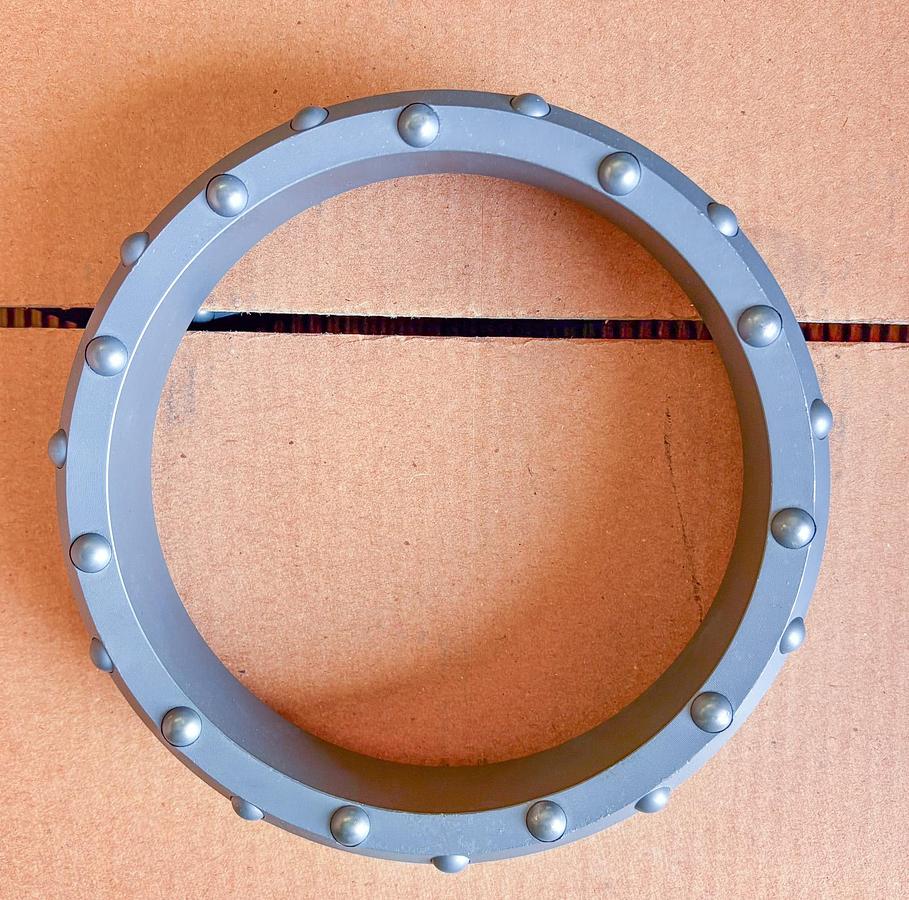

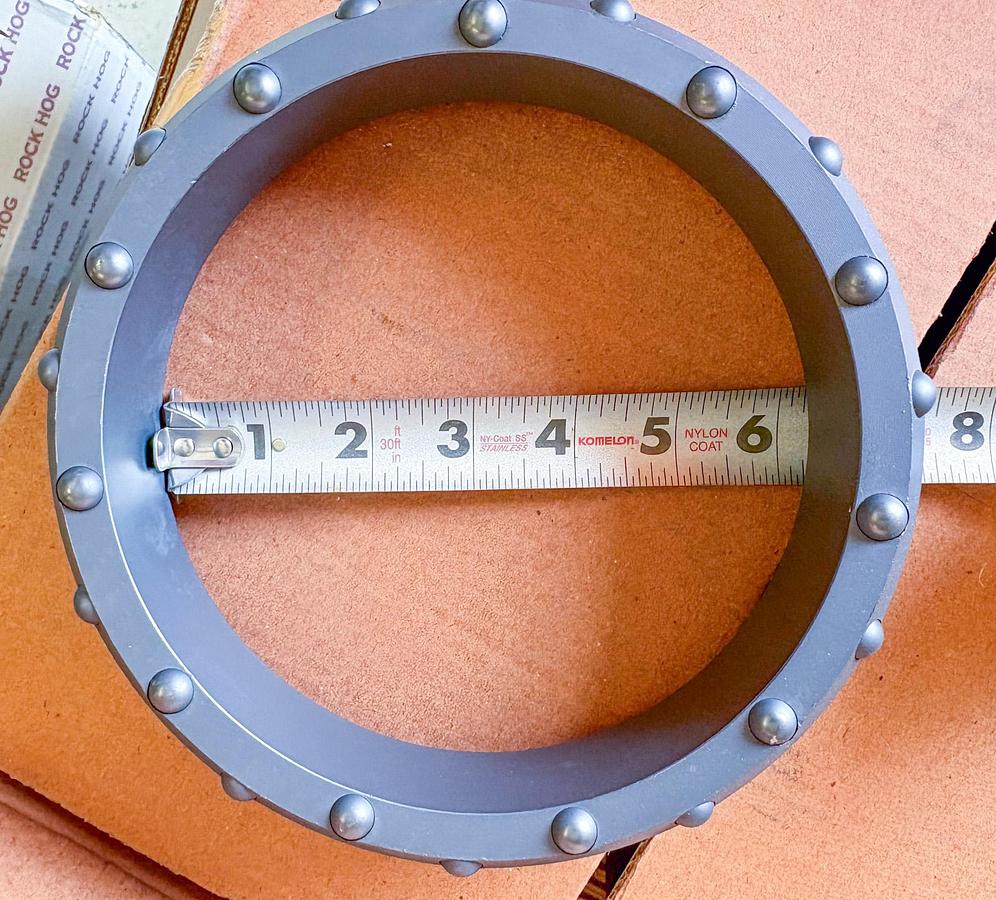

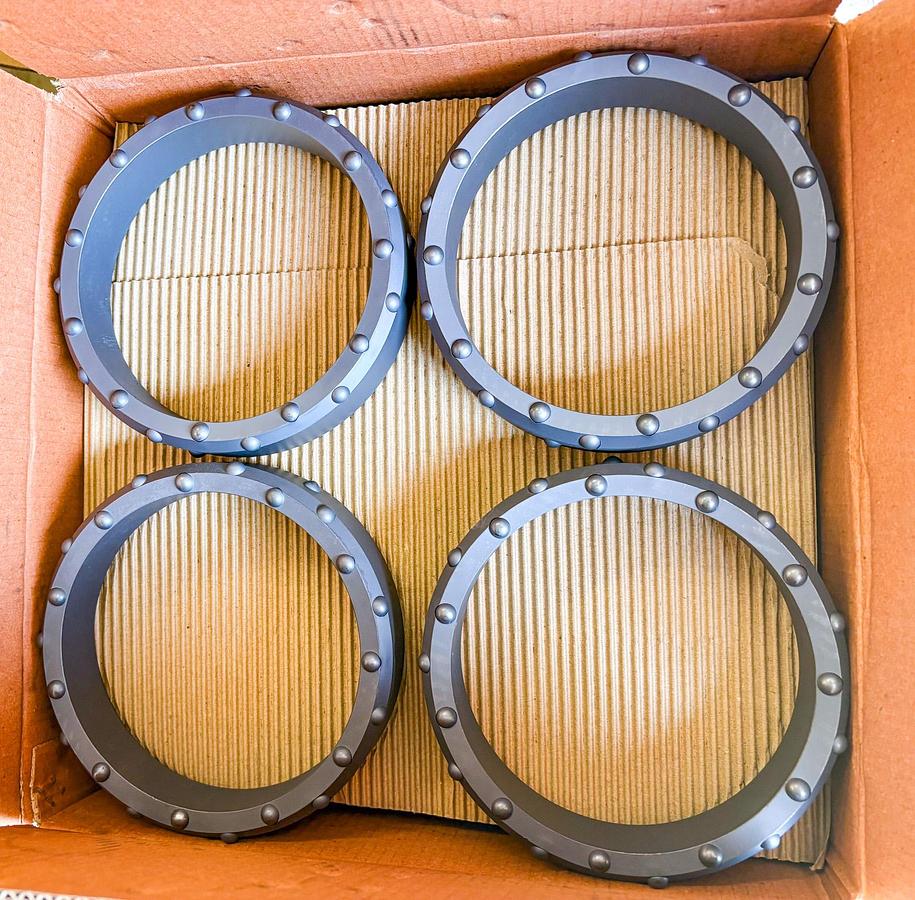

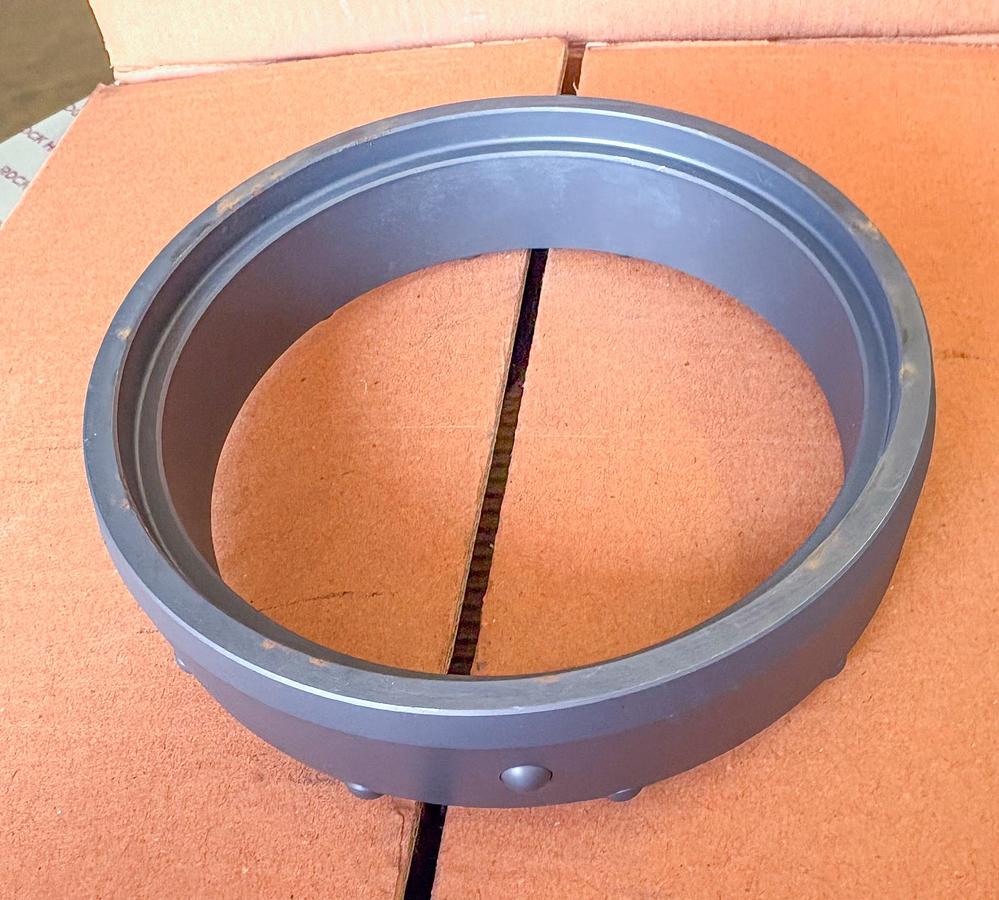

6" Dual Rotary Shoe – 22 Domed Button Assembly With 3 Ballistic Buttons on Back

6" Dual Rotary Shoe – 22 Domed Button Assembly With 3 Ballistic Buttons on Back

Key Specs:

• Casing Size: 6"

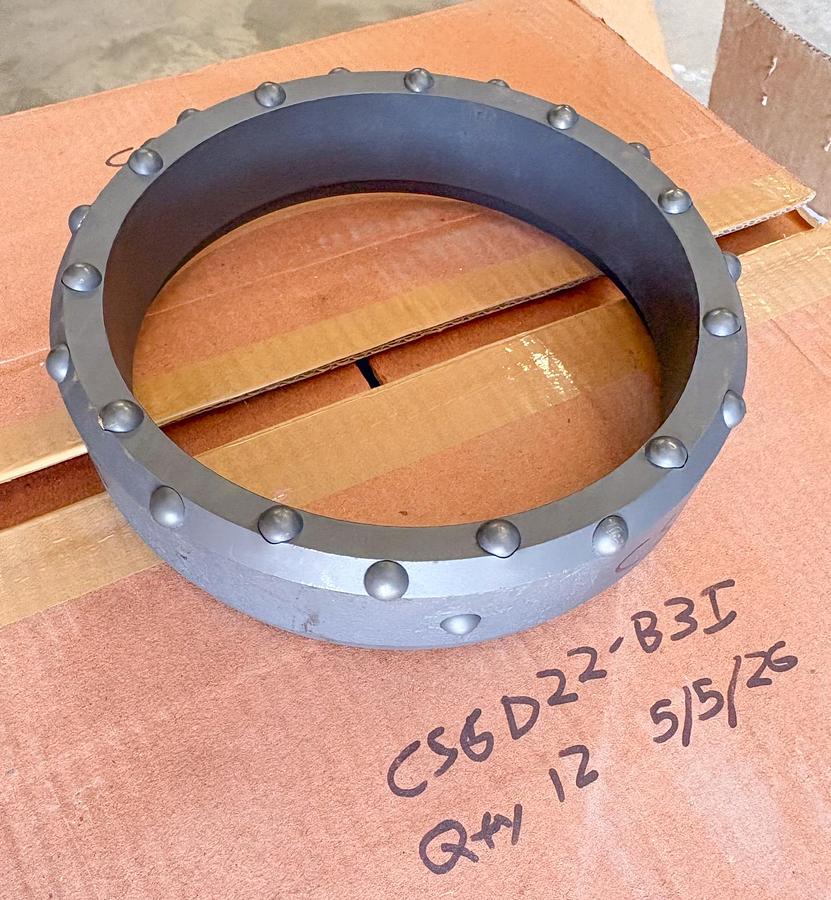

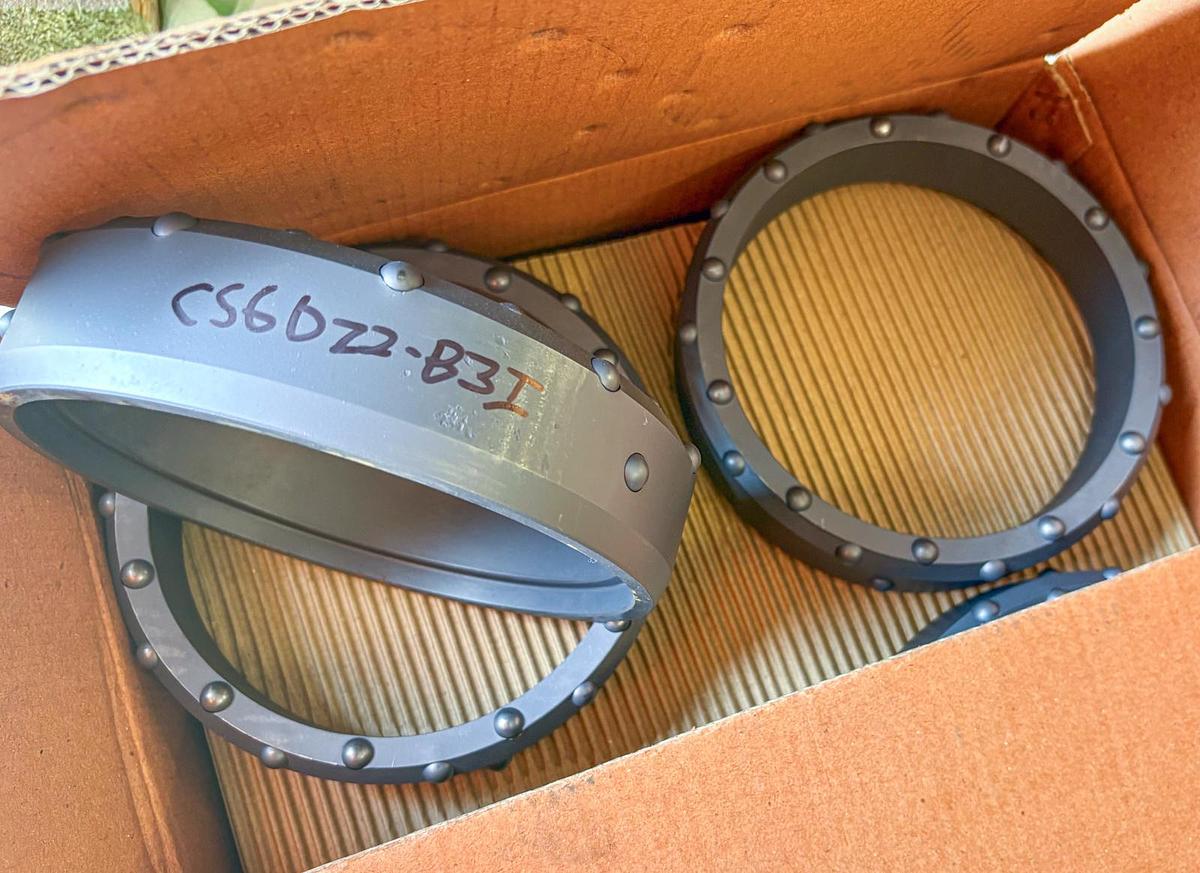

• Part Number: CS6D22-B3I
• Bit Pass-Through Id: 6-1/4"
• Cutting Structure: 25 Total Tungsten Carbide Buttons
• 22 Domed Buttons
• 3 Rear Ballistic Buttons
• Configuration: Customized For Enhanced Borehole Reaming and Extended Service Life

Designed For Dual Rotary Drilling:

Dual Rotary Drilling Uses Two Rotary Drive Mechanisms—One Rotating The Drill String and The Other Rotating The Casing—To Deliver Exceptional Performance in Overburden and Hard Rock Formations.

Performance Benefits:

• Drills Efficiently Through Boulders, Ledge, And Bedrock
• Reduces Sidewall Friction for Improved Depth Capabilities
• Protects Casing from Damage, Splits, And Premature Wear
• Improves Penetration Rates in Challenging Formations
• Extends Tooling and Casing Life

Button Design Advantages:

Domed Buttons:

• Maximum Resistance to Breakage in Hard Rock
• Smaller Carbide Buttons Tend to Provide Faster Penetration but May Wear Out Sooner in Hard Rock
• Ideal For Long Life in Abrasive Formations

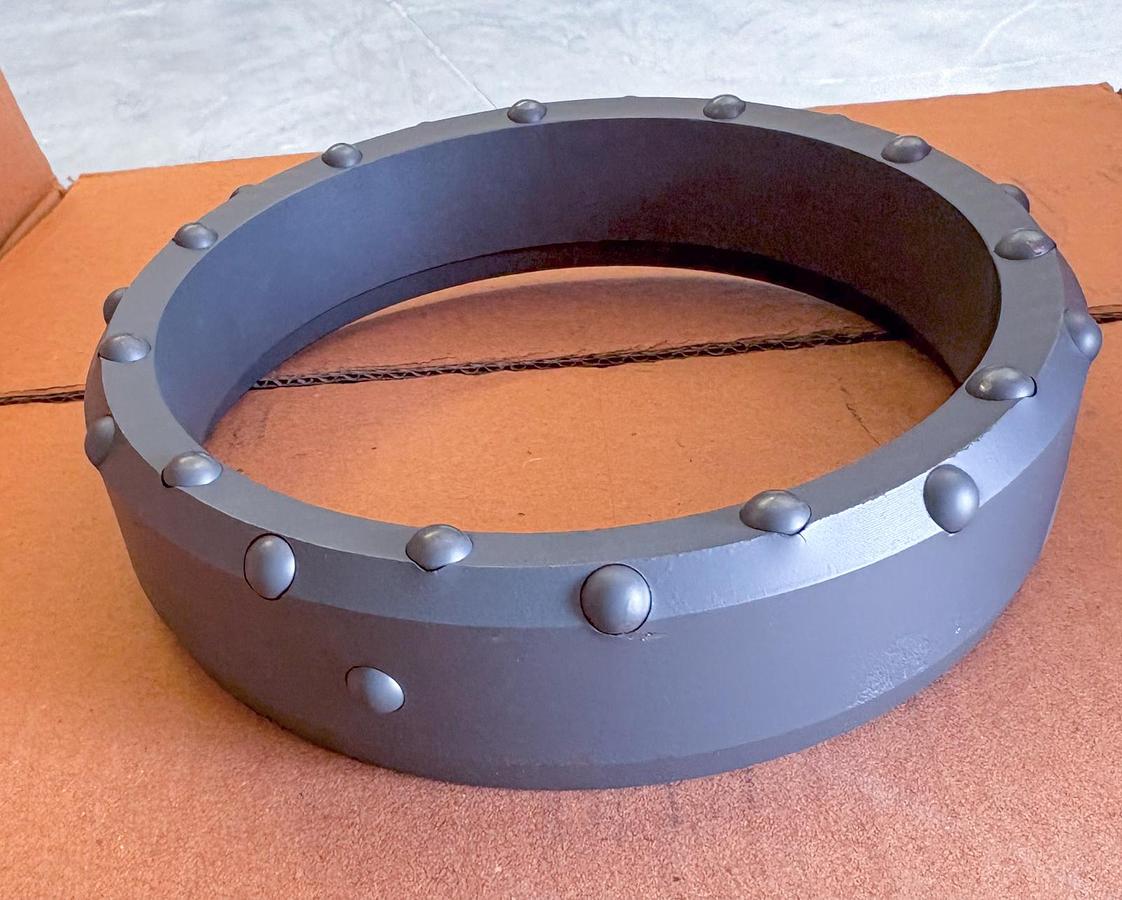

Rear Ballistic Buttons:

• Increase Borehole Reaming Action
• Improve Gauge Protection
• Enhance Overall Shoe Longevity Through Difficult Formations
