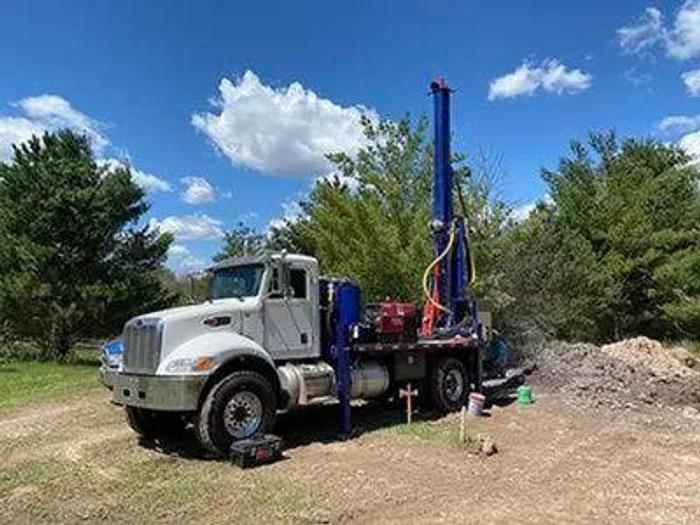

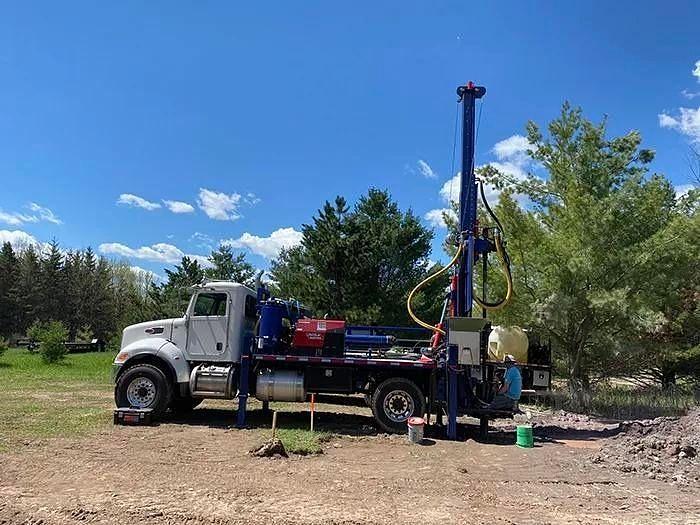

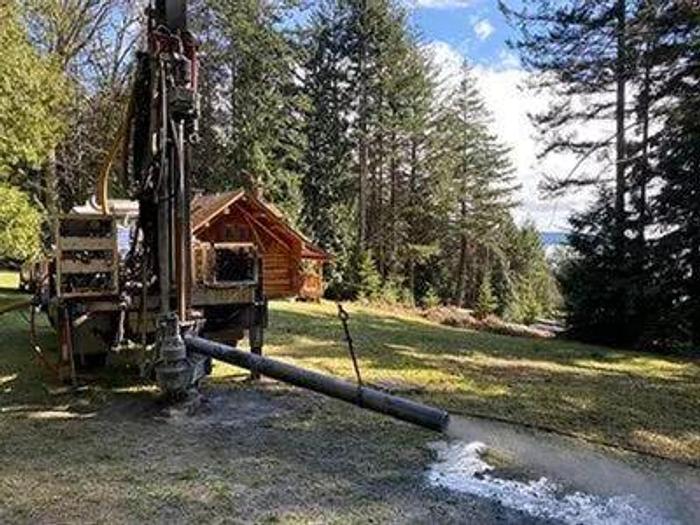

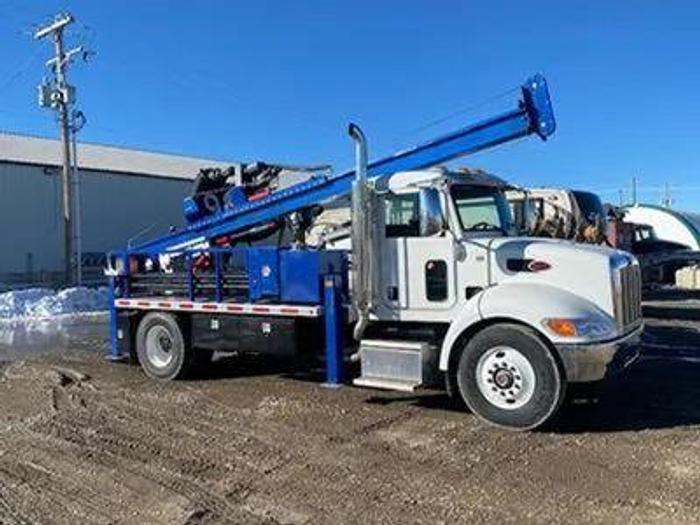

Derex 1340-14 DR (Dual Rotary) Drill Rig
Description
- Derex 1340-14 DR (Dual Rotary) Drill Rig
- TruckPeterbilt 567
- Paccar 11 Litre.
- Allison 6 speed automatic
- Air ride
- Transfer Case
- Namco (oilfield quality)
- Safe Shift
- Hydraulic System
- Bosch Rexroth plus gear pump

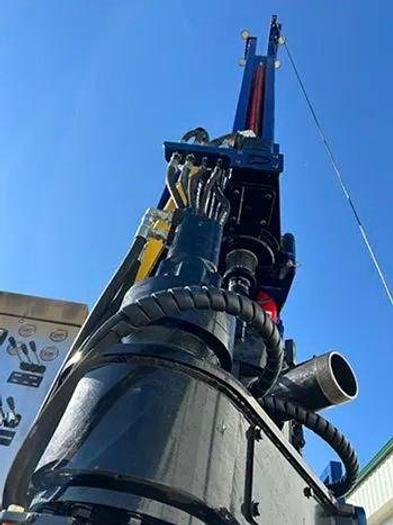

- Top Head
- Variable torque and RPM with 2” thru-hole
- 0-125 rpm @ 3,500-lbf
- Lower drive
- Variable torque and RPM with 10” thru-hole
- 0-23 rpm @ 20,000-lbf
- Diverter
- Simple seal design with 4” NPT discharge
- to control cuttings.
- Derrick & Feed System
- 13’ top head stroke (handles 10' x 3" OD drill pipe)
- 40,000-lbs pullback
- 20,000-lbs pulldown
- 100 FPM
- Derrick slide/ dump
- 4’ Derrick slide for angles up to 45°
- Main Winch
- Manual jib
- 2,500 lb.
- Remote on helpers side for winch
- Control Panel
- Straight hydraulic controls (no electrics to fail)
- Marine grade electric switches (for lights)
- Murphy engine monitor display
- Twin platforms
- Leveling Jacks
- Four 36” stroke independently controlled
- Night Lights
- 6 LED night lights
- Toolboxes
- 30”x 18” x 18”
- Overall Dimensions
- Length: 24’11”
- Width: 8’ 6”
- Derrick up height: 24’ 6” – 28’ 6” with Derrick slide
- Derrick down height: 11’
- Water Injection
- 9 gpm FMC injection pump
- Gross Weight
- 34,000lbs - 36,000lbs
- CasingDiameter 4", 5" & 6" (with 8" & 10" option for surface casing)
- Pre-Order Drill from EWDAdditional Options4 – 6 Month Leadtime from Date Ordered
- Sand Line Winch1,500’ sand line
- Mud Pump3x2x13 centrifugal 300 gpm/300 psi
- Centerline piston 150 gpm/600 psi
- Air Compressor OptionsVanair / Sullair 600cfm / 250psi @ 1,800rpm
- Vanair / Sullair 733cfm / 150psi @ 2,200 rpm
- Line OilerMany oilers available
- Water InjectionDrill Pipe Packages18 gpm FMC injection pump
- Wire Feeder and Box
- Hydraulic or Gas Welders
- Available through EWD in Mifflinburg, PA USA
Specifications
| Manufacturer | Derex |
| Model | 1340-14 DR (Dual Rotary) Drill Rig |
| Condition | Used |
| Stock Number | 16699 |
| Status | Pre-Order |
