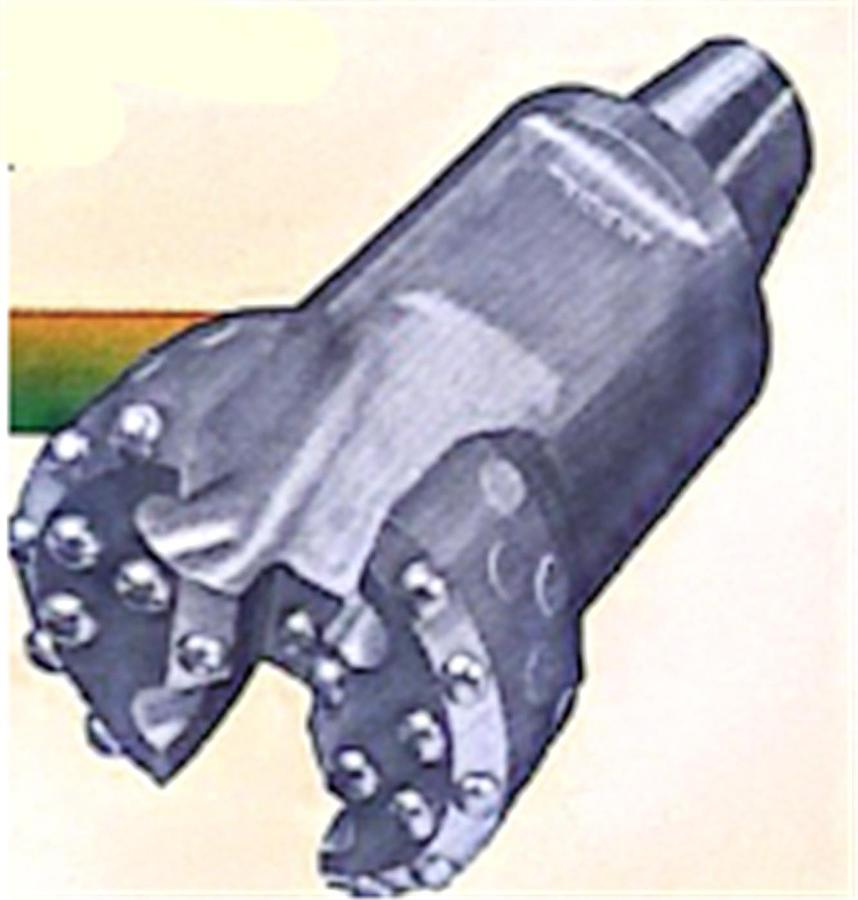

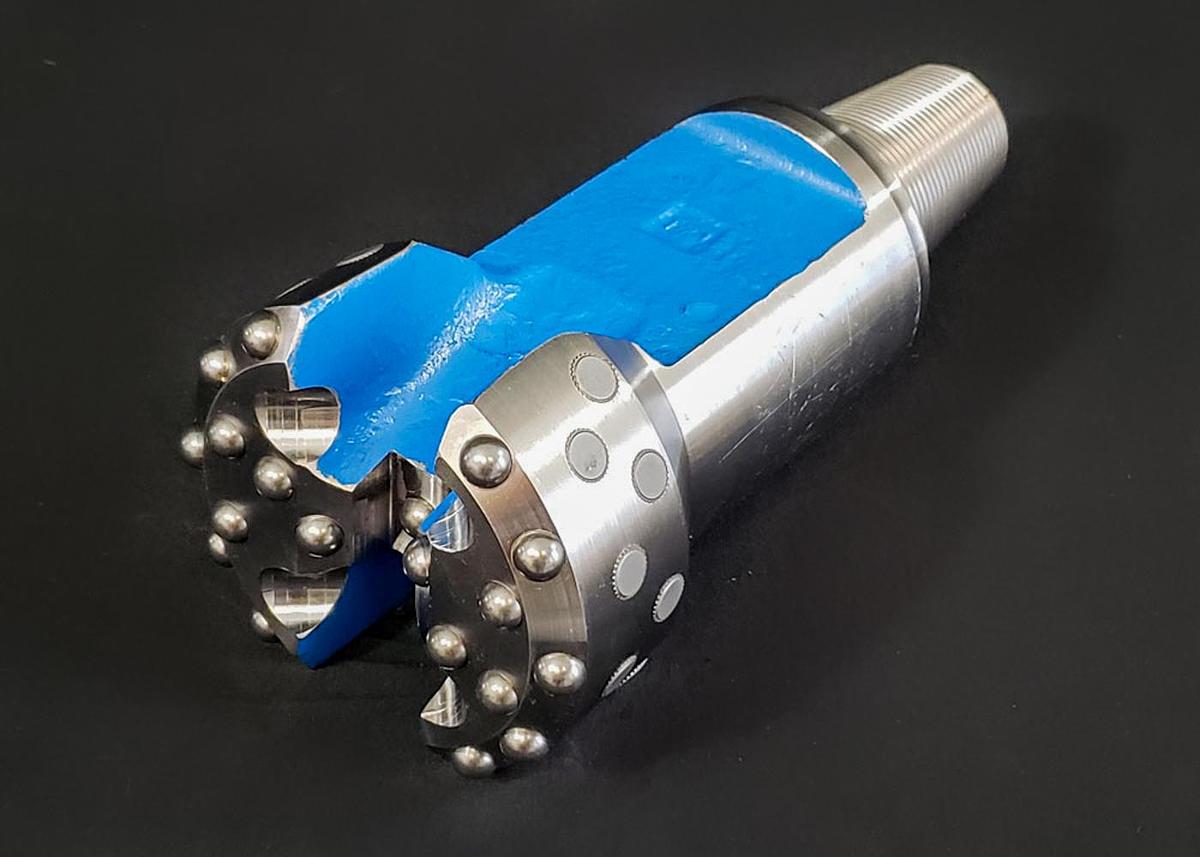

Trident Drop Center Carbide Button Cable Tool Drill Bit

Trident Drop Center Carbide Button Cable Tool Drill Bit

• (7 Threads Per Inch) Pin-Up API Tool Joint Connection
• Made In The USA

Sizes and Part Numbers:

• 8-3/4” Drill Bit, 2-1/4” x 3-1/4” Thread — 875DCD225X325PNM
• 7-3/4” Drill Bit, 2-3/4” x 3-3/4”  Thread — 775DCD275X375PNM
• 8-1/2” Drill Bit, 2-3/4” x 3-3/4” Thread — 85DCD275X375PNM
• 8-1/8” Drill Bit, 2-1/4” x 3-1/4” Thread — 8125DCD225X325PNM

Design & Application:

• Designed For Drilling In Unconsolidated Formations

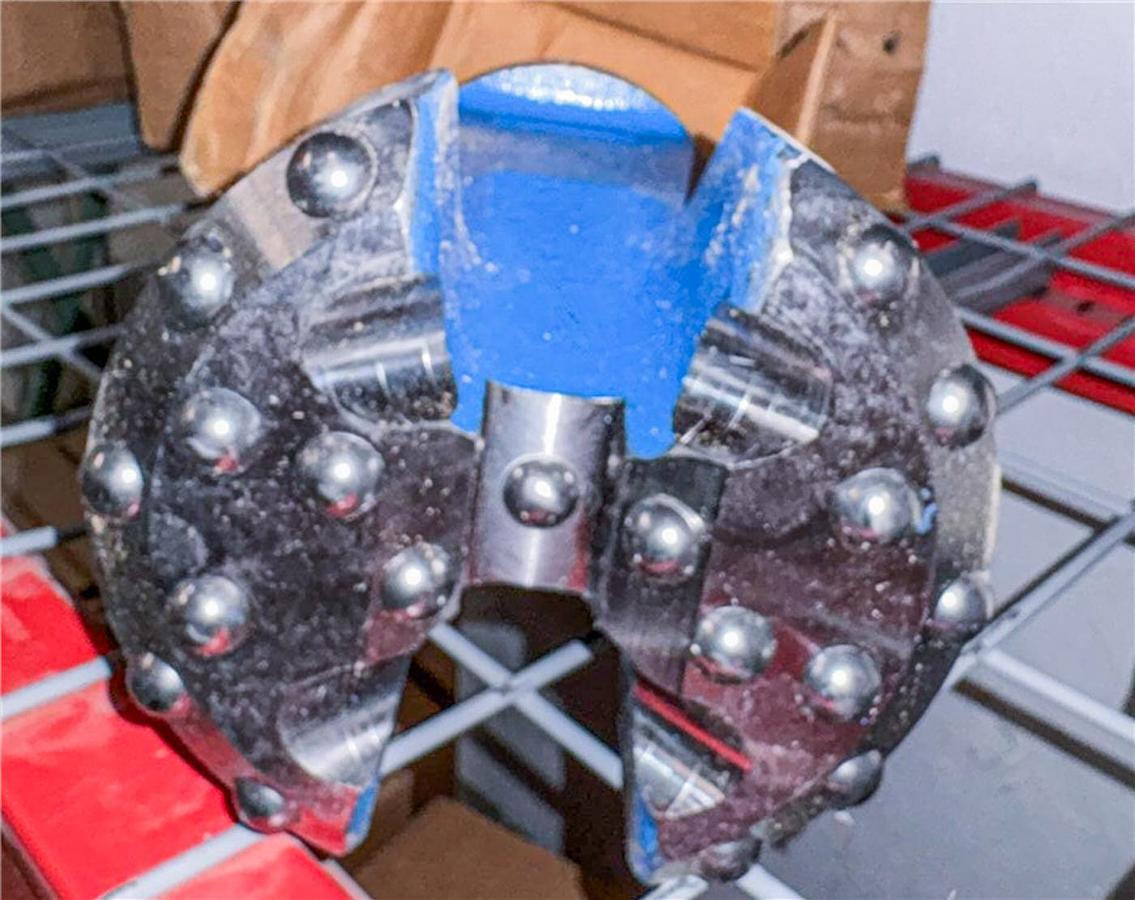

• Drop Center Design With Full Gauge And Concave Face
• Concave Face Allows Cuttings To Escape Faster
• Higher Unit Load On Impact For Improved Drilling Performance
• Helps Keep The Bit Centered For A Straighter Hole

Suitable For A Wide Range Of Formations:

• Granite And Basalt
• Limestone
• Hard Sandstone
• Dolomite
• Hard Pan Mixed With Hard Rock

Availability:

• No stock as of 8/25/2026, but available for preorder (estimated 6-week lead time).

Location:

• EWD Facility – Mifflinburg, Pennsylvania, USA
