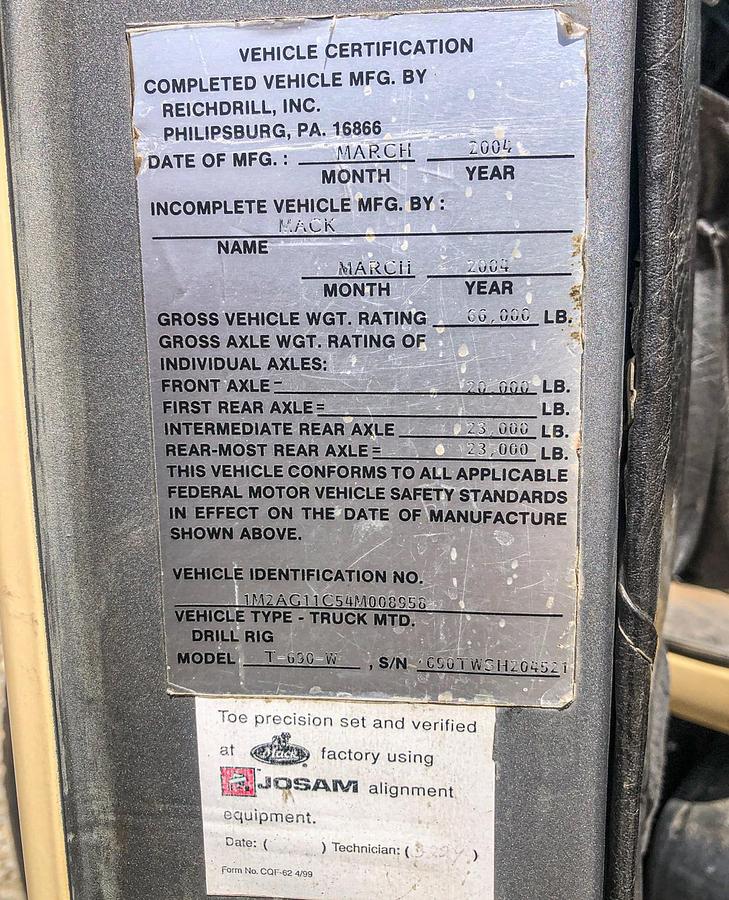

2004 Reichdrill T690WS Drill Rig

2004 Reichdrill T690WS Drill Rig

Rebuilt In 2020 With Approximately 4,500 Hours Since Rebuild

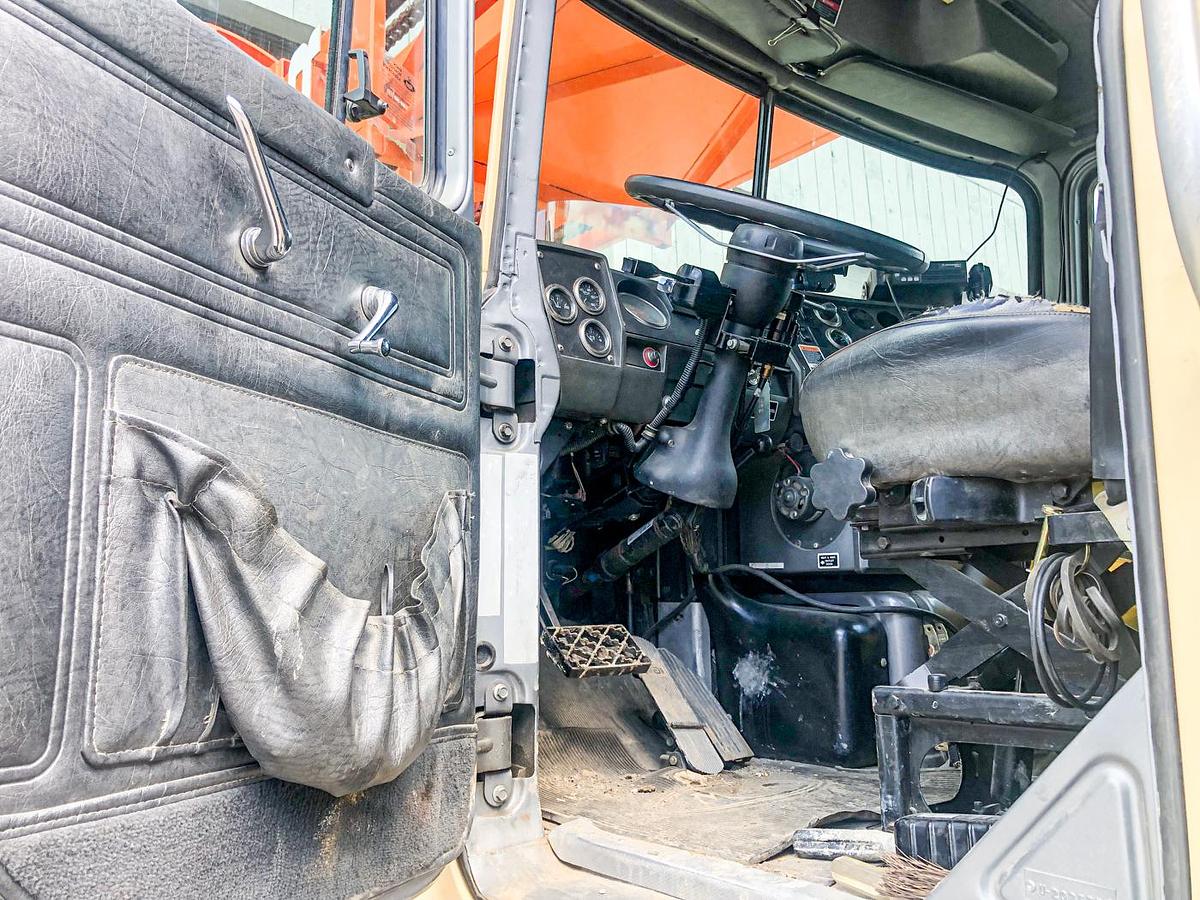

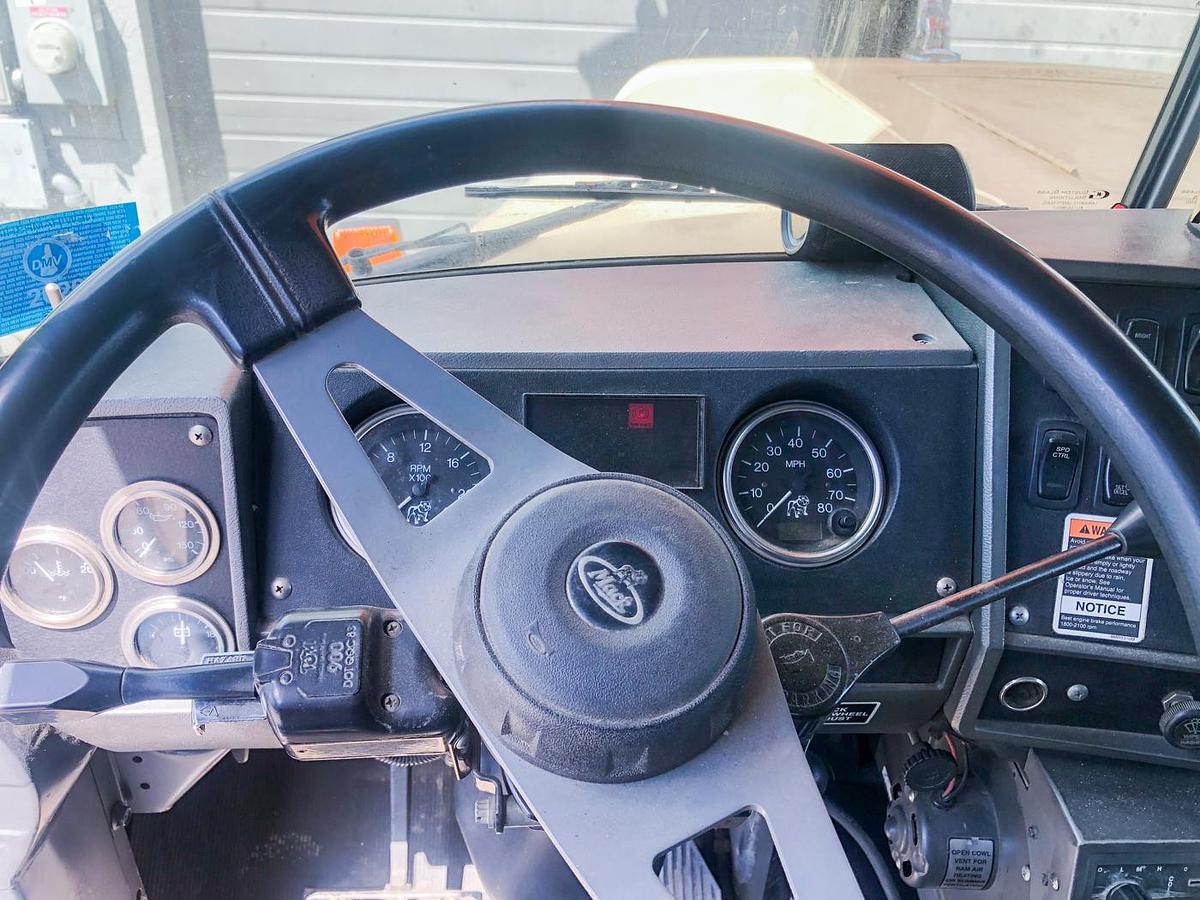

Mounted On A 2004 Mack DM690S Truck:

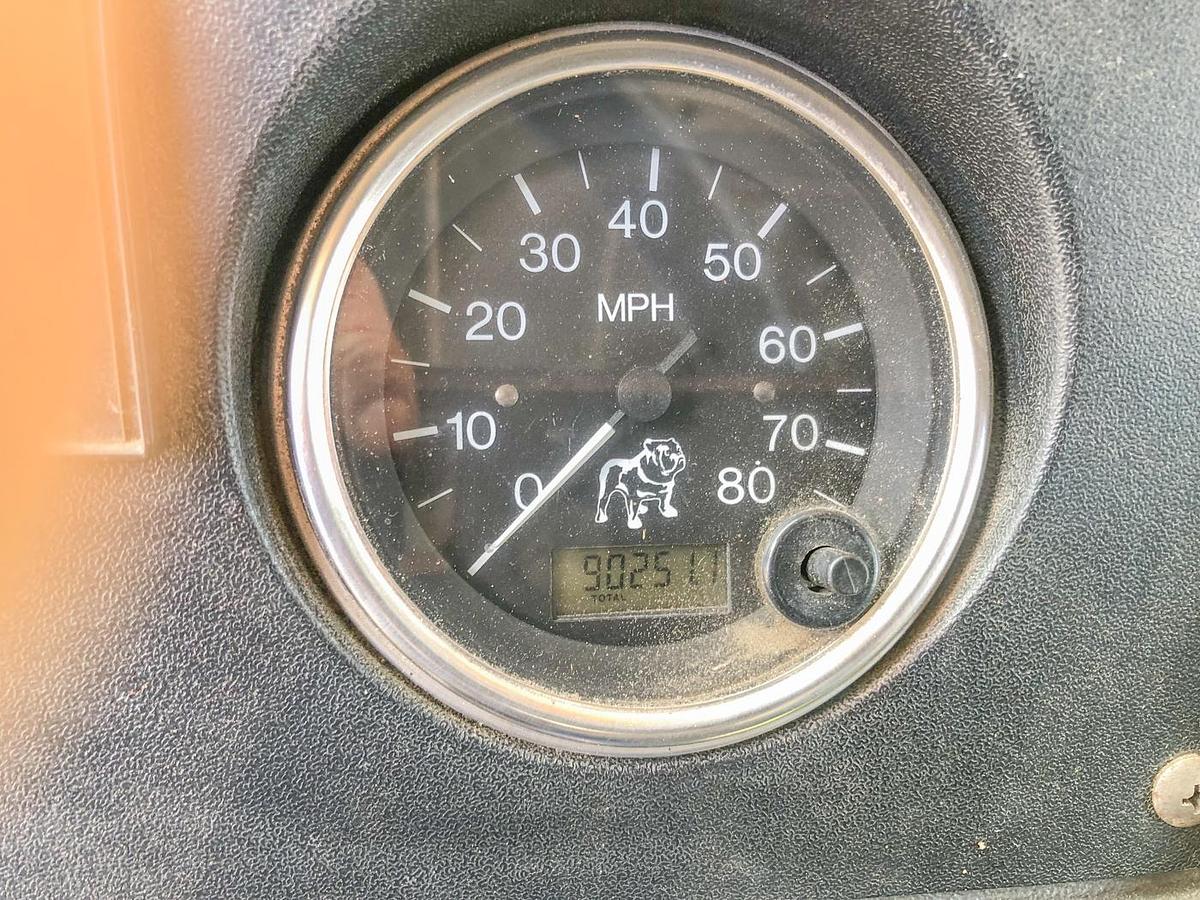

• Carrier Mileage: 92,200 Miles
• Drill Rig Frame Hours: 17,000 Hours
• 300 HP Mack Maxidyne Engine
• Mack Transmission
• Jacobs Engine Brake
• 50,000-Lb. Rear Axles
• 20,000-Lb. Front Axle
• Installed Tires in 2025 are in Very Good Condition with Aluminum Rims

Deck Engine:

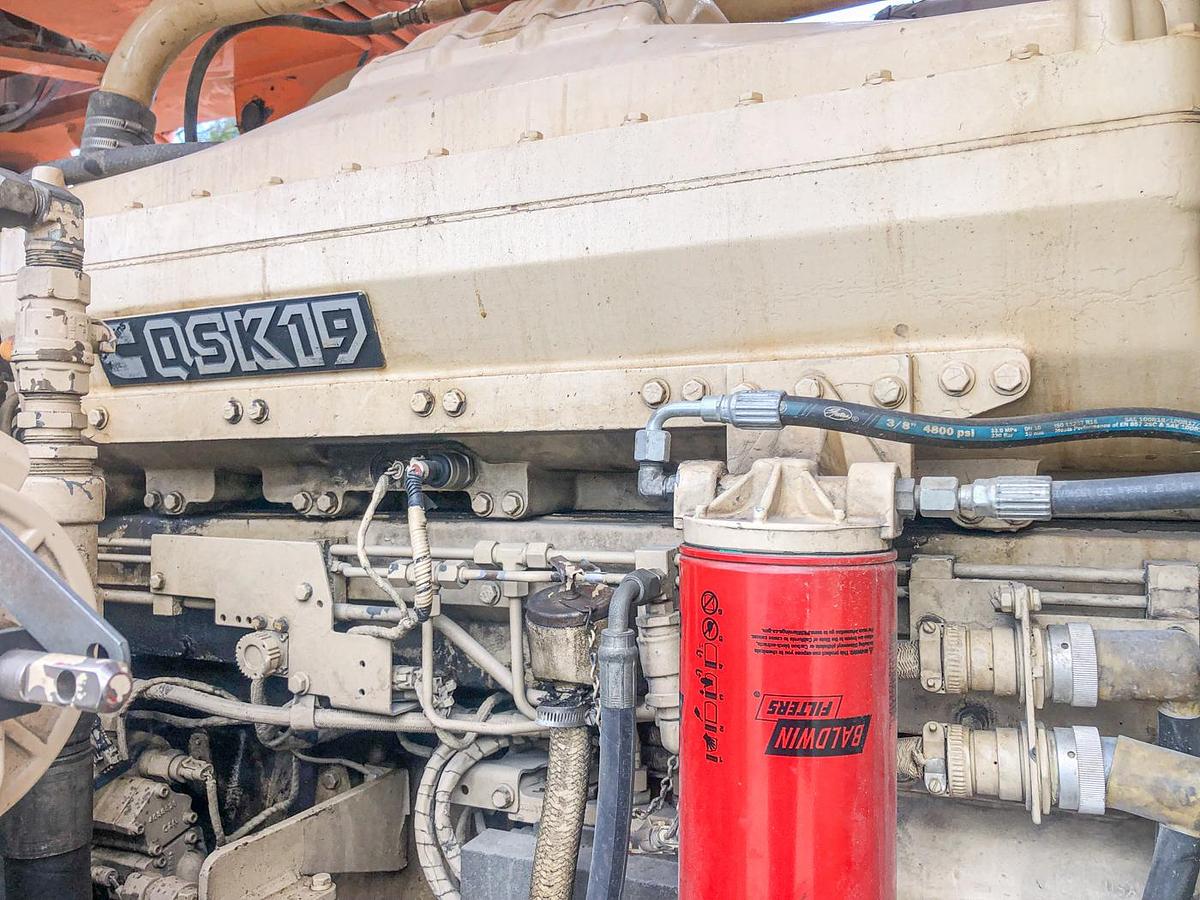

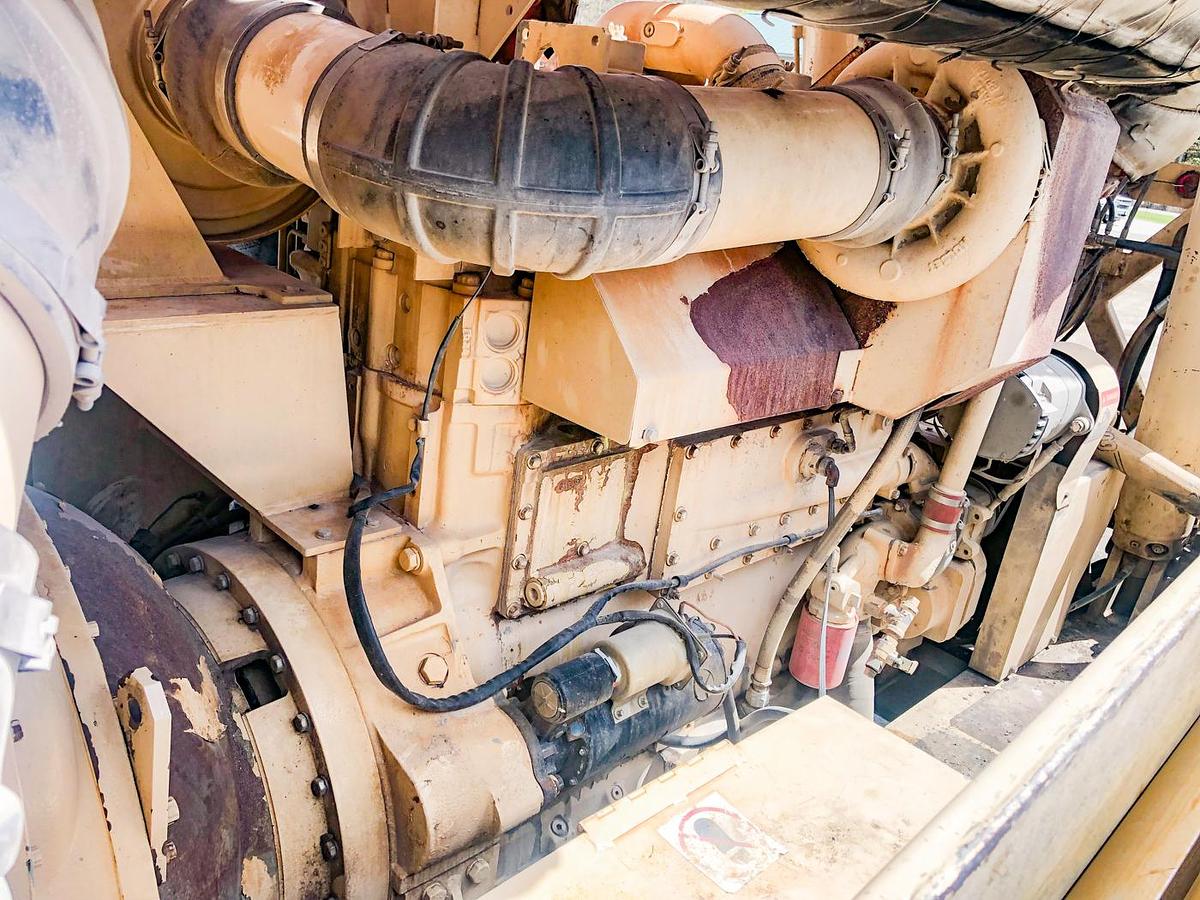

• Cummins QSK19 Diesel Deck Engine
• Serial Number: 37209151

Air Compressor:

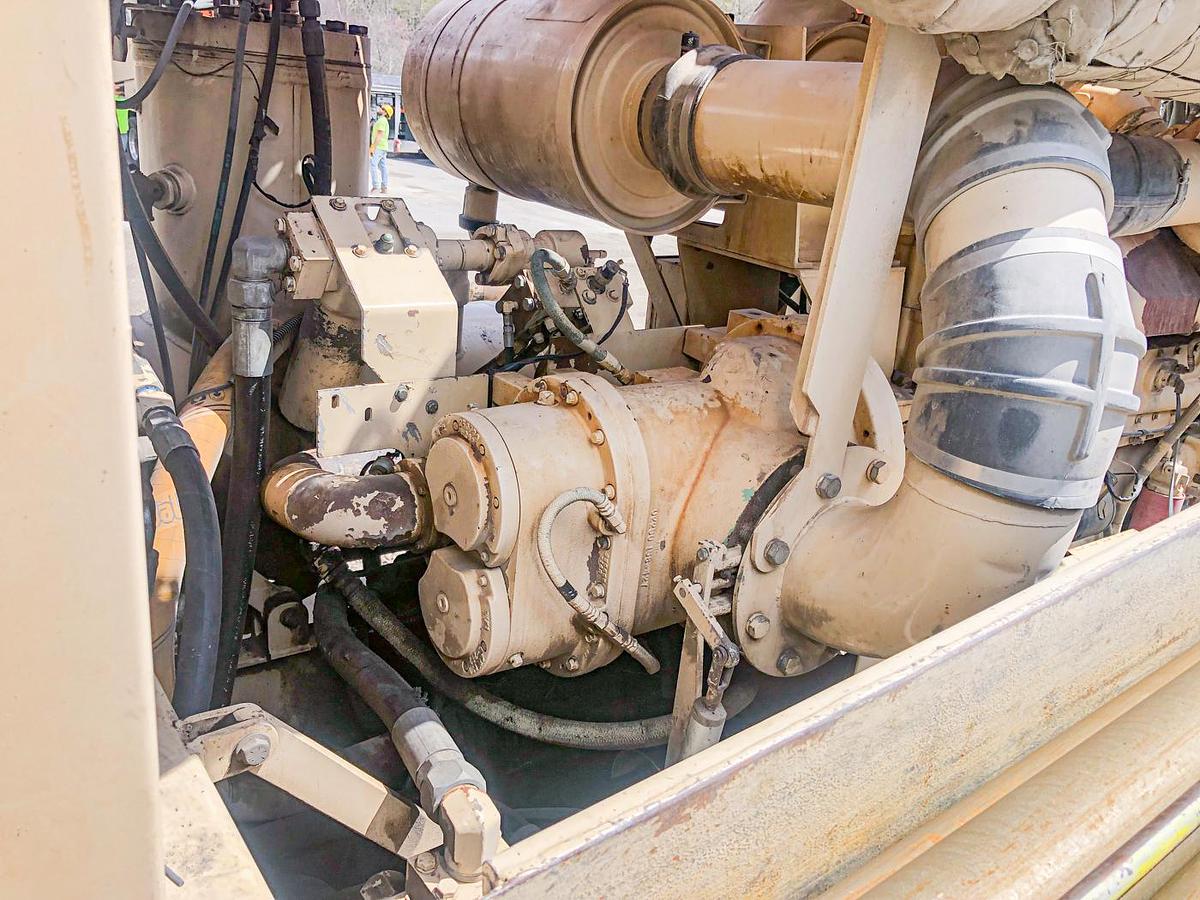

• Sullair Air Compressor
• 1,085 CFM @ 350 PSI @ 1,800 RPM
• Rating Verified On Test Stand

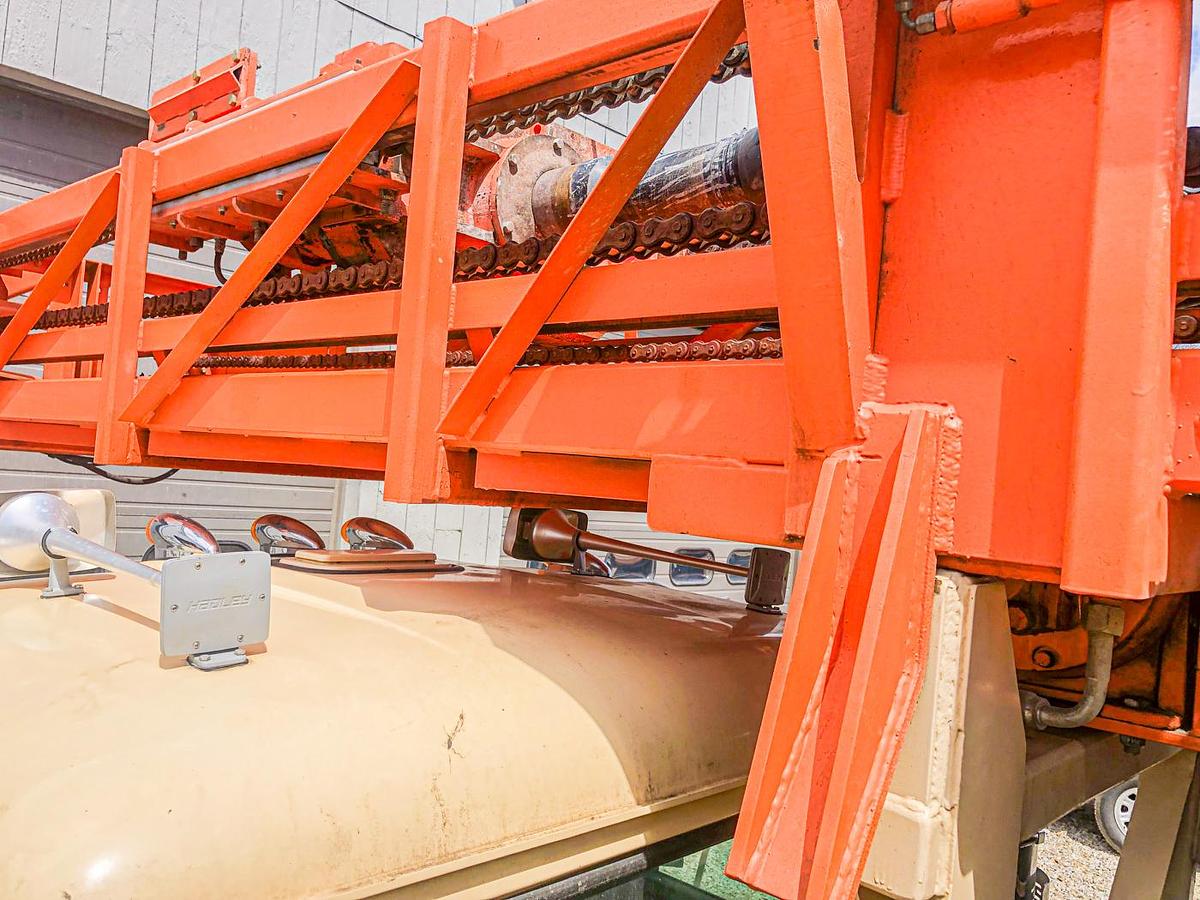

Mast & Rotary:

• 34-Ft. Mast
• 28-Ft. Stroke
• 22-In. Table Opening
• Table Bushings: 22 In. x 10 In.
• Head Speed: 0–108 RPM @ 57,500 In.-Lb Torque:.
• Pulldown Pressure: 35,000 Lbs.
• Hoist Capacity: 30,000 Lbs.

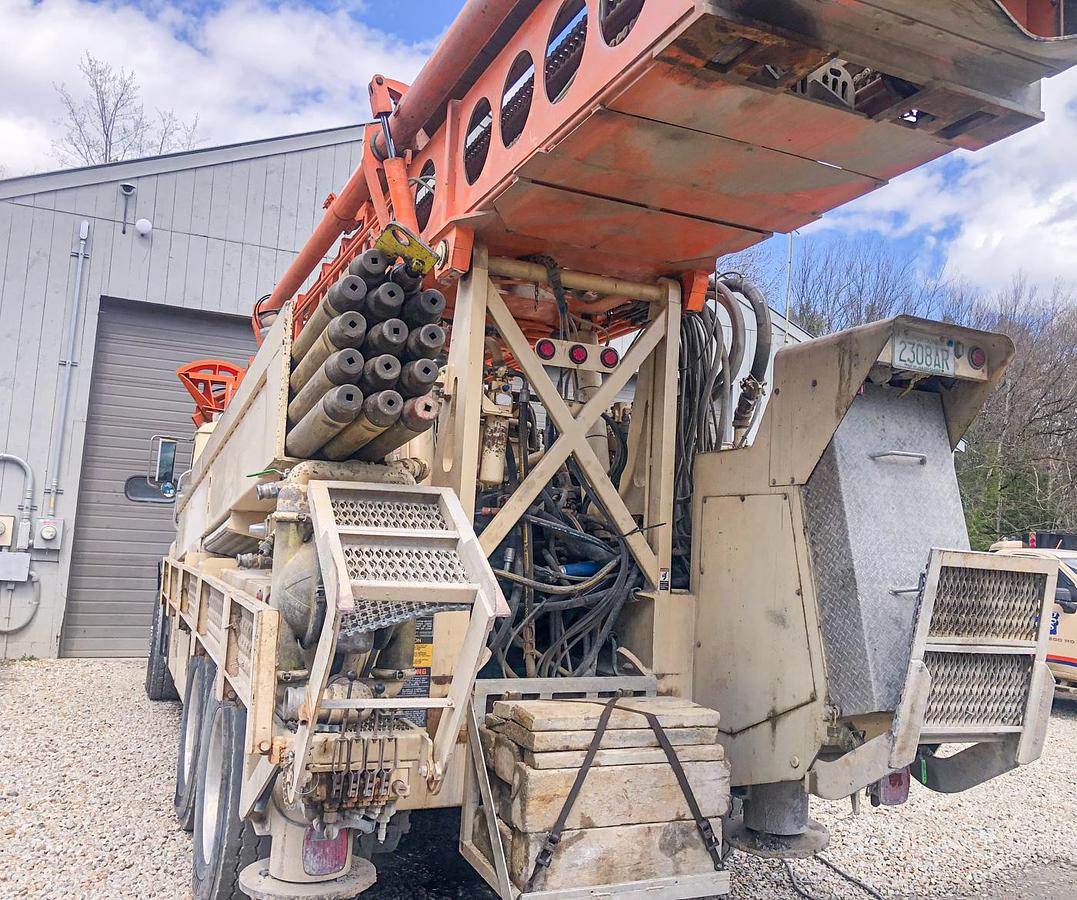

Rod Handling:

• 6-Rod Carousel Barrel Loader
• Designed For 4.5-In. x 20-Ft. CP-Style Drill Pipe
• Rod Box Capacity: 14 Drill Pipes, 4.5 In. x 20 Ft.
• Aluminum Block Rack
• Tool Holders For 8-In. Hammer And Stabilizer On Carousel Side
• 8-In. Stabilizer Holder In Mast
• 6-In. Hammer Holder In Mast

Water & Mud Systems:

• CAT 25 GPM Water Injection Pump
• Wilden 3-In. Diaphragm Mud Pump Mounted Under Rod Box

Cooling & Hydraulic System:

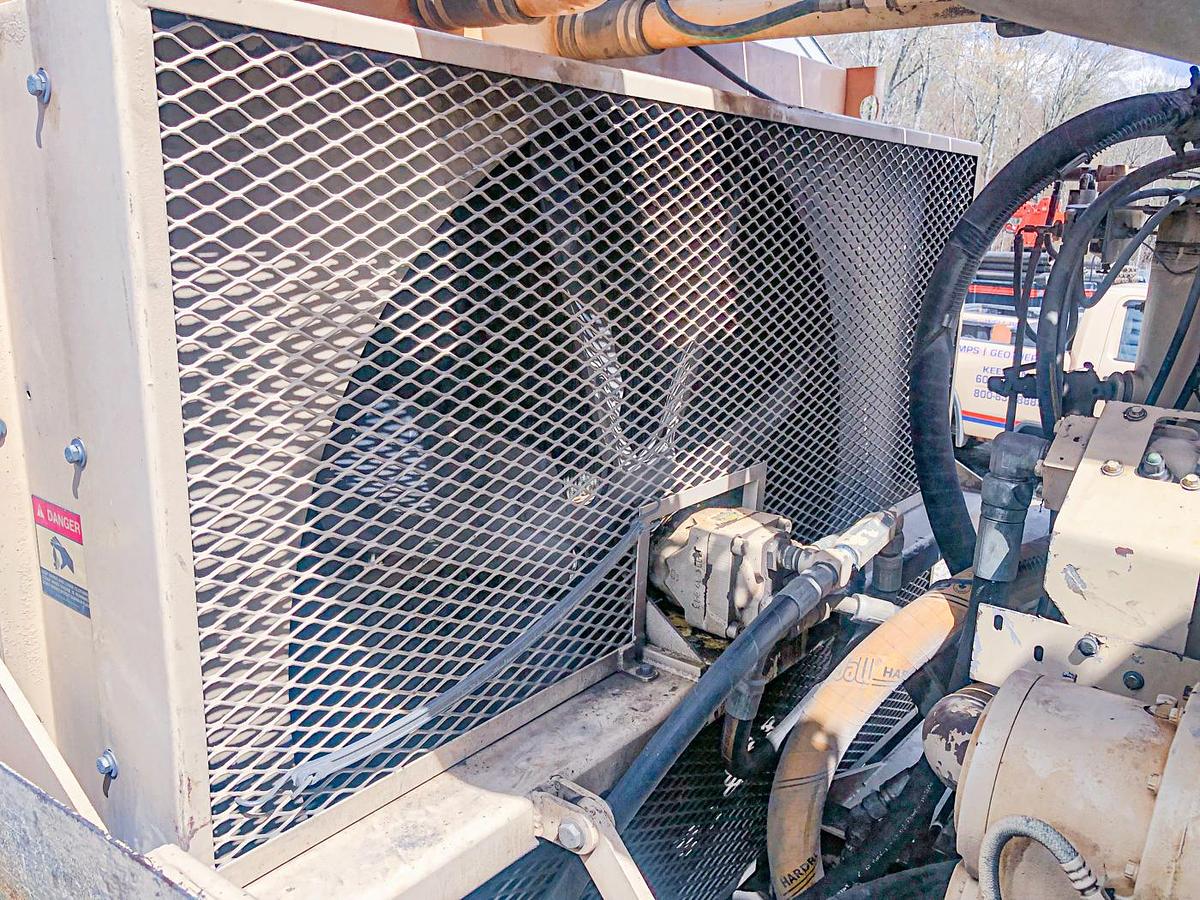

• MASABI Multicore Cooler For Ambient Temperatures Up To 110°F
• 55 GPM Main Hydraulic Pump

Hydraulic Oil: CITGO Clarion

Engine Oil: 5W-40 Full Synthetic

Compressor Oil: Full Synthetic

Body & Equipment:

• Rig Fuel Capacity 285 Gallons
• Heavy-Duty Leveling Jacks
• Helper's Platform
• Hinged Side Box Platform
• Custom Tool Boxes
• Heavy-Duty Leveling System
• High-Clearance Design - 18 In

Location:

Eastern Region, USA
