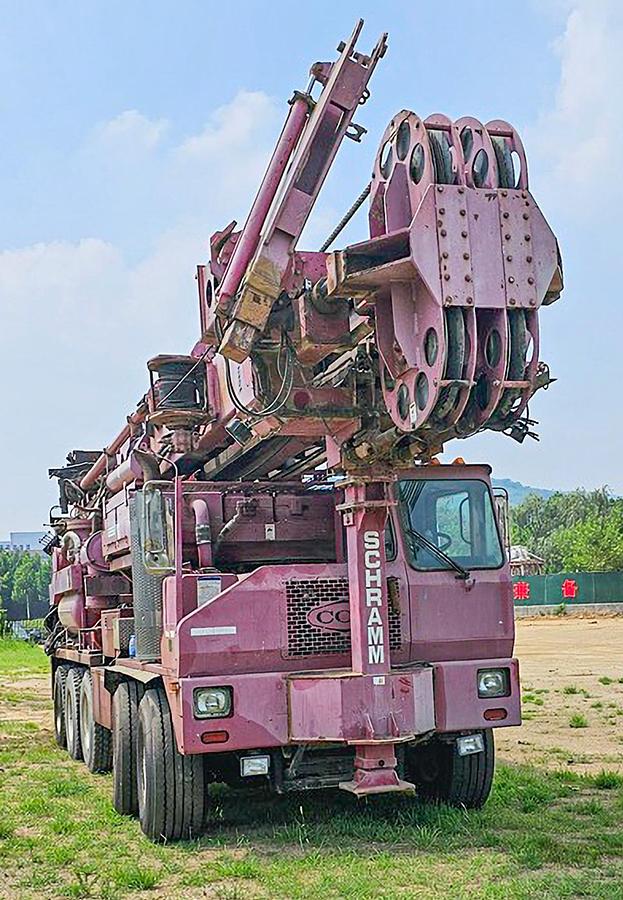

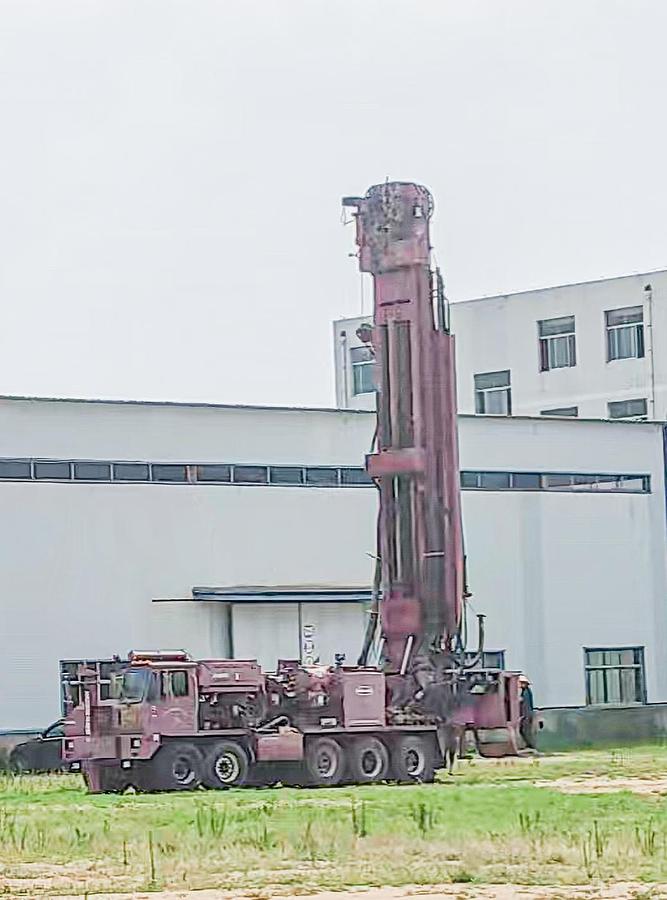

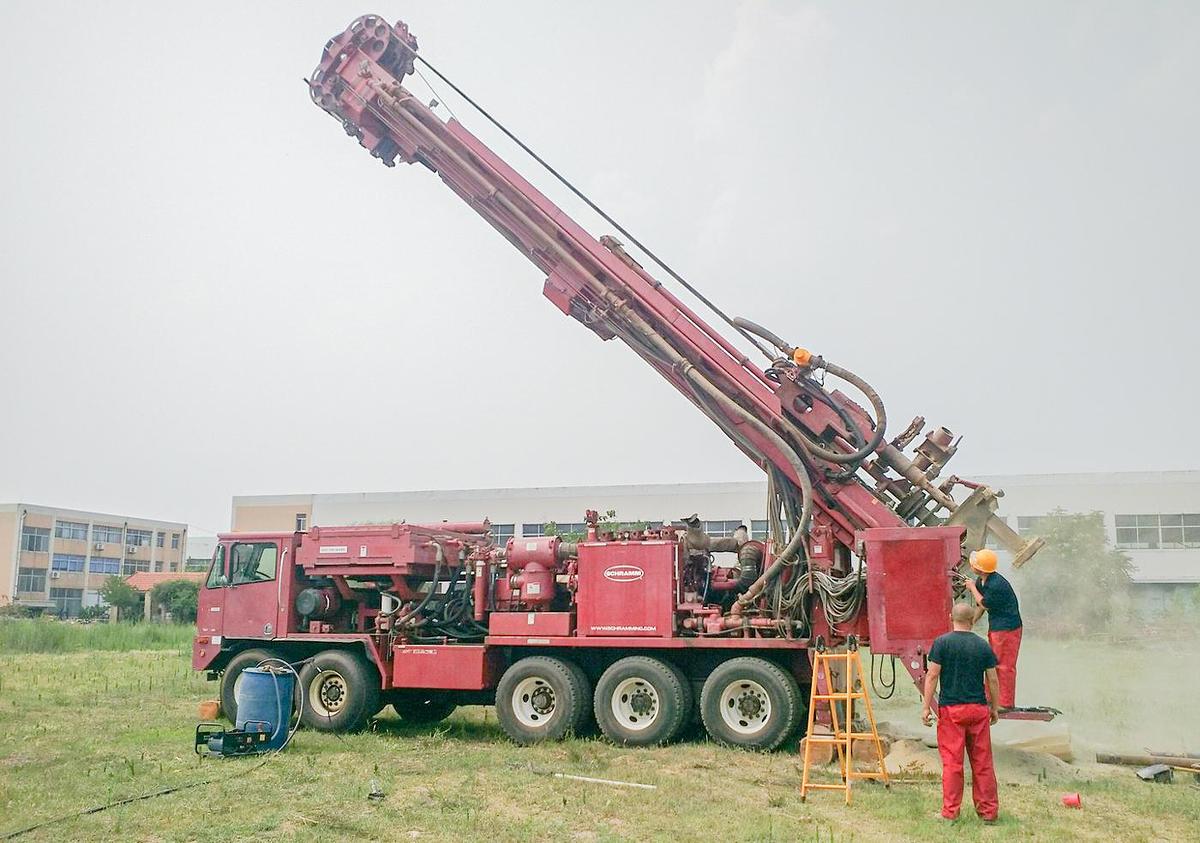

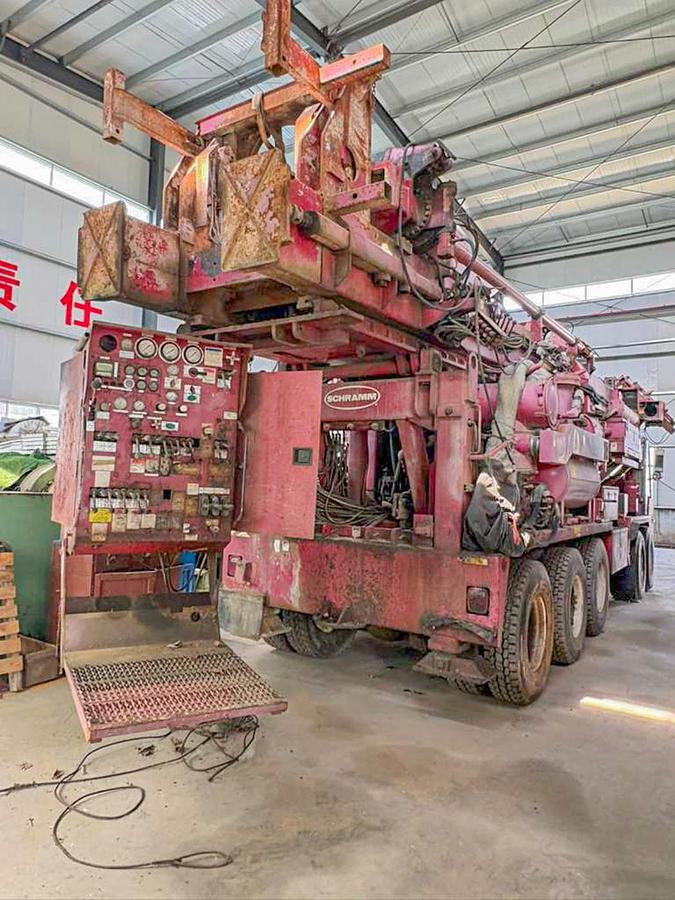

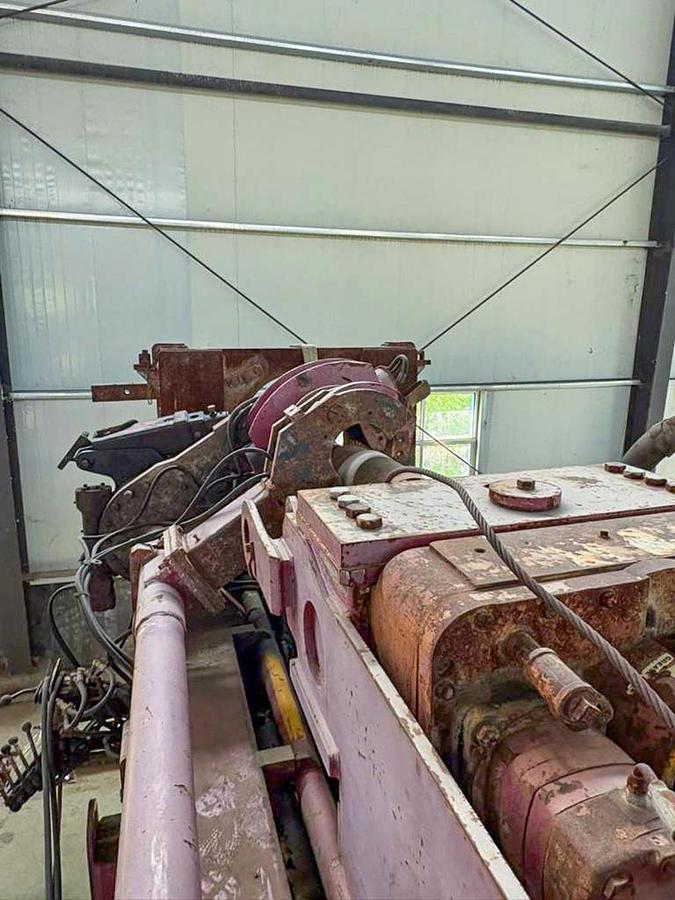

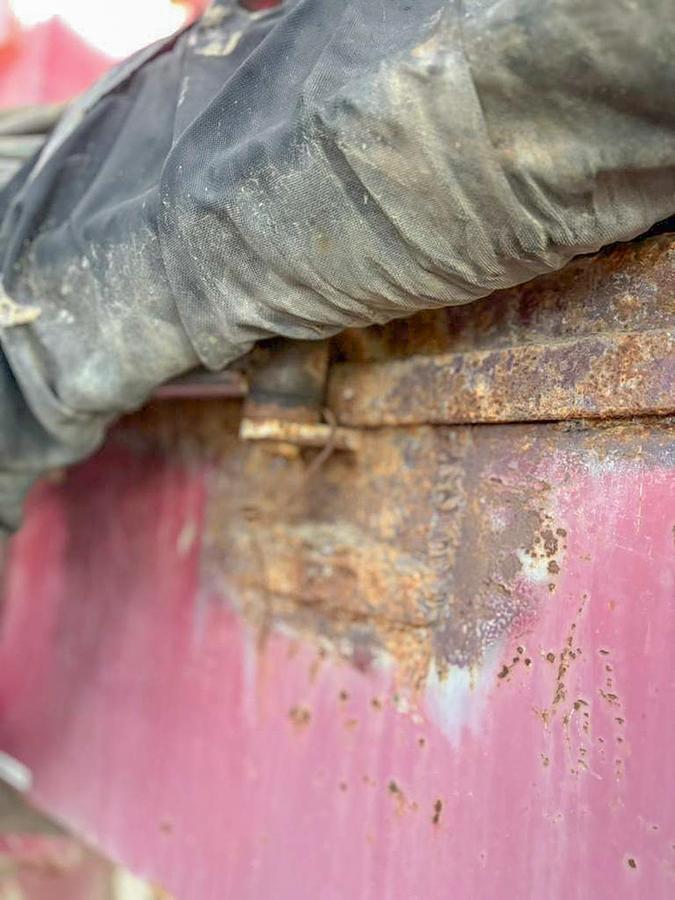

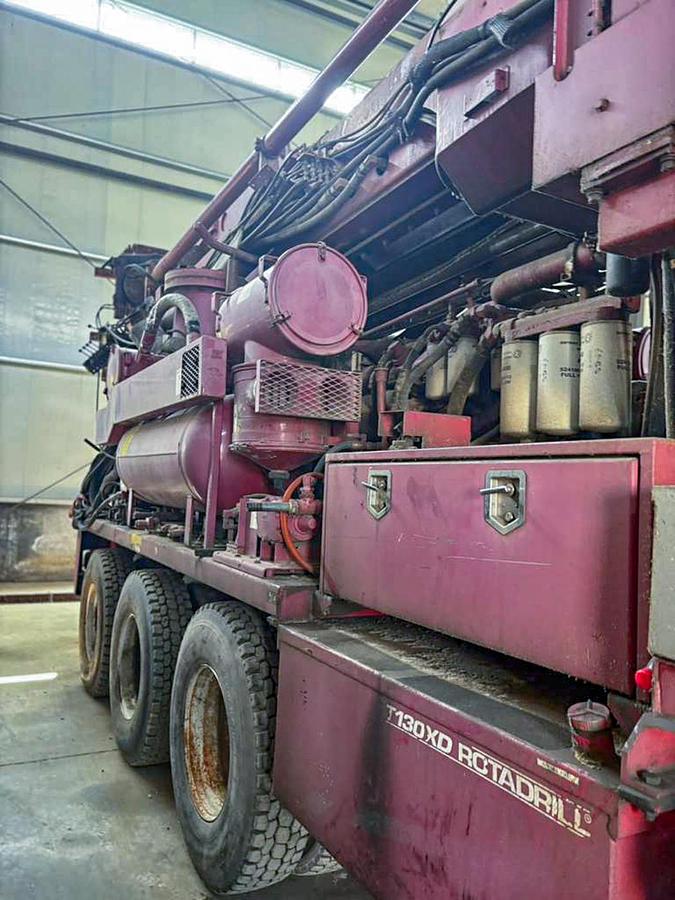

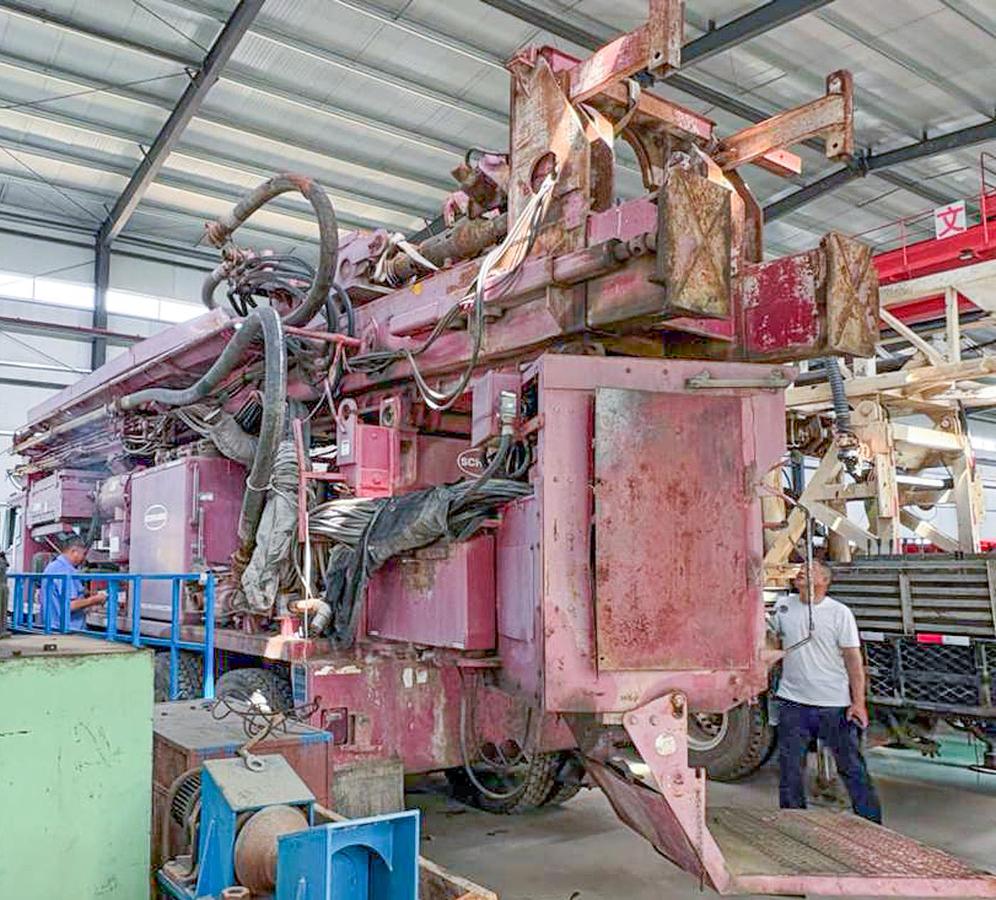

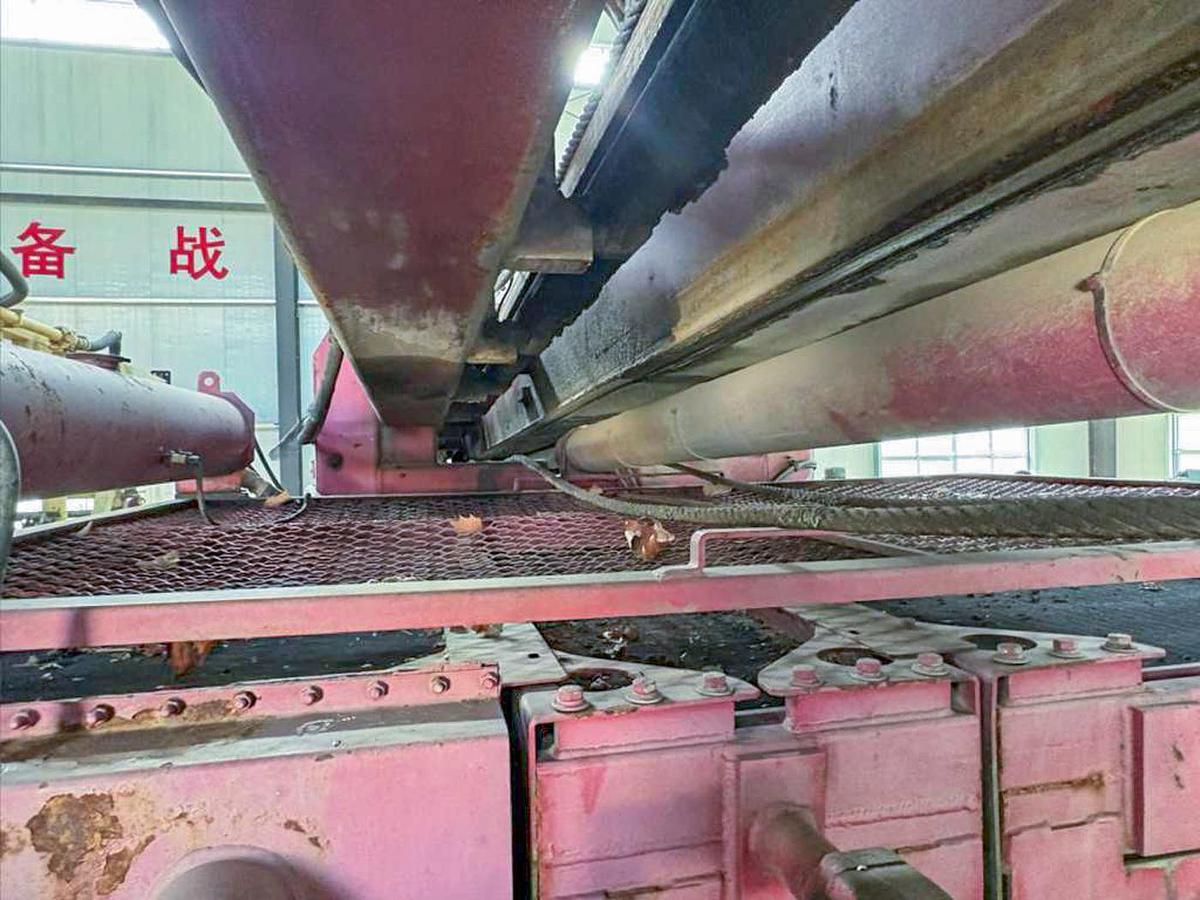

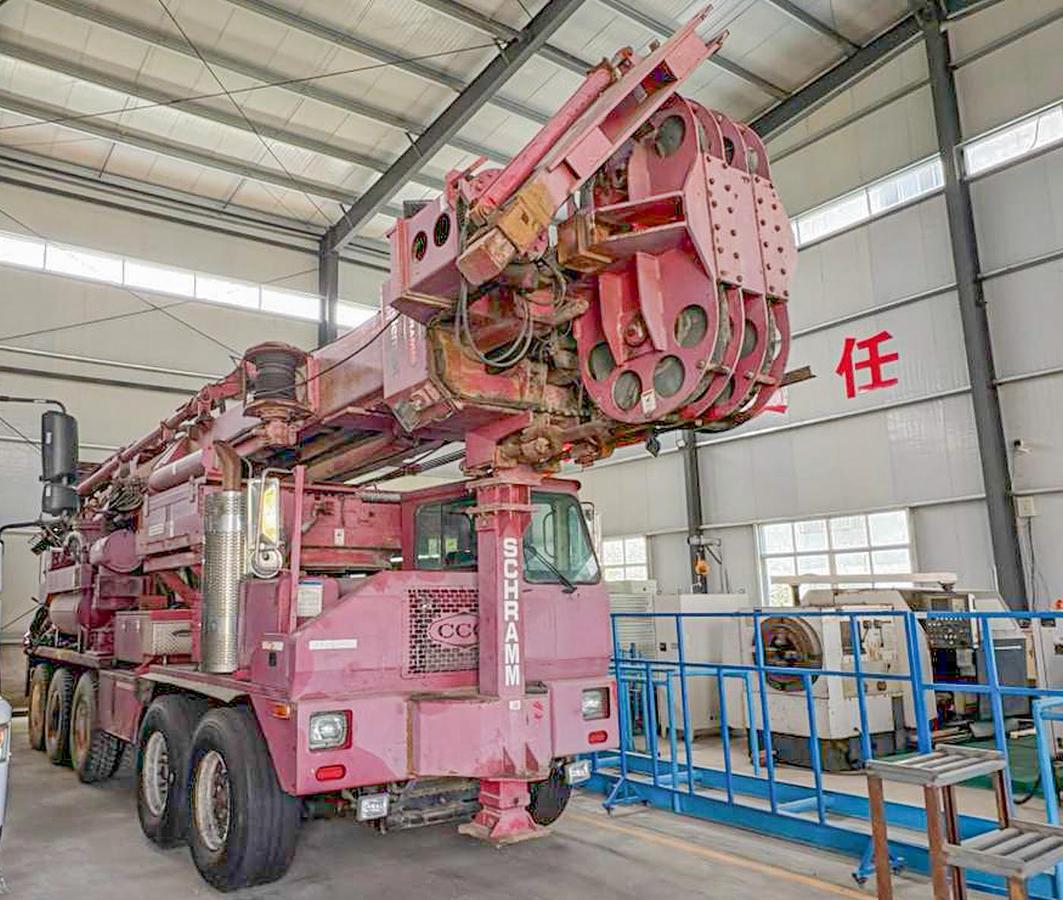

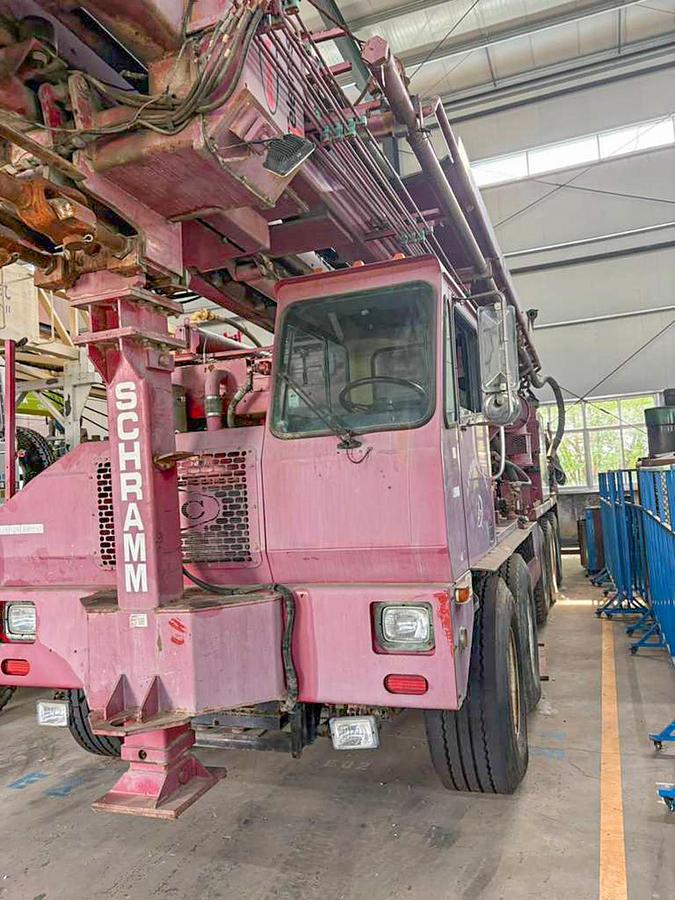

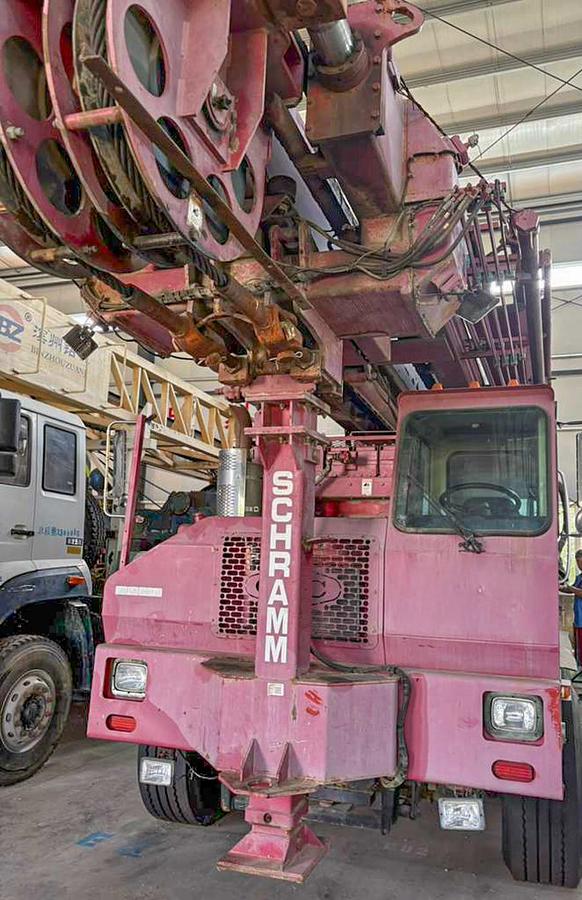

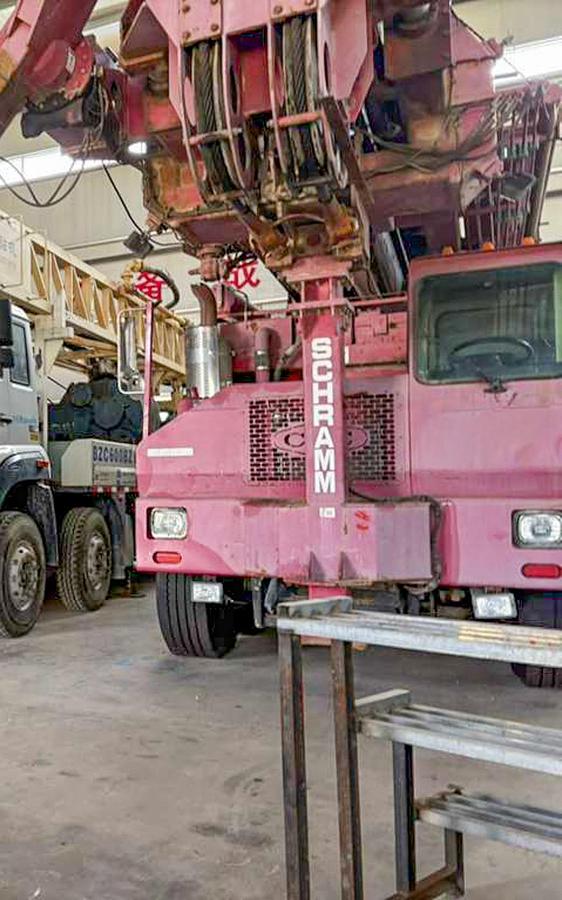

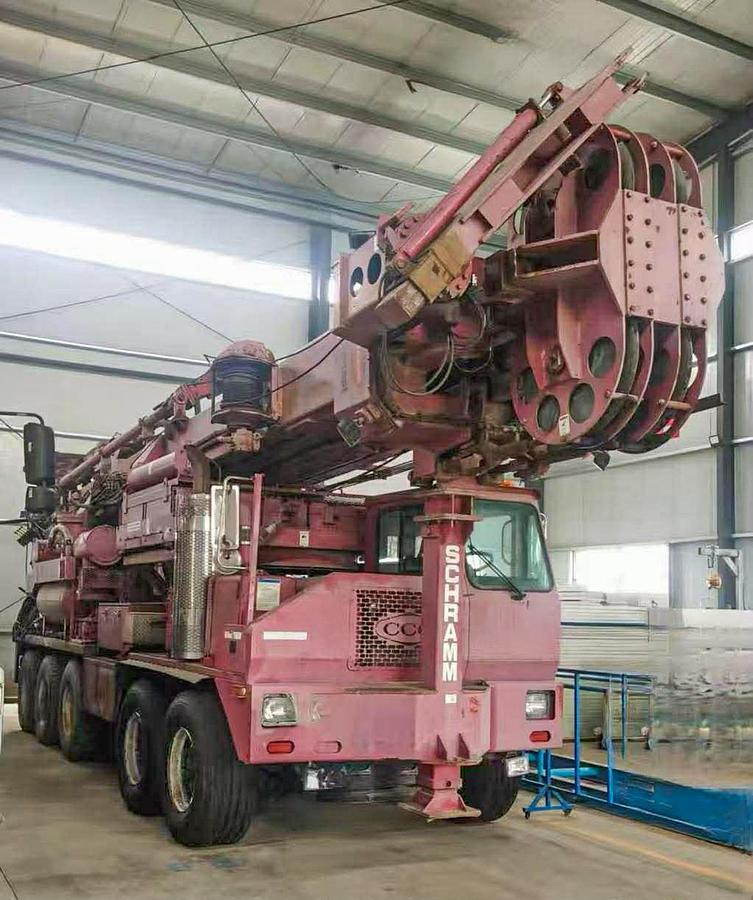

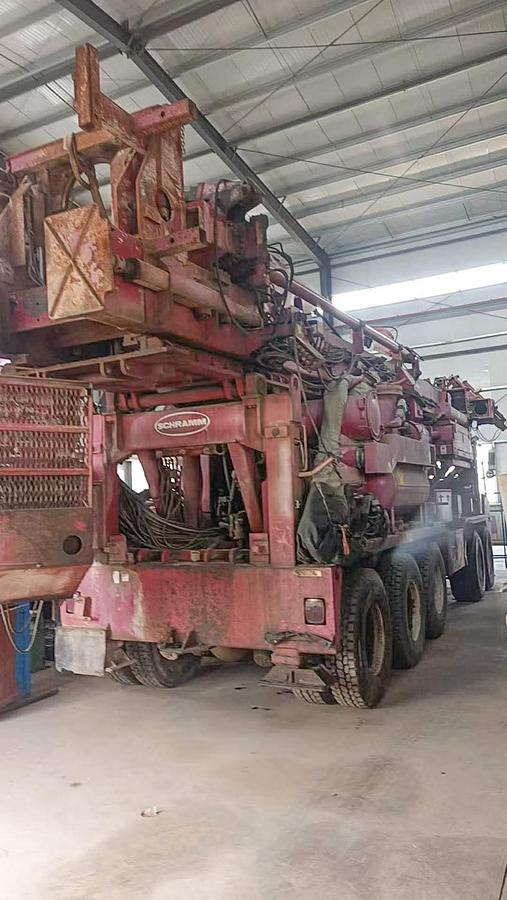

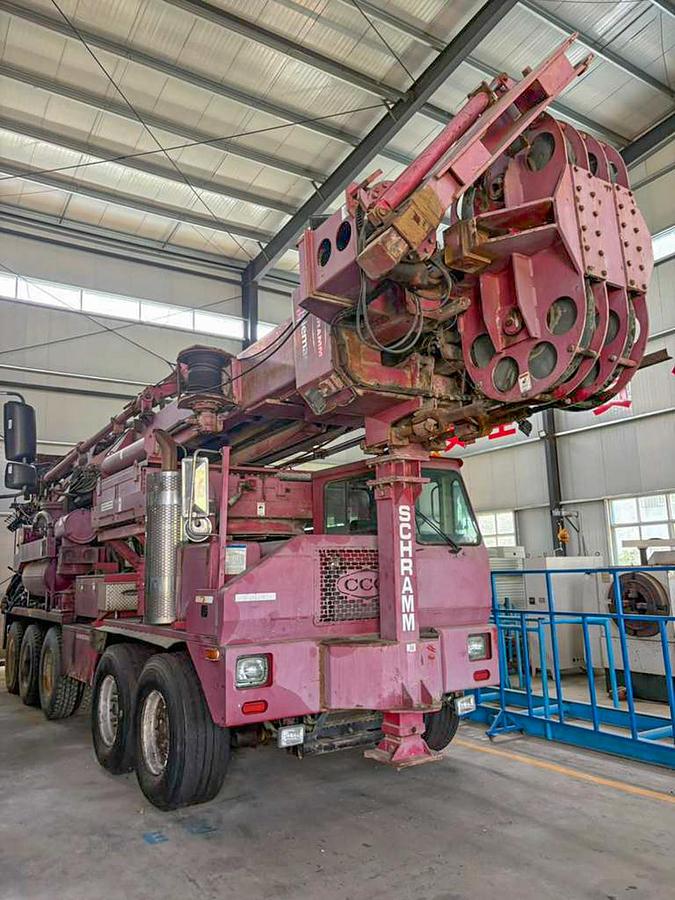

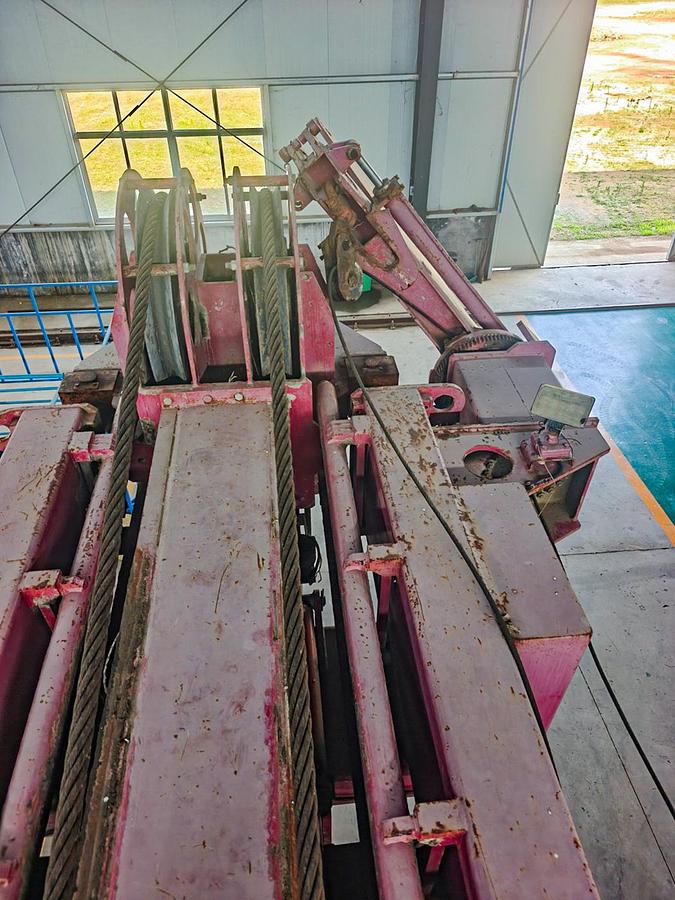

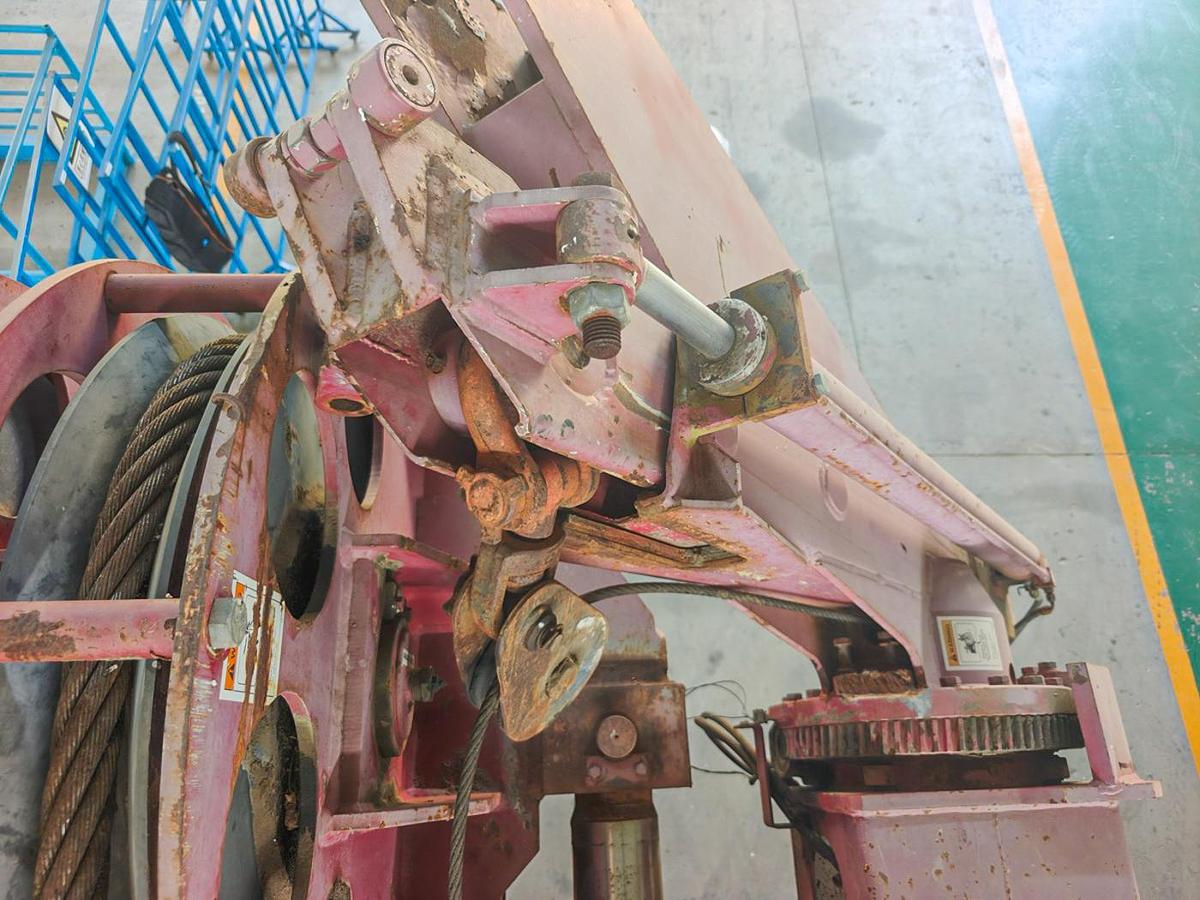

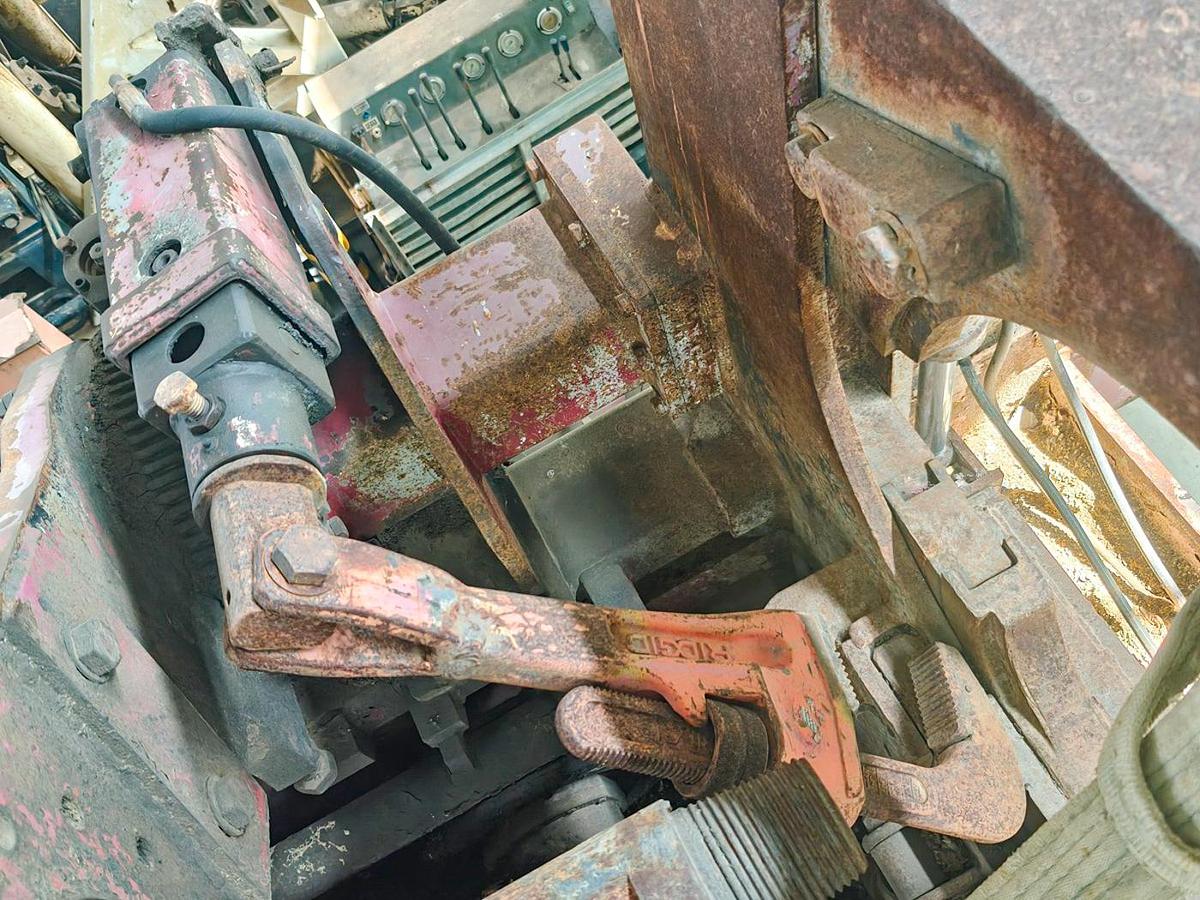

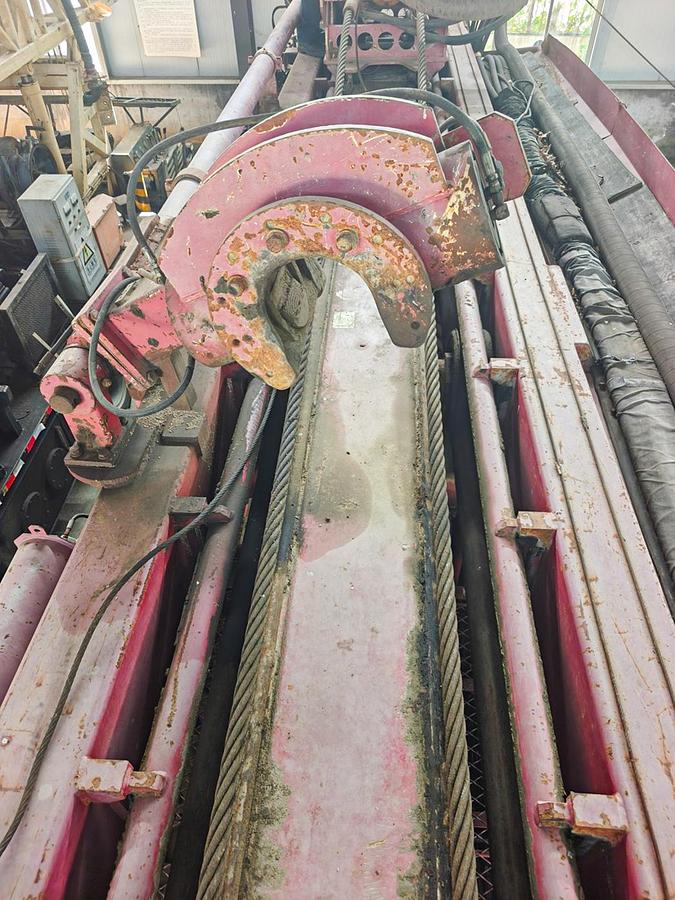

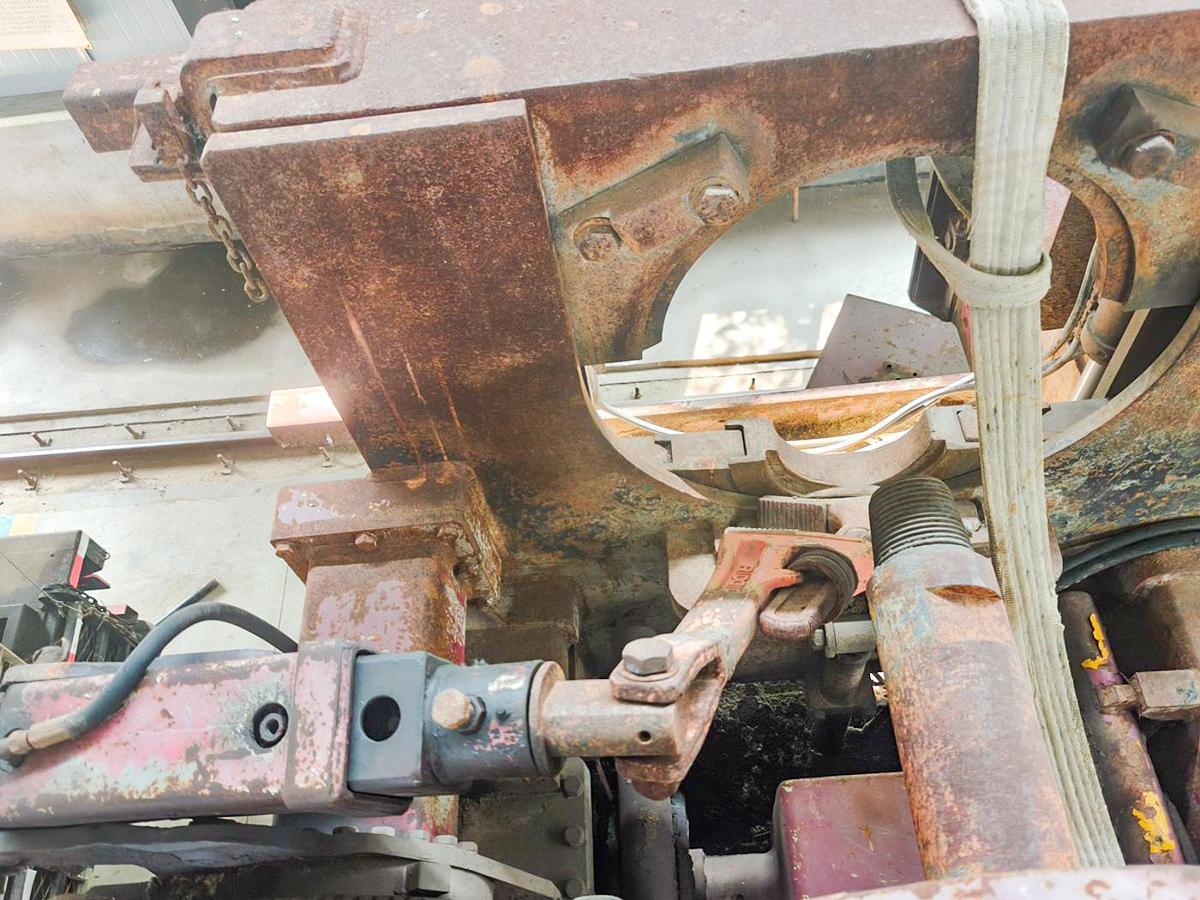

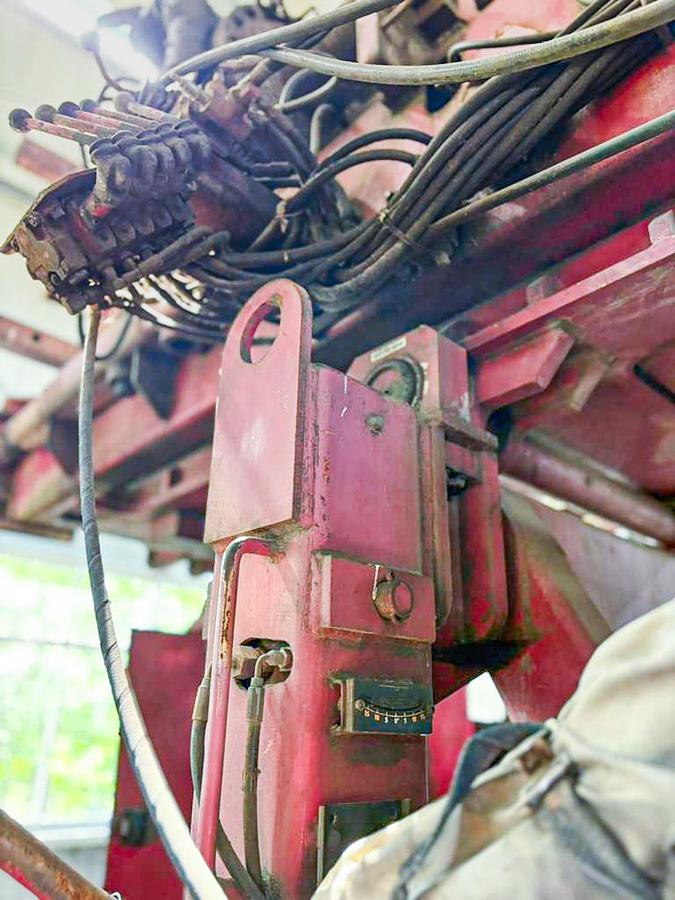

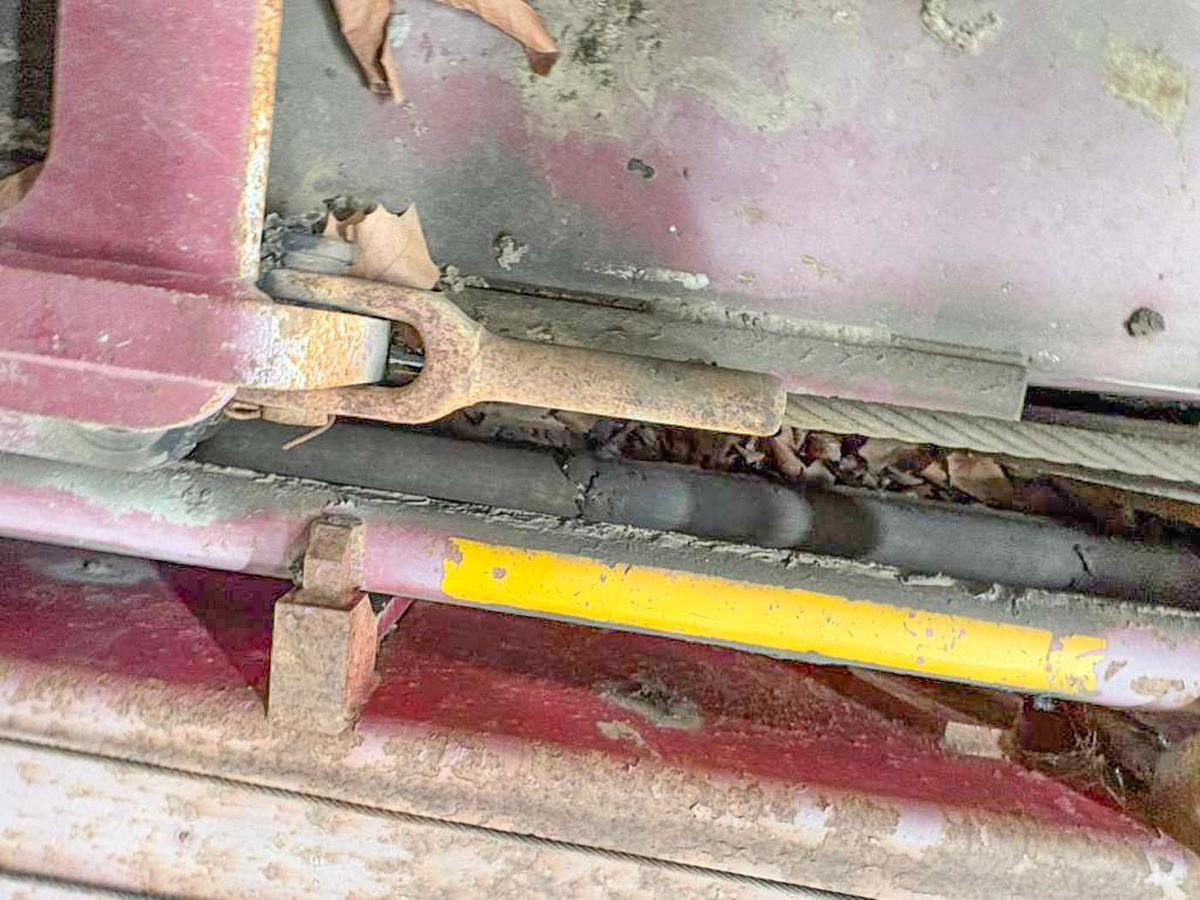

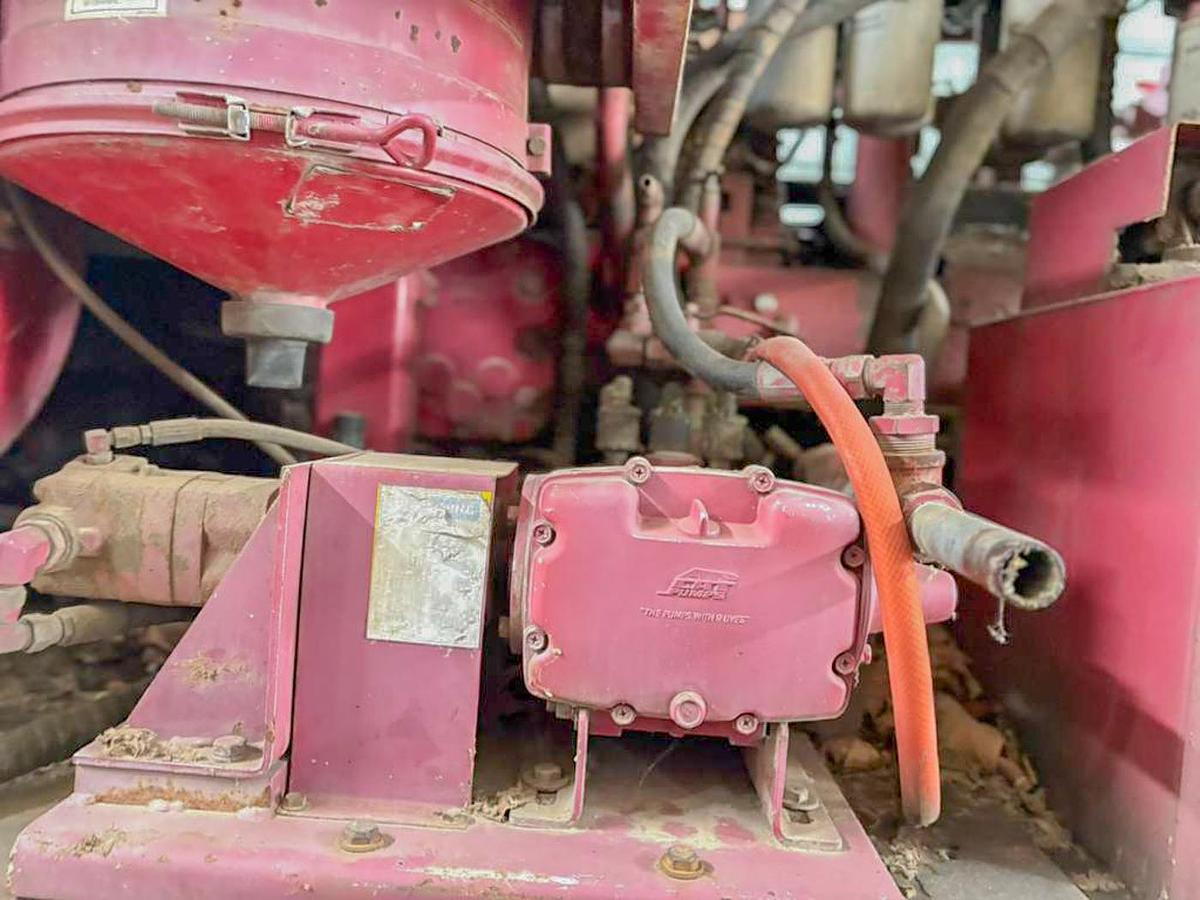

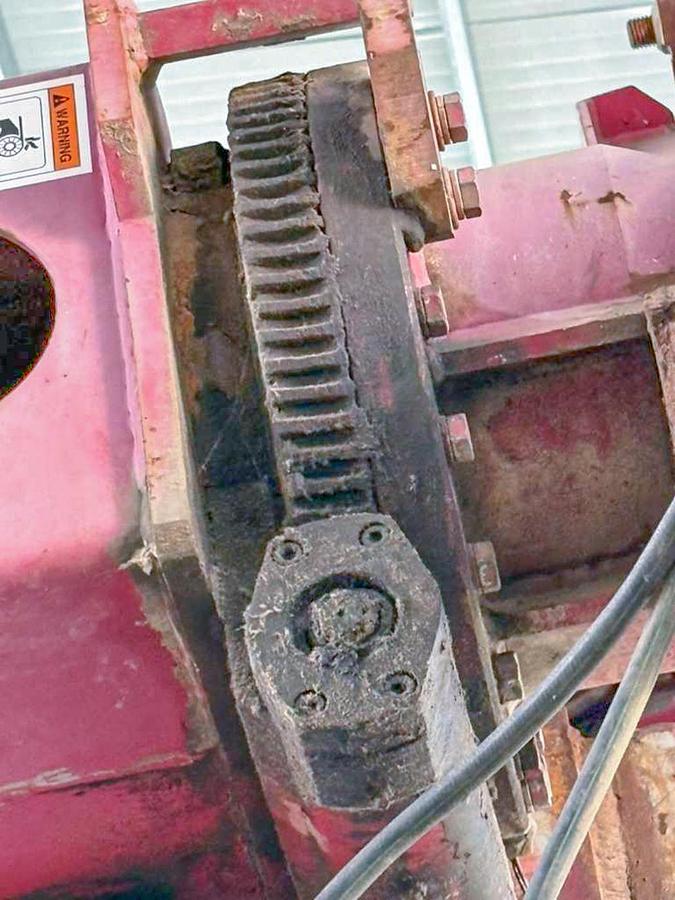

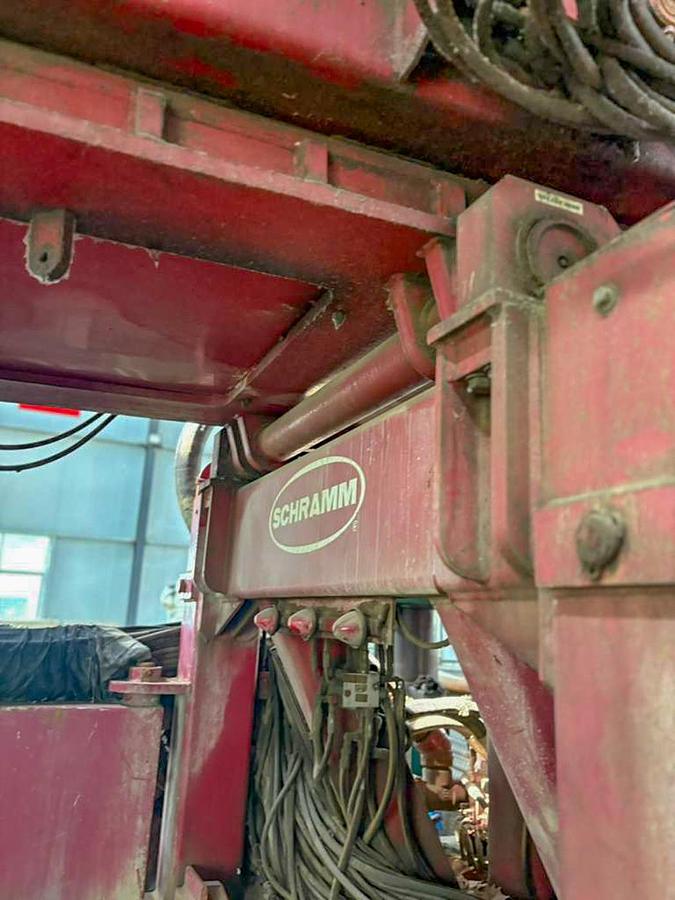

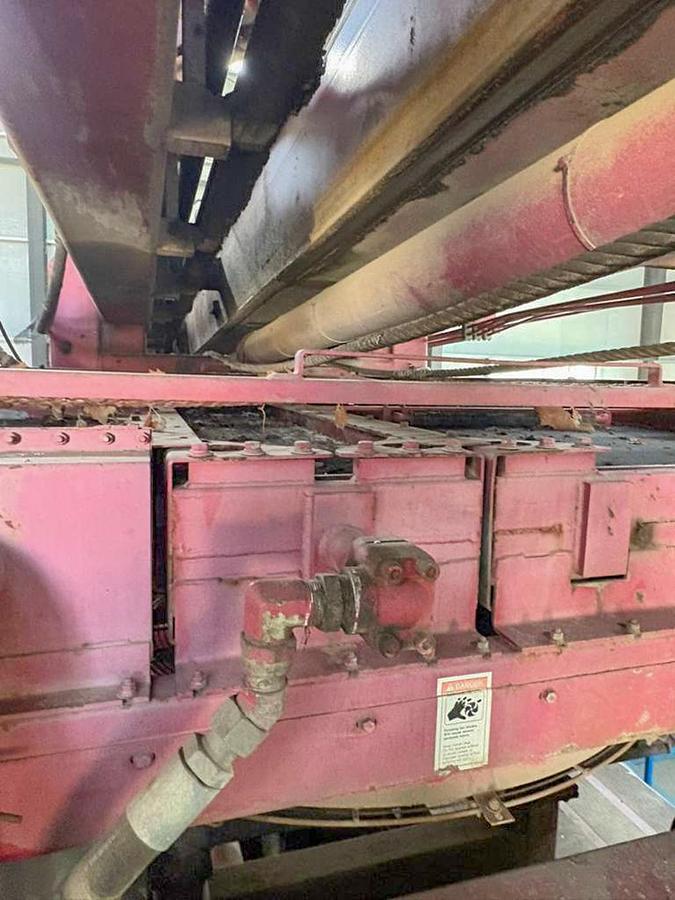

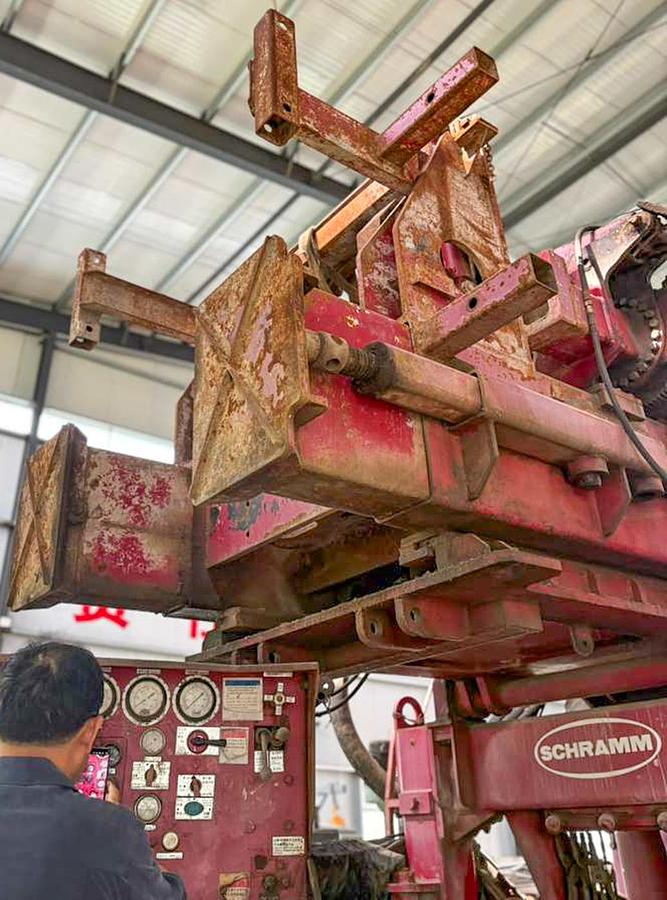

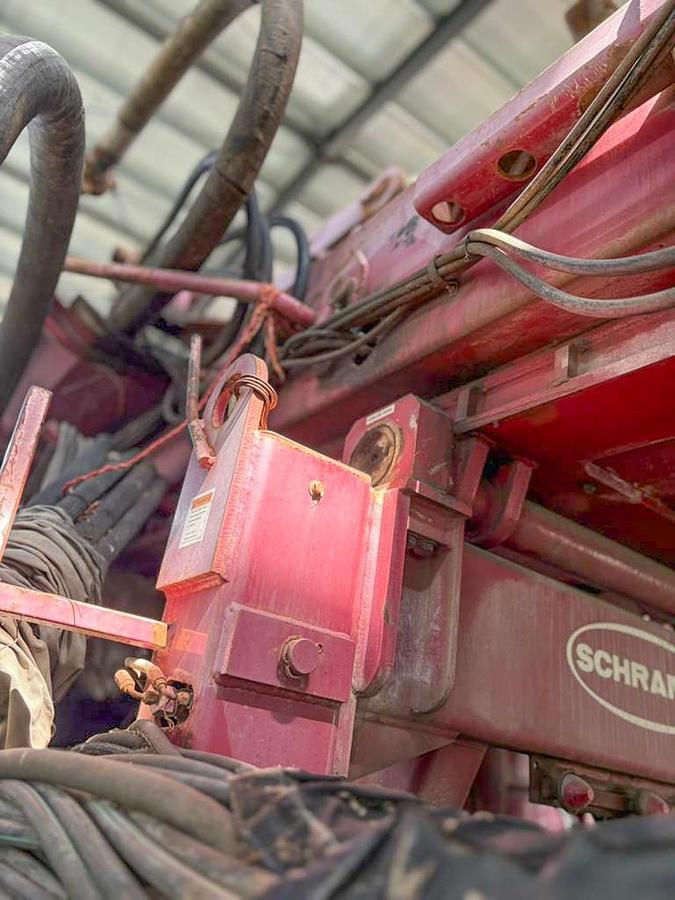

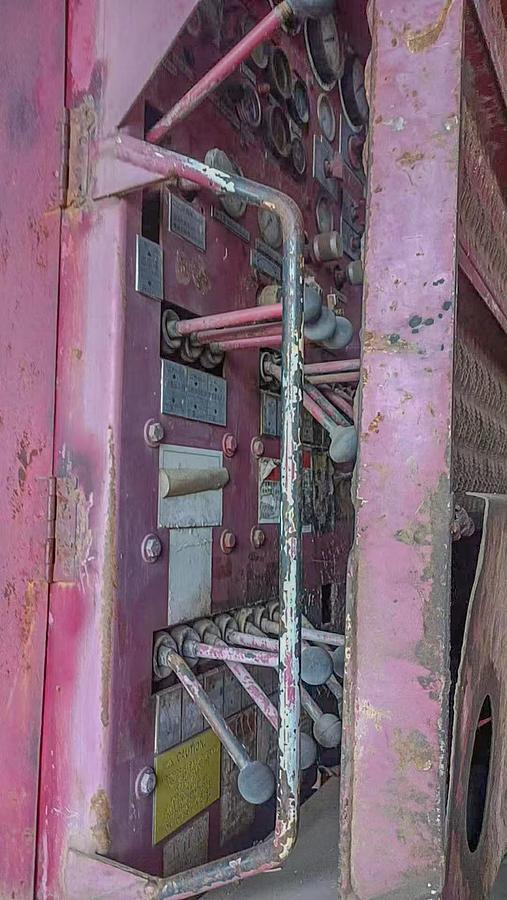

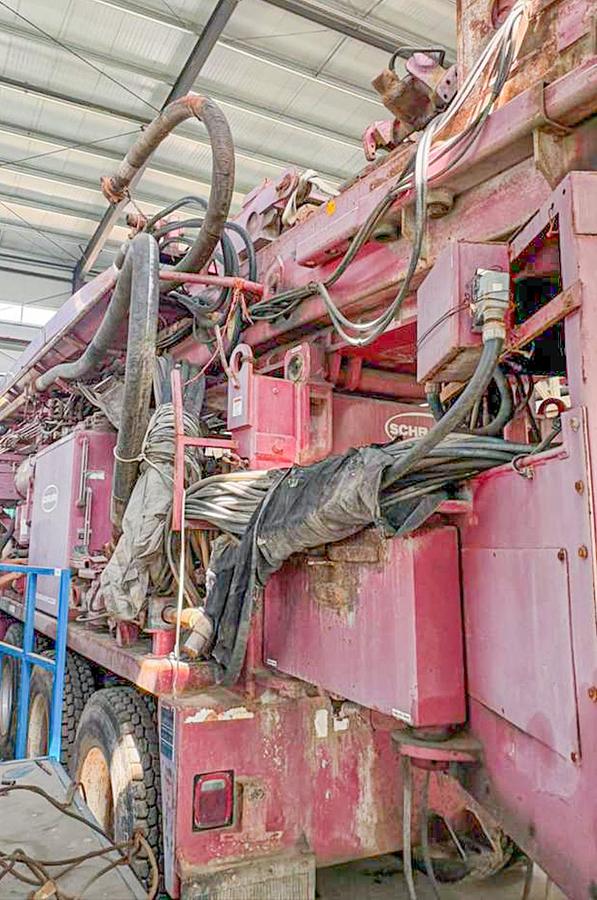

2006 Schramm T130XD Drill Rig

2006 Schramm T130XD Drill Rig

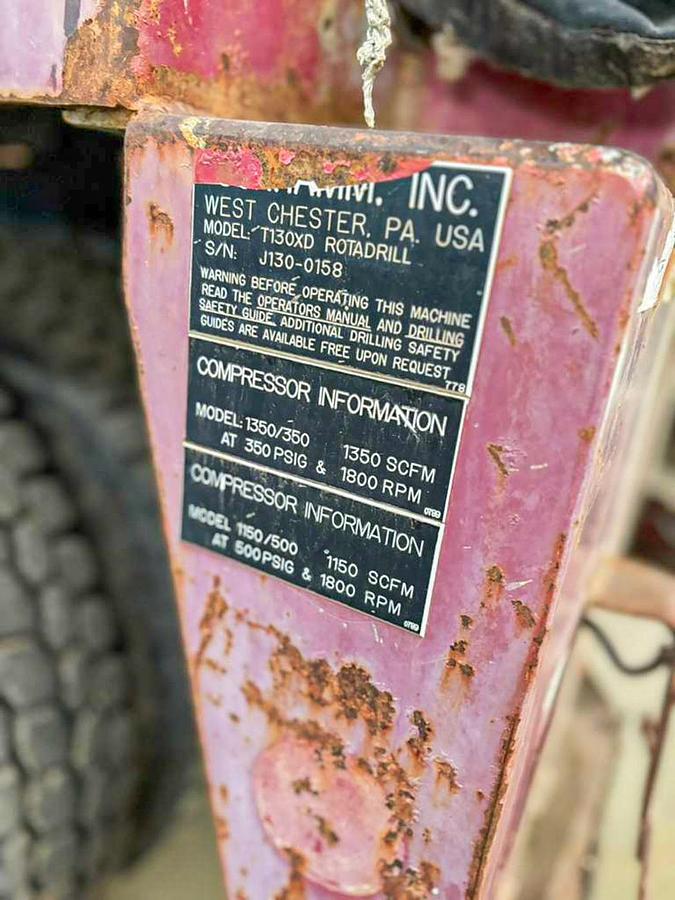

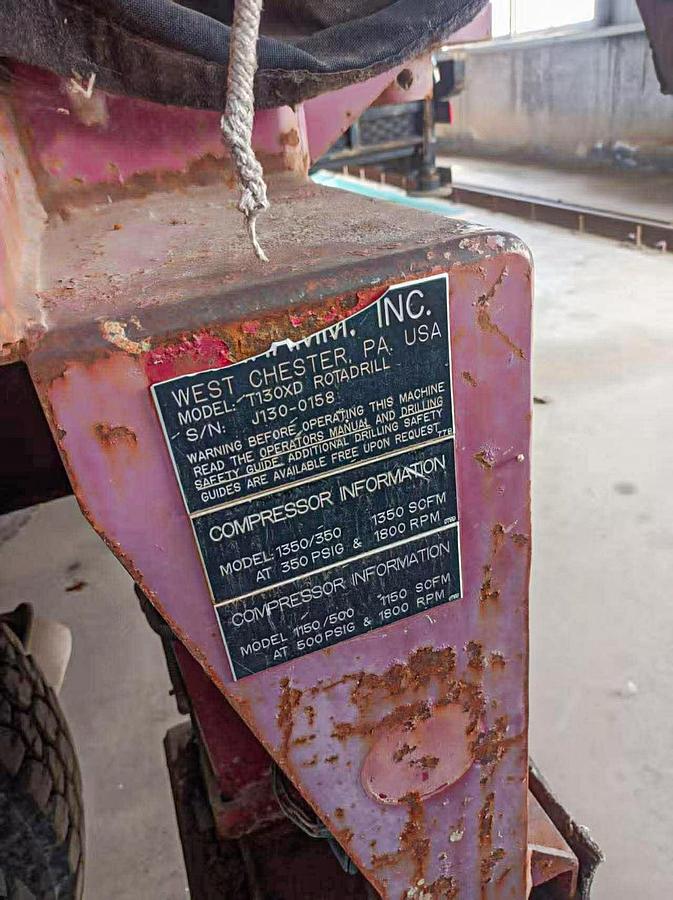

• Serial Number: J130-0158
• Onboard Drill Compressor Selectable Air at 1,150 cfm @ 500 psi or 1,350 cfm @ 350 psi (32.6 m3/min @ 35.5 bar or 38 m3/min @ 24.1 bar)
• Equipped with Schramm Patented Telemast® For Easy Portability And Fast Set Up (Telemast Design Offers Range III Tubular Capability In A Fully Portable Over The Road Package That Can Be Set Up In A Matter Of Hours Upon Arrival To The Drilling Site. )
• Up to 130,000 lbf ( 578 kN) Pullback and Range III tubular capability
• Precise Hydraulic Weight On Bit Control
• Compact 43 ft (13.1 m) Transport Length With Less Than 6 - 8 ft (1.8 – 2.4 m) overhang

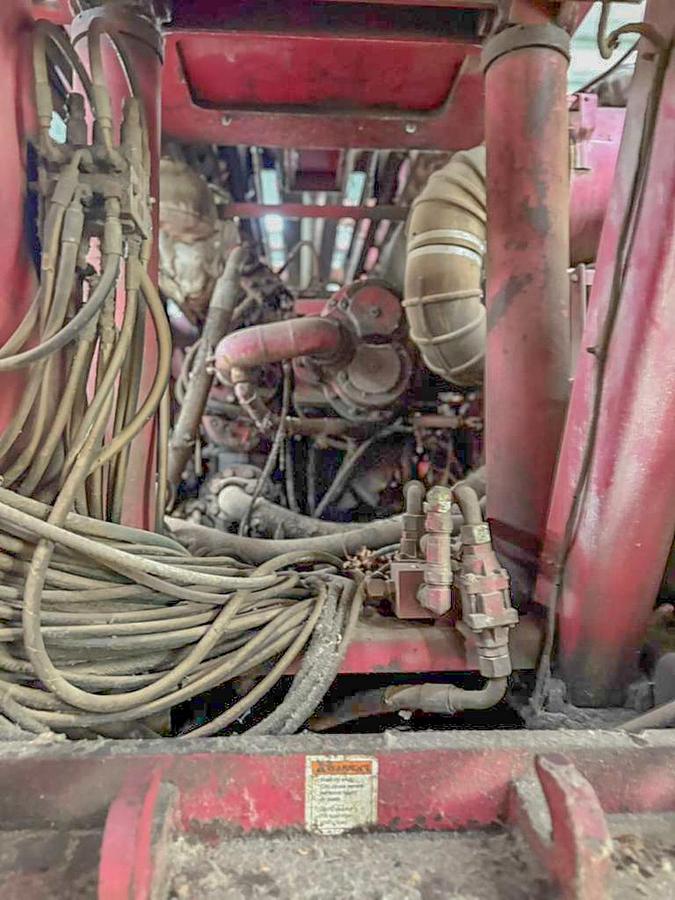

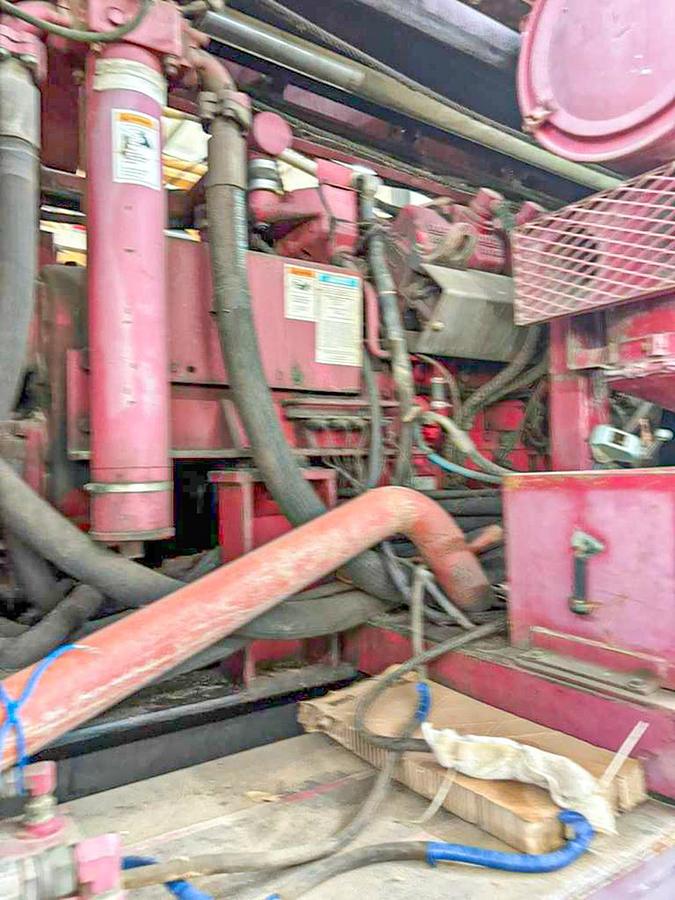

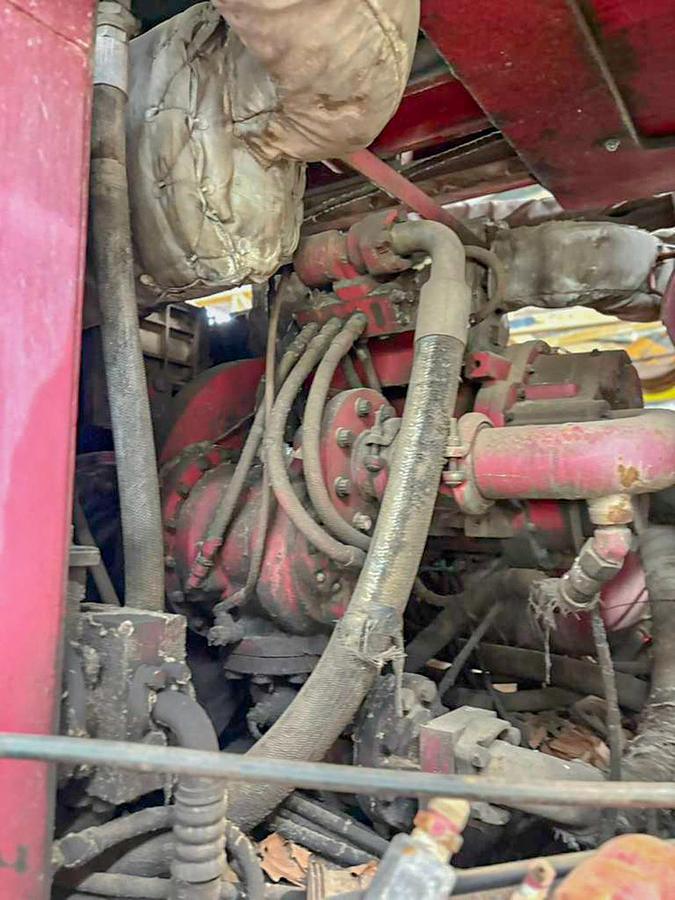

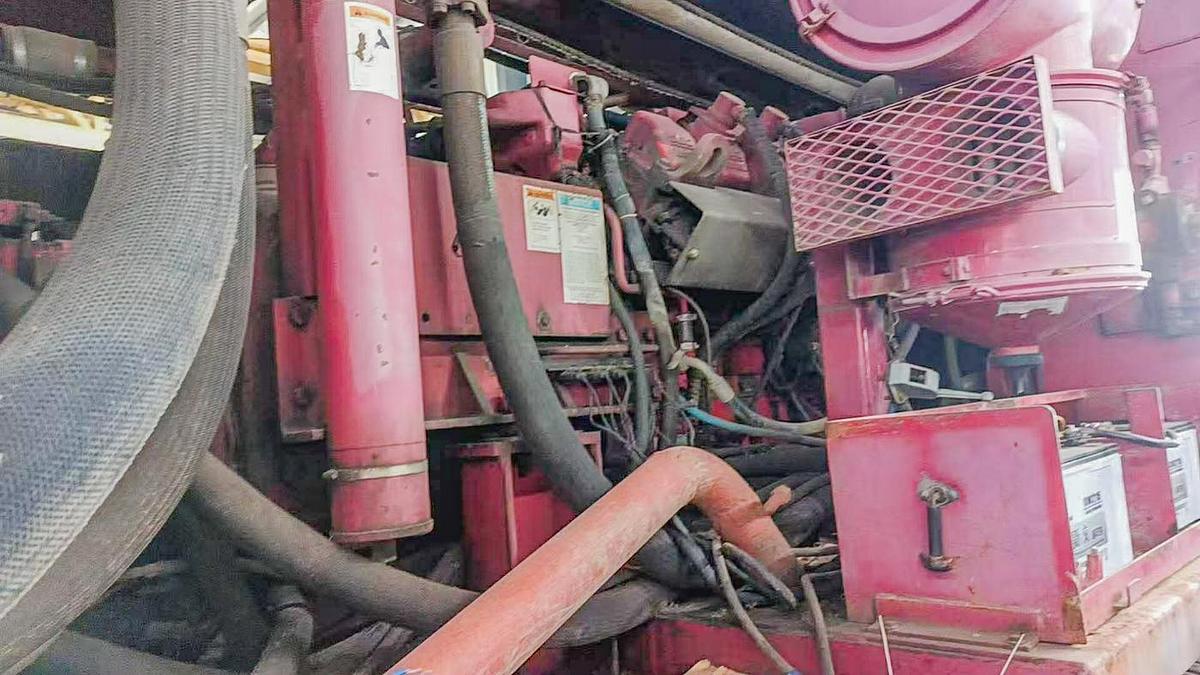

DECK ENGINE:

• Detroit Diesel DDC/MTU 12V-2000TA DDEC
• 760 bhp (567 kw) @ 1800 rpm
• 2 X 110 Gallon (415 L) Fuel Tanks
• Electric Start

AIR COMPRESSOR:

• Variable Volume Two-Stage, Oil Flooded Rotary Screw Compressor
• Selectable air: 1,150 cfm @ 500 psi or 1,350 cfm @ 350 psi (32.6 m3/min @ 35.5 bar, 38 m3 min @ 24.1 bar)
• Schramm Patented Air-Control

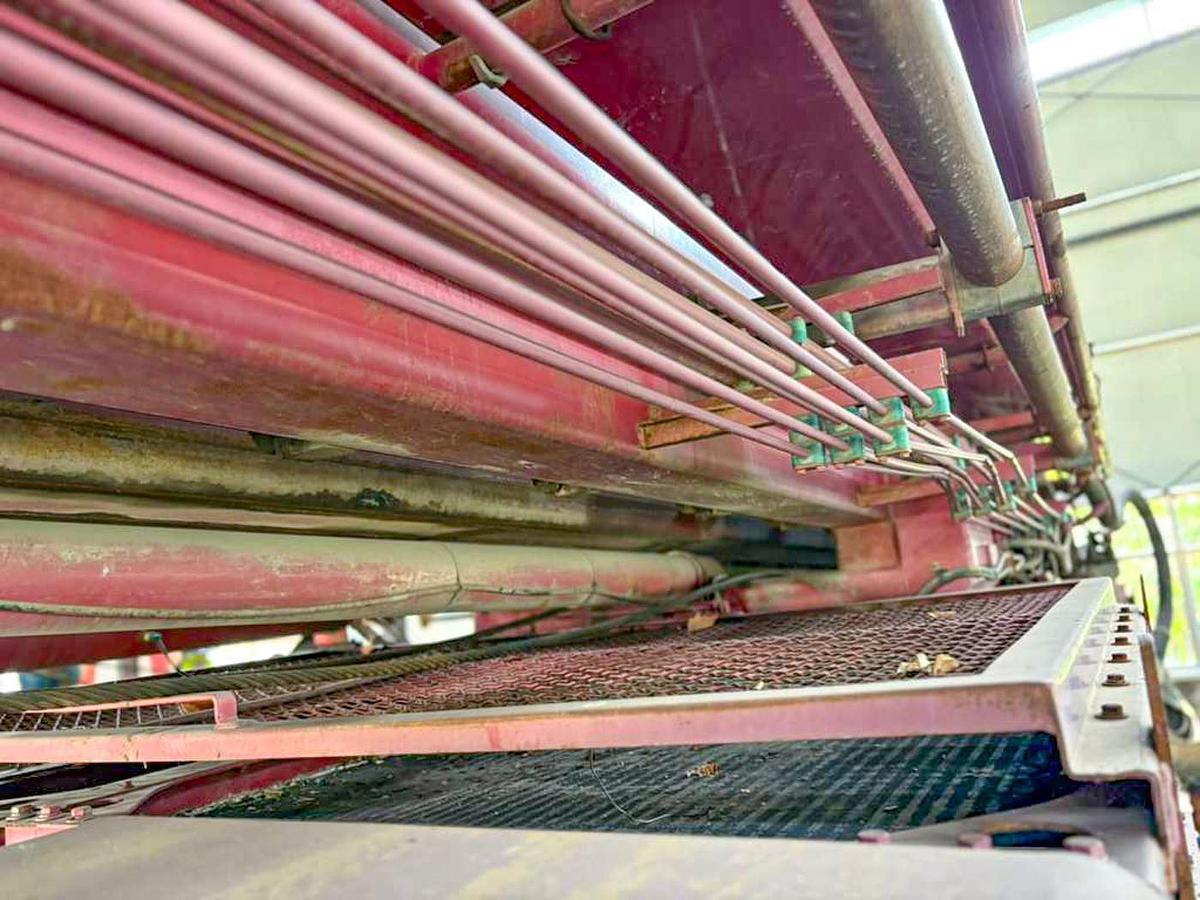

COOLING:

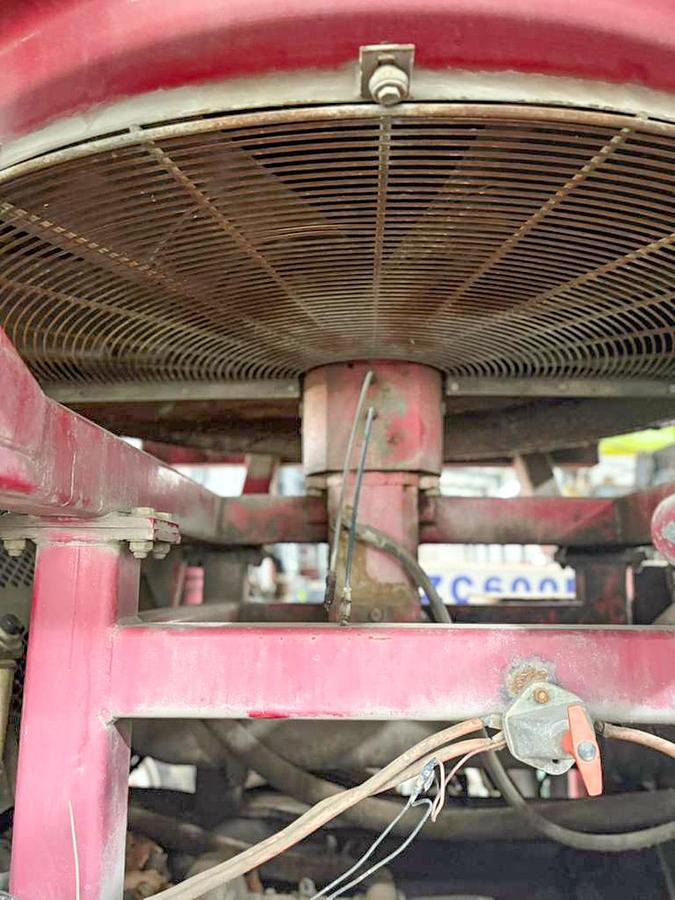

• Three Core, Side By Side Heat Exchanger With Variable Speed Cooling Fan
• 117°F (47°C) Ambient Design Temperature

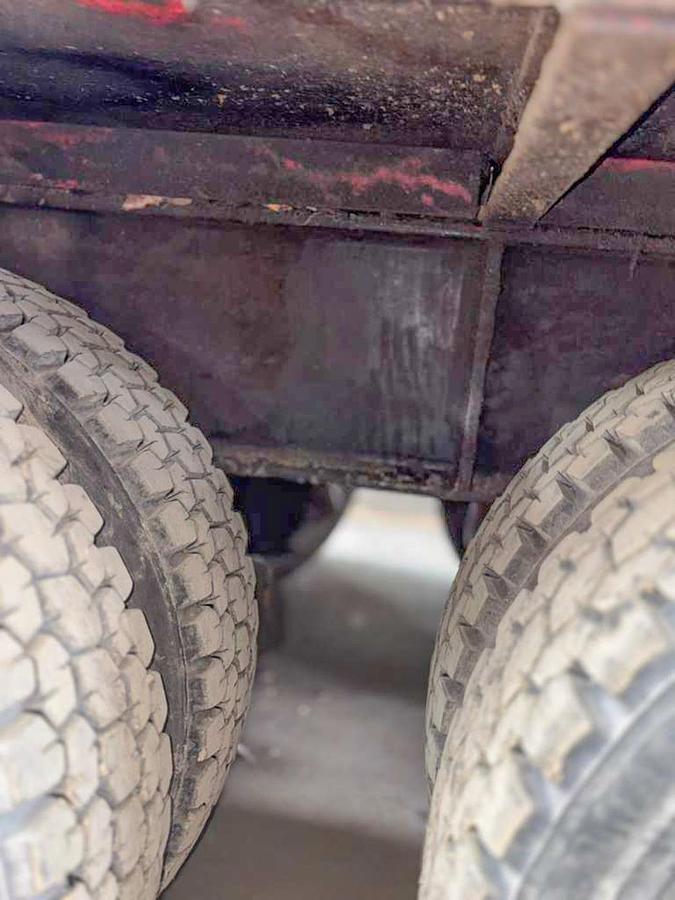

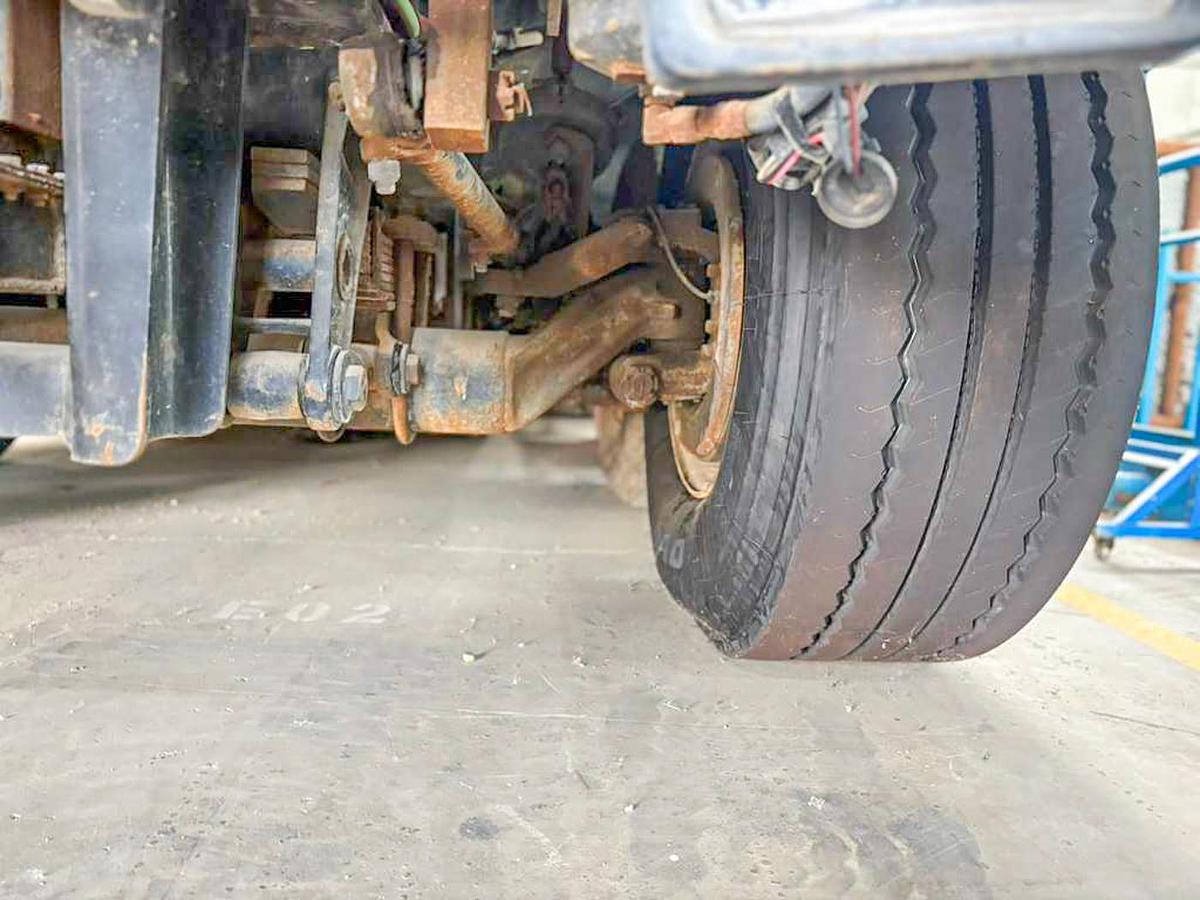

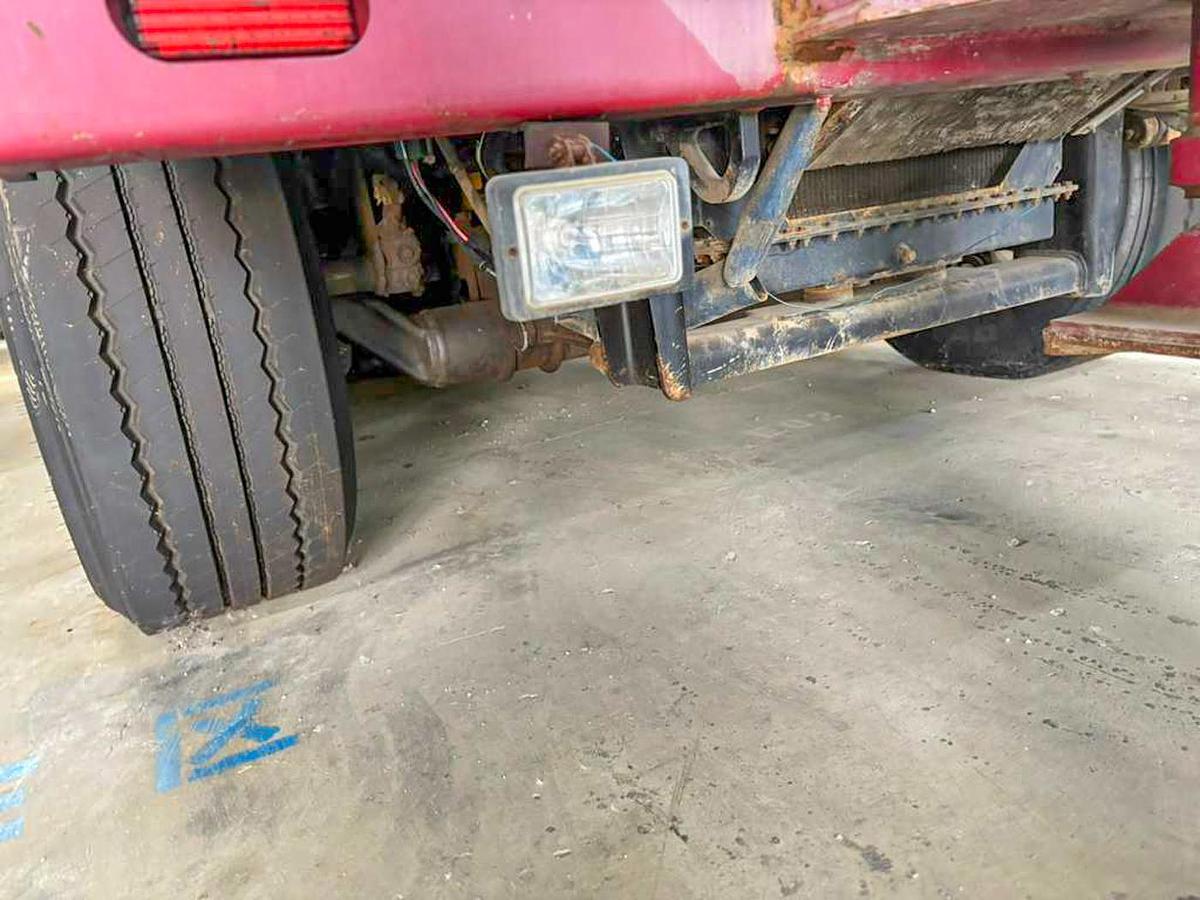

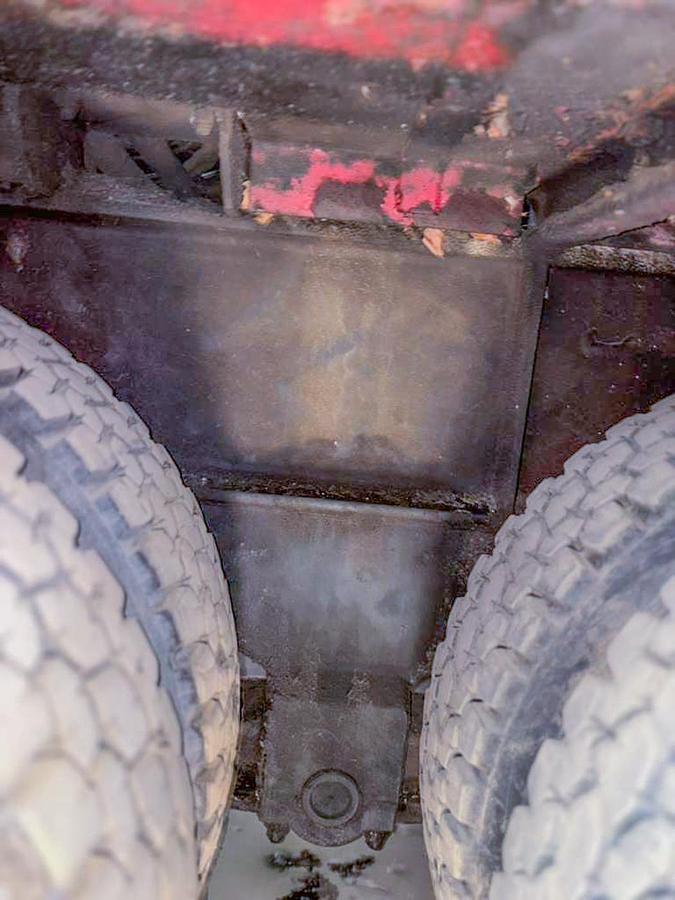

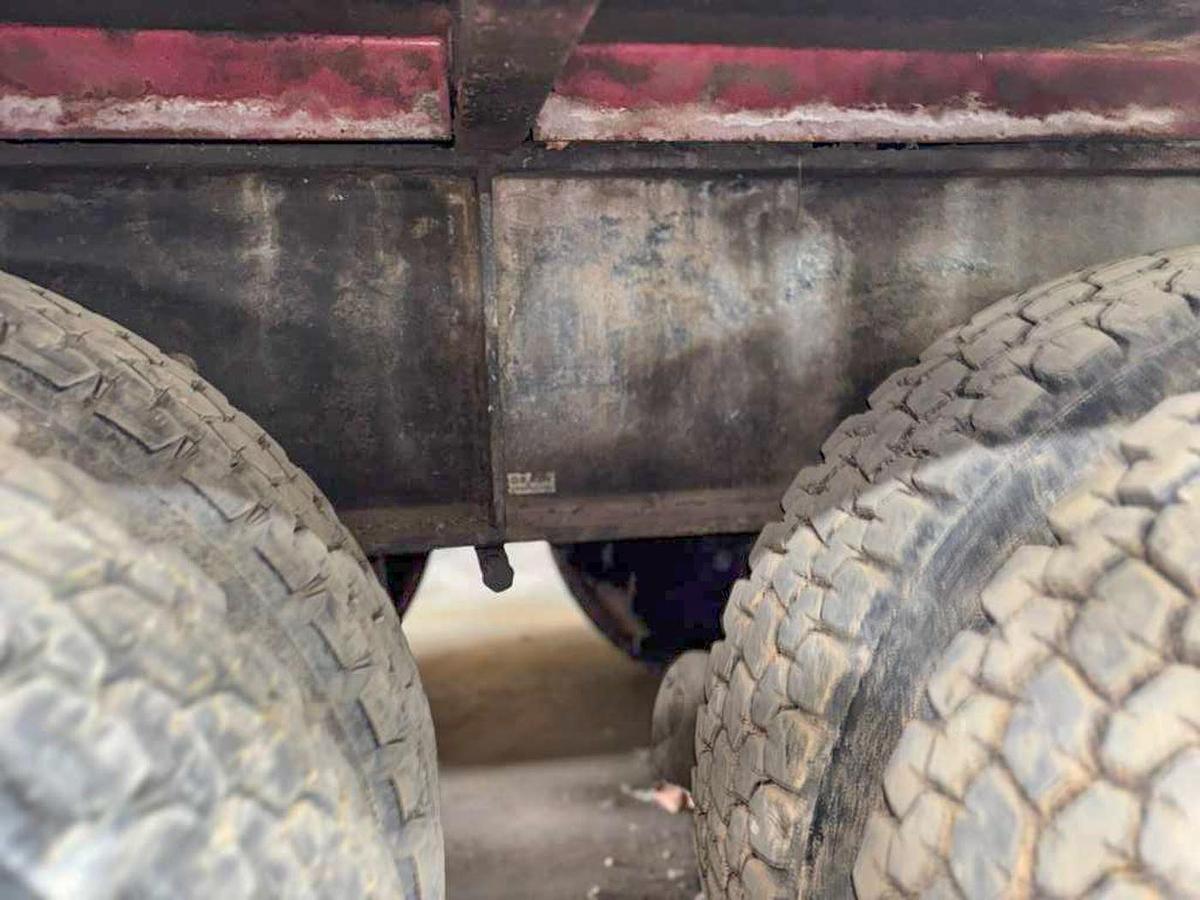

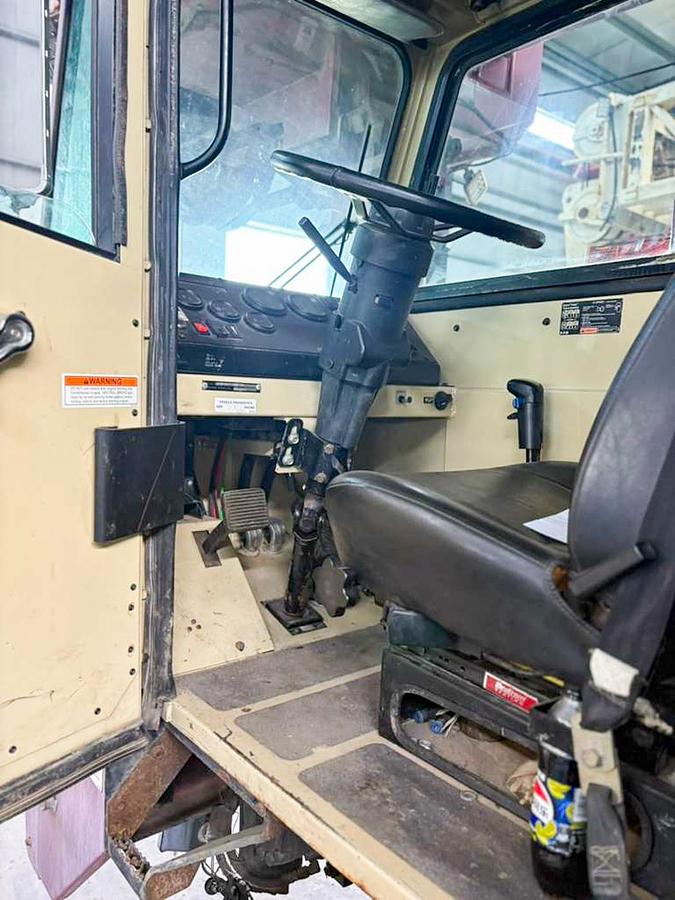

CARRIER:

• CCC 8 x 4 carrier
• Cummins Engine Rated 425 hp @ 2,100 rpm

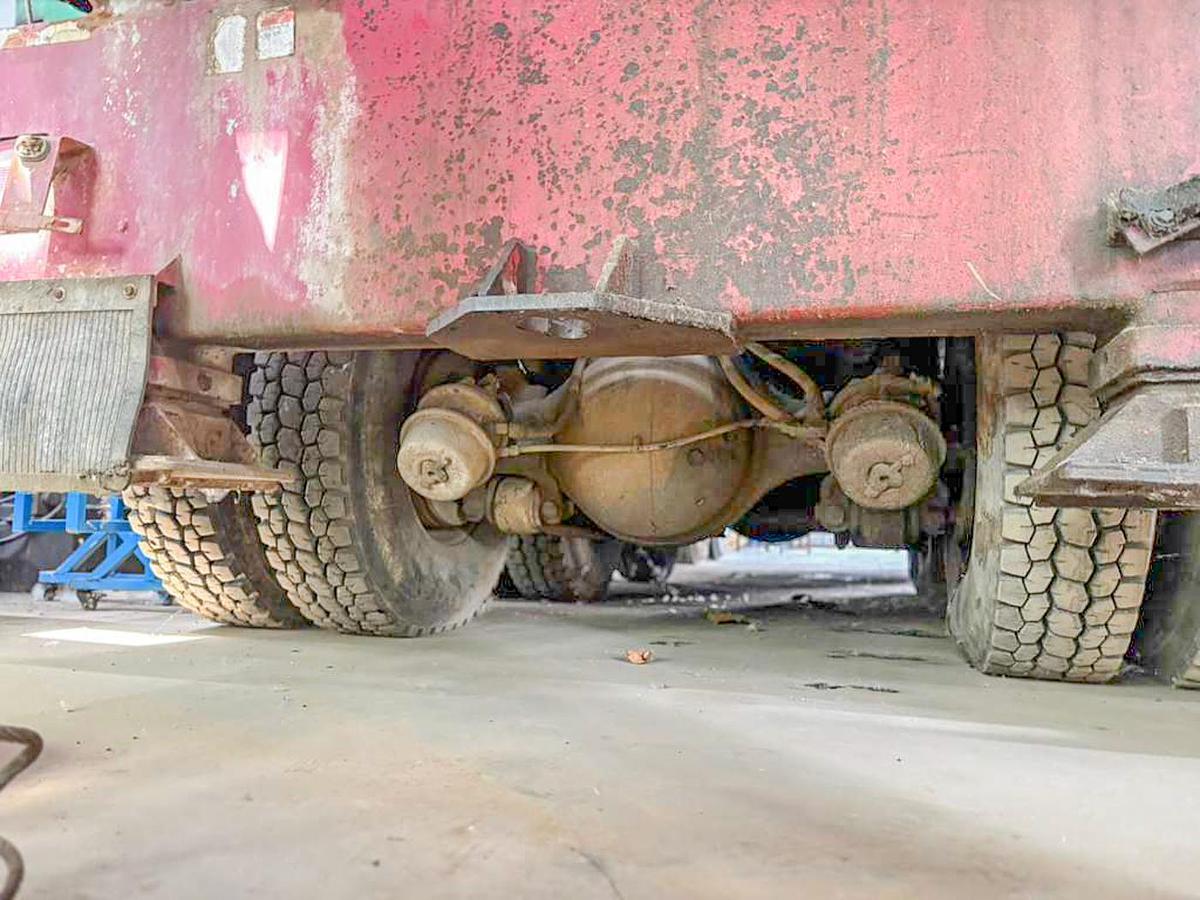

• 44,000 lb (19,955 kg) Front Axle
• 21,500 lb (9,750 kg) Pusher Axle
• 52,000 lb (23,587 kg) Full Locking Rear Axle
• 117,500 lb (53,298 kg) GVWR

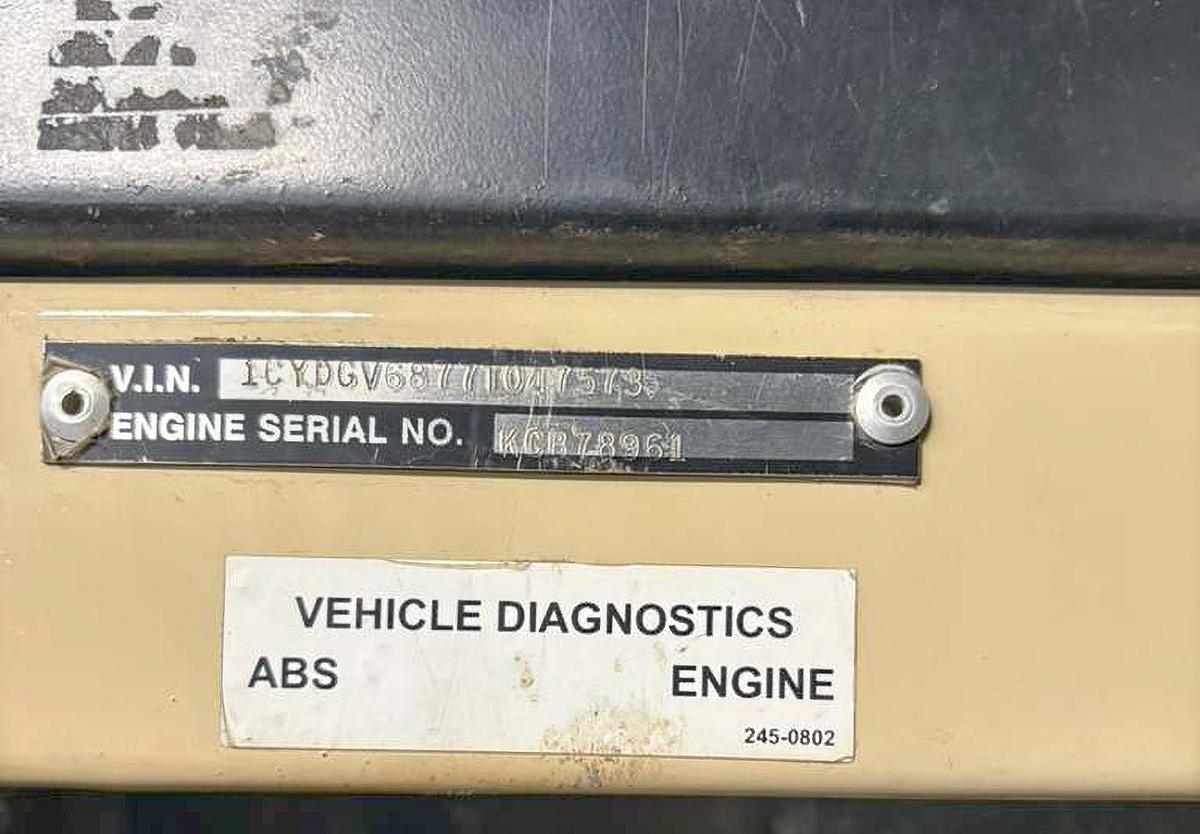

•  VIN: 1CYDGV6877TO47573

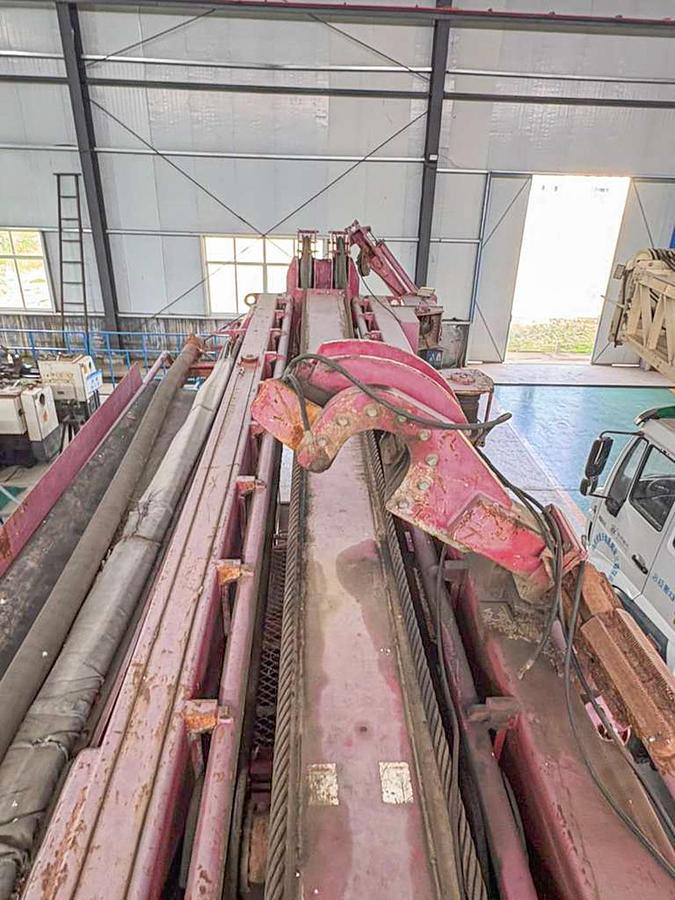

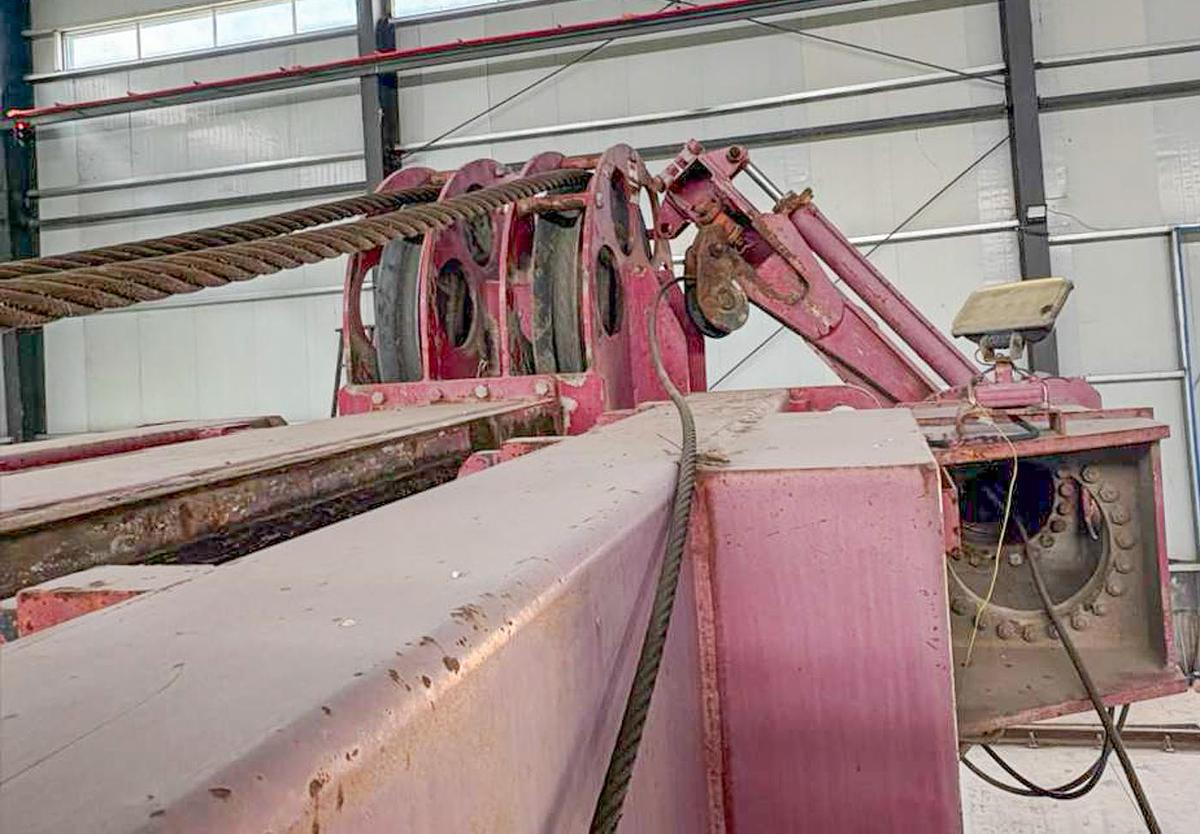

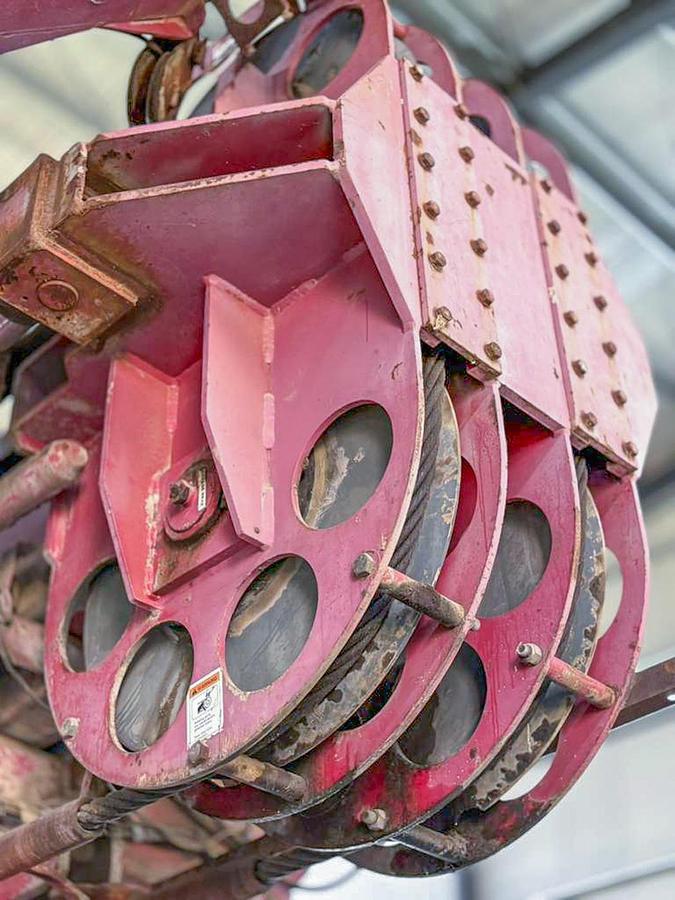

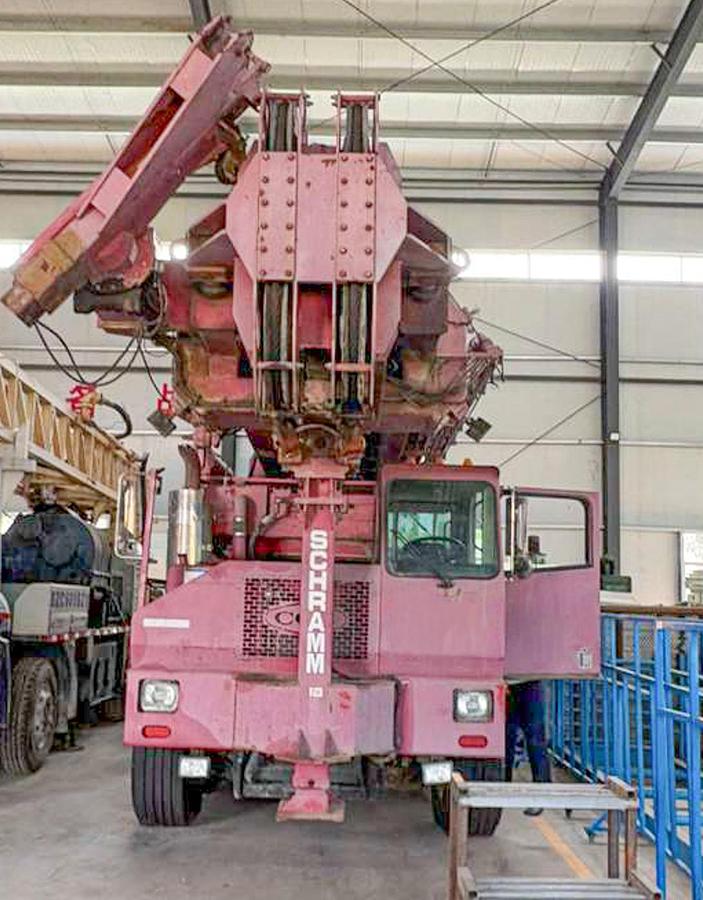

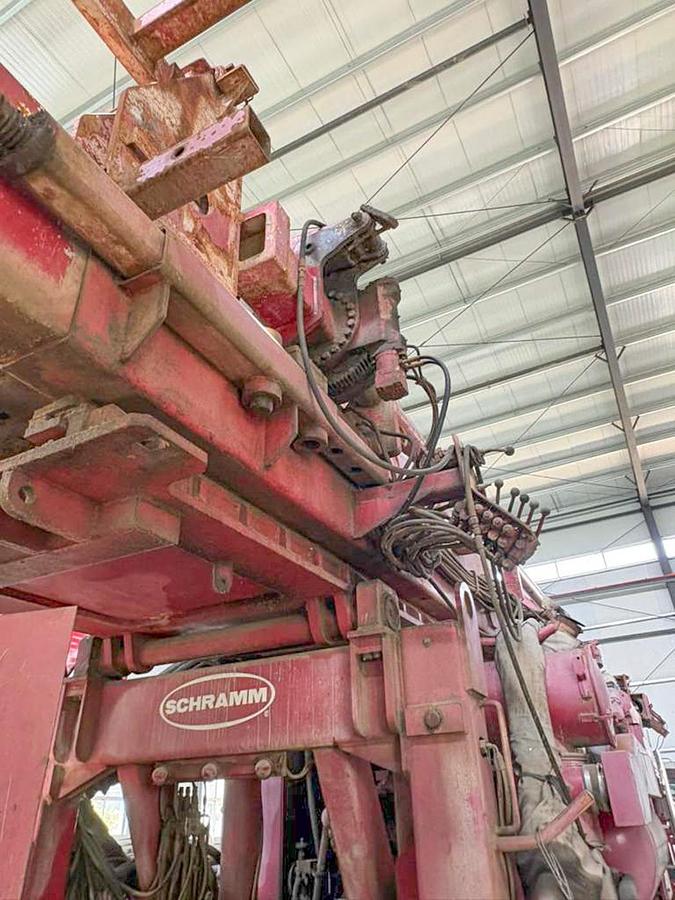

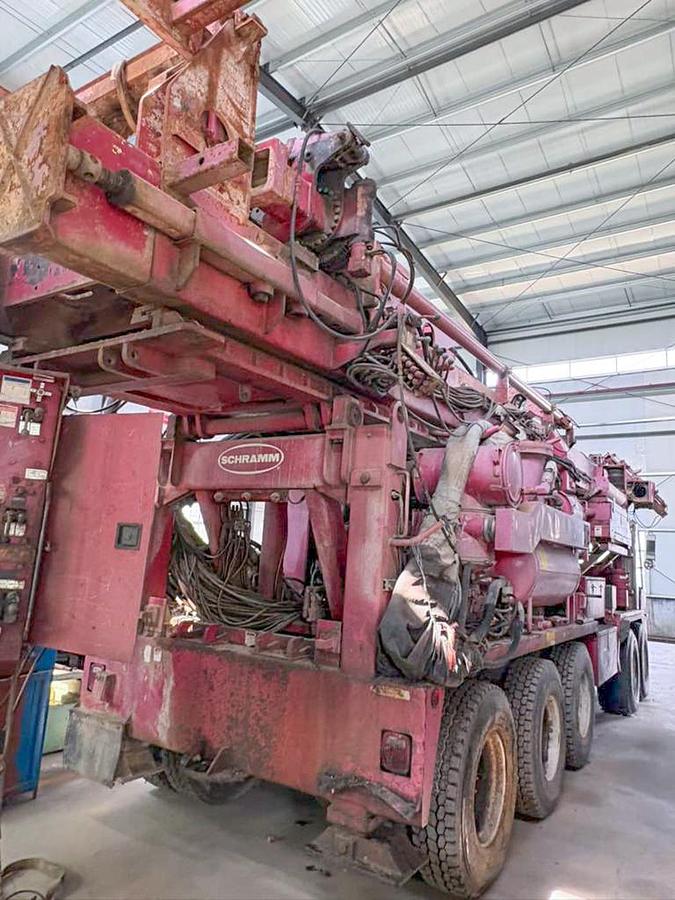

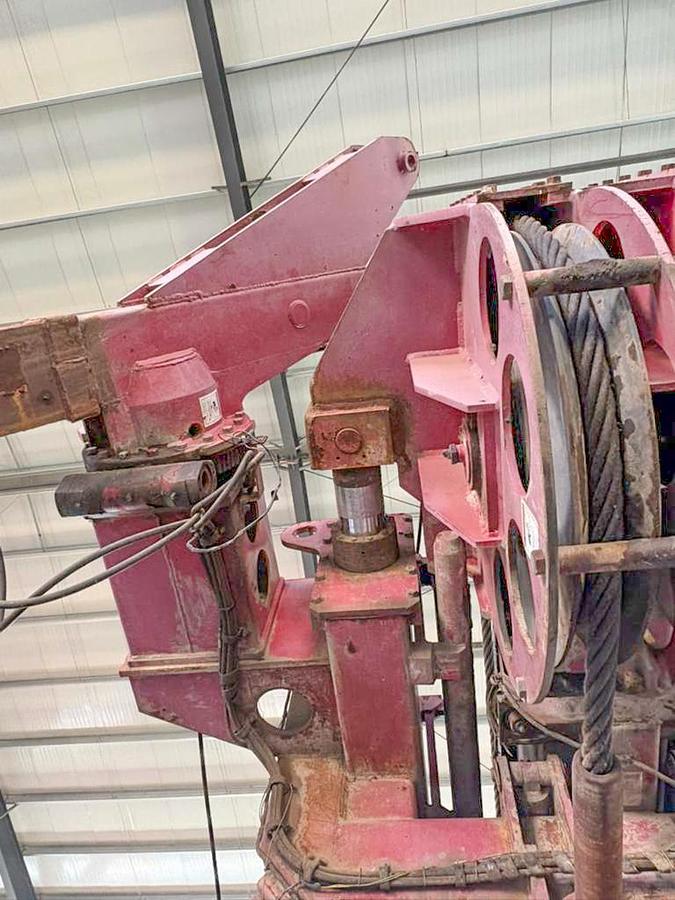

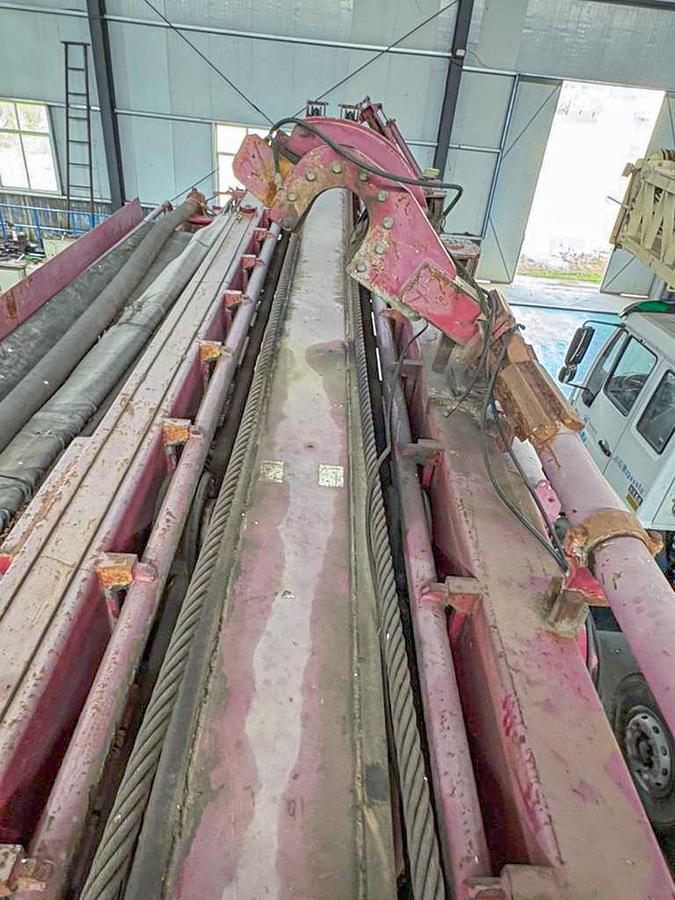

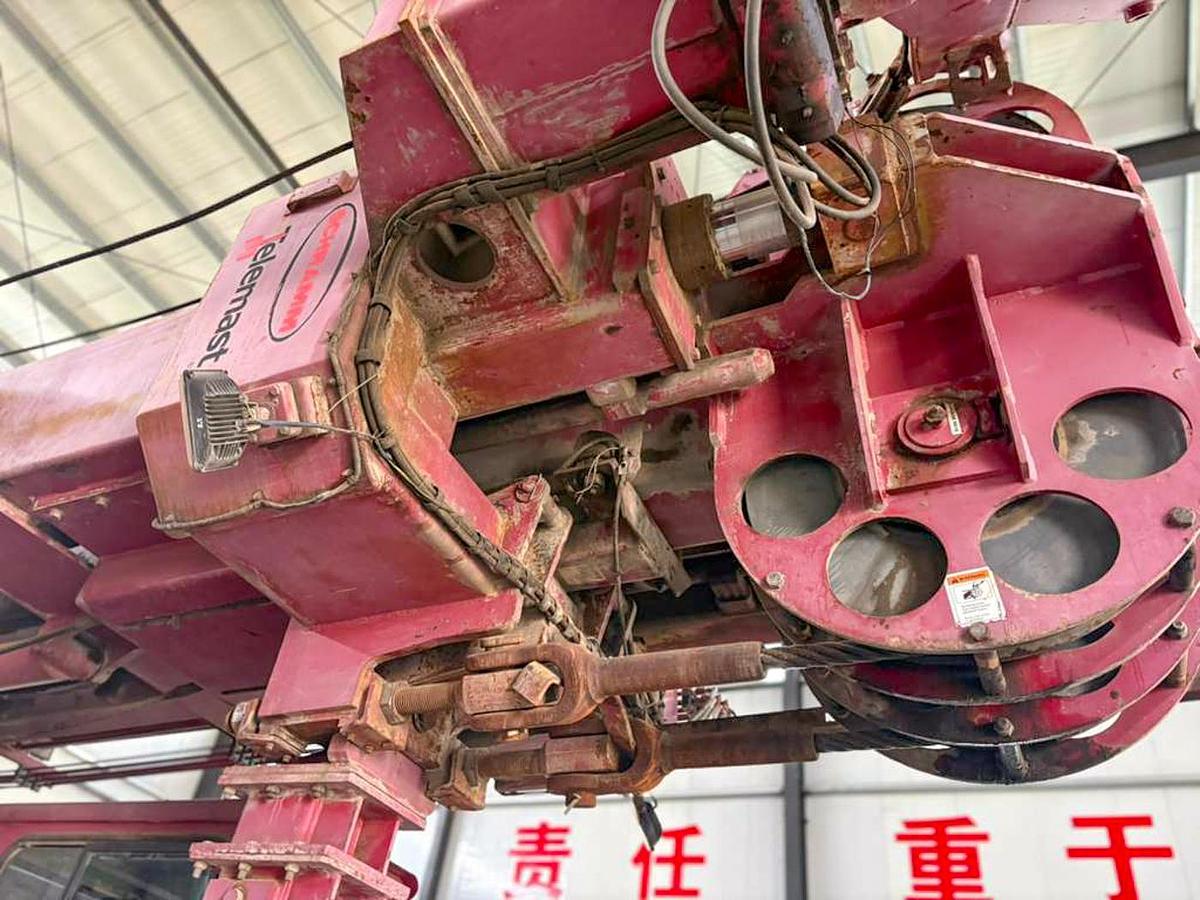

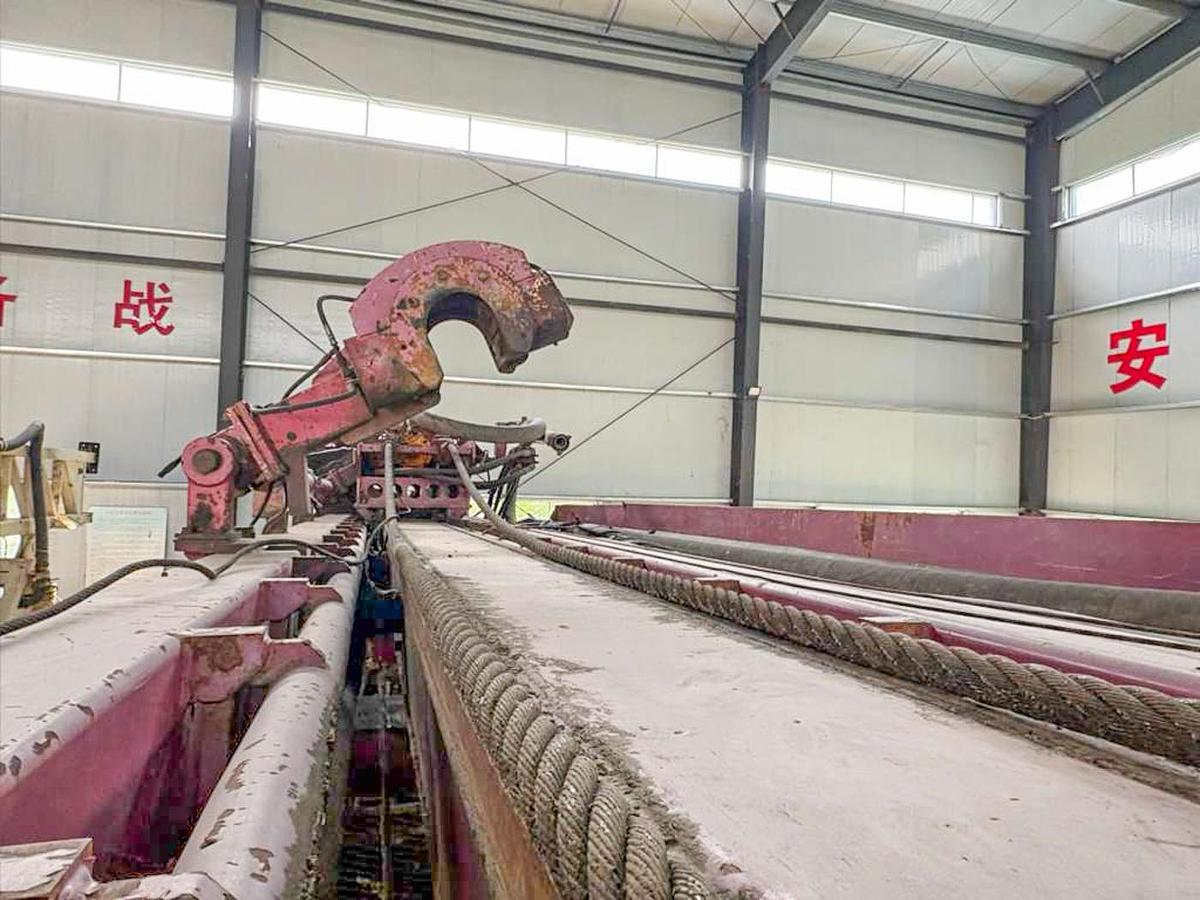

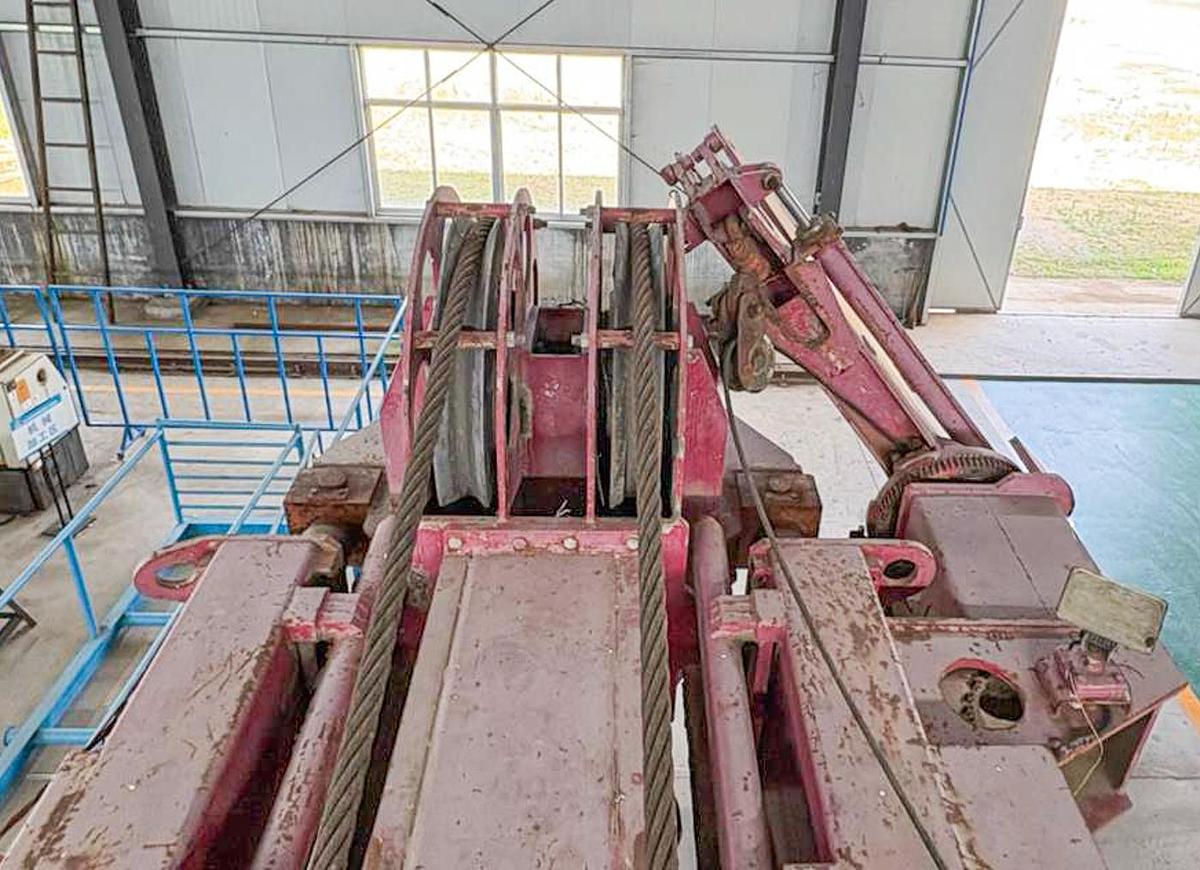

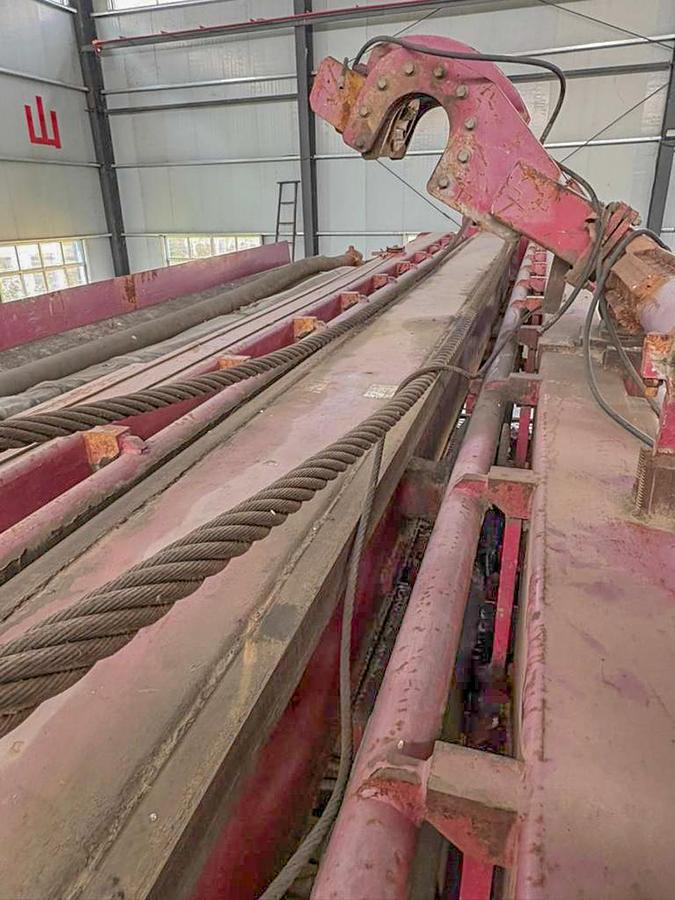

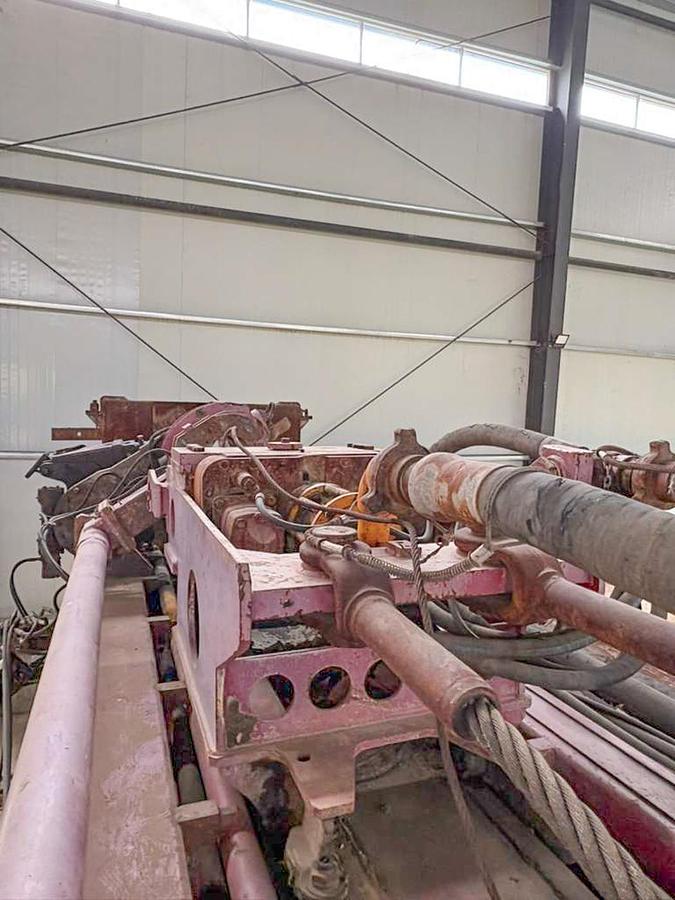

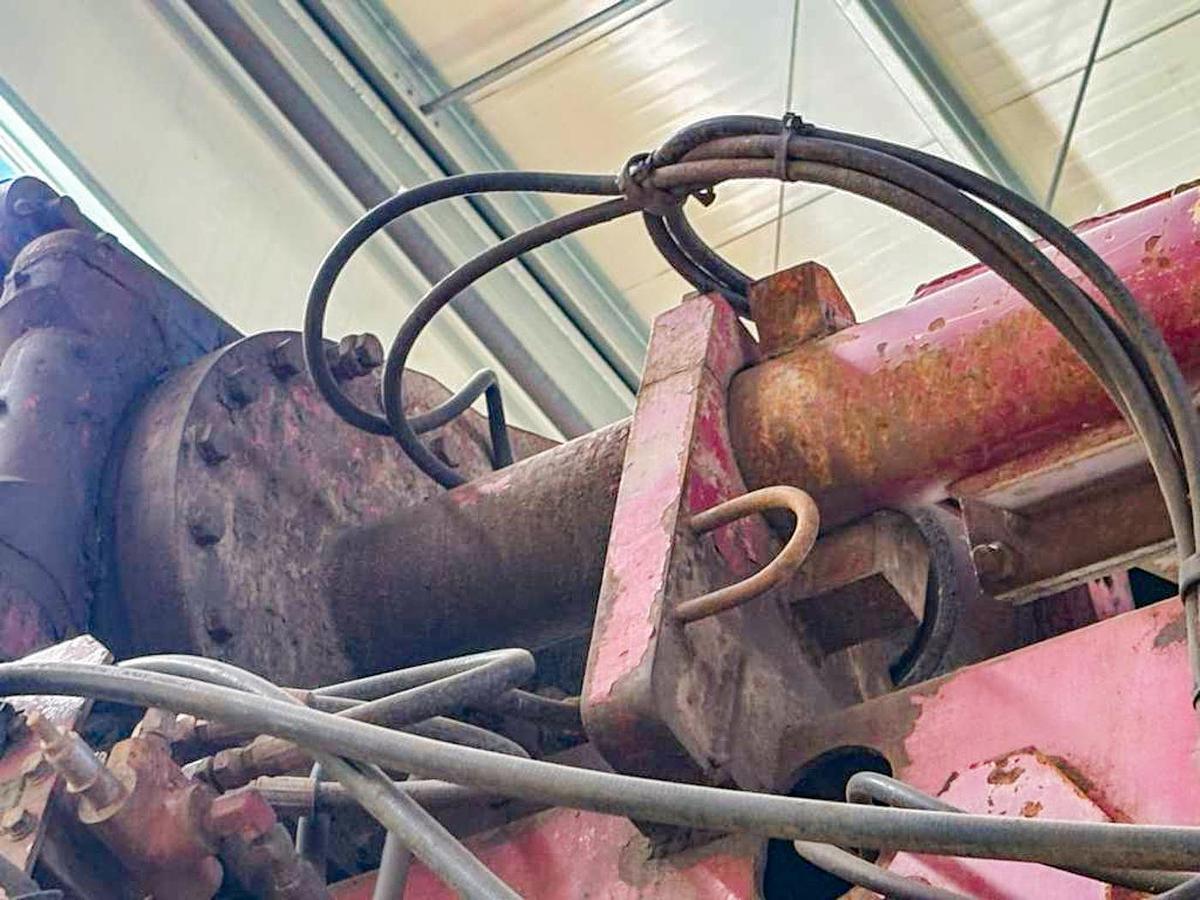

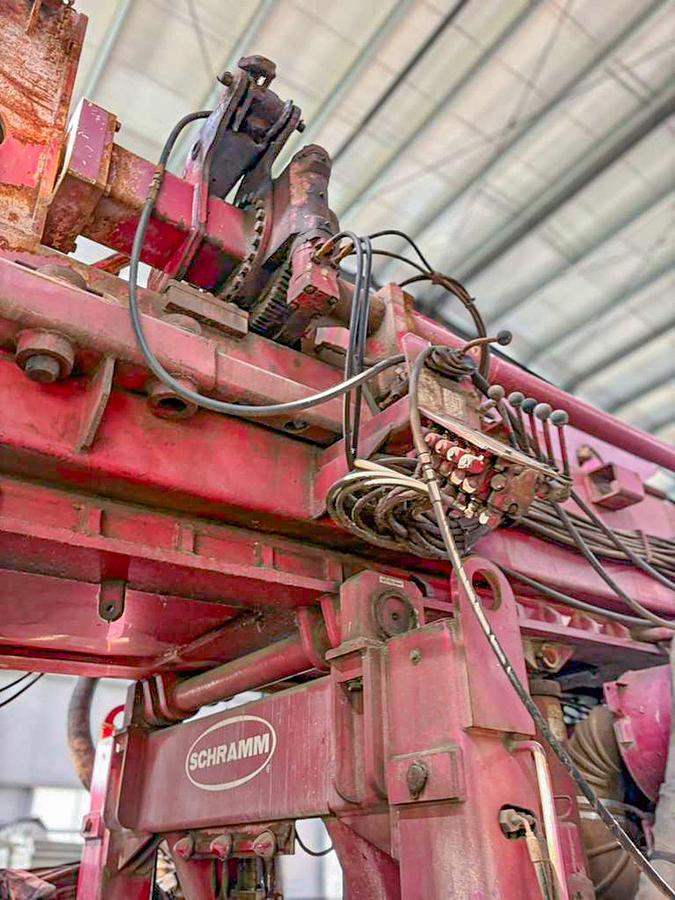

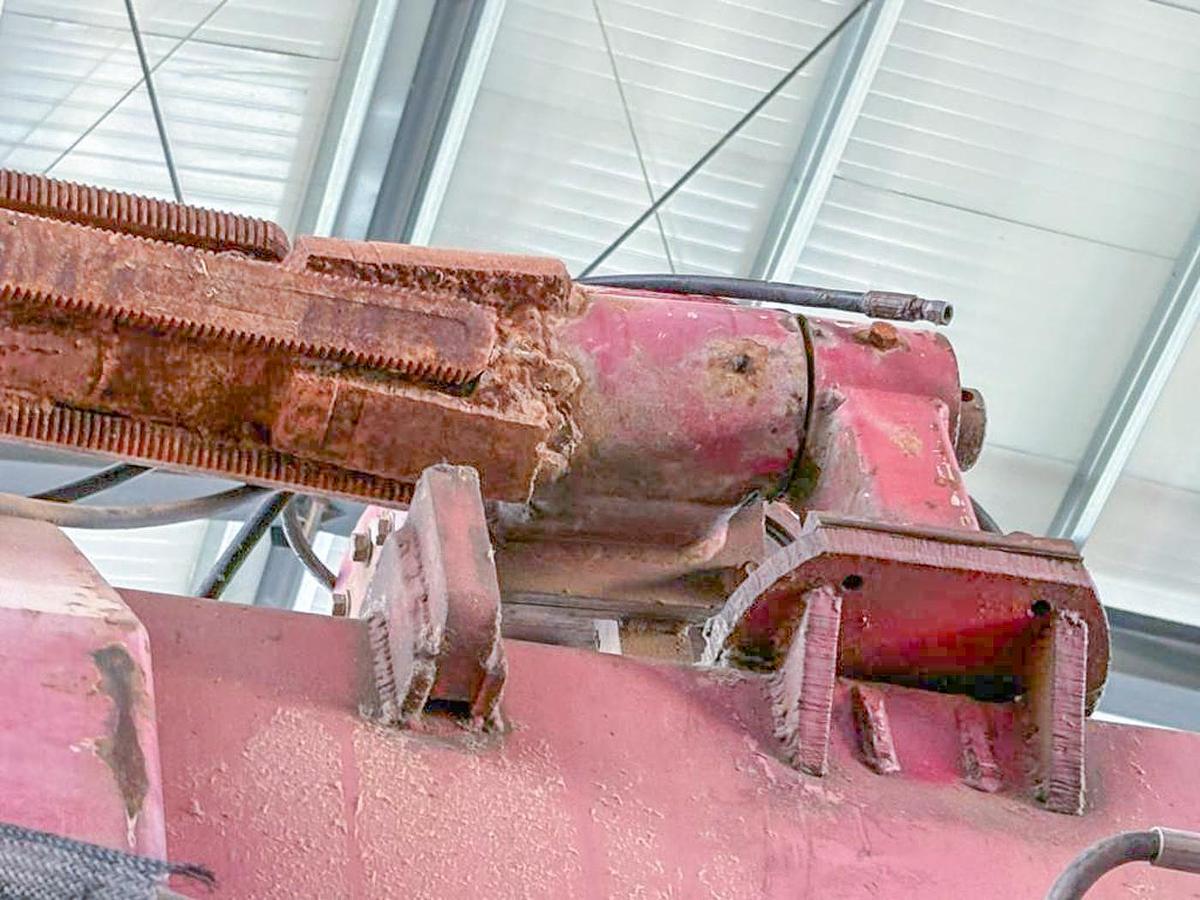

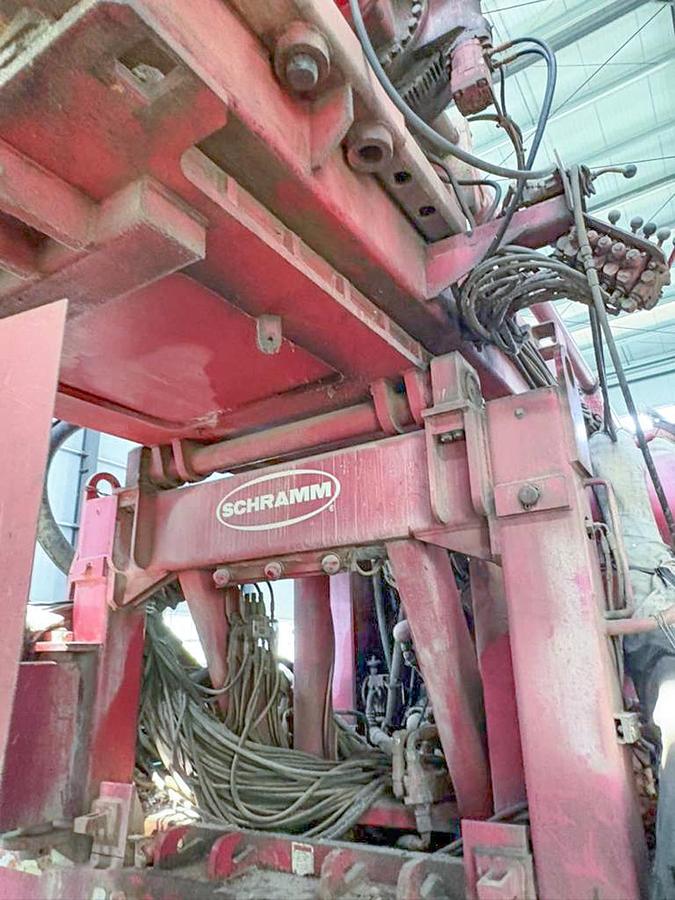

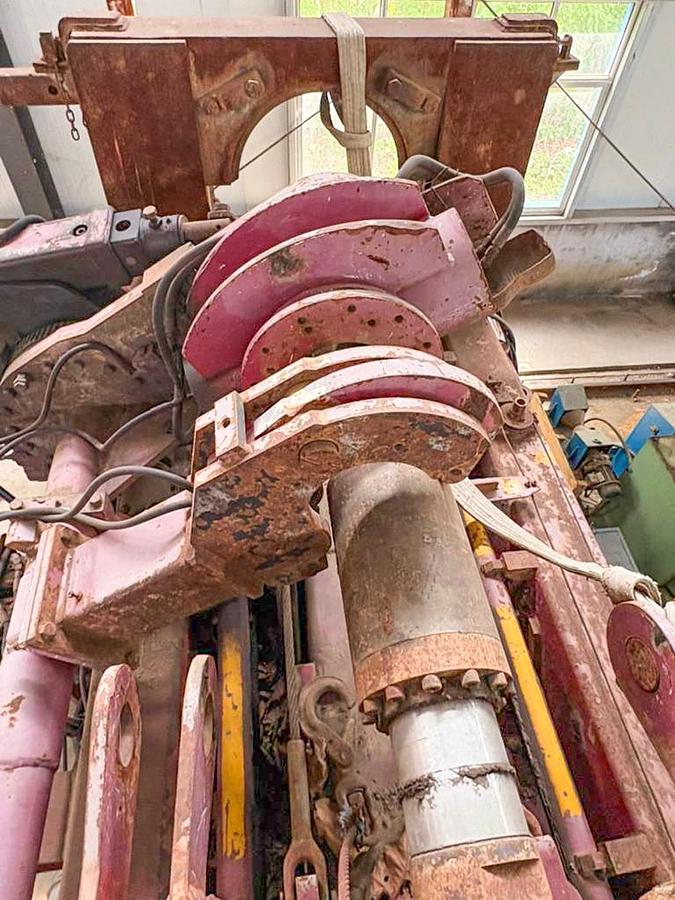

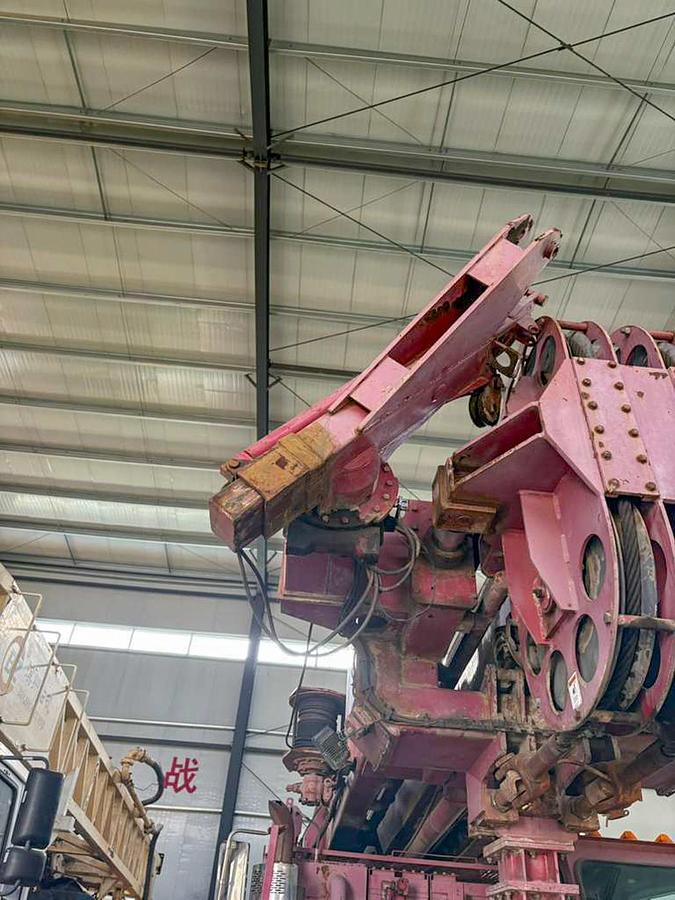

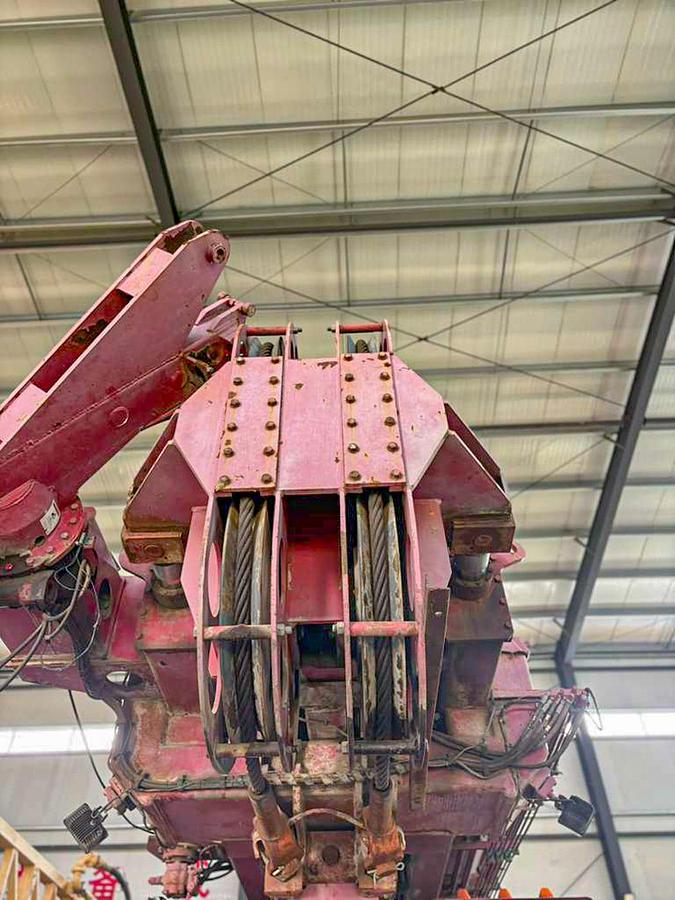

MAST:

• Telescoping Mast Design Permits Long Head Travel And Working Height, Yet Short Overall Length In Transport Position
• Free-Standing Mast Design
• Hydraulically Operated Adjustable Mast Feet
• 69 Ft 9 Inches (21.25 M) Overall Height Fully Extended
• 42 ft 9 inches (13 m) Overall Height Retracted For Transport

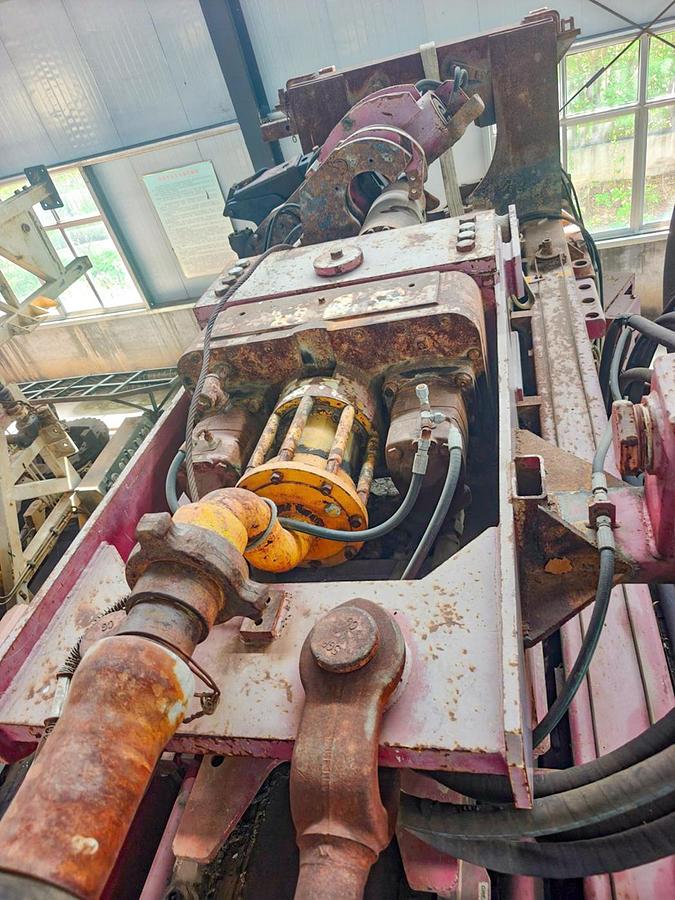

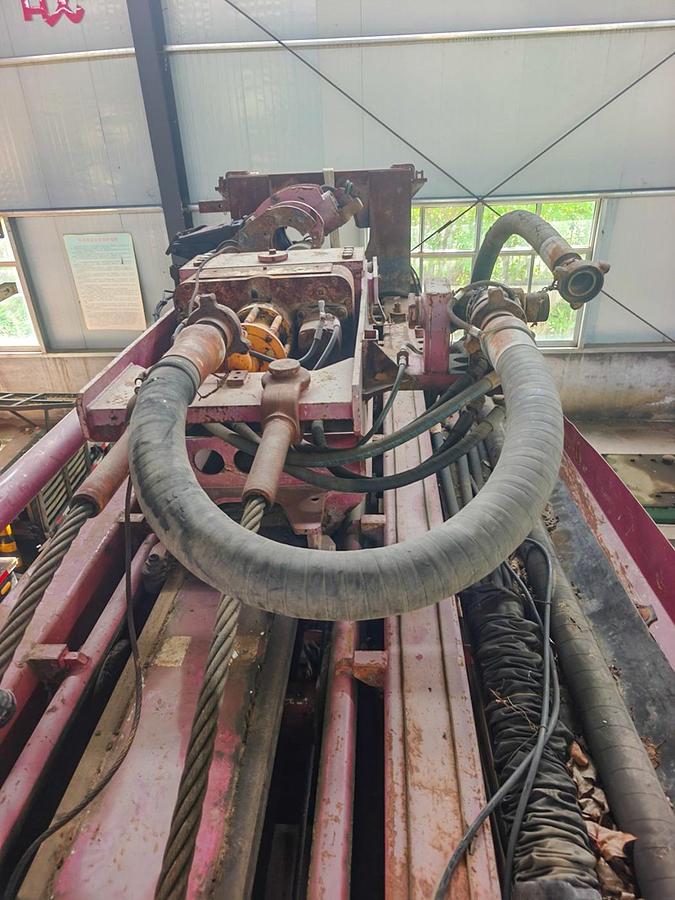

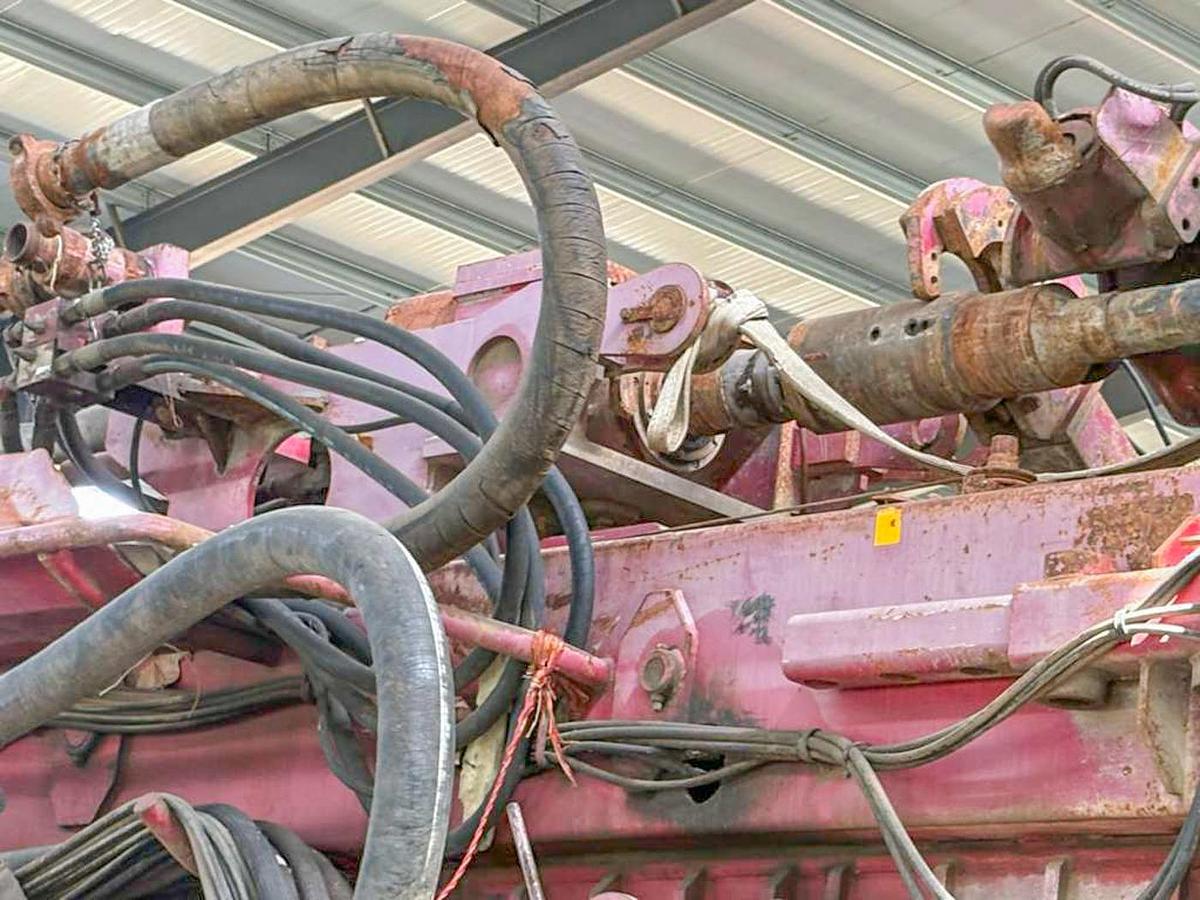

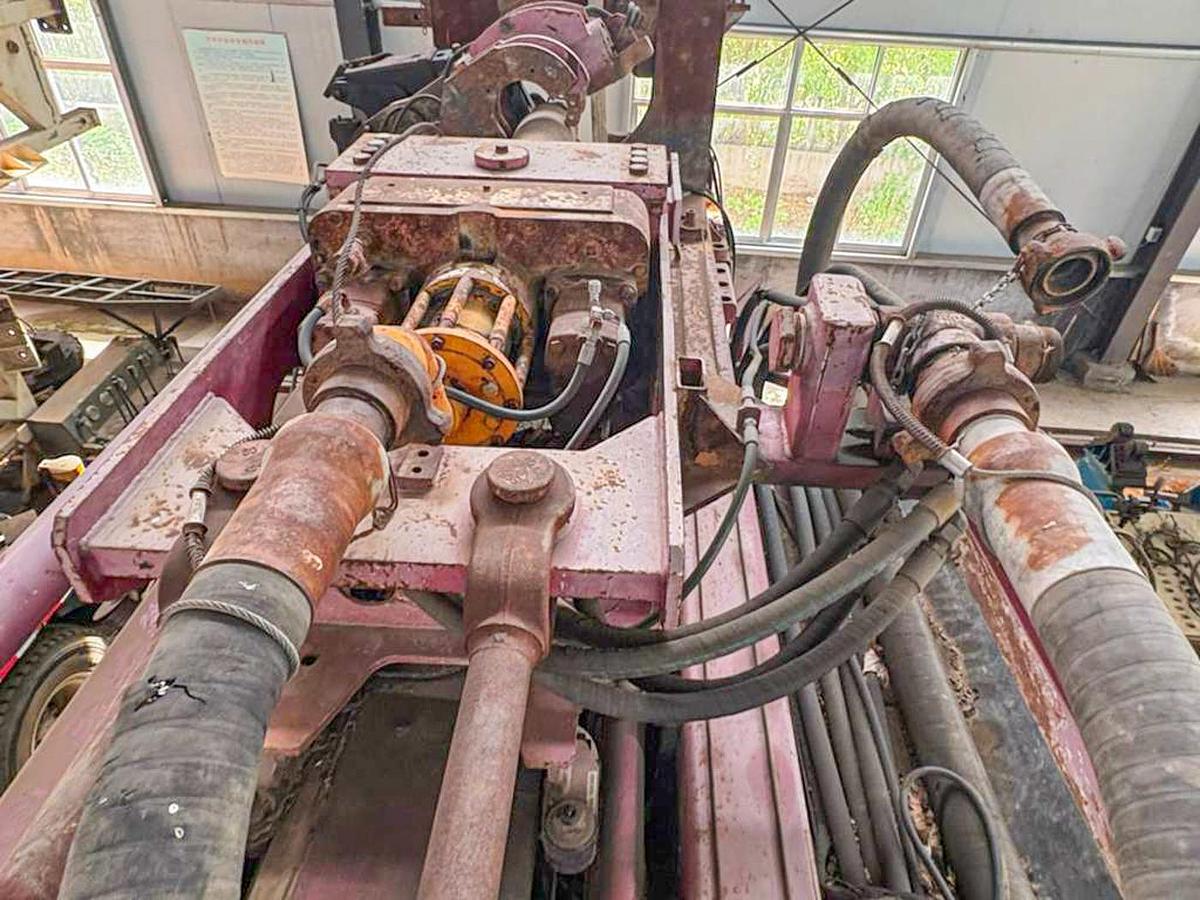

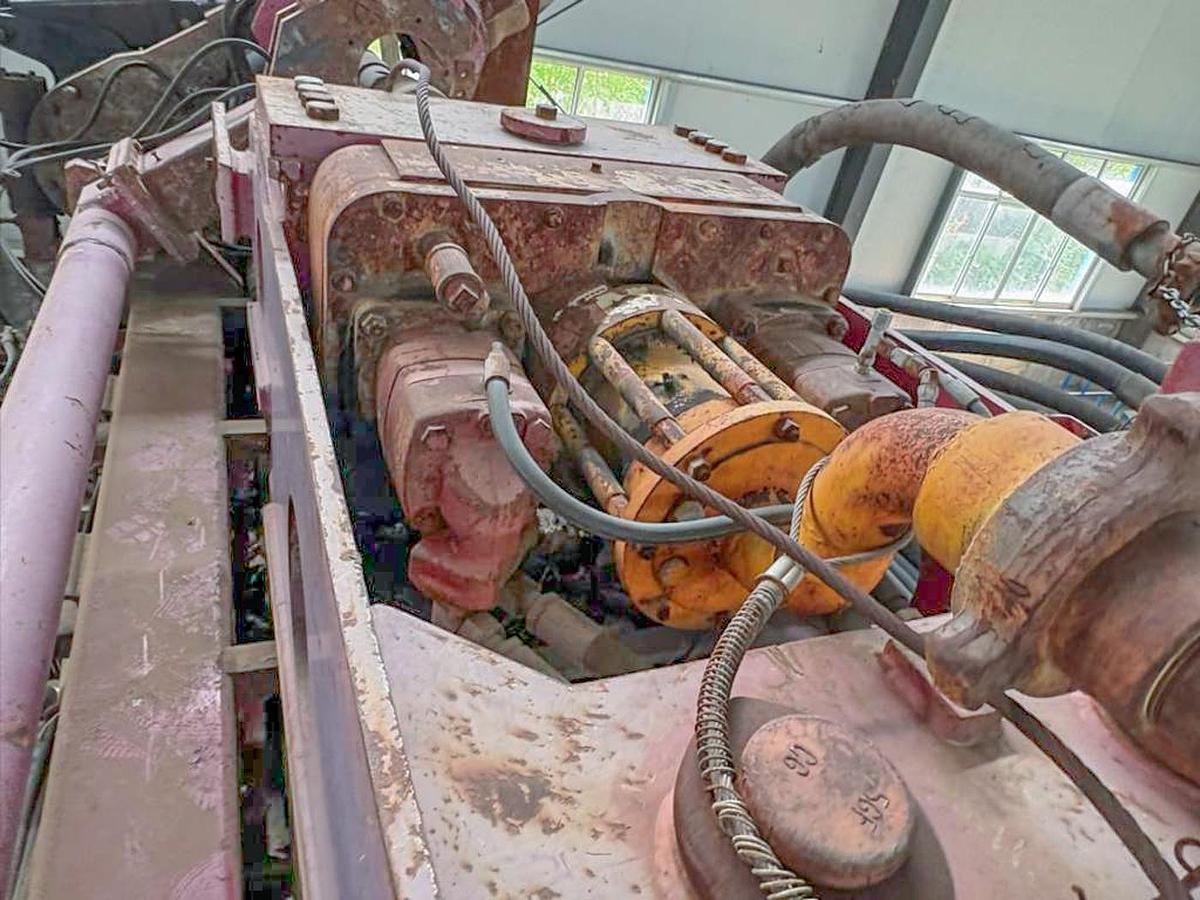

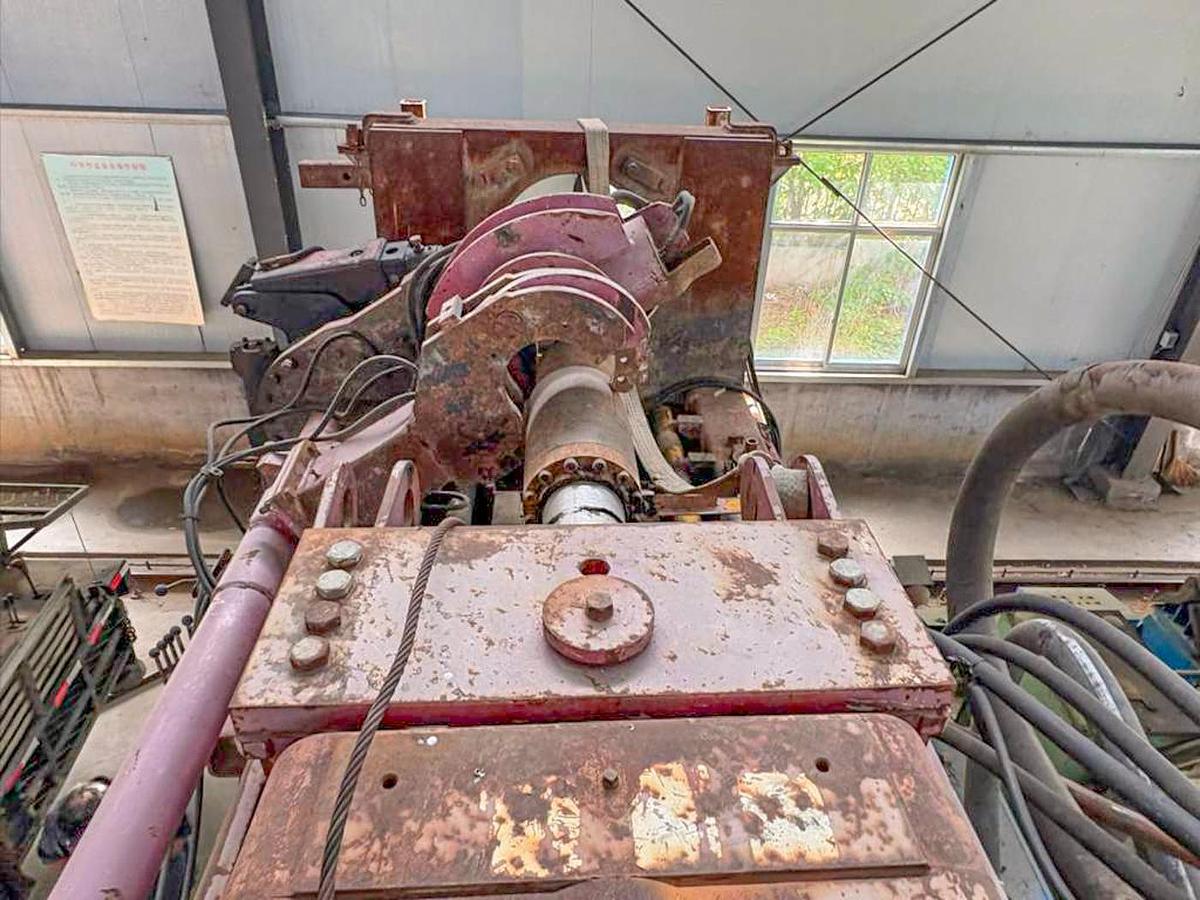

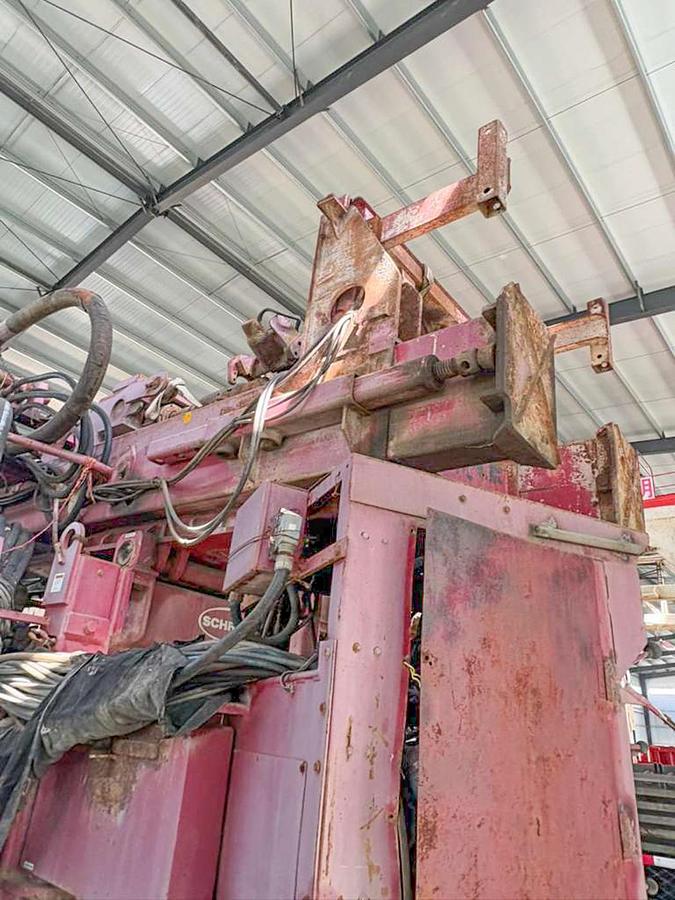

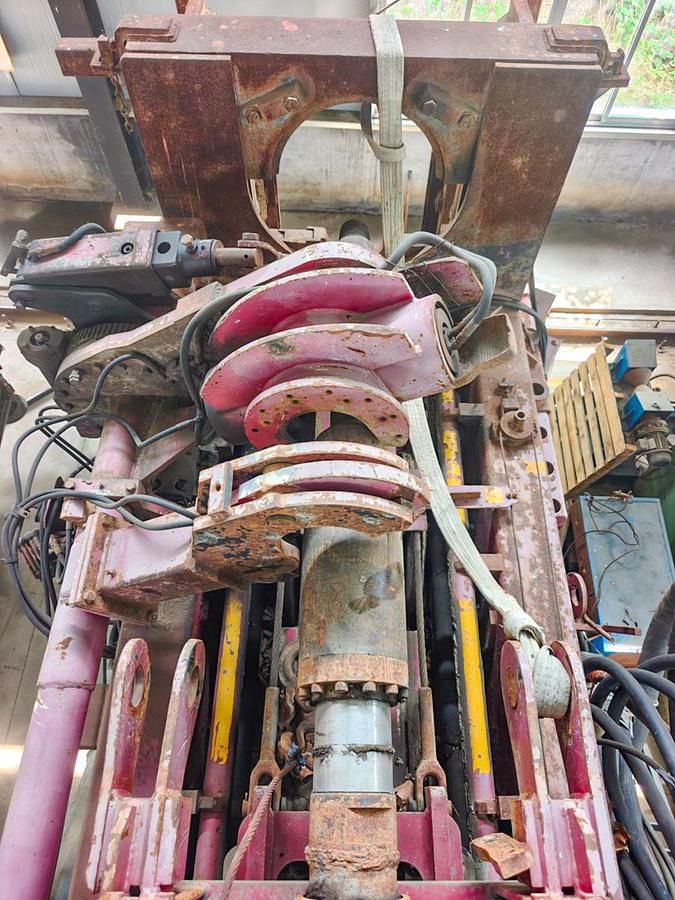

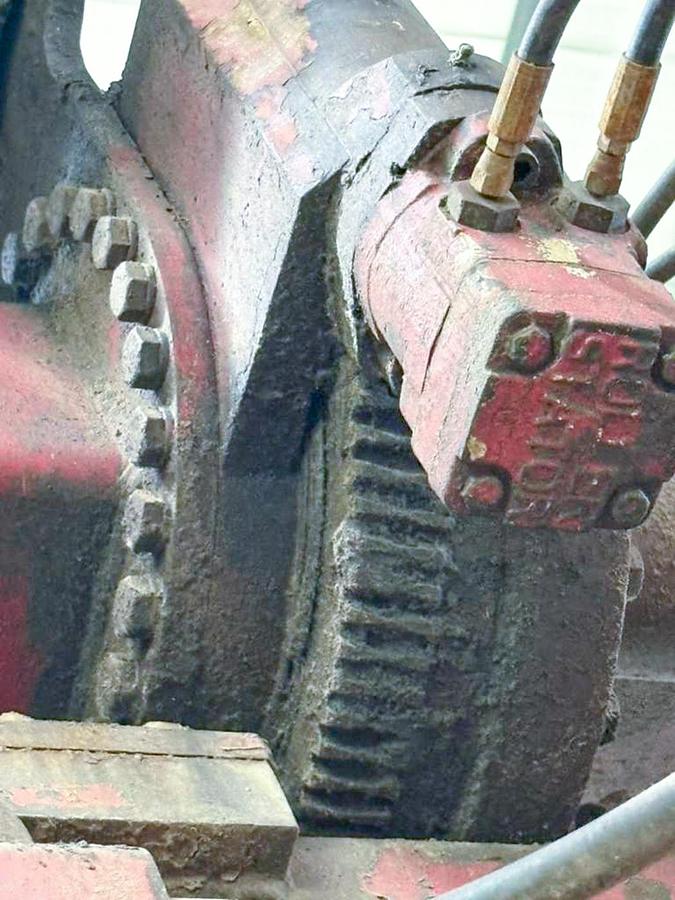

• TOP HEAD DRIVE:
• Heavy Duty, Single Reduction Gearbox With Multiple Disc Valve Type Hydraulic Motors
• Infinitely Variable Rotation Speed via HRC Control
• Maximum Torque: 8,884 ft-lbs (12,045 N-m)
• Rotation Speed: 0-143 RPM
• Maximum Operating Pressure: 3,000 psi (208 bar)

FEED SYSTEM:

• 50 ft (15.24 m) Head Travel
• 130,000 lbf (578 kN) Pullback
• 125 fpm (38.1 m/min) Pullback Speed
• 32,000 lbf (142 kN) Pulldown
• 270 fpm (82.3 m/min) Pulldown Speed

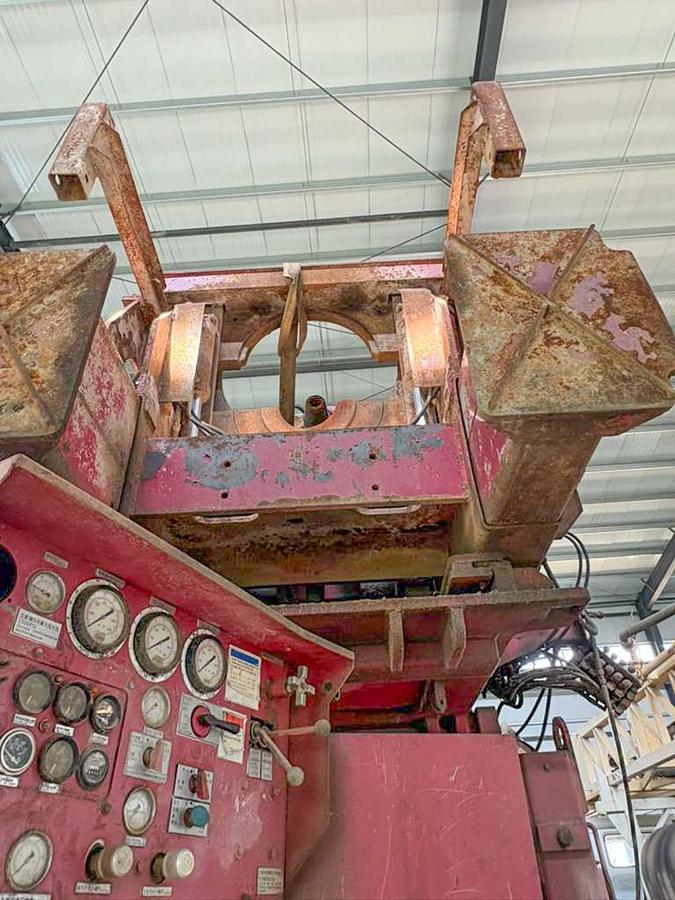

DRILL TABLE:

• Table Opening: 20 inches (508 mm) or 28 inches (711 mm) with Table Retracted

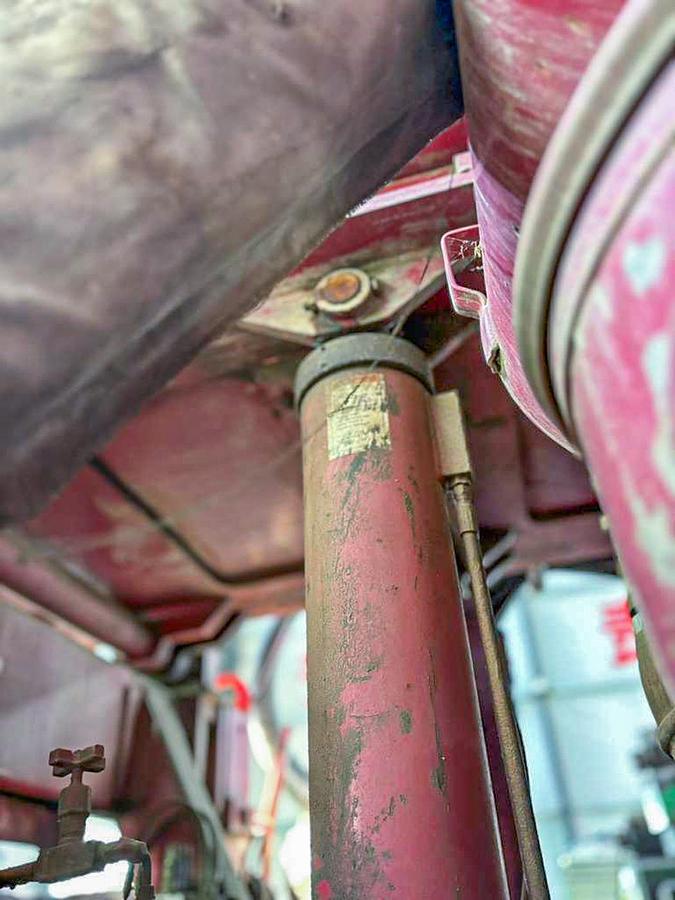

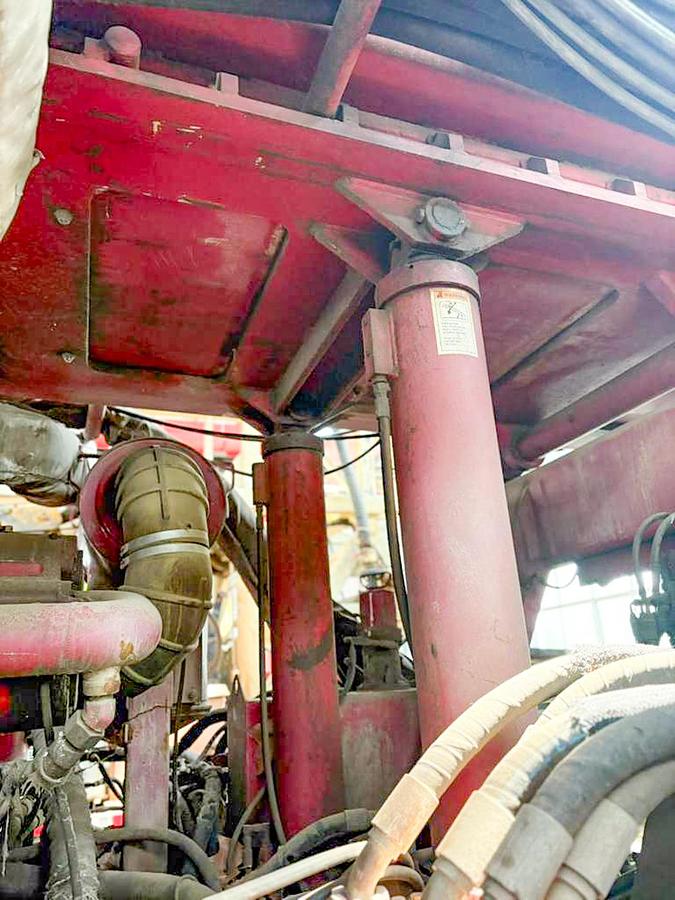

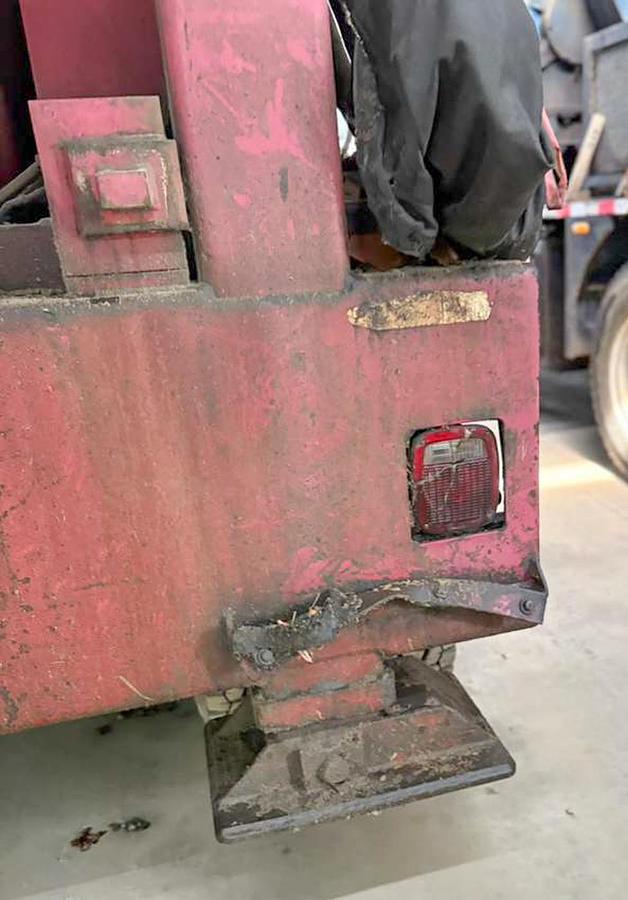

OUTRIGGERS:

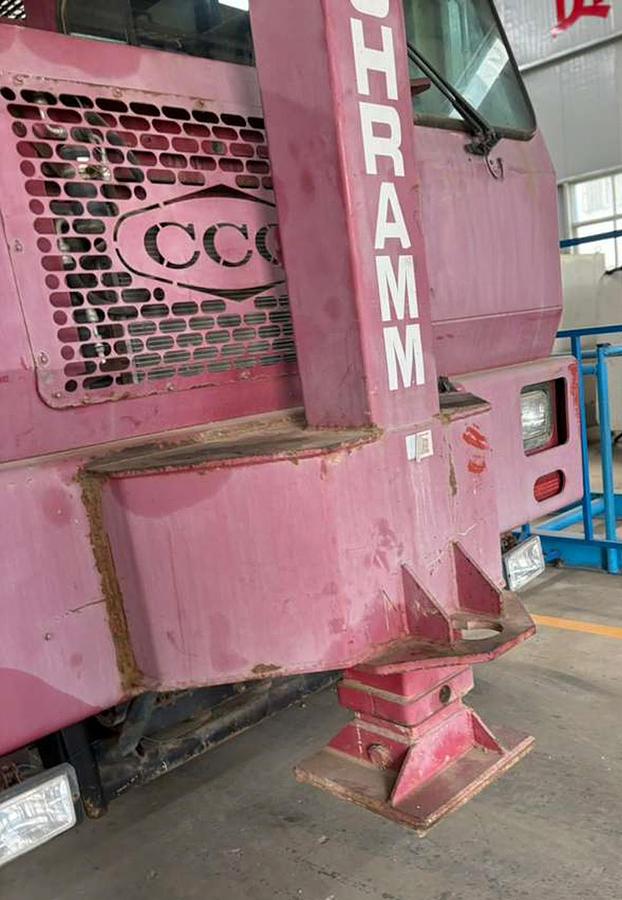

• Single Front - 5 inch (127 mm) bore x 41 inch (1.04 m) Stroke
• Dual Rear - 5 inch (127 mm) bore x 41 inch (1.04 m) Stroke

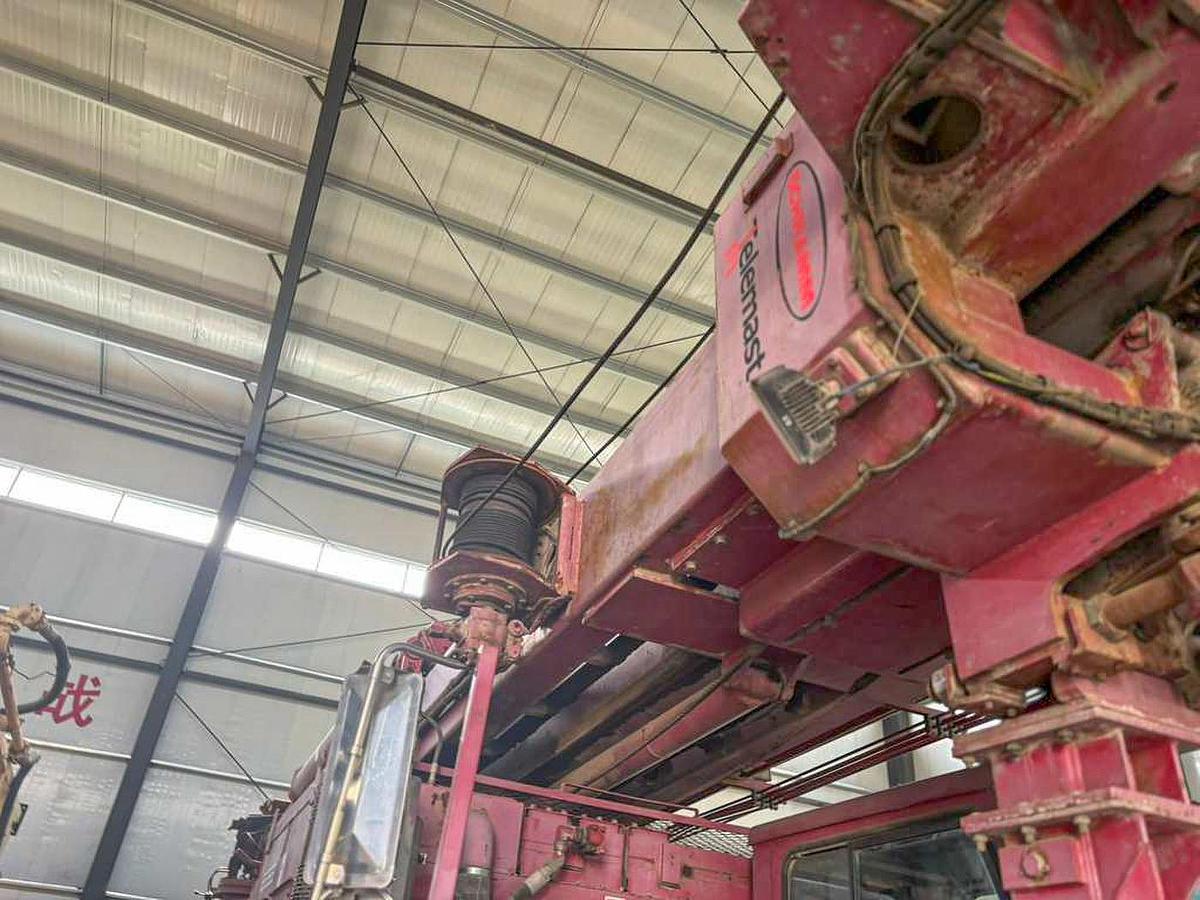

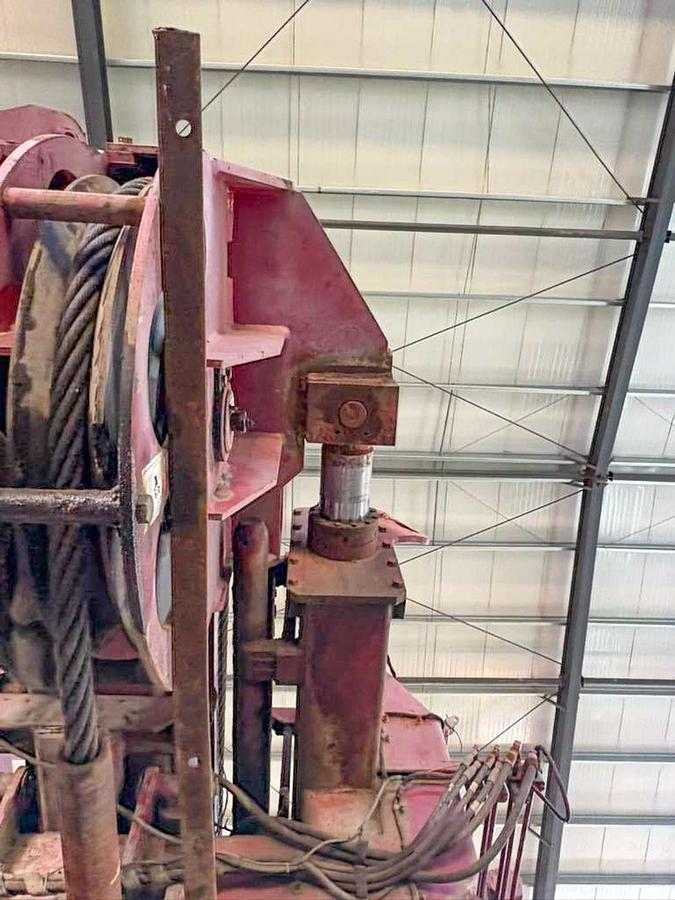

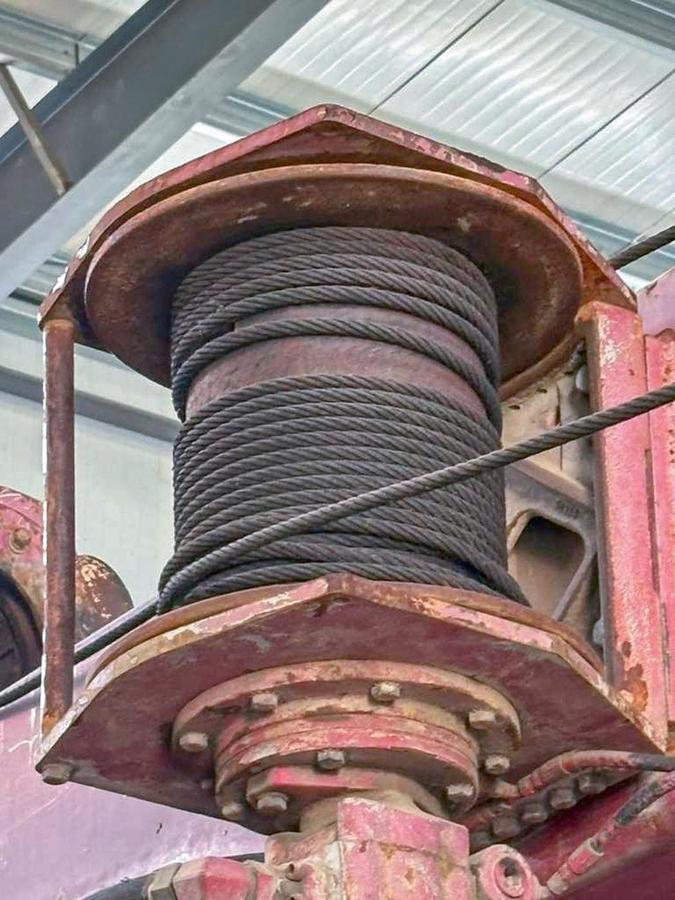

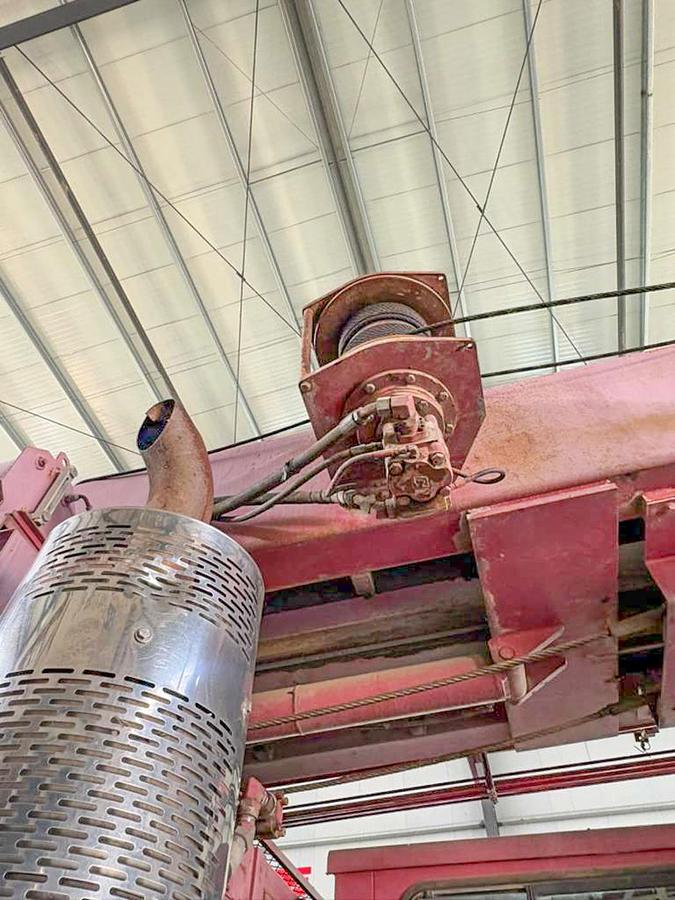

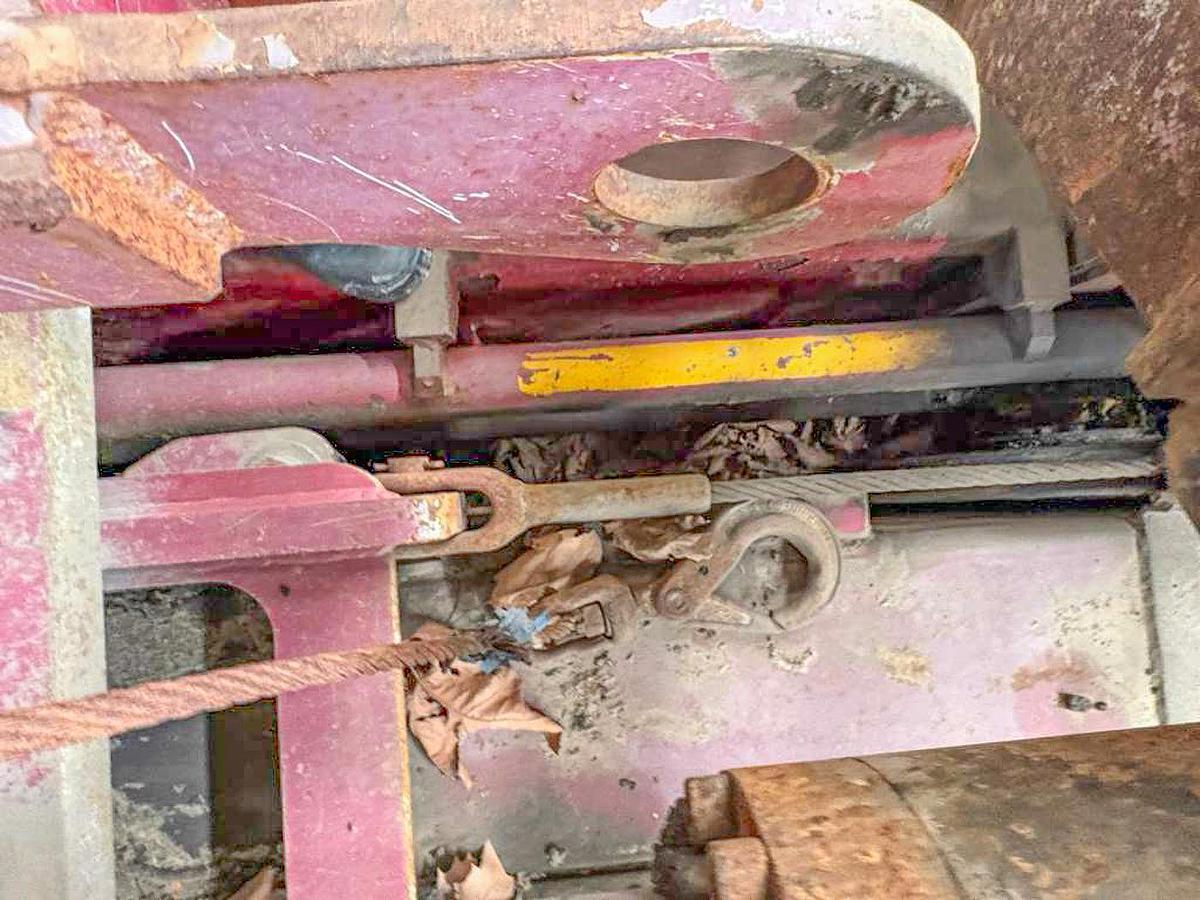

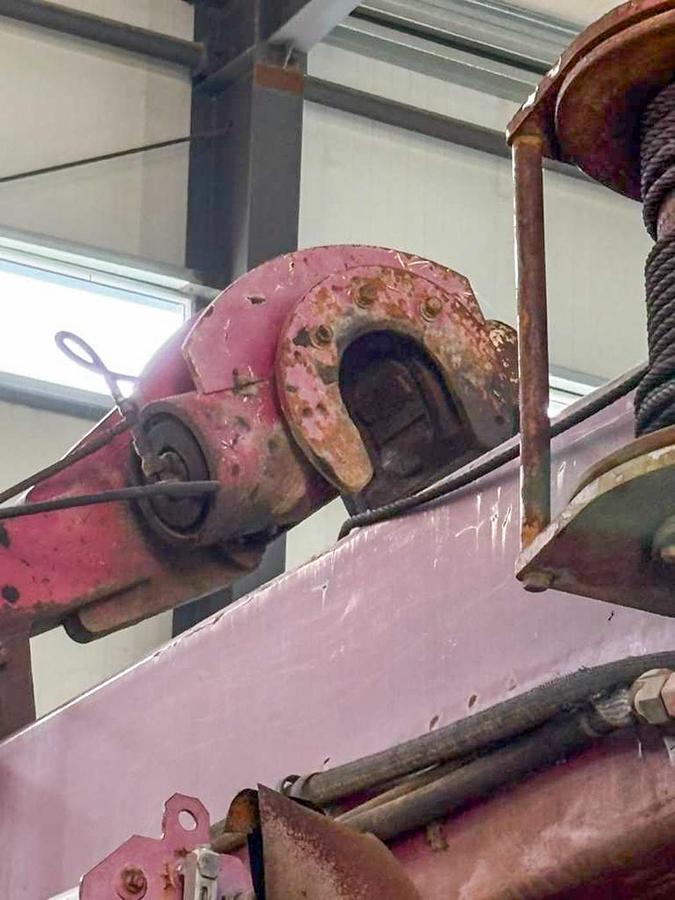

WINCH

• Planetary Design With Spring Applied Hydraulic Release Brake
• 9,600 lbf (42.7 kN) Bare Drum Line Pull
• 150 fpm (46 m/min) Bare Drum Line Speed

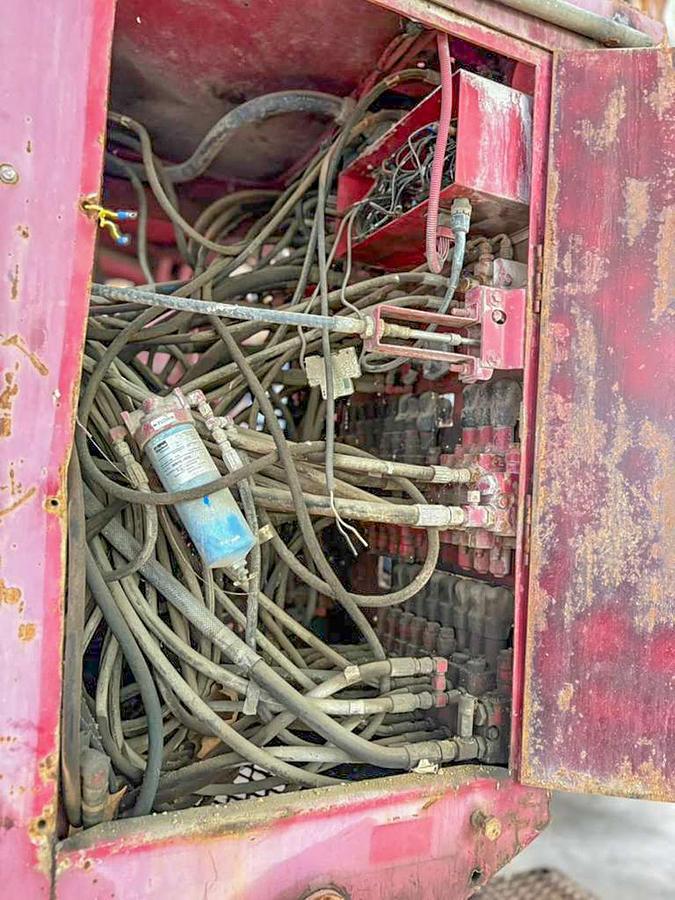

HYDRAULIC SYSTEM:

• Open Loop Load Sensing System
• 200 gallon (760 l) System Capacity
• 7 Micron Filtration

WATER INJECTION SYSTEM:

• 25 gpm (95 lpm) Water Pump
• Electric Foam Pump

TOOL LUBRICATOR:

•  Positive Displacement, Air Operated Piston Type Pump
• Oil flow: 0 - 5.0 g/hr (0 – 19 l/hr)

LIGHTING & ELECTRICAL SYSTEM:

• 24 Volt DC Electrical System
• Mast - (4) 60 Watt Floodlights

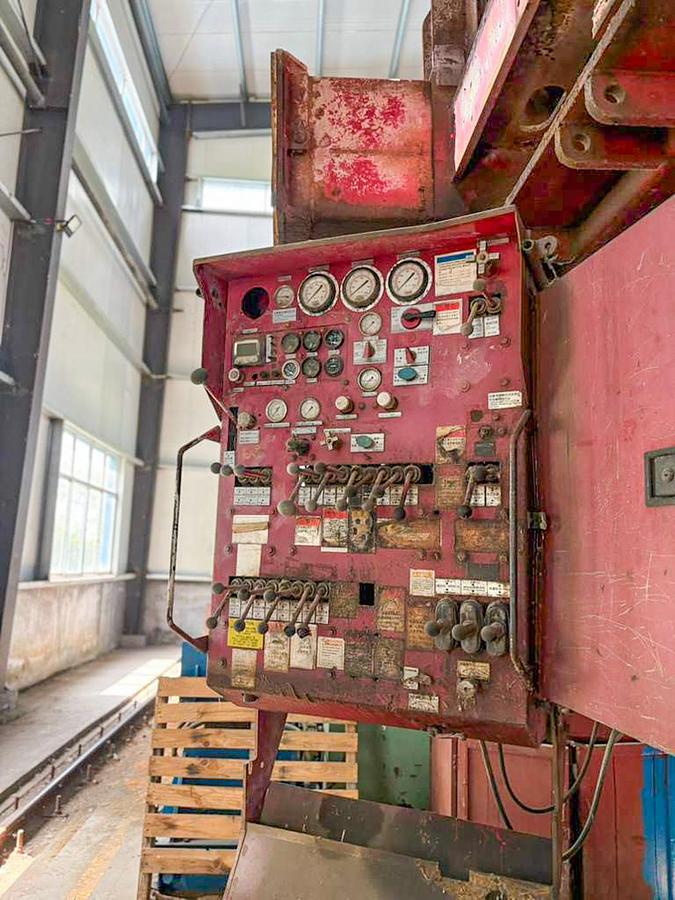

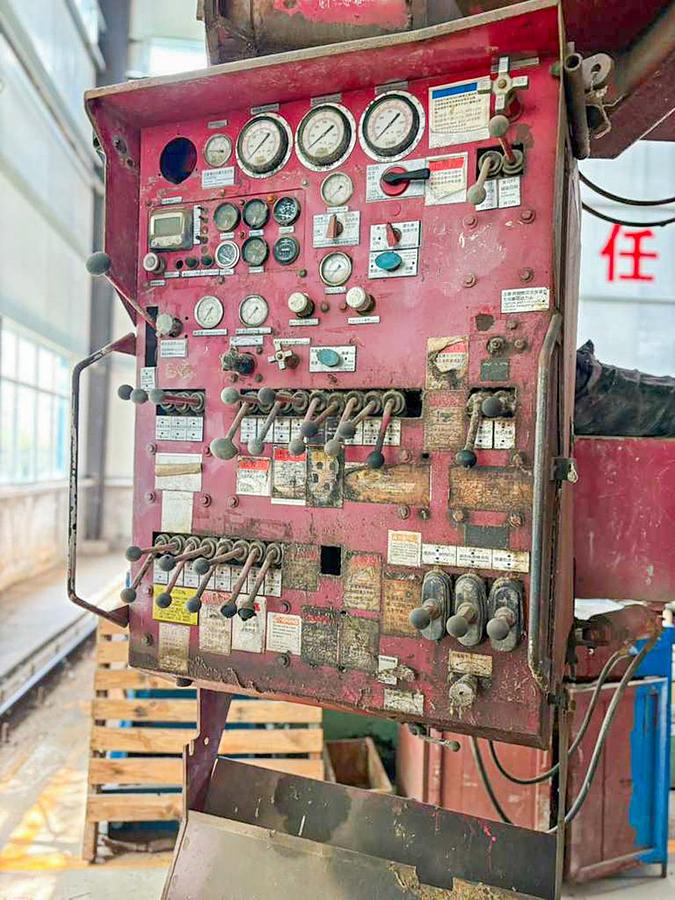

• Control Panel - (2) 60 Watt Gauge Floodlights
• Work - (3) 70 Watt Halogen

RIG WEIGHT AND DIMENSIONS:

• OA Length, Transport: 42 ft 9 inches (13 m)
• Front Mast Down Transport Overhang Ranges 6 - 8 ft (1.8 – 2.4 m)
• OA width: 8 ft 6 inches (2.6 m)
• OA Height, Transport: 13 ft 6 inches (4.1 m)
• Typical GVWR: 100,000 - 110,000 lbs (45,359 - 49,895 kg)

DRILL PIPE AND CASING:

• Range III Tubular Capability
• 28 inch (711 mm) Maximum Diameter Through The Slip Box
