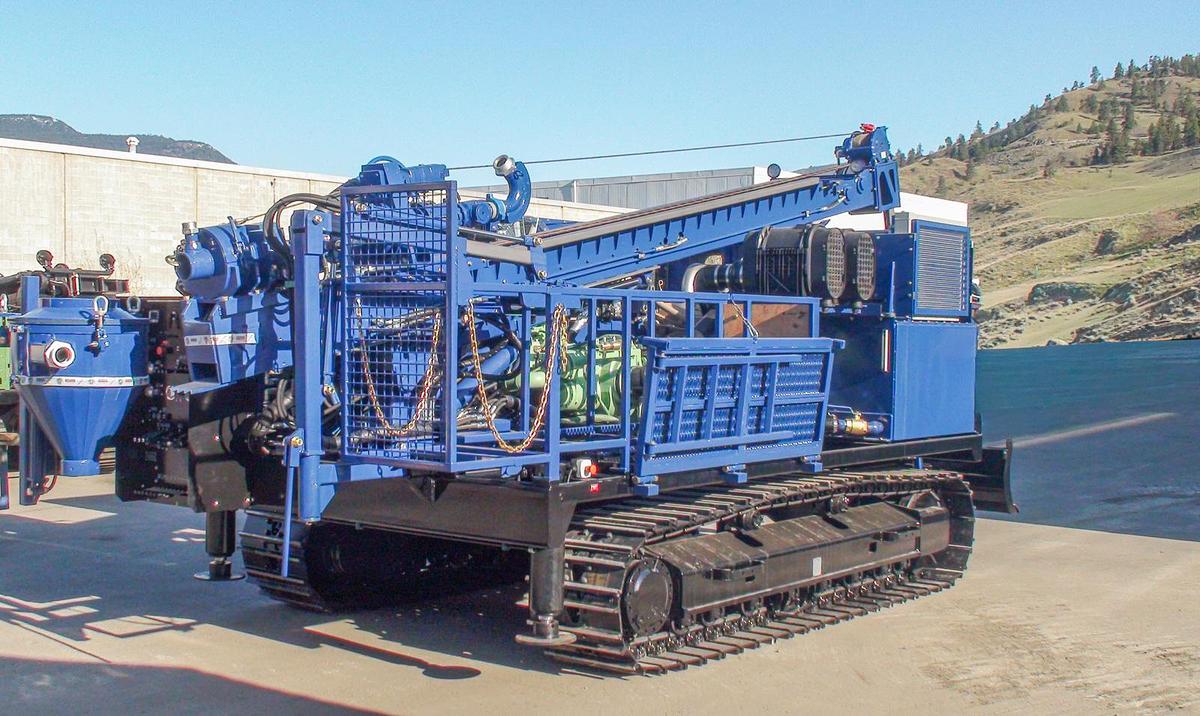

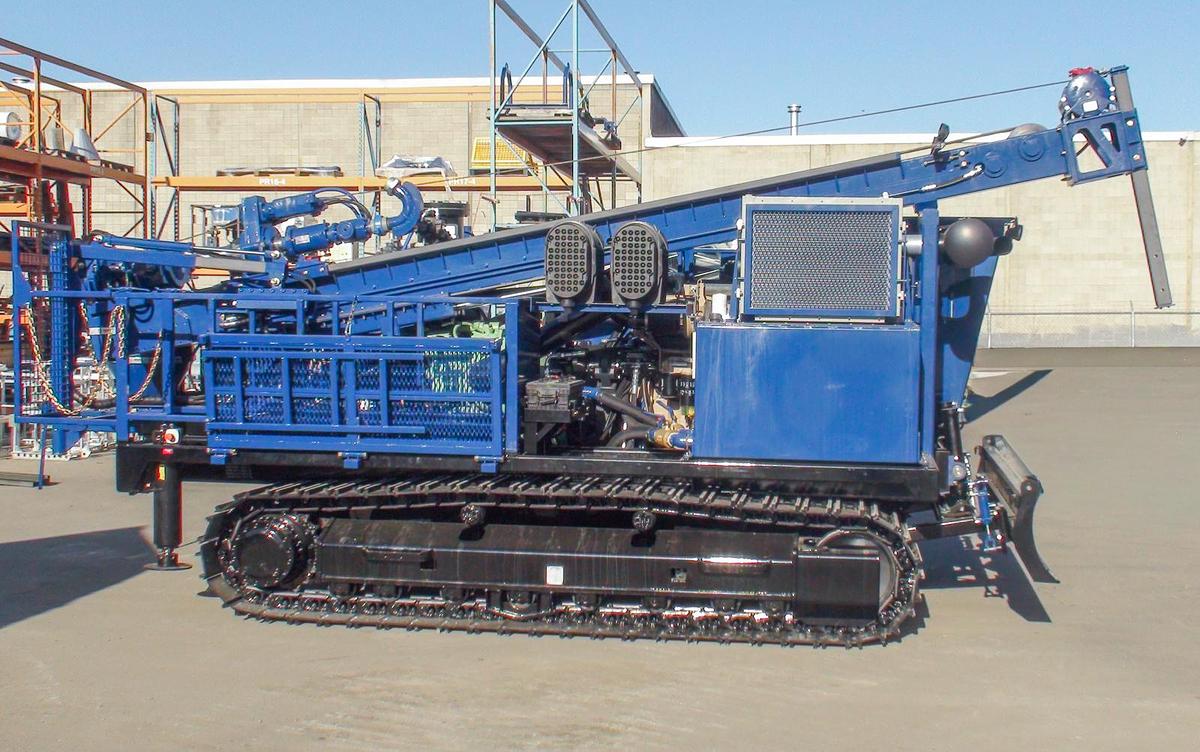

2018 Multi-Powered Products MPP P1 Exploration Drill Rig

2018 Multi-Powered Products MPP P1 Exploration Drill Rig

• Commissioned In 2020
• Powered By John Deere 6135HF485 Diesel Engine
• Rated 500 HP
• Approximately 2,000 Engine Hours
• Eberspacher D5 Engine Heater
• Sullair Air Compressor
• 750 CFM @ 500 PSI (Actual)

Drilling Capacity:

• Rated Depth Capacity: 1,000 Ft (300 M) Using 4.5" Drill Rod
• Capacity Dependent on Ground Conditions and Formation Characteristics

Top Drive Package:

·      RAB Configuration to Run 2-7/8" RC Drill Rods

Mast & Feed System:

• Cable-Over-Hydraulic Feed System
• 23,000 Lbs. Pullback
• 16,500 Lbs. Pulldown
• 45°–90° Working Angle Package

Track Package:

• Mounted On CAT 320L Long Track Undercarriage
• Top Speed 3.5 MPH
• 46,000 Lbs. Drawbar

 Hydraulic System:

• Full Hydraulic Operation
• No Electrical Control System
• Maximum Hydraulic Flow: 165 GPM

Additional Accessories:

• Mounted Miller 185DX Welding Unit
• Includes Two 25-Foot Cables
• Blade Box
• 500 Feet Of 2-7/8" Recon Drill Rods
• (2) 4" DTH Hammers, Bits and Tooling

Location:

• Western Region, North America
