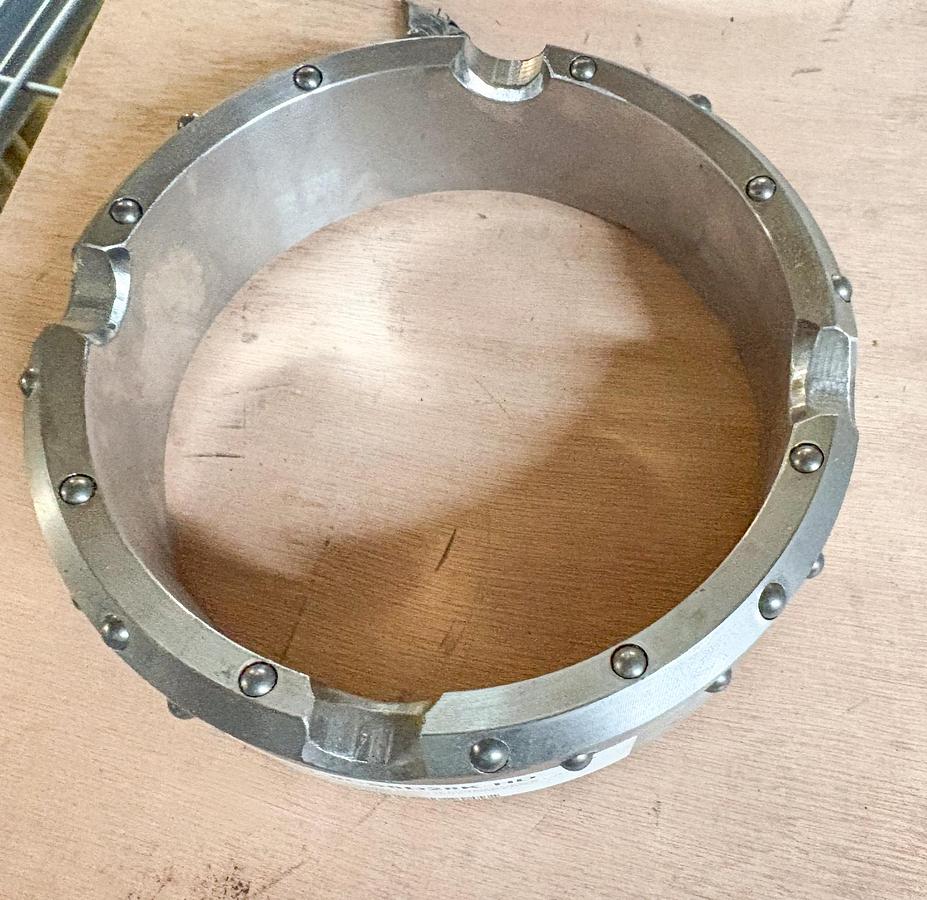

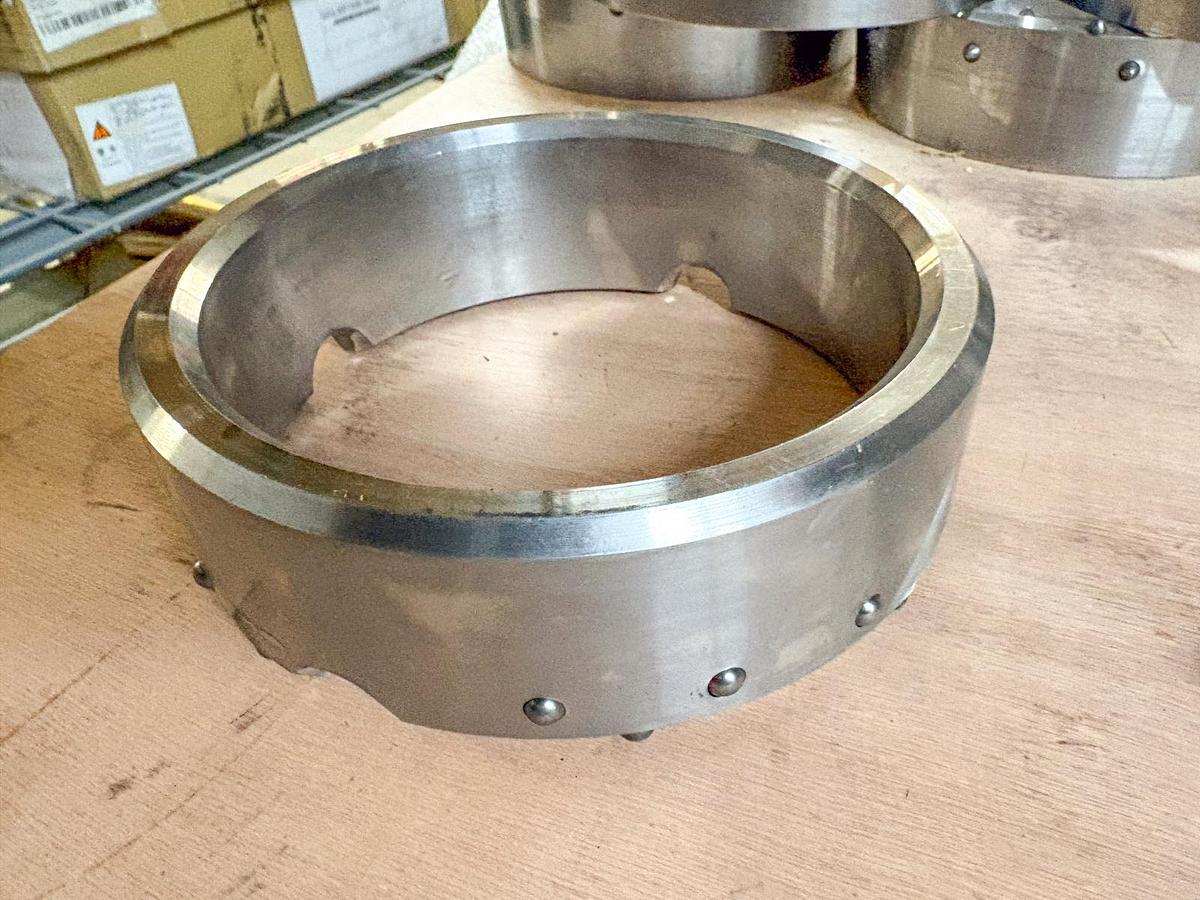

6" Dual Rotary Shoe – 28 Domed Button Assembly + 12 Carbide Wear Pads

2 Units of New 6" Dual Rotary Shoe – 28 Domed Button Assembly + 12 Carbide Wear Pads

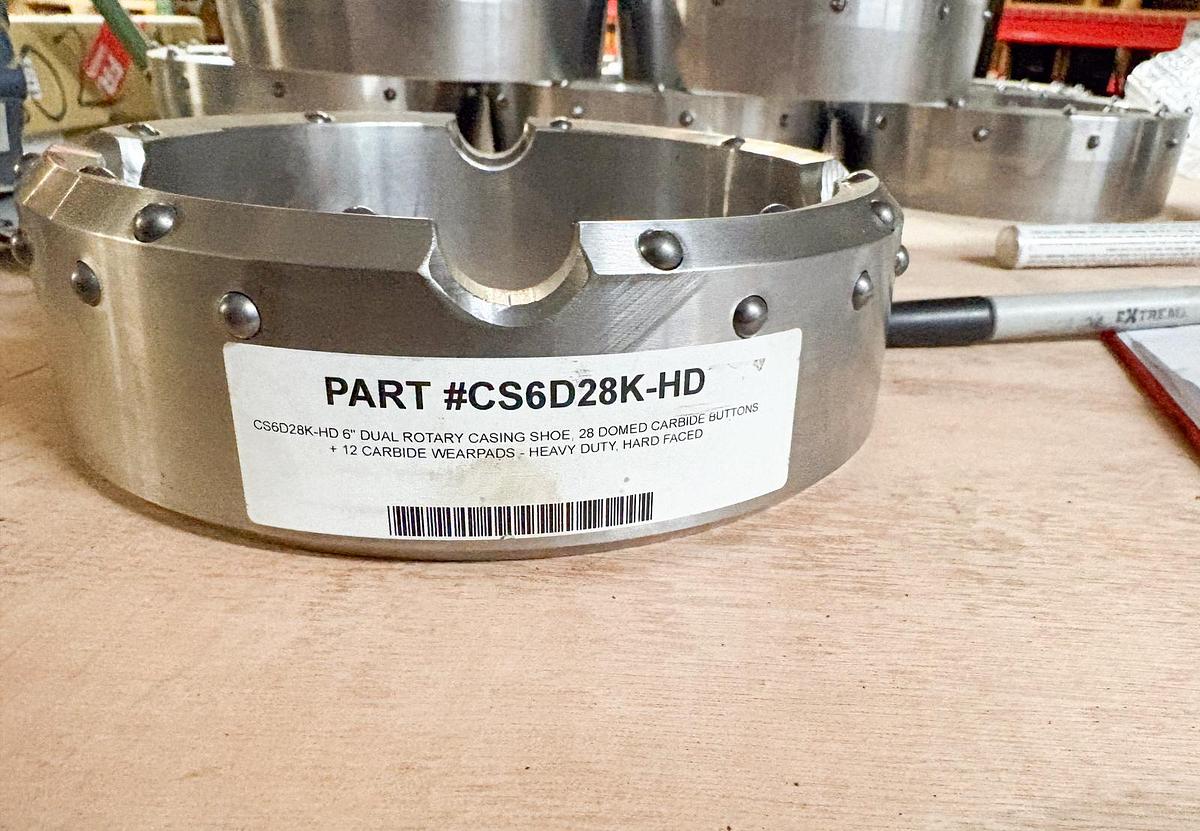

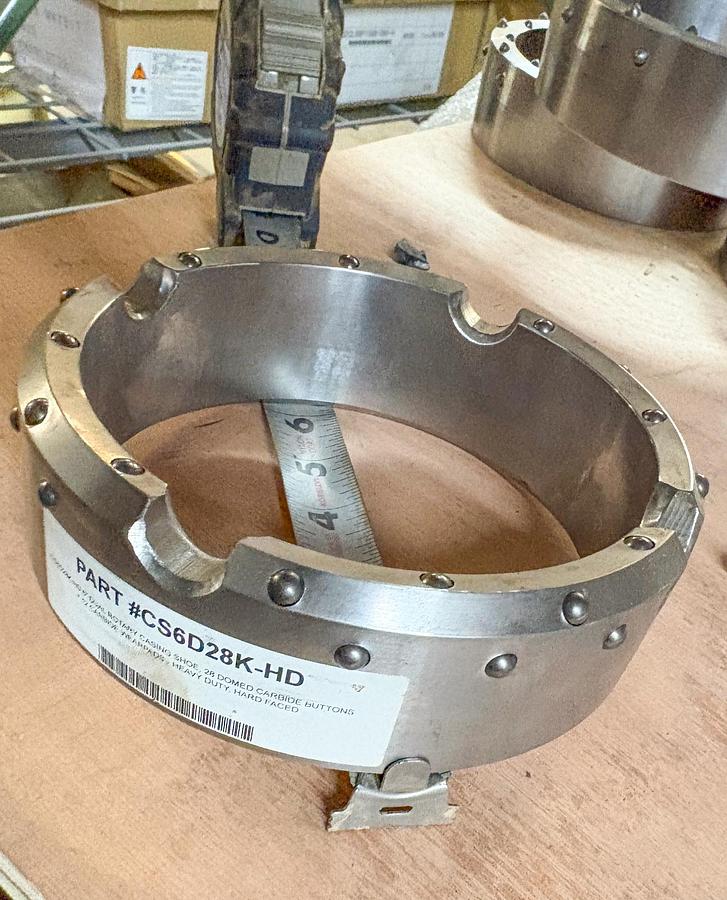

• Part Number: CS6D28K-HD
• Casing Size: 6"

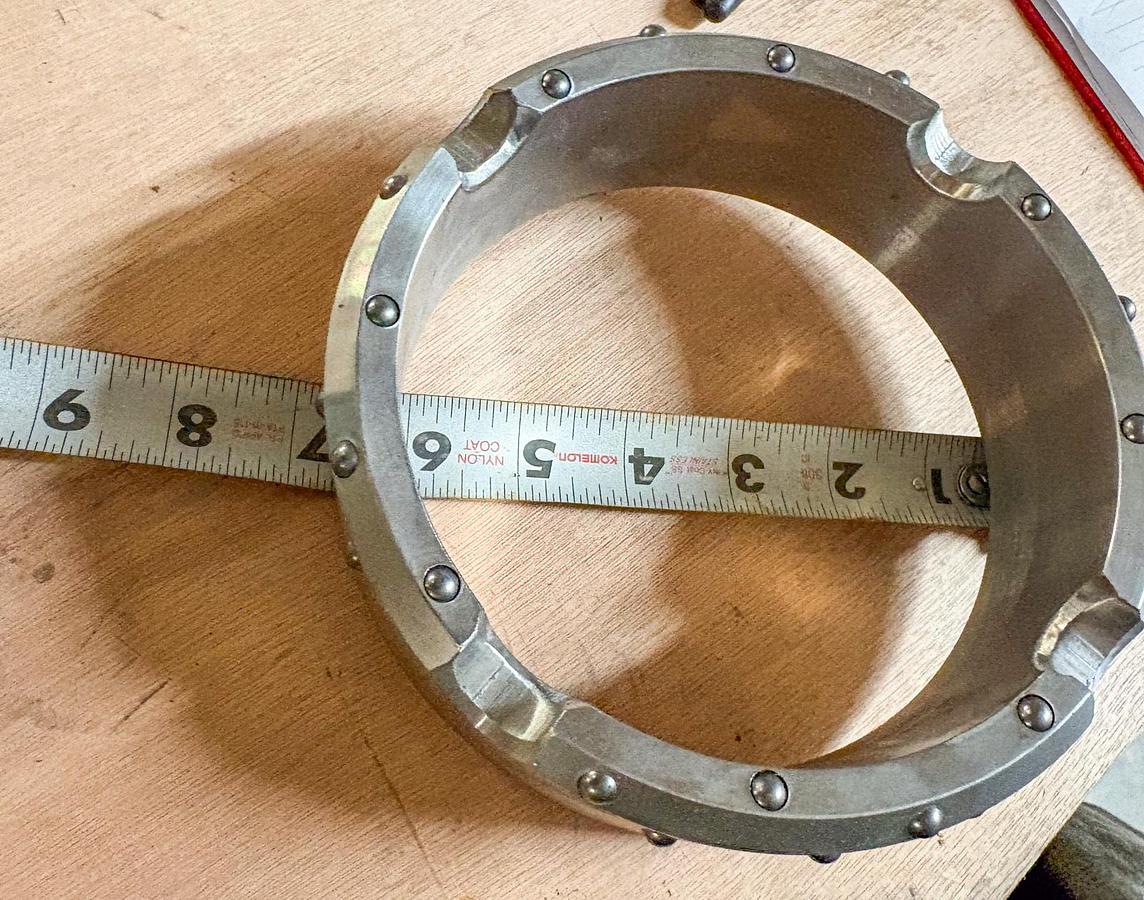

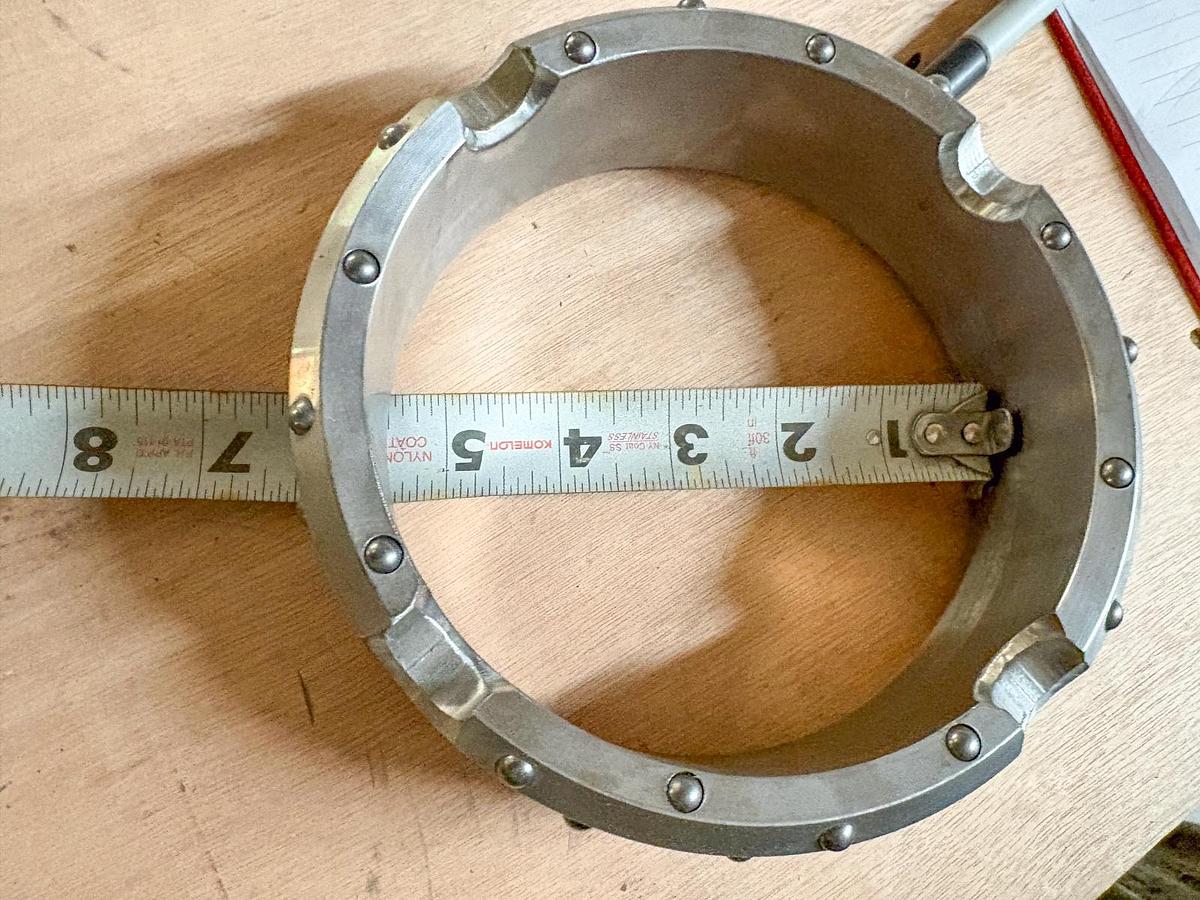

• Bit Pass-Through Id: 5-1/2"
• Cutting Structure: 28 Domed Carbide Buttons
• Wear Protection: 12 Carbide Wear Pads

·       Construction: Heavy-duty, Hard-Faced Design

Designed For Dual Rotary Drilling:

• Dual Rotary Drilling Proves to Be a Swift and Reliable Method for The Toughest Jobs, Utilizing 2 Rotary Drive Mechanisms, Including A Lower Drive That Rotates The Casing.

Performance Benefits:

• Cuts Through Boulders, Ledge, And Hard Bedrock
• Reduces Sidewall Friction for Deeper Drilling
• Protects Casing from Splits and Structural Damage
• Extends Casing and Tooling Life

Domed Button Advantages:

• Maximum Resistance to Breakage in Hard Rock
• Smaller Carbide Buttons Tend to Provide Faster Penetration but May Wear Out Sooner in Hard Rock
• Ideal For Long Life in Abrasive Formations

Carbide Wear Pads Benefits:

• Protects The Gauge Diameter of The Shoe So It Maintains Its Full Outside Size.
• Reduces Body Wear on The Casing Shoe.
• Extends Service Life in Highly Abrasive Formations.
