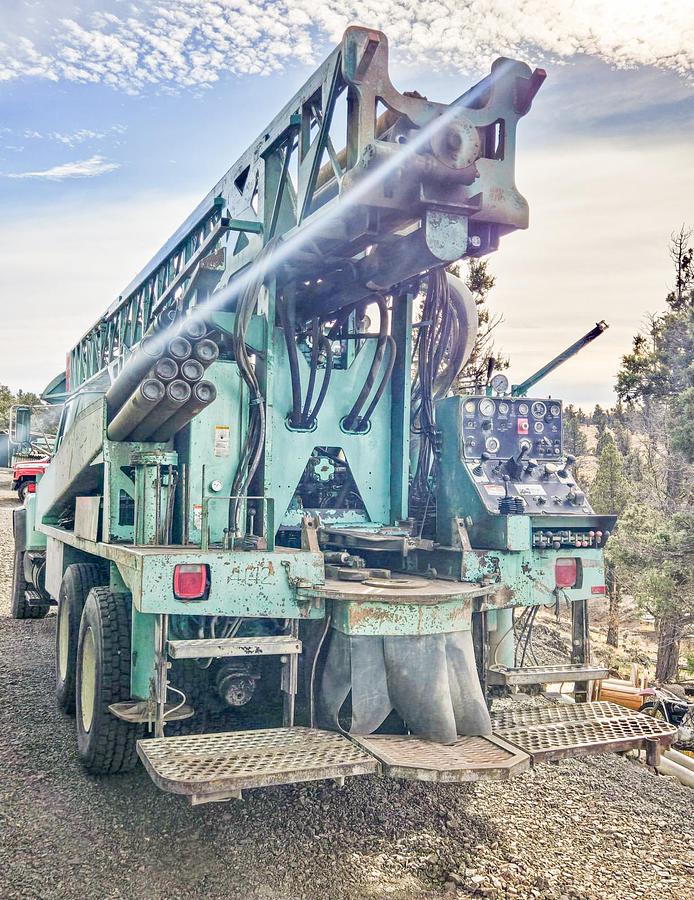

1995 Ingersoll-Rand T3W Drill Rig

1995 Ingersoll-Rand T3W Drill Rig & Equipment & Tooling Package

Around 7,000 Hours on the drill

IR HR2 825 cfm / 350 psi Air Compressor

Cummins 455 deck engine (Clutch between the engine and compressor)

38’ DHD derrick & 30,000 LB Pullback

DHD electric lubricator

25 gpm cat injection pump

High torque head 8,000 FT/LB, 0-155 RPM,

Torque limit control 18,000 LB main hoist, single line with two-part line arrangement block

Hydraulic pump and controls for 5 ½" x 8" mud pump (remote operation)

Rig is set up for 4 ½ x 20’ drill pipe with 2 7/8 IF tool joint

7 rod hydraulic indexed carousel

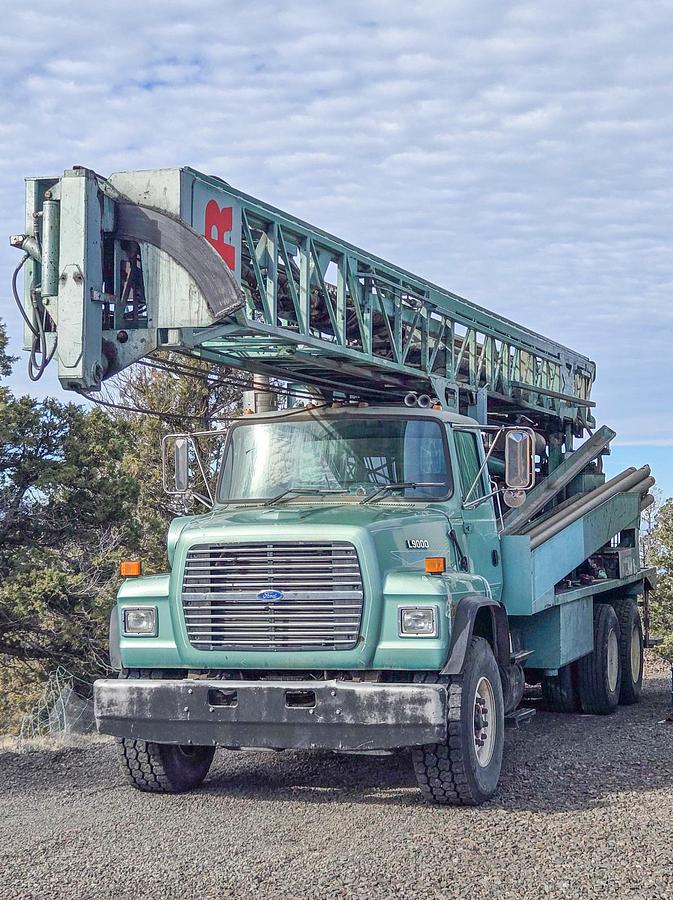

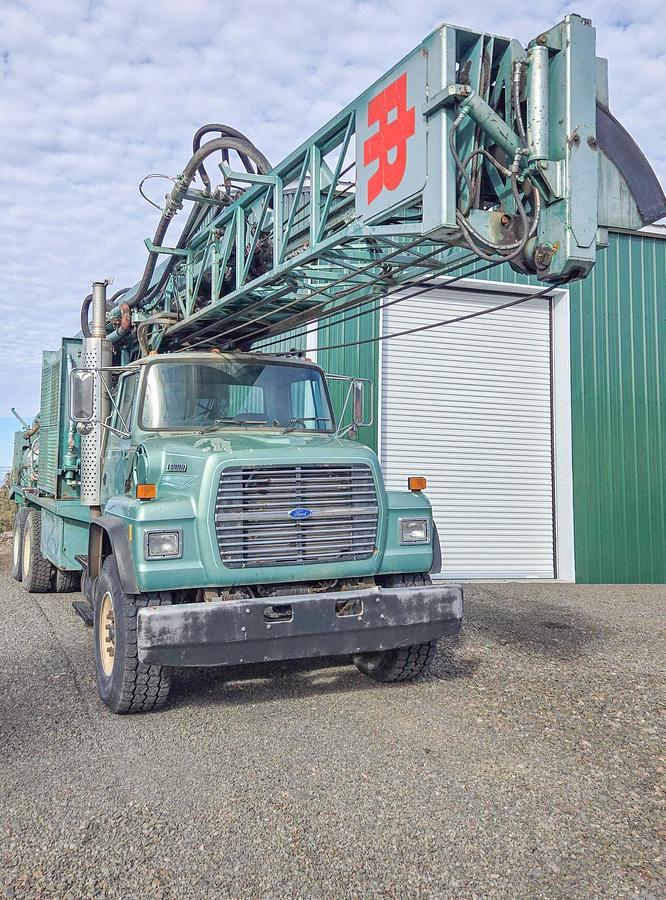

·      Mounted on Ford L9000 Truck with 12,000 Miles

Cummins N14 370 HP Engine with

exhaust brake and disc front brakes

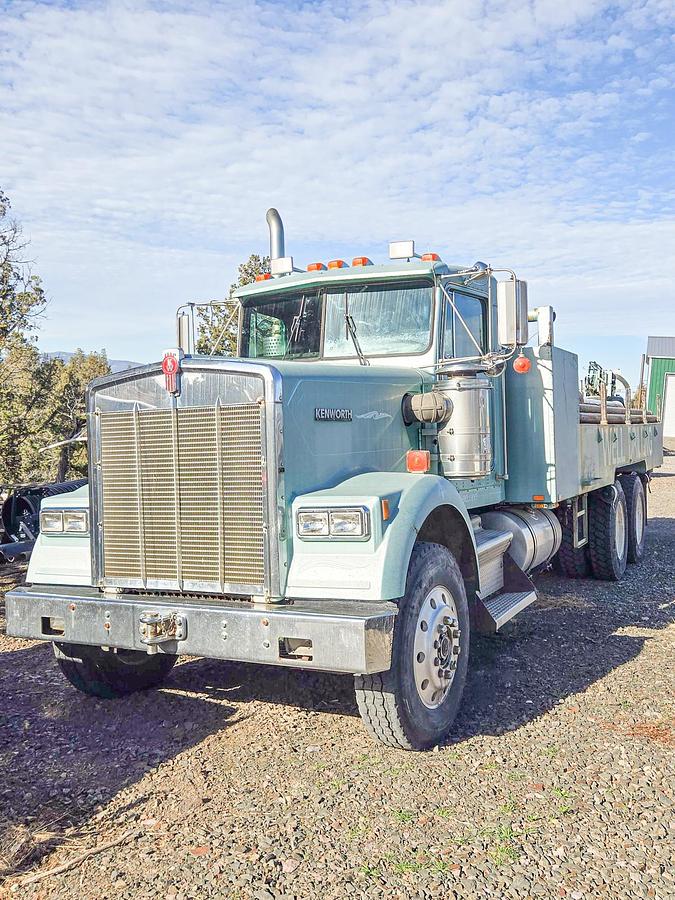

1989 Kenworth Truck

• 437,229 Miles
• 2,000 Gallon Flatbed Water Tank
• 500 Gallon Fuel Tank

Pump Equipment

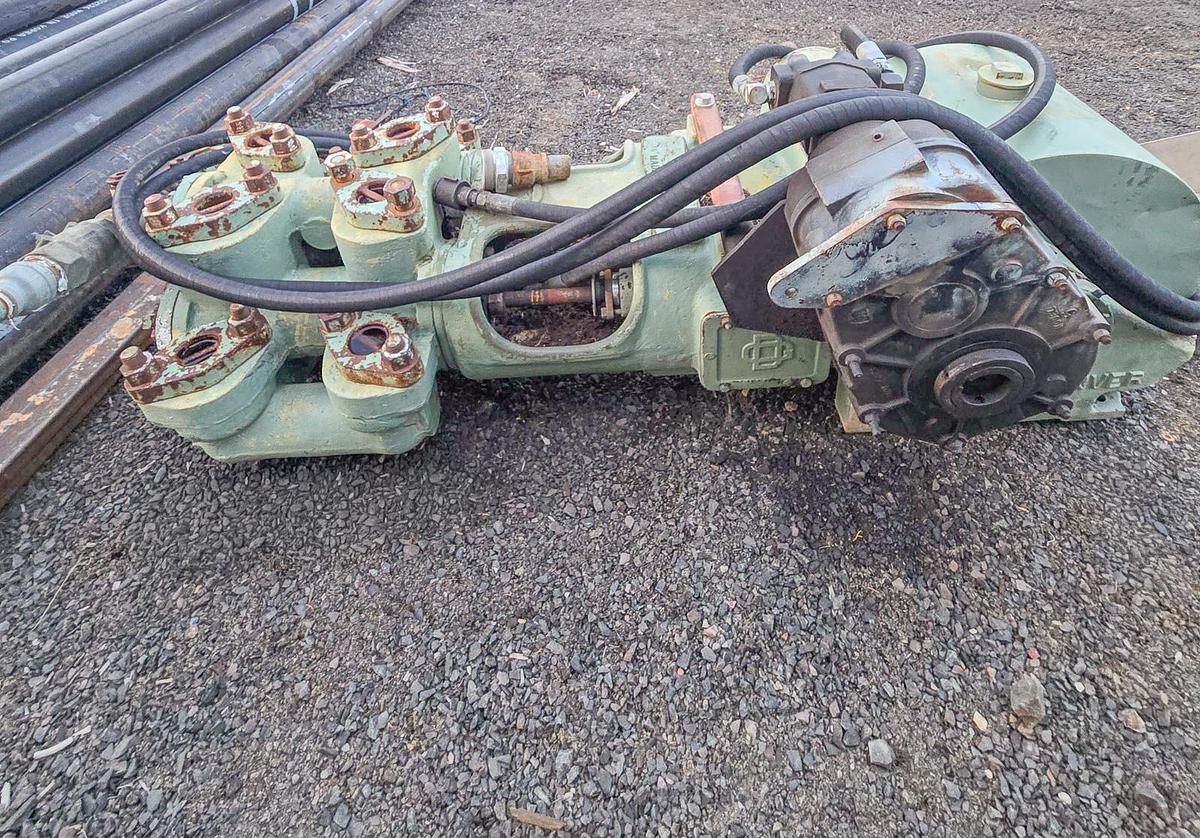

• GD Mud Pump – 5-1/2" x 8" (Hydraulic Hookup for Drill Rig)

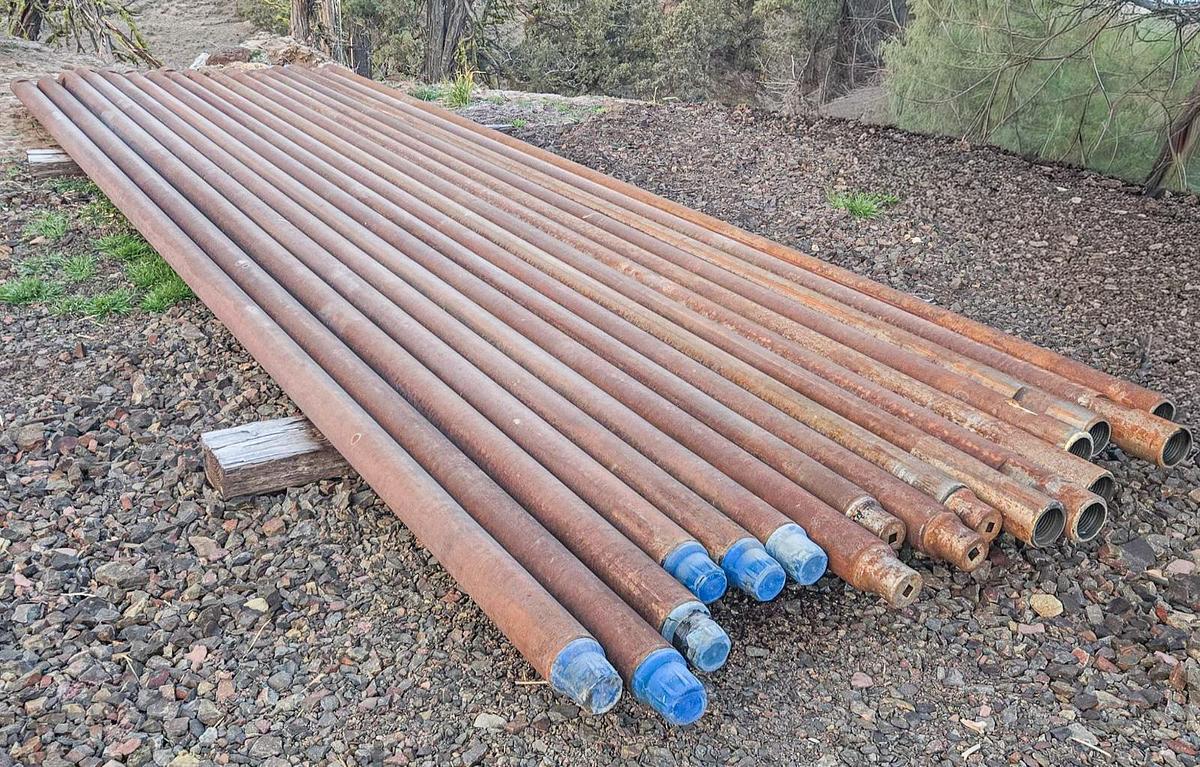

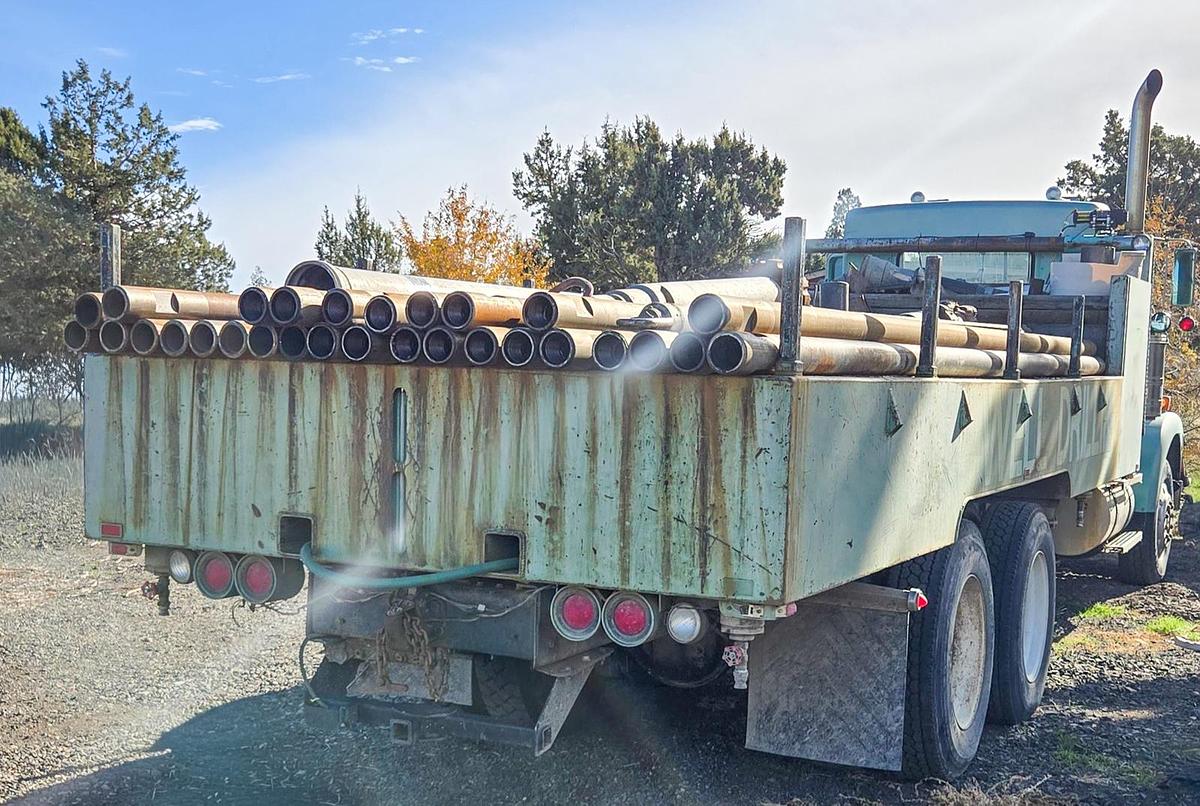

Drill Rods

• 63 of 4-1/2" x 20' Drill Rod
• Connection: 2-7/8" IF
• Total Rod Length: 1,260 ft

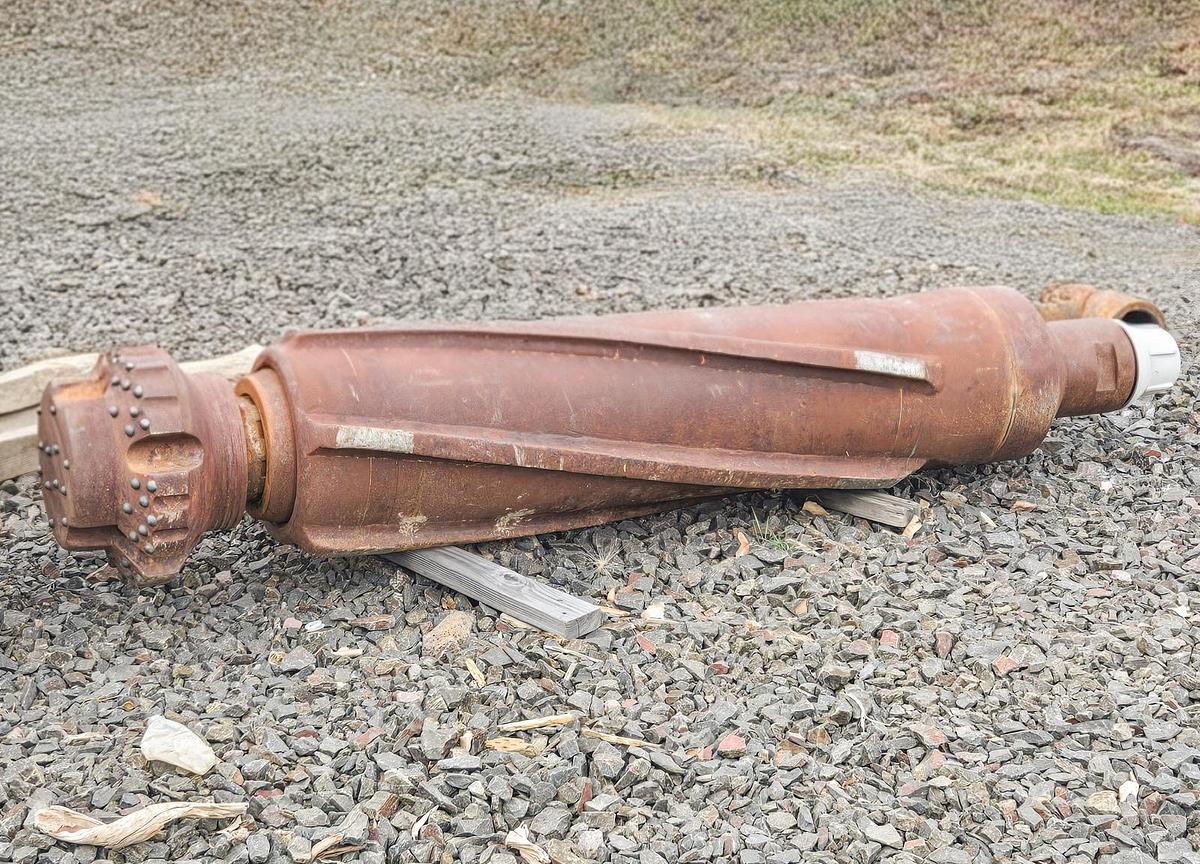

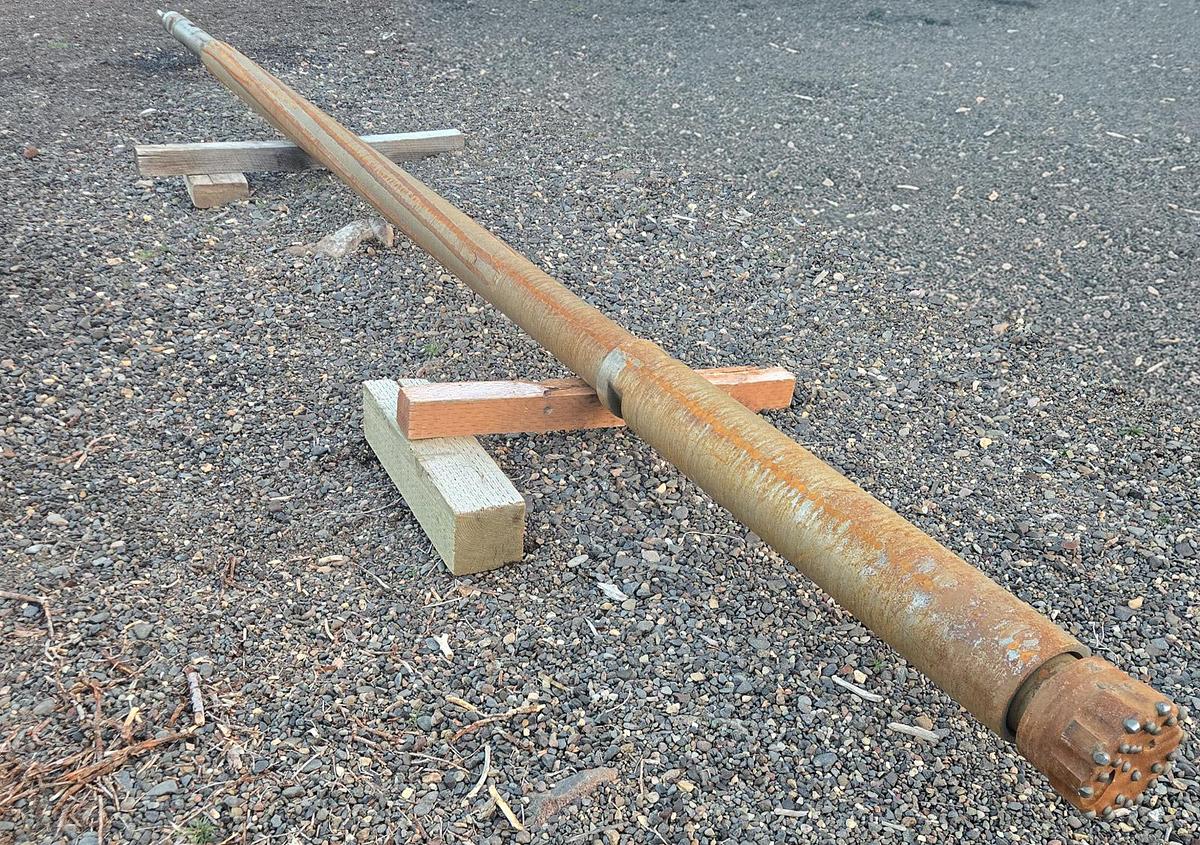

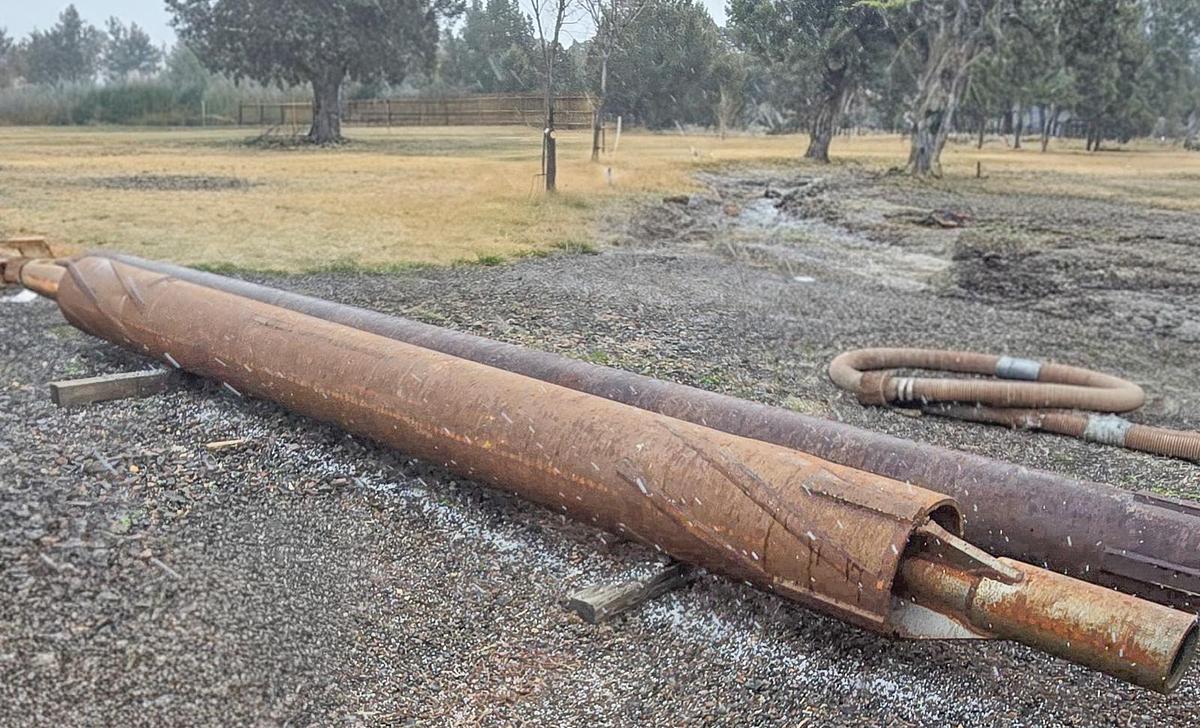

Down-Hole Hammers & Stabilizers

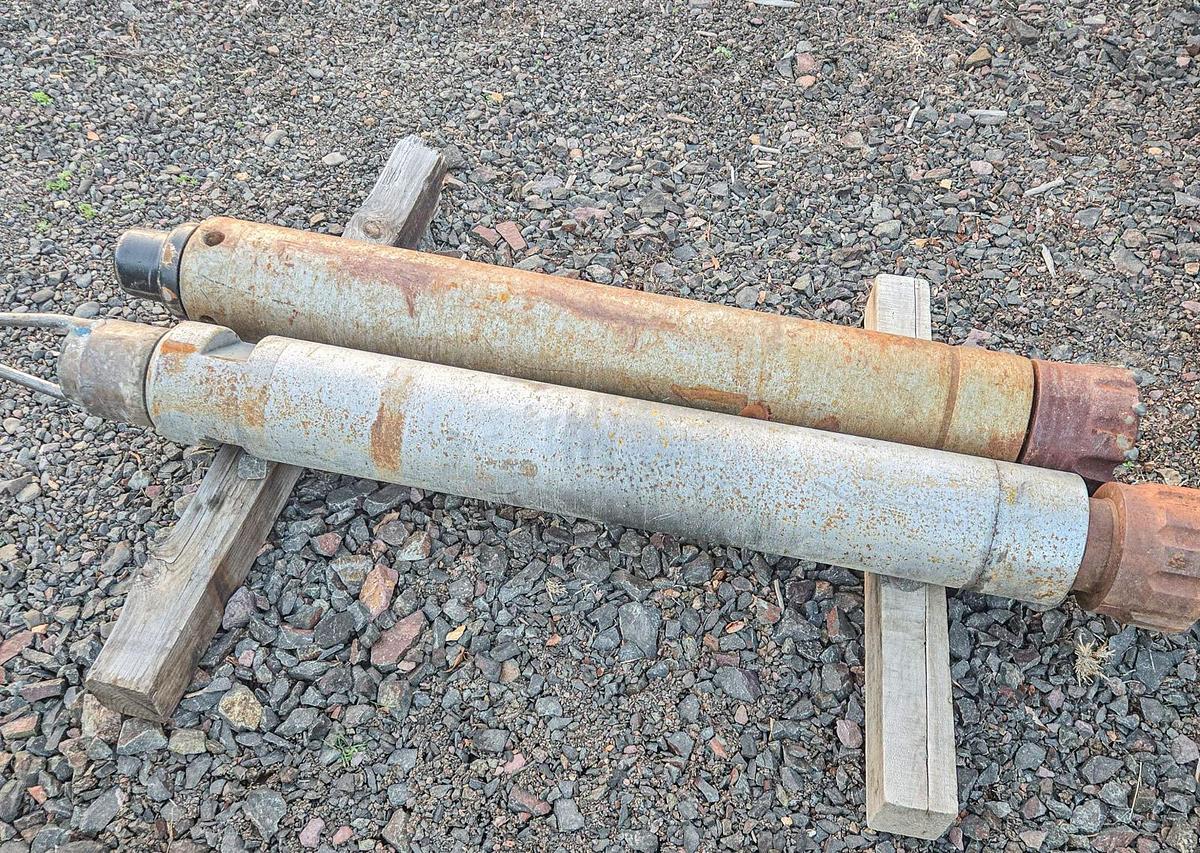

• 3 – 8" Hammers
• 2 – 8" Stabilizers
• 10" Stabilizer – 10 ft
• 12" Stabilizer – 10 ft
• 18" Stabilizer – 20 ft
• 19" Hole Opener Hammer
• 12" Over Drill – 20 ft

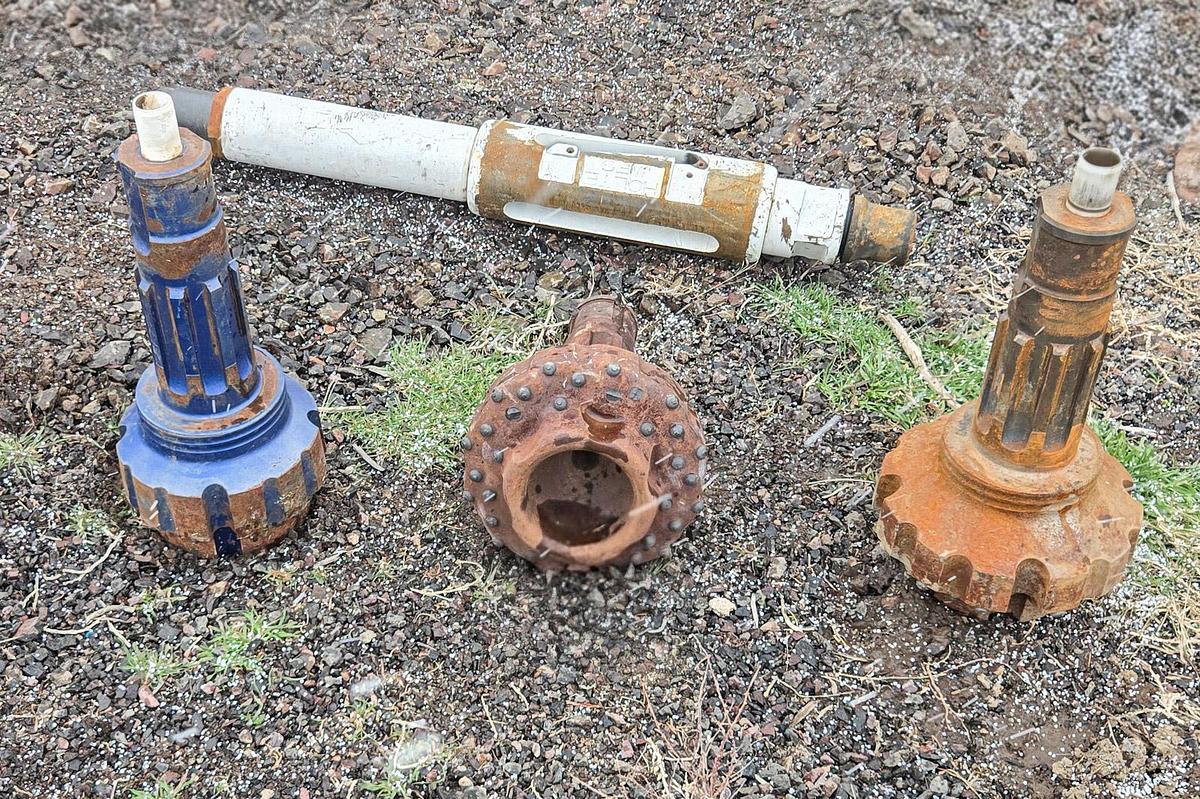

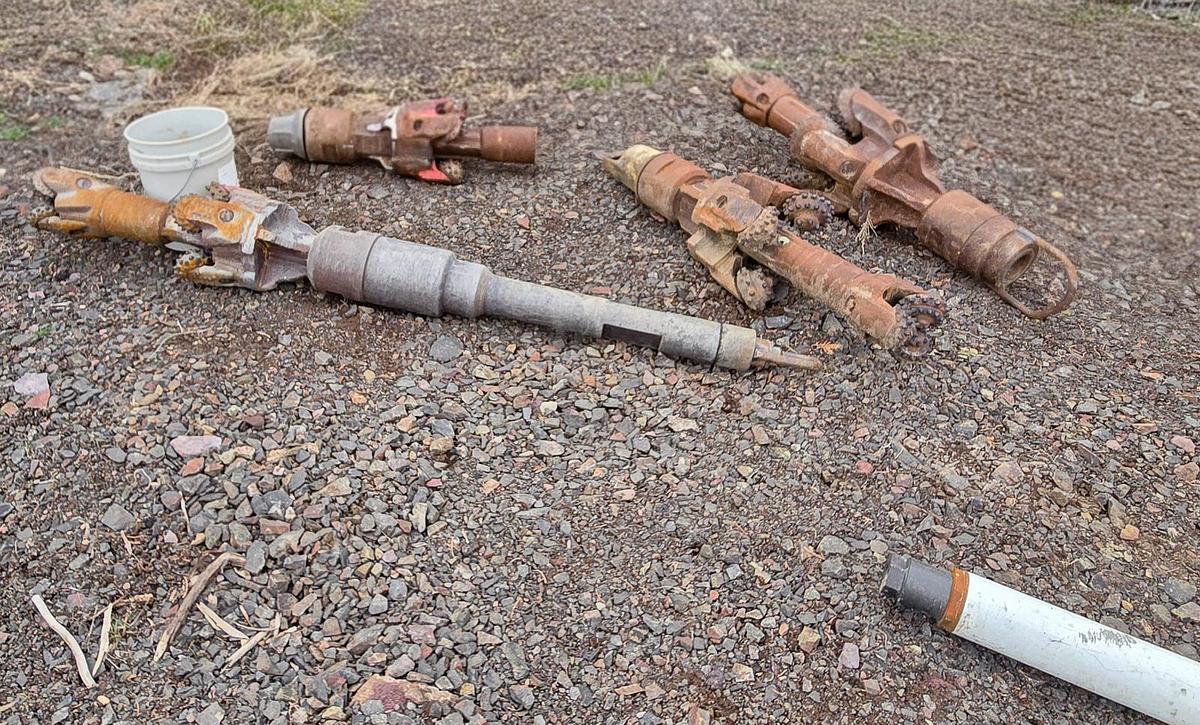

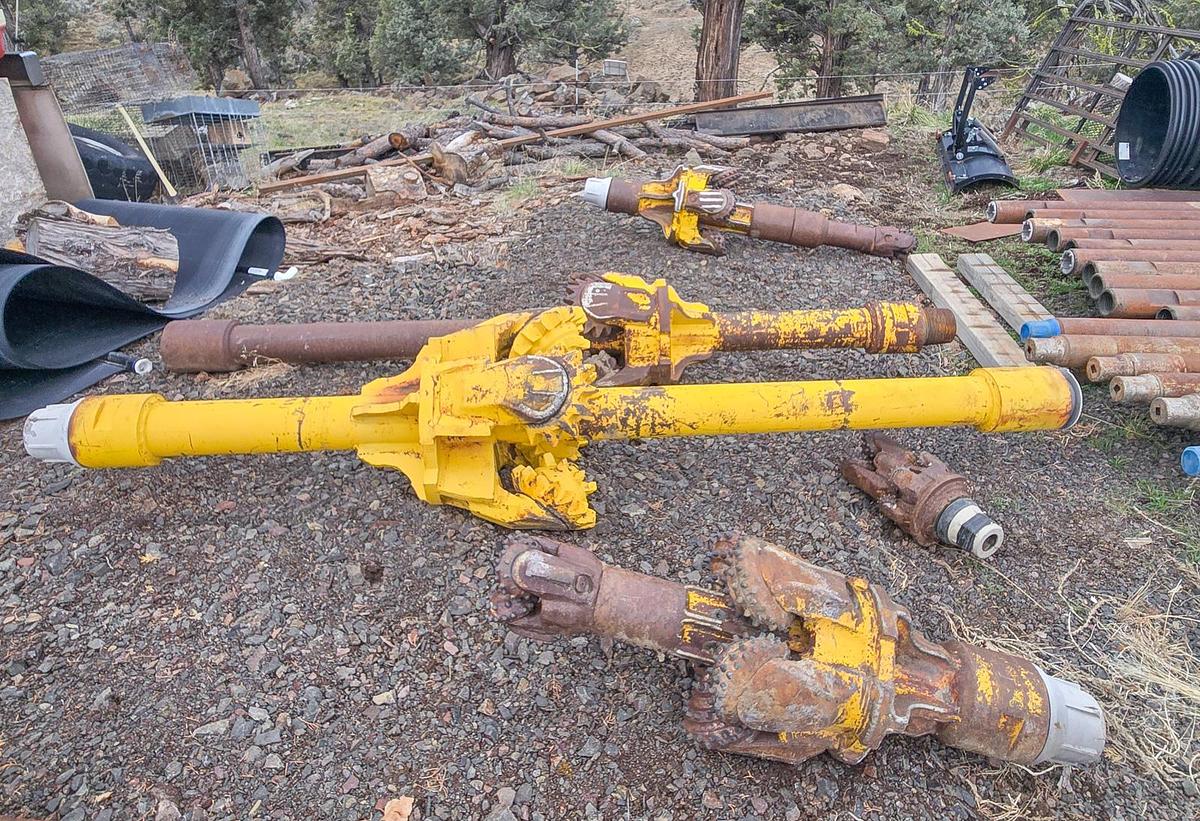

Drill Bits & Hole Openers

• 7-7/8" Button Bit
• 7-7/8" Claw Bit
• 7-7/8" Hammer Bit
• 6" Button Bit
• 10" Hammer Hole Opener Bit
• 12" Hammer Hole Opener Bit
• 12" Button Hole Opener Bit
• 16" Button Hole Opener Bit
• 2 – 18" Button Hole Opener Bits
• 20" Button Hole Opener Bit
• 26" Mill Tooth Hole Opener Bit

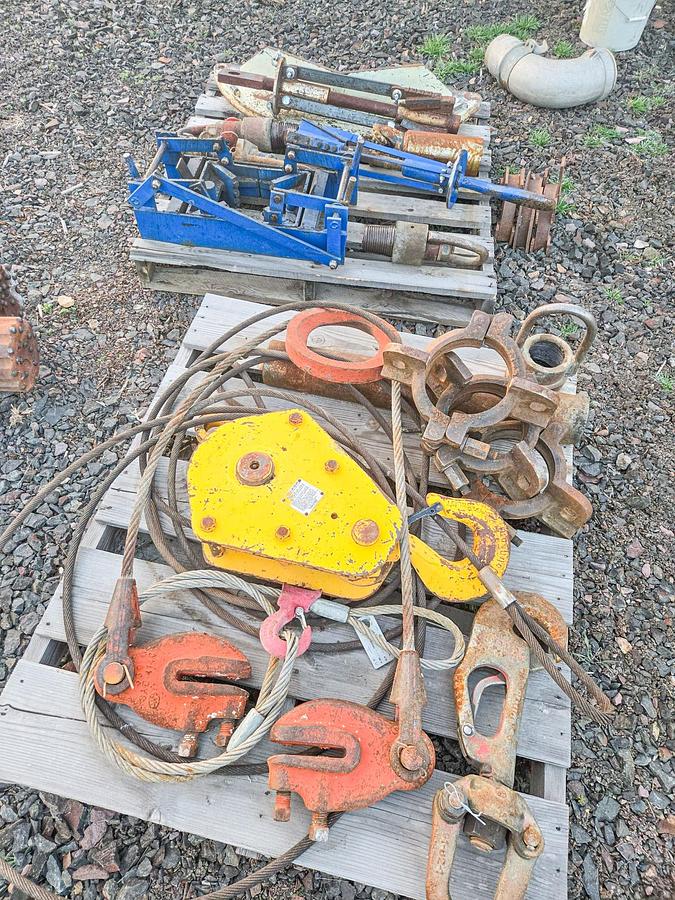

Casing & Handling Equipment

• 6" Air Perforator
• 6" Casing Holder
• 6" Internal Casing Lifter
• 3 – 6-5/8" Flush Casing Elevators
• Large Casing Lifting Cable
• Small Casing Lifting Cable

Rig Tooling

• 2-7/8" IF Fast Plug
• 4 – 2-7/8" IF Lifting Bails
• 2 – Petol Gearench Wrenches

Located in Western Region, USA
