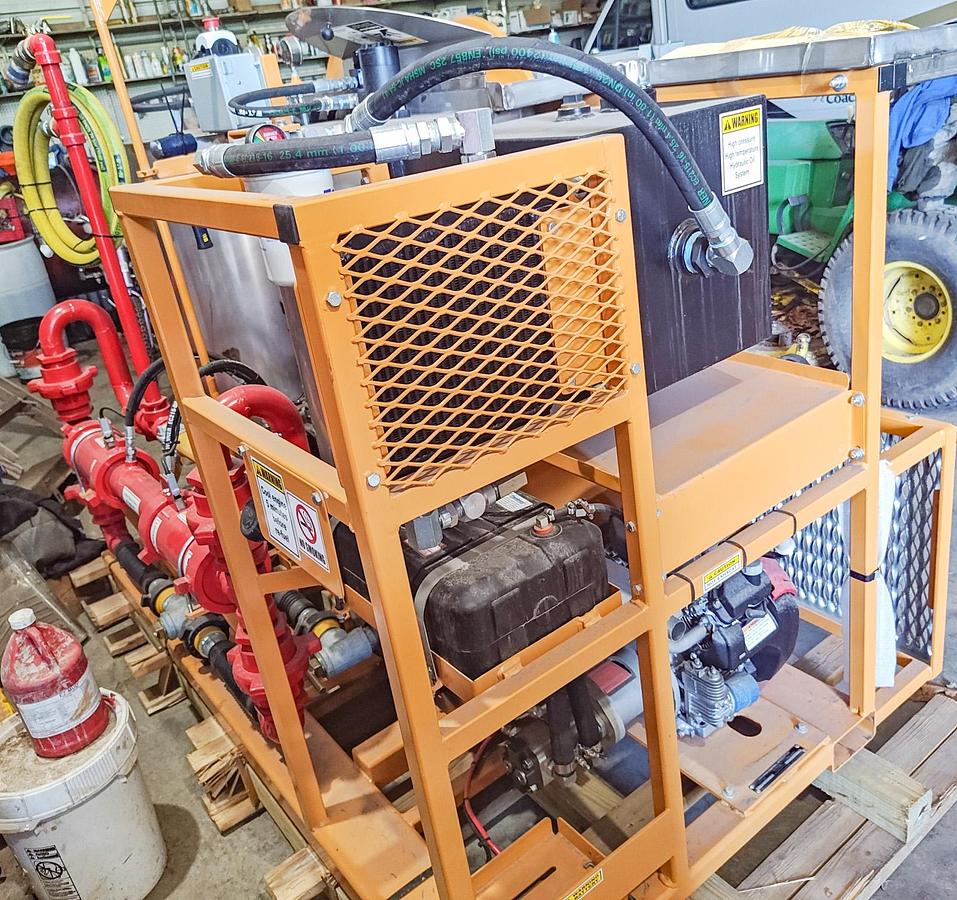

Geo Loop 2022 30-500 Gas Grout Pump

Unused 2022 Geo Loop 30-500 Gas Grout Pump

• Powered by Honda GX690 V-Twin Gas Engine (approx. 27 HP)
• Electric Start with Easy-To-Read Hour Meter & Tachometer
• Continuously Pumps 0–30 GPM at Pressures up to 500 PSI

Piston Pump

• 5" Bore X 8" Stroke Piston Pump
• Dual Chrome-Lined Cylinders with Hammer Union Construction
• 5" Standard A-Style Piston Rubbers
• Pump Design Covered by U.S. Patent D405-454

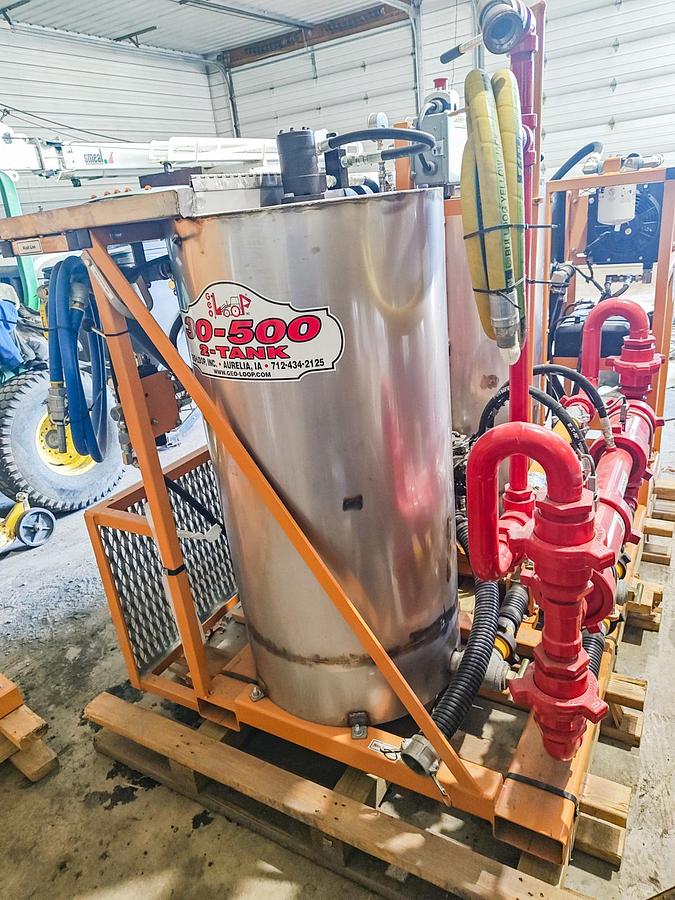

Mixing System

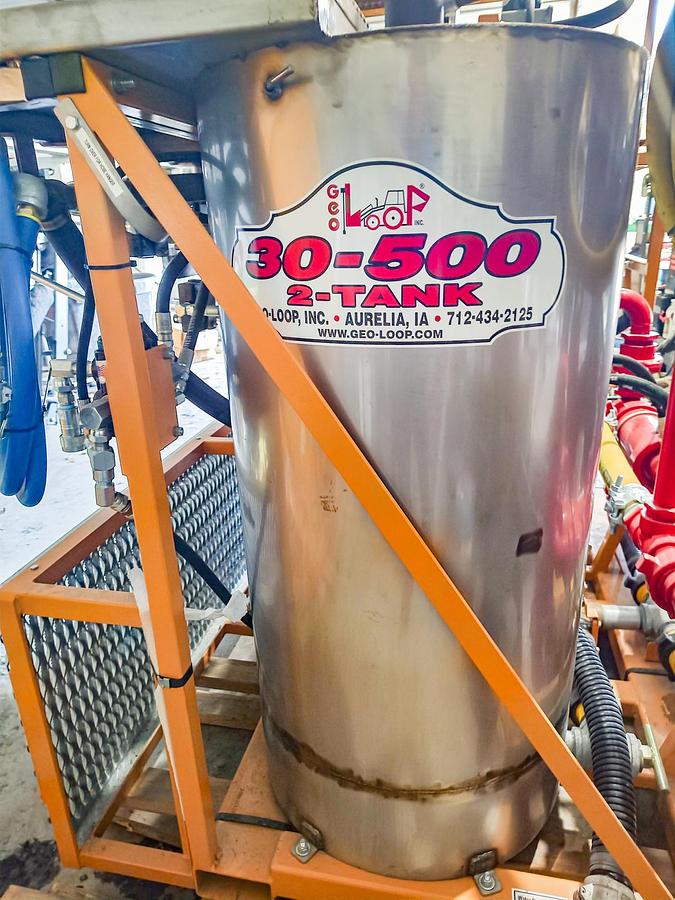

• Two 56-Gallon Stainless Steel Mixing Tanks with Smooth Taper Cone Bottoms
• Optional 80-Gallon Tanks Available
• Stainless Steel Paddle Mixers with Hinged Lid Covers
• Stainless Steel Replaceable Valve Seats

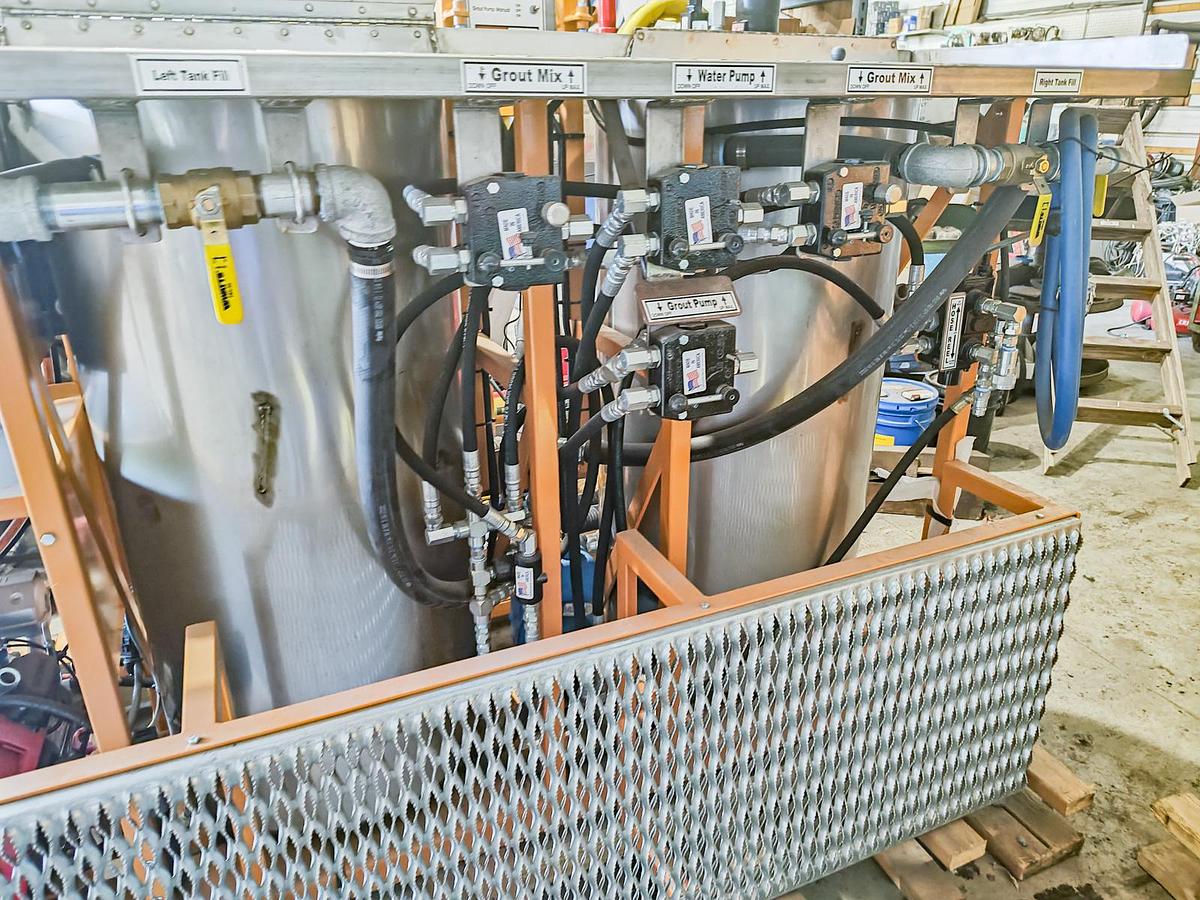

Hydraulics

• Tandem Hydraulic Pump with Dual Hydraulic Circuits for Efficient Operation
• Single-Spool Hydraulic Valve for Hose Reel
• 20-Gallon Hydraulic Oil Reservoir with Sight Glass & Thermometer
• Thermostatically Controlled Oil Cooler With 12-Volt Fan

Water System

• High-Capacity Self-Priming Water Fill Pump
• High-Pressure Wash-Down Line

Frame & Platform

• Large Stainless Steel Bag Platform
• Forklift Pockets on Both Ends of the Frame
• Compact Footprint: 86" X 40"
• Bag Platform Height: 40½"

Weight

• Approximate Weight: 1,700 lbs.

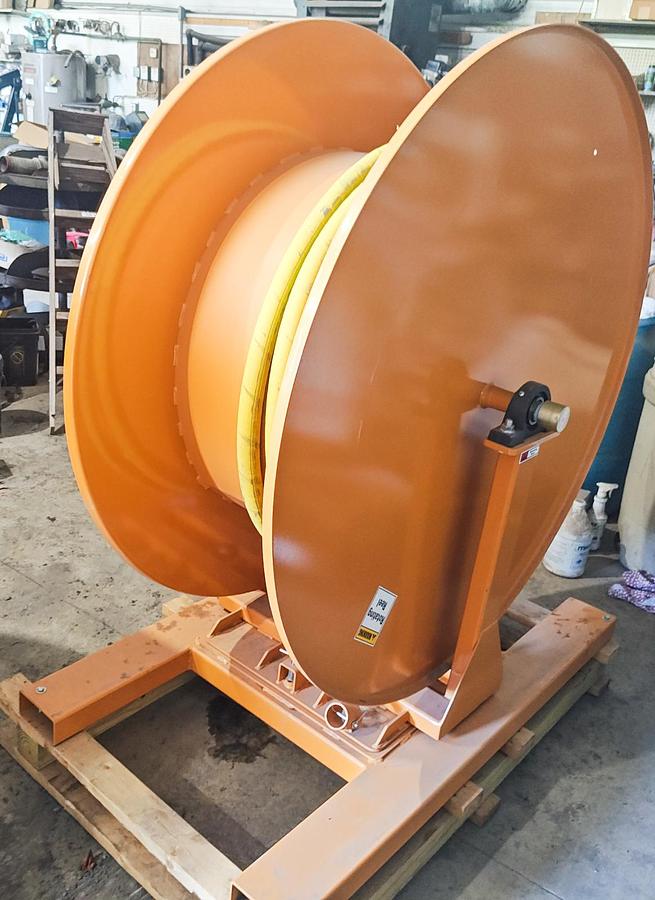

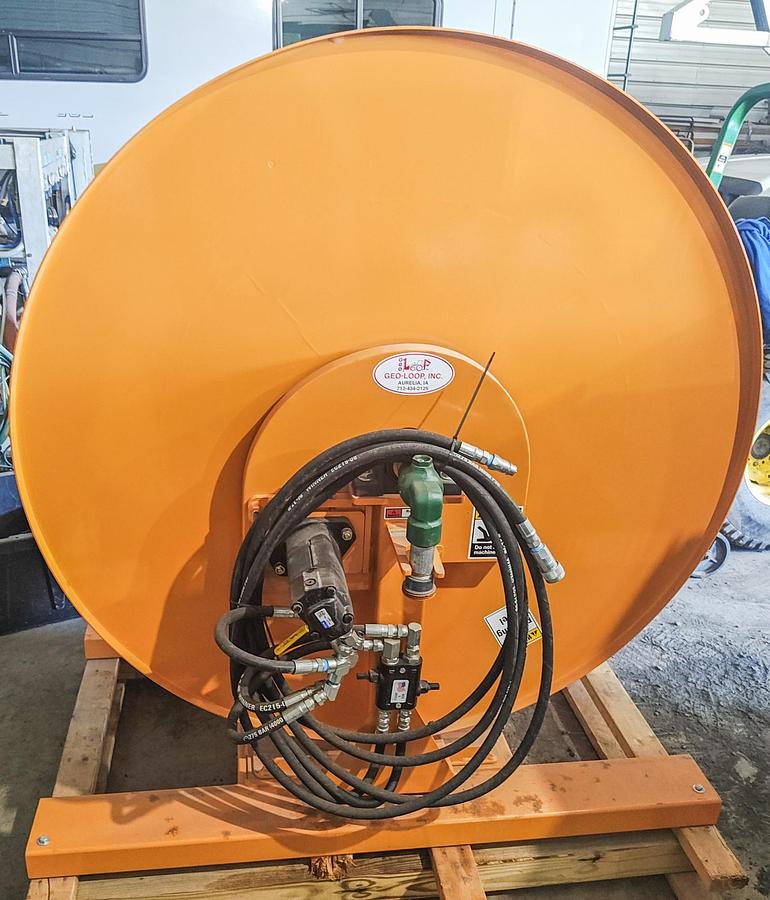

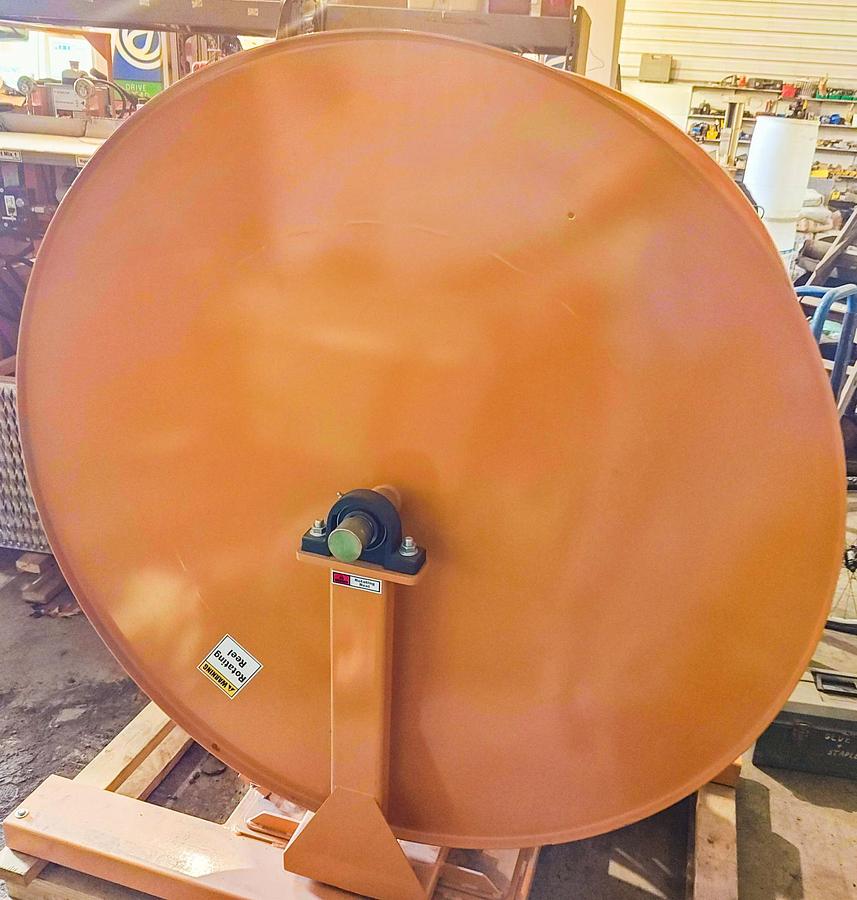

Included: Unused Mid-Set Hose Reel

• Large-diameter spool holds up to 500' of 1-1/4" grout hose
• Free-wheeling spool design
• Smooth 360-degree swivel base for easy well access
• Quick-connect hydraulic couplers—no special tools required
• Hammer union grout line hookup at swivel
• Operates from Geo-Loop grout pump hydraulics or auxiliary hydraulic source (e.g., skid loader)
• Spool dimensions: 57" OD x 36" ID x 20" wide
• Approximate weight: 650 lbs
• Located in PA USA
