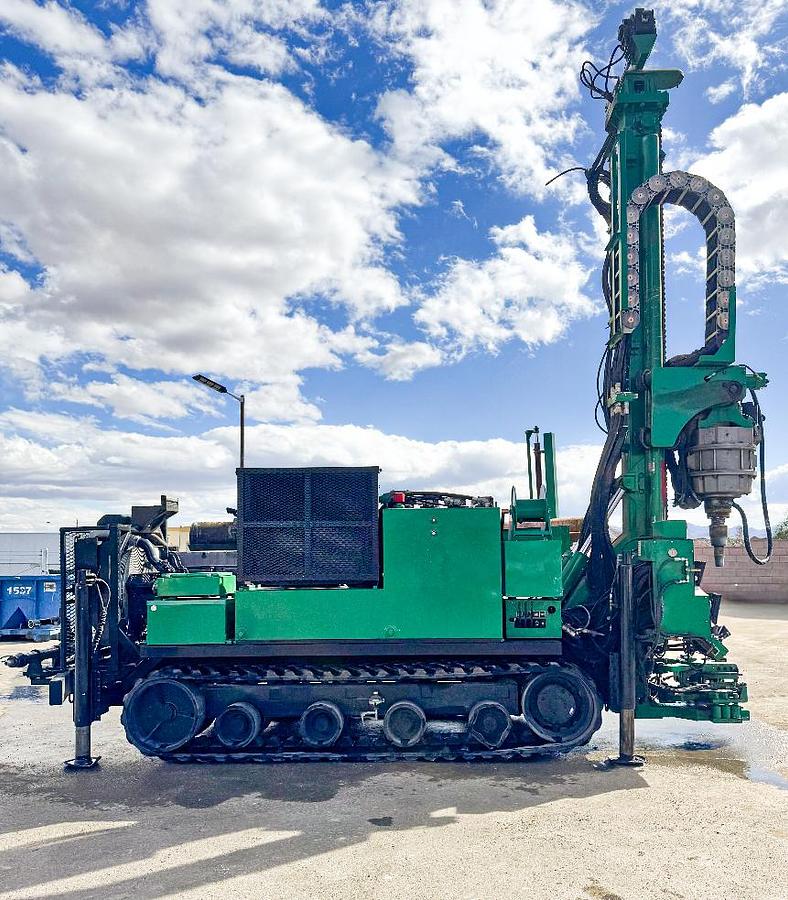

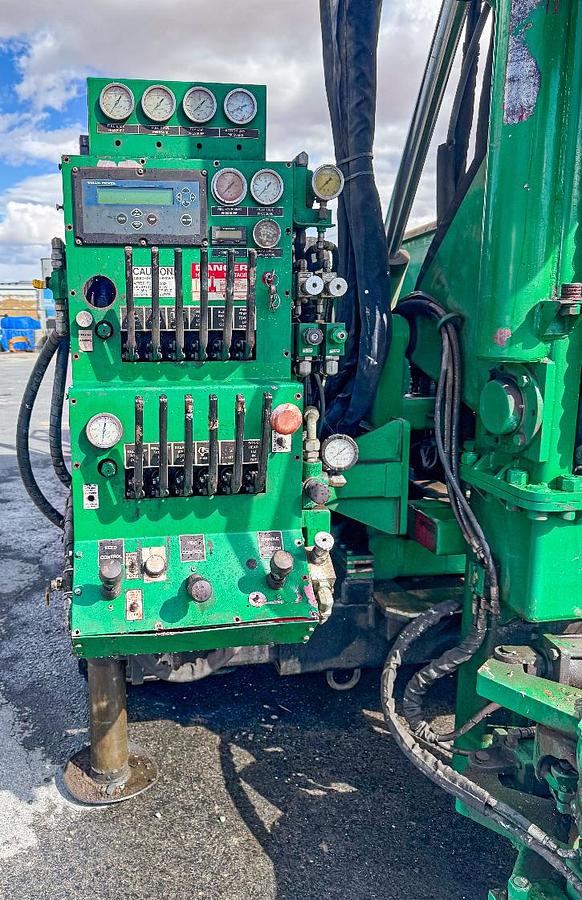

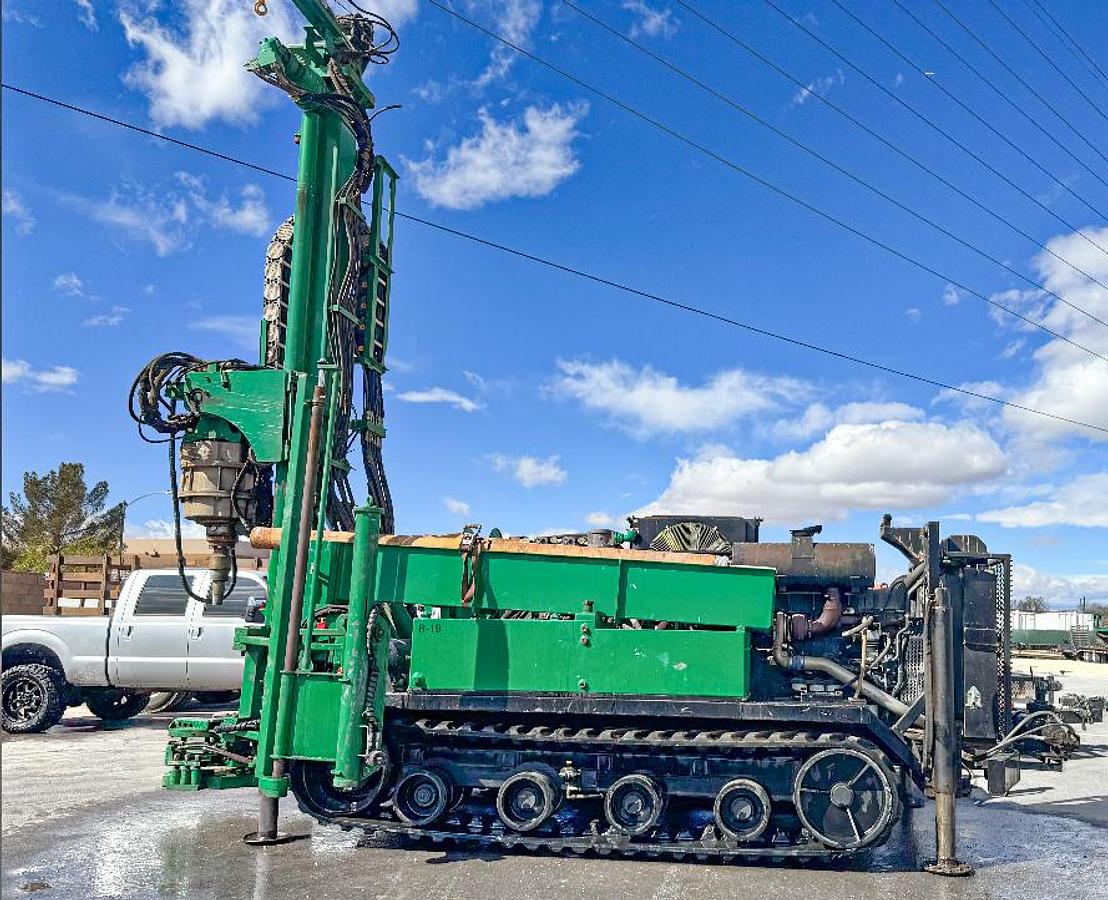

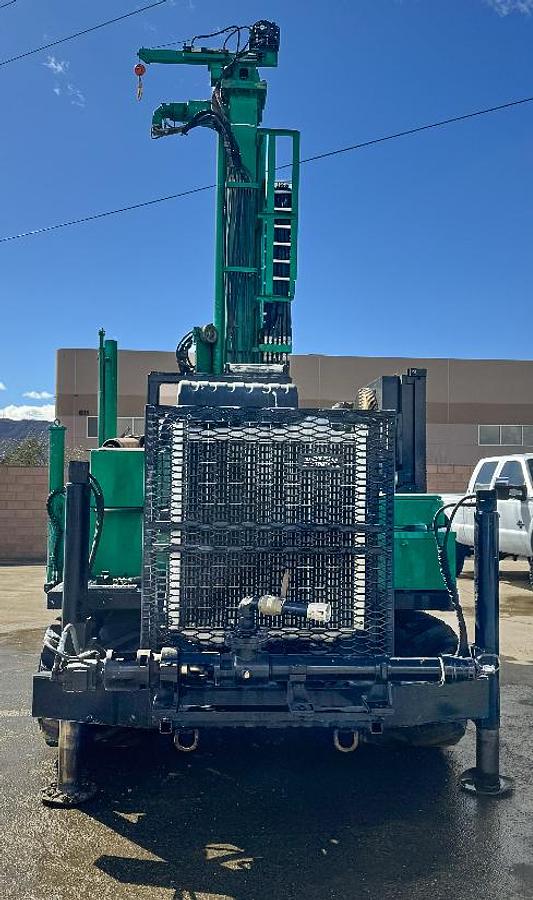

2012 Diedrich Sonic Drill Rig

2012 Diedrich Rubber Track Sonic Rig

Engine: 375hp Volvo Diesel Engine

Dimensions:

Length towered down – 22’ 5”

Length towered up – 21’ 6”

Height towered down – 10’ 9”

Height towered up – 22’ 7”

Width – 8’

Weight – 37,600lbs

Feed System

Dual single link chain drive

Pull back – 20,000lbs

Pull down – 20,000lbs

Max speed – 102ft./min

Rubber isolation wheels

15ft stroke, with a Gore track hose system

Water Pumps

L6 Progressive Cavity Moyno Pump

225 PSI

47 GPM

Inlet/Outlet – 3”/ 2-1/2”

Jib Winch

Extended Position

Capacity – 1700 lbs.

Vertical Position (Over the hole)

Capacity – 3800 lbs.

Breakout Wrenches

3-1/2” OD Pipe – 11” OD Pipe

Torque

17,500 lbs.

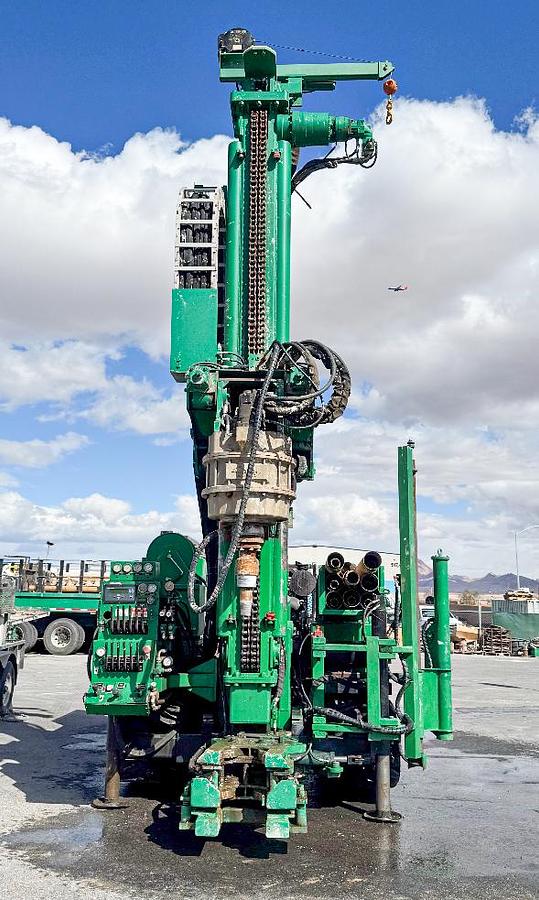

Mast

12” x 12” structural tubular construction

25,000 lb. gross load rating

6” guide tubes

Leveling Jacks

Four 36” stroke (2 front and 2 rear)

Other Features

One 24” tool box

150-gallon fuel tank

200-gallon hydraulic tank

Radio controlled under carriage

Rod trough

Automatic SPT Hammer

10” wiggle and 10” in/out

Tooling available cost extra

Note: The majority of drilling projects the rigs now perform is Geotech drilling, Auto-Matic-Trip Hammers were installed on both.

Located in Western Region, USA
