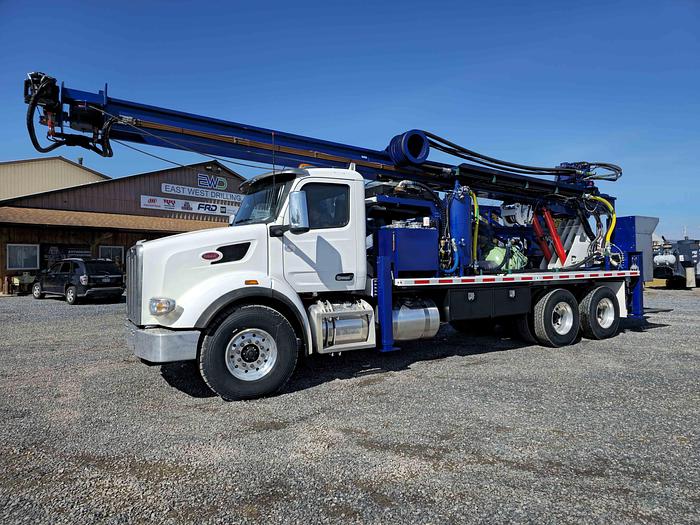

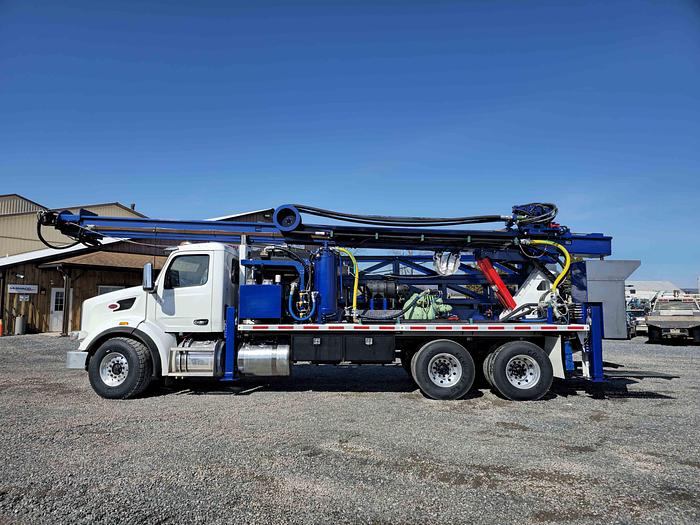

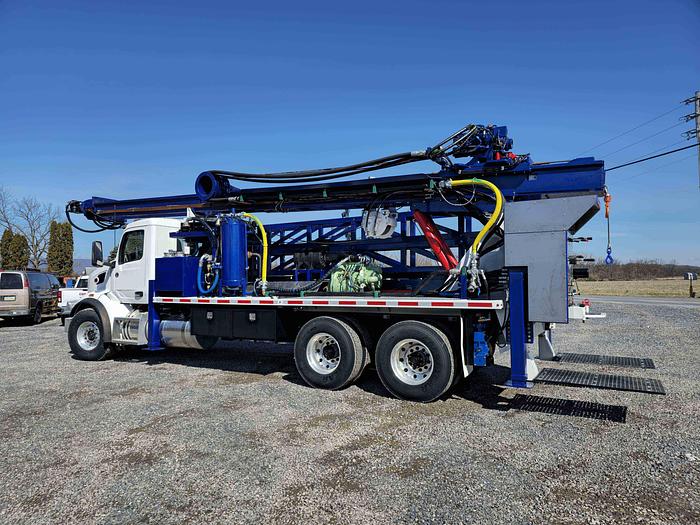

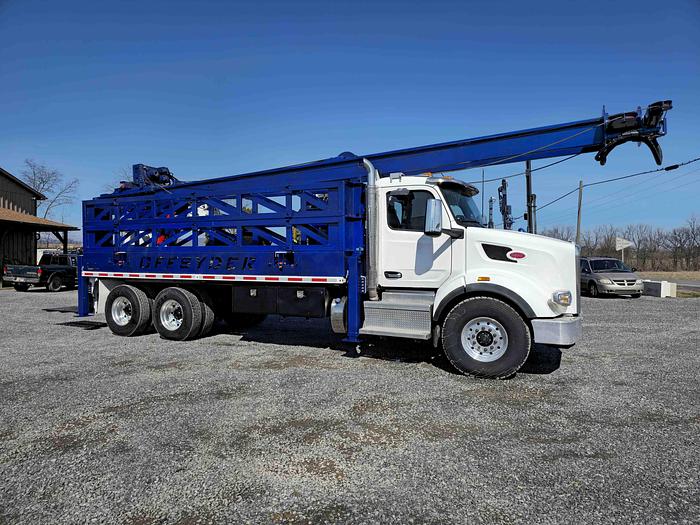

Derex 2630-22 Arthur (Air/Rotary/Top/Head) Drill Rig
Description
- Derex 2630-22 Arthur (Air – Rotary – Top – Head) Drill Rig

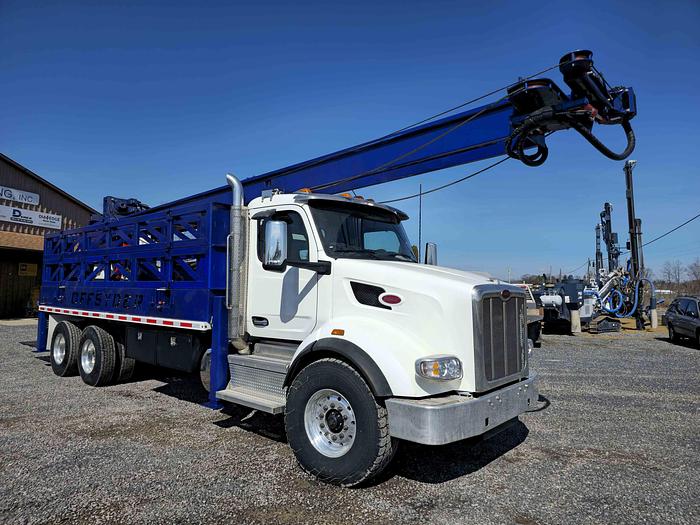

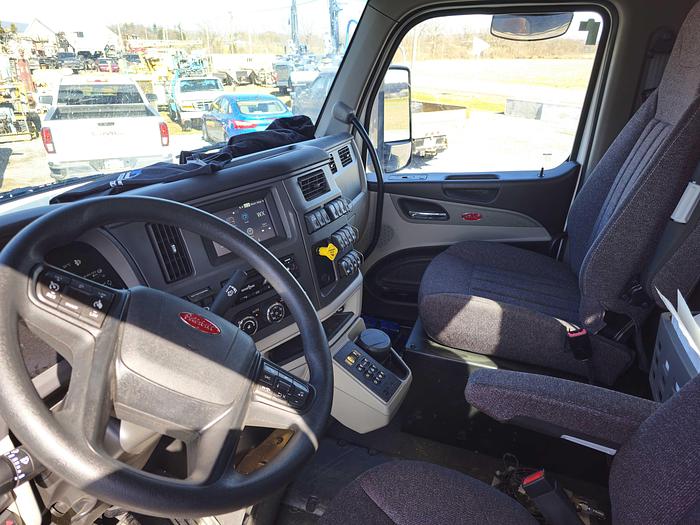

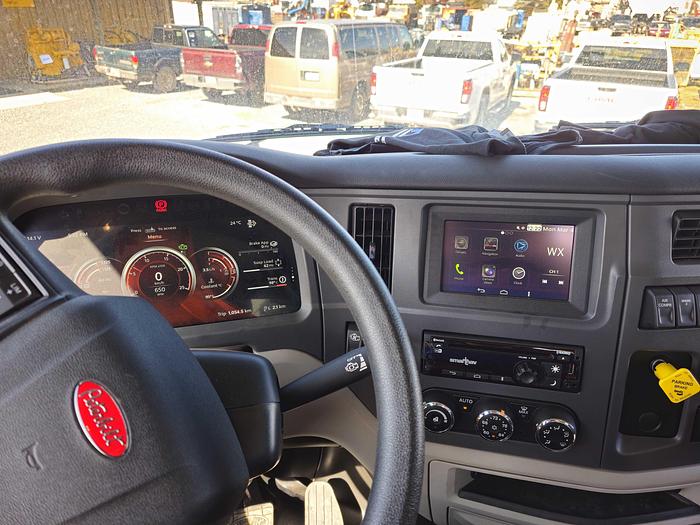

- Truck
- Peterbilt 567
- Paccar 13 Liter.
- Allison 6 speed automatic
- Air ride
- Transfer Case
- Namco (oilfield quality)
- Safe Shift
- Hydraulic System
- Sundstrand, Bosch Rexroth plus gear pump
- Top Head
- Variable torque and RPM with 2” thru-hole
- 0-160 rpm @ 8,000-lbf torque
- Derrick & Feed System
- 26’ top head stroke
- 30,000-70,000 lbs pullback
- 20,000-lbs pulldown
- 120 FPM

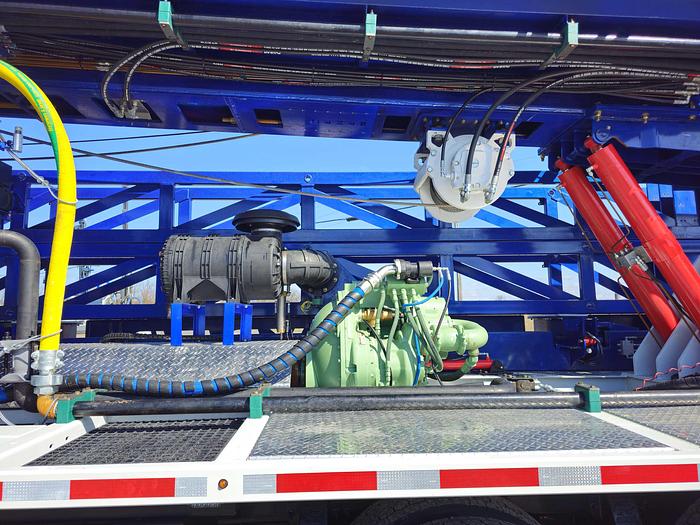

- Air Compressor
- Vanair/Sullair 900 cfm / 350 psi
- Main Winch
- 12,000 lbs
- Hydraulic 135° jib
- 2,500 lbs

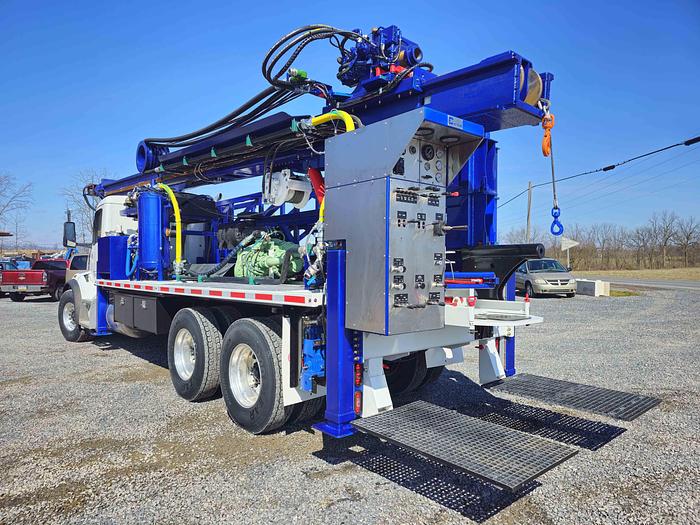

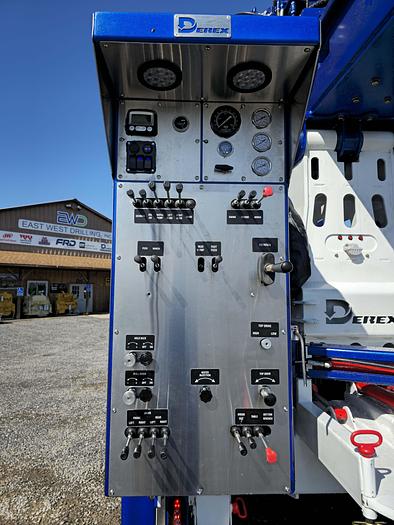

- Control Panel
- Straight hydraulic controls (no electrics to fail)
- Marine grade electric switches (for lights)
- Murphy engine monitor display
- Twin platforms
- Leveling Jacks
- Four 36” stroke independently controlled
- Night Lights
- 6 LED night lights
- Toolboxes
- 30”x 18” x 18”
- Overall Dimensions
- Length: 38’
- Min. Well 33'
- Width: 8’ 6”
- Derrick up height: 42’
- Derrick down height: 13’ 0”
- Water Injection
- 9-GPM FMC injection pump
- Gross Weight
- 52,000lbs
- Pre-Order Drill from EWD 4 – 6 Month Leadtime from Date Ordered
- Additional Options
- Sand Line Winch 1,500’ sand line
- Mud Pump
- 3x2x13 centrifugal 300 gpm/300 psi
- Centerline piston 150 gpm/600 psi
- Line Oiler
- Many oilers available
- Water Injection
- 18 gpm FMC injection pump

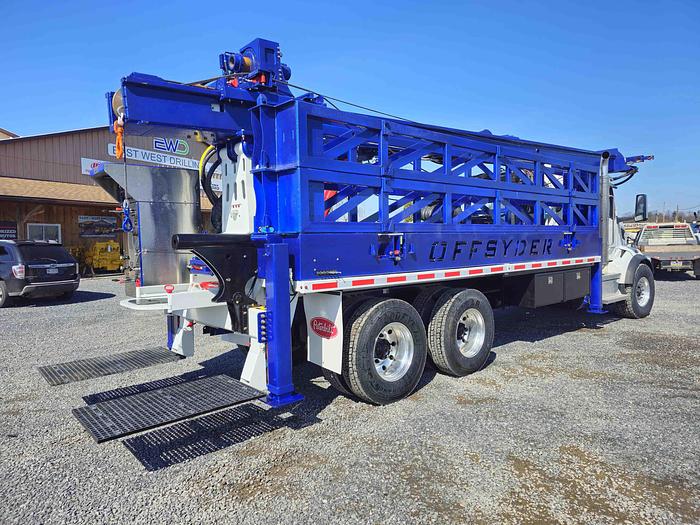

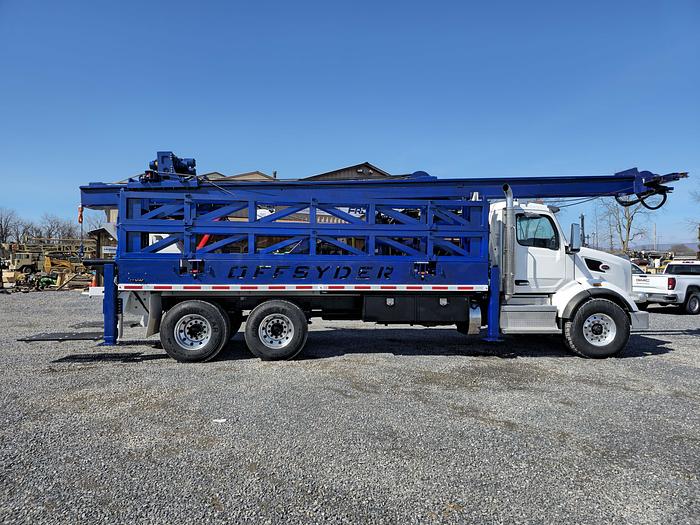

- Offsyder Rod Handling System
- Drill Pipe Packages
- Wire Feeder and Box
- Hydraulic or Gas Welders
- Available through EWD in Mifflinburg, PA USA
Specifications
| Manufacturer | Derex |
| Model | 2630-22 Arthur (Air/Rotary/Top/Head) Drill Rig |
| Condition | New |
| Stock Number | 16702 |
| Status | Pre-Order |
