Hydraulic Crawler Drill Rig and Air Compressor

• Sold
• Hydraulic Crawler Drill Rig and Air Compressor
• KW180 Hydraulic Crawler Mounted Drill Rig
• 168 Hours
• Max Pull 12t / Max Push 4.5t
• Top Drive with 2 3/8" Reg Box Connection
• Has a 10 Foot Stroke

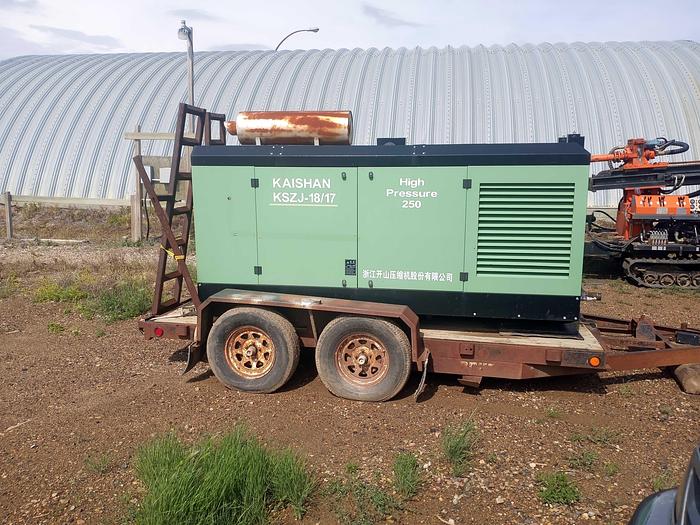

• 2020 Kaishan KSZJ 18/17 Air Compressor

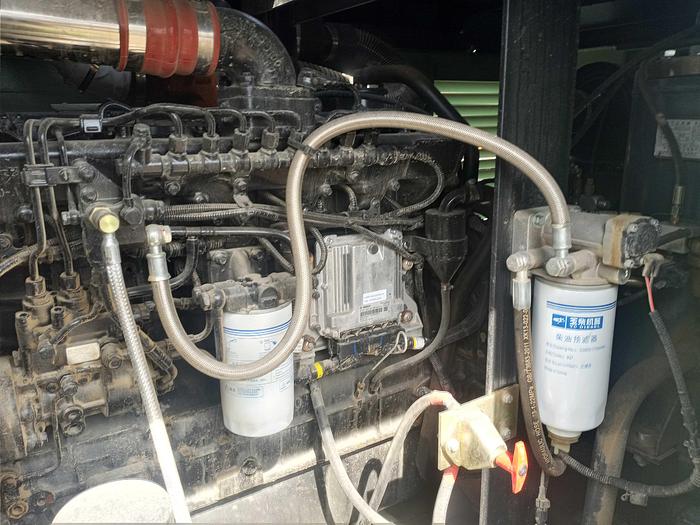

• Yuchai (Cummins) Diesel Powered
• Dual Screw Air End
• 168 Hours
• 635 CFM @ 250 PSI
• 180m 3" Drill Rods in 10 ft Lengths, 2 3/8" Reg Connections
• 1x New 7" Step Bit
• 1x New 4" Step Bit
• Located in Canada

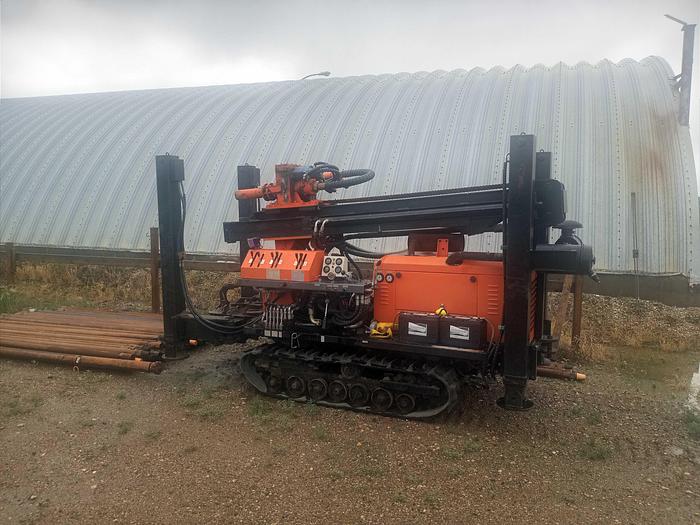

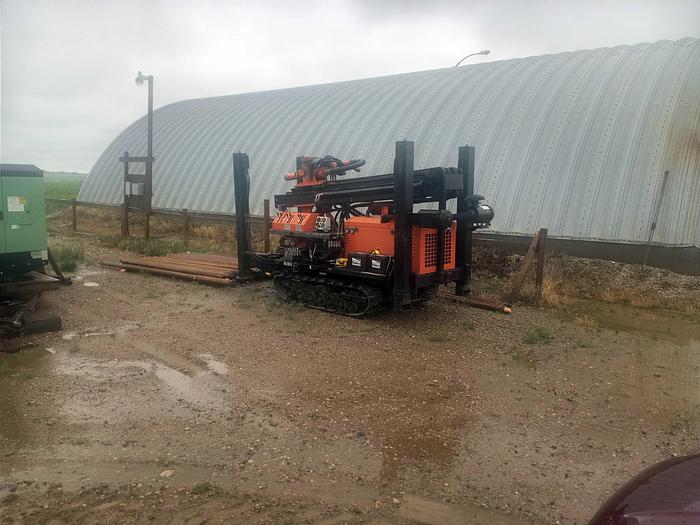

The rig is on a tracked chassis with rubber tracks. It is in order used condition, with some scratches and surface rust, starts, runs and functions perfectly. The rig has a 10 foot stroke,and the rods are in 10 foot lengths. The following is the specs for it.

KW180

Drilling Hole Diameter

110-202mm

Drilling Depth

180m

Working pressure

1.05-2.46bar

Air consumption

16-54m³/min

Propeller Shaft Stress

0-4.4T

Lifting power

9.5T

Pulling Force of Landing Leg Cylinder

60T (4 legs)

Stroke of Landing Leg Oil Cylinder

1.4m

Sliding Plate Stroke

4440mm

Slow Lifting Speed

4.2m/min

Slow Pushing Speed

0-8.9m/min

Fast Lifting Speed

37.8m/min

Fast Pushing Speed

80.4m/min

Rotation torque

5700N.m

Rotation Speed

57-94r/min

Lifting Power of Hoist

1T

Diesel Engine model

YC4A150-T300

Engine Power

113kw/2200r/min

Traveling speed

0-2 km/h

Climb capacity

20°

Weight

9800kg

Dimension

7300*2250*2750mm

Matching Drilling components

Hammer

K5/K6/K8

Rod

Φ76/89/102×3000mm/4000mm

Bit

Φ110-Φ273

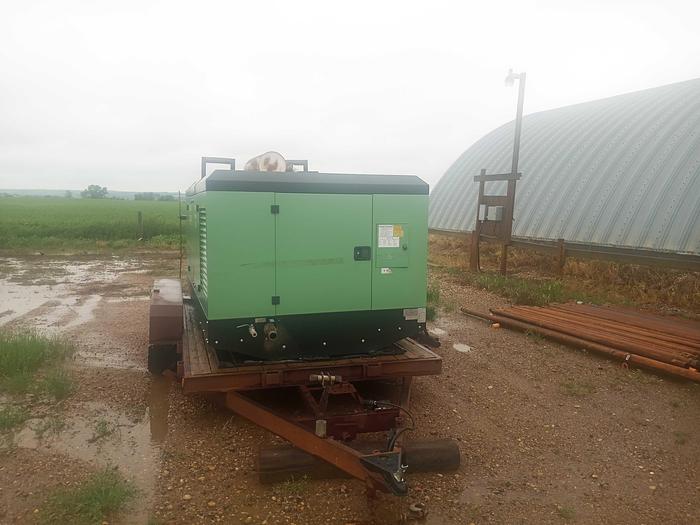

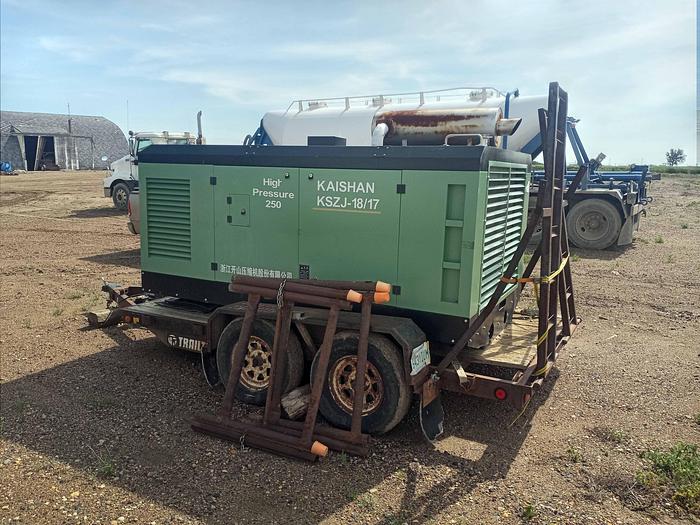

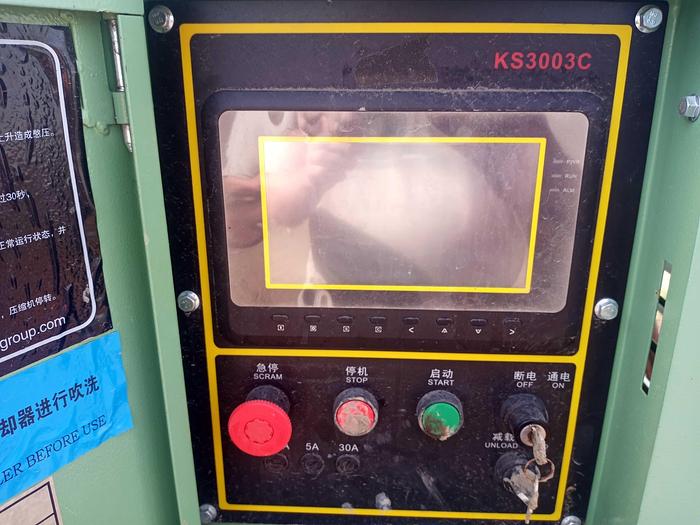

The air compressor is in excellent condition, with only slight surface rust on the muffler. It puts out 635 cfm at 250 psi. It has a dual screw air end and a Yuchai (Cummins) diesel motor. Starts and runs perfectly.

Both machines have 168 hours, I have attached pictures of both. There is also 180m of 3 inch rods with 2 3/8" Reg couplings. The rods are in 10 foot lengths, 140m used,the remainder brand new. Tooling is 1 7" carbide step bit and 1 4" carbide step bit.
