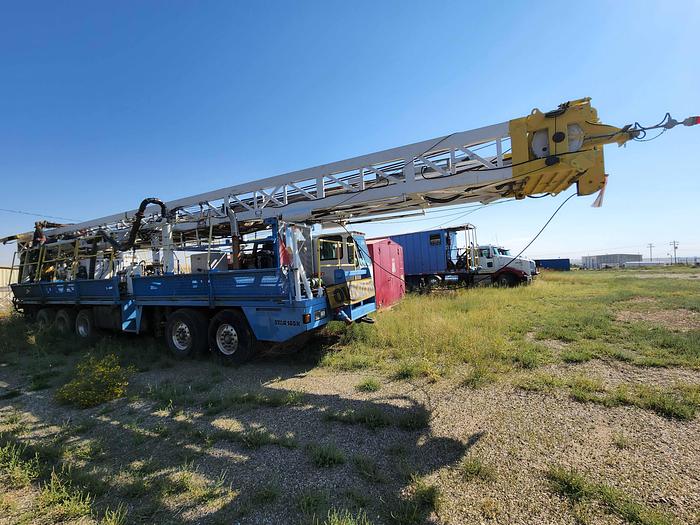

Gefco Speedstar 185K Drill Rig

Western Region, USA

Sold

Description

  • Sold

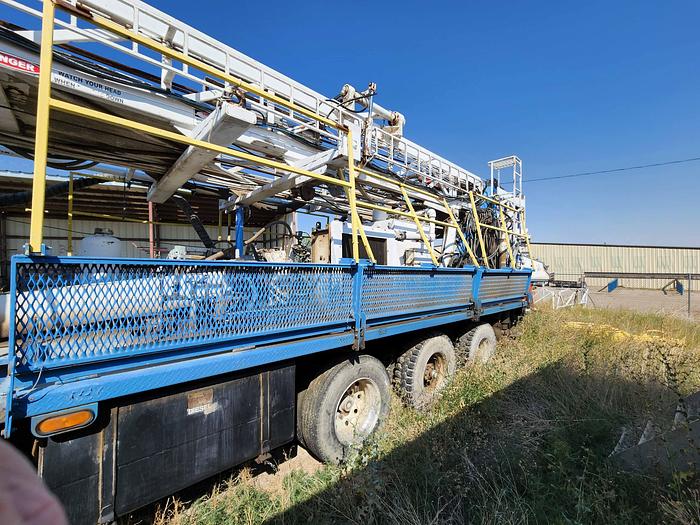

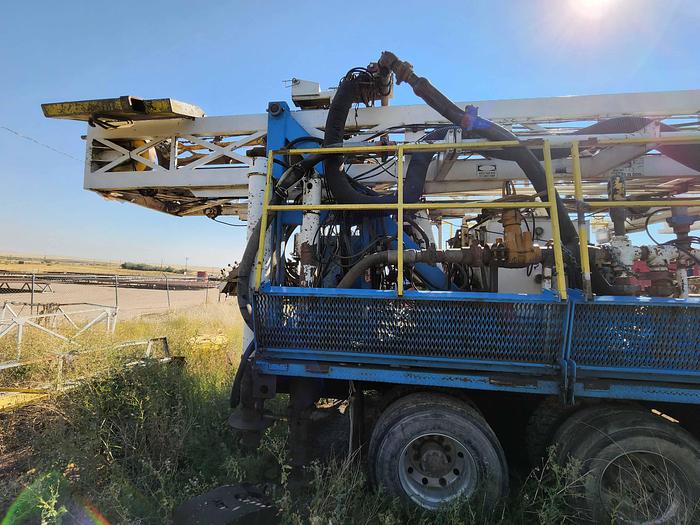

  • Gefco Speedstar 185K Drill Rig
  • Top Drive drilling unit
  • powered by a CAT L-18 Diesel Engine

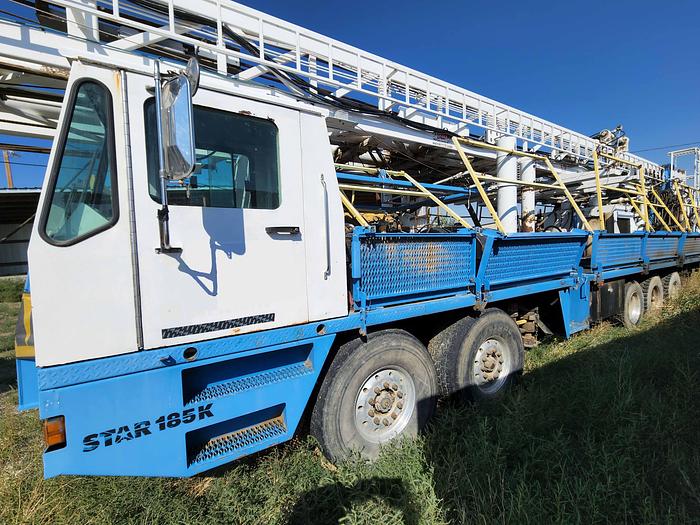

  • mounted on a 2007 Kimball Chassis C3100 10x4 - 5 axle back in carrier
  • Speedstar 61' foot high mast
  • 185,000 static hook load
  • hydraulic raised with dual raising cylinders
  • rocking board and single joint pipe arm
  • Hydraulic Cylinders to raise and lower top drive
  • Hoist capacity of 30,000 lbs
  • Hoist speed to 140' ft per minute
  • Maximum pull down capacity of 30,000 lbs
  • Four 60” stroke leveling jacks, two at rear on centerline of bore hole and two behind carrier cab, all independently controlled
  • 11,667 ft. lbs. of drilling torque
  • rotation speeds of 0-100 rpm
  • 3” diameter fluid course
  • Two 8,000 lbs capacity Braden Hydraulic winches substructure
  • 10’ H x 10’6” W x 25’ L T-type substructure with two 5 ft wide folding walkways
  • 50” H x 10’6” W x 40’ L back on ramp
  • 2008 Ditch Witch Iron Roughneck
  • Support Equipment included as a package:

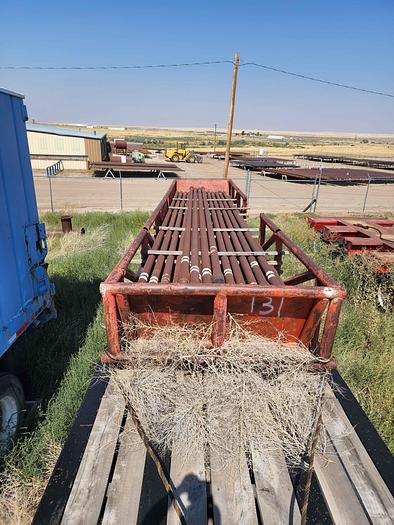

  • 3000' ft of 3-1/2" Drill Pipe
  • 3500' ft of 4-1/2" Drill Pipe
  • 1500' ft of 4-1/2" heavyweight Drill Pipe

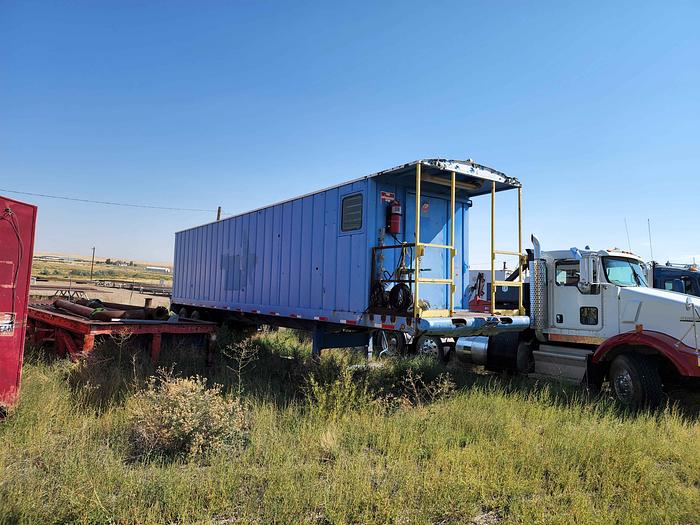

  • 2007 Cherokee 8’ W x 40’ L Dog house trailer with knowledge box, cabinets, workbench with vise, 12 lockers

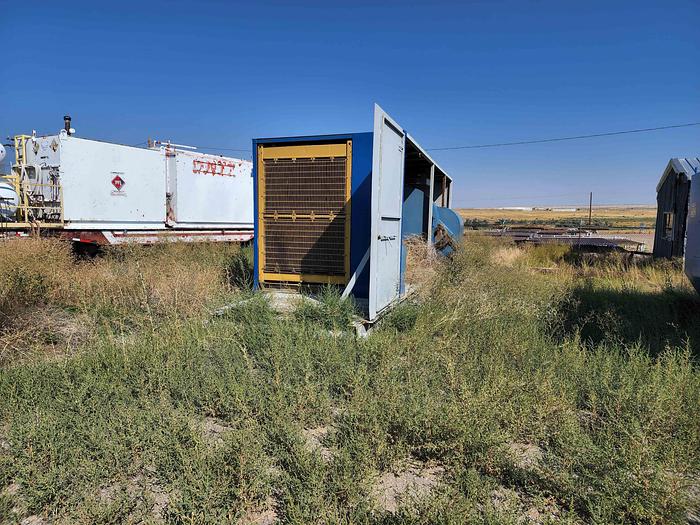

  • 2007 Stanton Dynamics Trailer with a marathon 50 kw generator powered by a John Deere diesel engine and a 95 kw generator powered by a 6-71 Detroit diesel engine

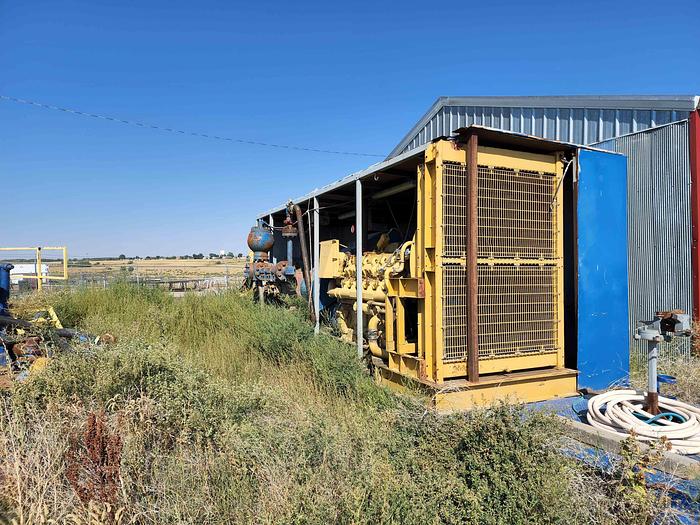

  • Two MZ-9 Triplex Mud Pumps with Cat 389 diesel engine rated at 1,000 HP each, type D pressure gauges, pulsation dampeners, charging pumps, quick change, caps and flowline manifold. 5.5’ Liner – 9’ Stroke – 4274 PSI

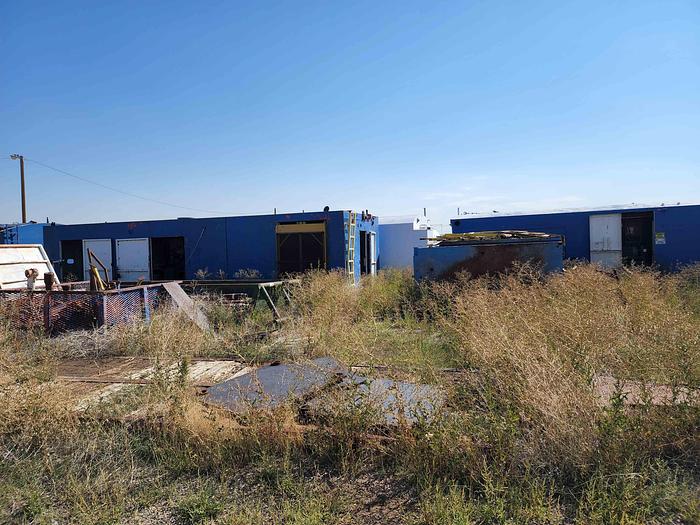

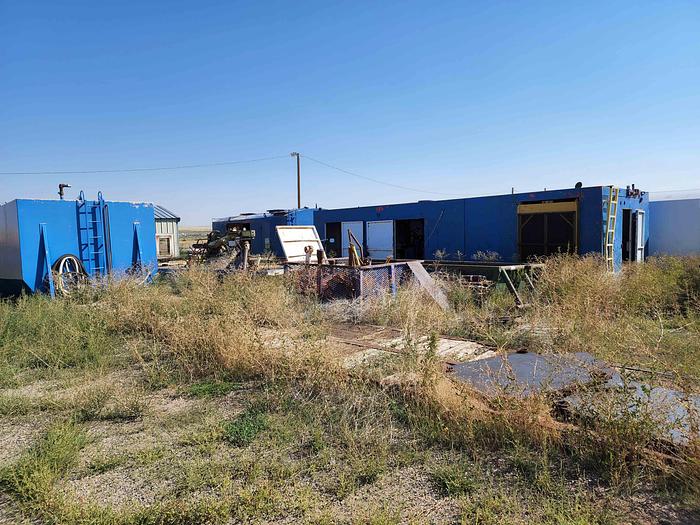

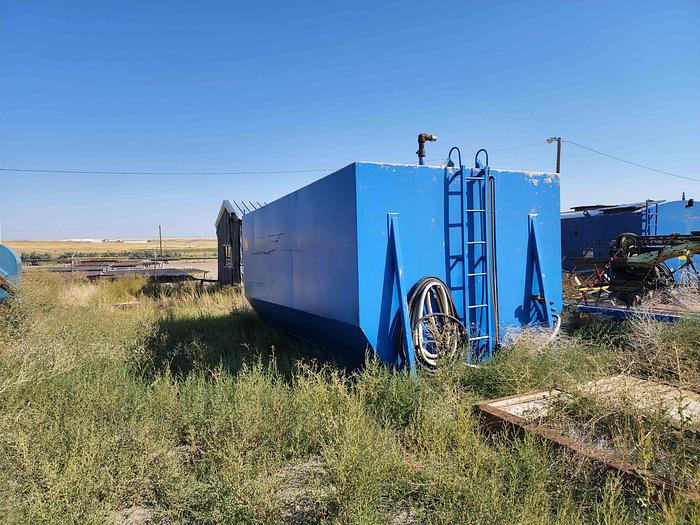

  • 5’ H x 8’ W x 36’ L - 255-Bbl Mud suction tank with 11” porch extension, 2 compartments, slant bottom, internal plumbing, 5”x6” centrifugal pump powered by 50 HP electric motor, brand MA-10 10 HP mud agitator, chemical hopper, mud hopper, mounted walkways, stairs, safety rails, skidded
  • 5’ H x 8’ W x 40’ L - 285-Bbl shaker tank with 3 compartments, slant bottom, internal plumbing, mounted walkways, stairs, safety rails, skidded
  • 503 Derrick Equipment shale shaker mounted on pits, powered by electric motors. With De- sander & De-silter
  • Regan Torus 9 1⁄2” ID 3000# annular blowout preventer with shafter LWS 9” 3000# double ram blowout preventer, 16” H Drilling spool with (3) 2 1/16” 5000# gate valves, and 2 1/16” check valve, koomy type 80, 3-station closing unit, (4) 10-gal accumulator bottles, triplex charging powered by 10 HP electric motor
  • Skidded 5,000 gallon fuel tank with 10’ porch. 3 compartment lubester, storage cabinet.
  • Located in Western Region, USA


Specifications

ManufacturerGefco
ModelSpeedstar 185K Drill Rig
ConditionUsed
Stock Number15906
StatusSold
