2005 Pitman Track Drill & Trailer

Pending Sale

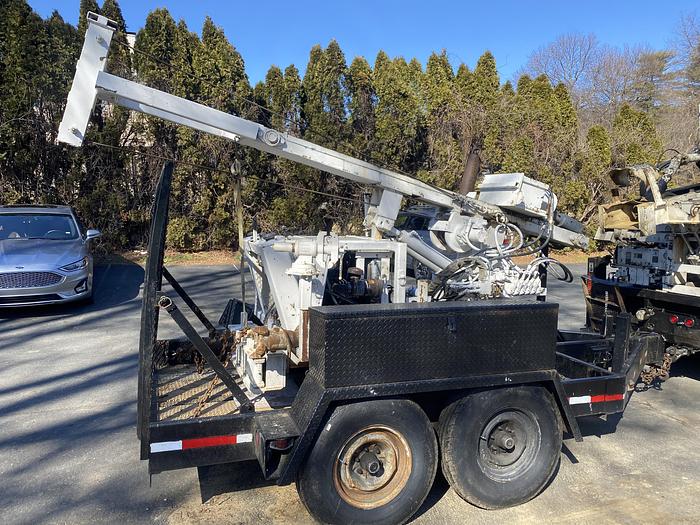

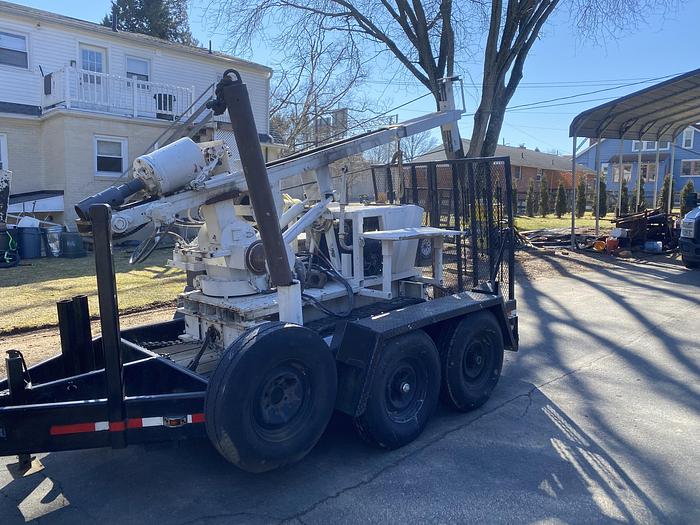

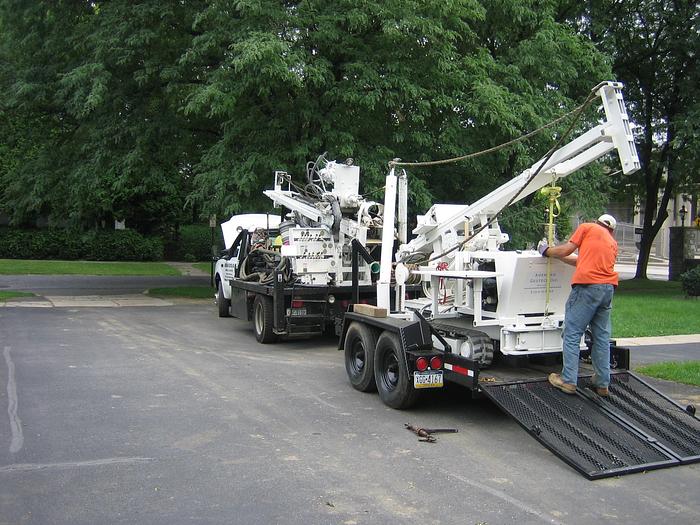

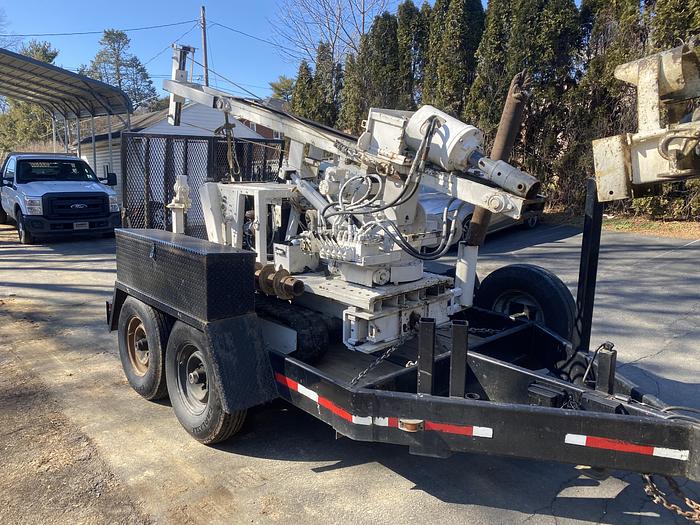

Pitman Track Drill and Trailer

Machine Hours on gauge: 1144

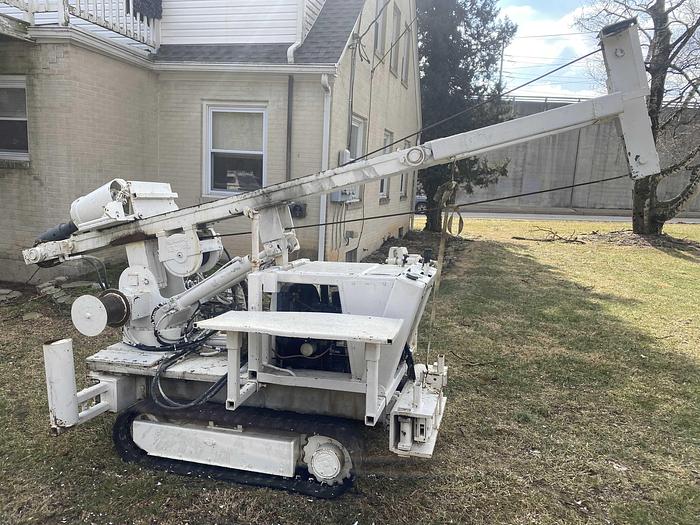

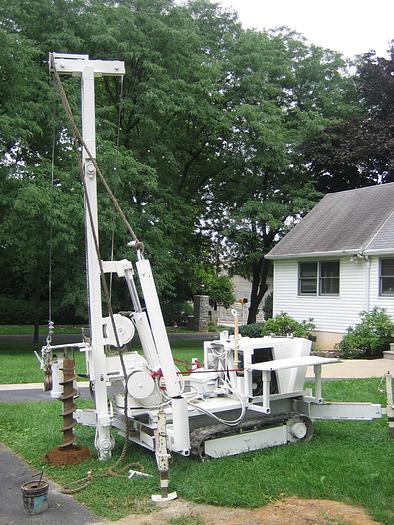

Shop built one owner geotechnical track drill in good condition

A compact self contained unit

high torque low rotation speed auger drive and rock core capability

quick connect hydraulic motor

Comes with a standard 140lb cathead driven safety hammer with 30 inch drop

Also comes with 4 manual crank leveling jacks that attach to swing out arms on each corner of the drill

A mounted vise to assist with opening sample spoons

Overall tower height is 13’ and the drill head travel is 76”

Overall length is approximately 13’ with a track base length of 86” and width is 61”

Has a Kubota 3-cylinder 16HP engine running a cross brand 10gpm hydraulic pump

Full rubber tracks have about 25% life remaining on them

The right final drive motor was resealed along with the final drive gear assembly

The drill is currently using 3.25” hollow stem augers that will allow drilling to about 20’ under normal soil conditions

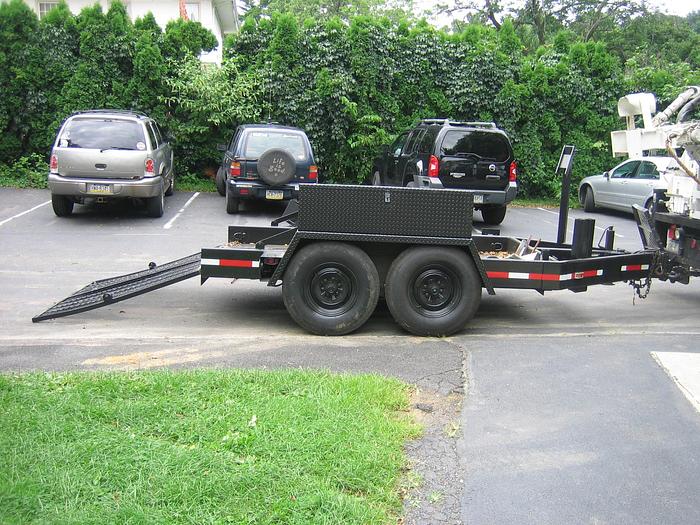

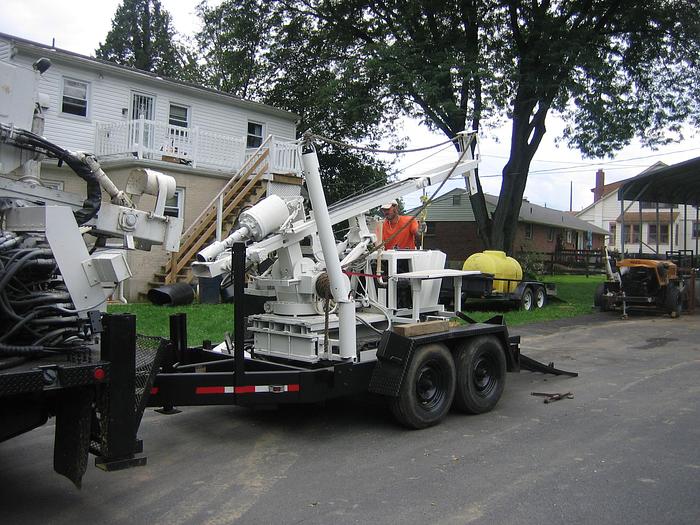

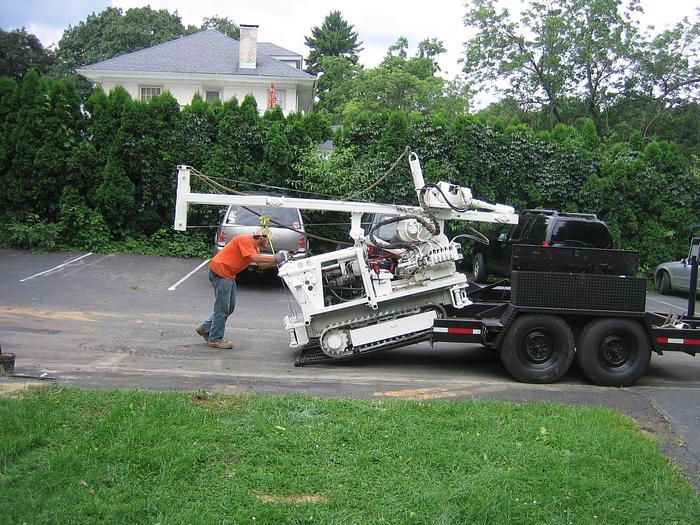

The trailer is a Pitman 10,000 lb capacity double axle trailer with lights and electric brakes

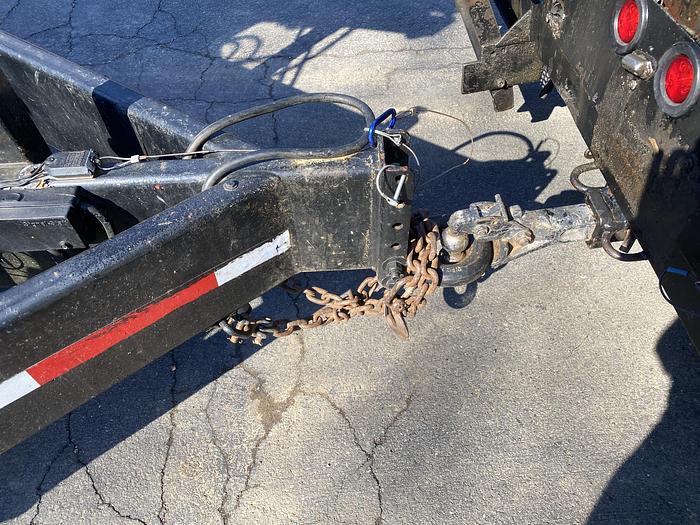

The trailer uses a pintle hitch and 7-way flat pin connector for hook up to a truck

Located in Mifflinburg, PA yard USA
