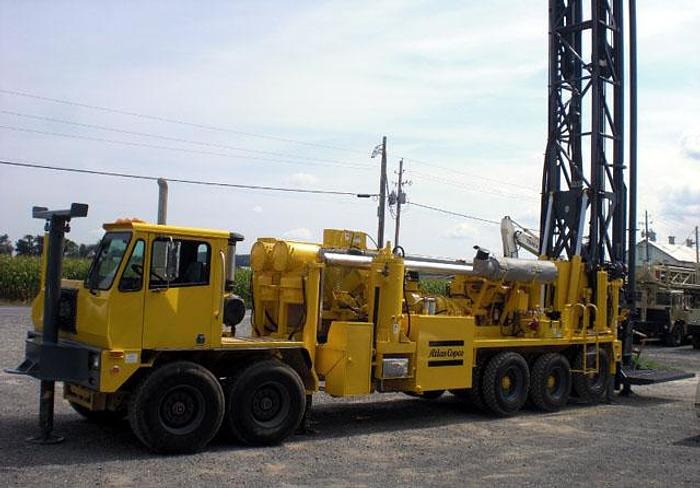

2008 Atlas Copco RD20 (Range III) - SOLD
Sold
Description
SOLD
Less Than 300 Frame Hours
2008 Atlas Copco R20 - Range III - Serial Number: 21299!
Mounted on a Custom Tridem chassis built to Atlas Copco (5 axles) - VIN#: 1CYDGV5808T048289
specifications, 281 in. / 7,137 mm wheelbase
90,000 lb. / 40,824 kg GVWR
Cummins QSK-19C diesel deck engine (755 HP / 522KW and 1800 RPM)
IR, HR2.5 over/under screw air end 1250 cfm / 350 psi (1800 RPM and engine silence)
61 ft. 11-1/2 in. L X 48-1/2 in. W X 4 in. D
18.88 m X 1231.9 mm X 1041.4 mm
4SF (2) 12 Spur Gear Head (0-120 RPM and 8,000 ft.-lb. torque)
Specifications
| Manufacturer | Atlas Copco |
| Model | RD20 (Range III) - SOLD |
| Year | 2008 |
| Condition | Used |
| Stock Number | 187 |
| Fob | Mifflinburg, Pennsylvania USA |
| Pullback | 120,000 lb. / 54,446 kg |
| Pulldown | 30,000 lb. / 13,608 kg |
| Drill feed rate | 29 fpm / 8.8 m/m |
| Fast feed up (regen on) | 106 fpm / 32.3 m/m |
| Fast feed down | 192 fpm / 58.5 m/m |
| Piping | 3 in. / 76 mm circulation rated at 1,500 psi working pressure |
| Lifting capacity | 7,500 lb. / 3,402 kg maximum |
| Line speed | 106 fpm / 32.3 m/m maximum |
| Status | Sold |
