0 US Exploration Equipment Co S-27CS - SOLD
Sold
Description
SOLD

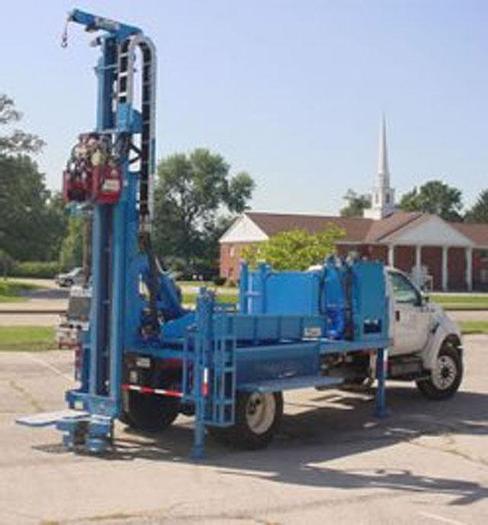

Compact-Sonic Demo Rig
Sonic S-27CS Drill Rig
Mounted on a Ford F-750
Suitable for Vertical or Angle Boring,
Capable of Drilling/Sampling w/2-1/2” OD, 3-1/2” OD, & 4” OD tooling systems,
hands-free operation with double hydraulic rod clamp,
equipped to drill dry or w/fluid flush.
HIGH production rates with no spoil.
Tool Storage - Below Deck: 2-Meter & 10-foot long Rods & Casing
FOB; Eastern Region, USA
Specifications
| Manufacturer | US Exploration Equipment Co |
| Model | S-27CS - SOLD |
| Condition | Used |
| Stock Number | 2694 |
| Sonic vibration | 20,000 pounds @ 150 hertz |
| Rotation | 1,050 foot/ pounds & 205 rpm |
| Feed system | 10-foot or 12-foot stroke |
| Pull back | 8,000-pounds |
| In-out slide-base | 12-inches |
| Mast dump | 36-inches |
| Power | Cummins 110 HP diesel engine |
| Alternative power source | Transmission Mounted PTO |
| Hydraulic jacks | 4 @ 36-inches |
| Drilling pump | Moyno 3L4, Moyno 3L6 or Moyno 3L8 |
| Sampling pump | 4 GPM @ 3,000 PSI |
| Water storage | 250-Gallons |
| Tool storage – above deck | 2-Meter & 10-foot long Rods & Casing |
| Tool storage – below water tank | 5-foot & 3-foot Deep x 36-inches wide |
| Weight | 24,000 pounds |
| Width | 96-inches |
| Travel height | 123-inches |
| Tooling options | GP-63, GP-88 & GP-100 Sonic Casing |
| Sampling options | AquaLock Sediment Sampler |
| Status | Sold |
