2019 Nordic Drill DRC-10-A Drill Rig

Canada

Sold

Description

Sold

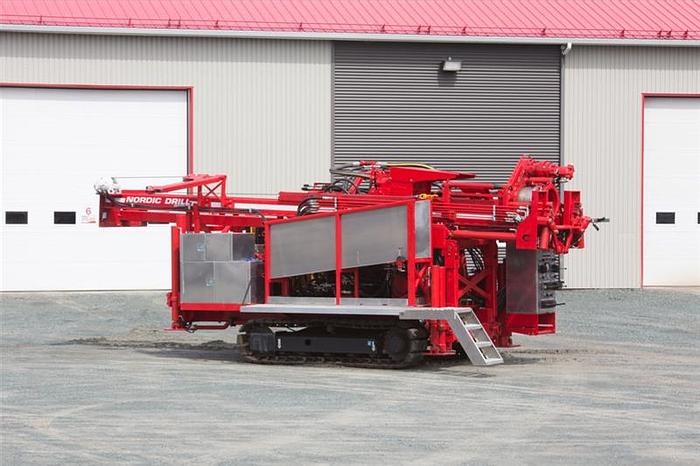

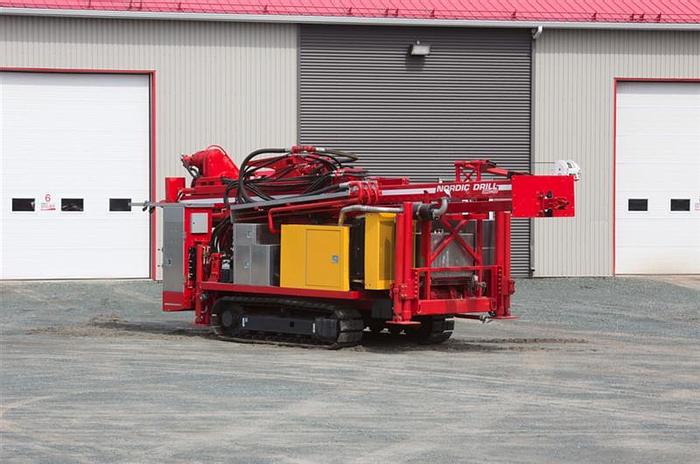

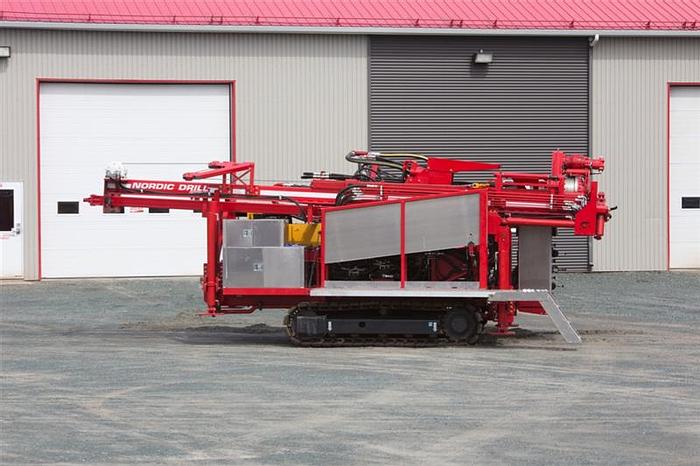

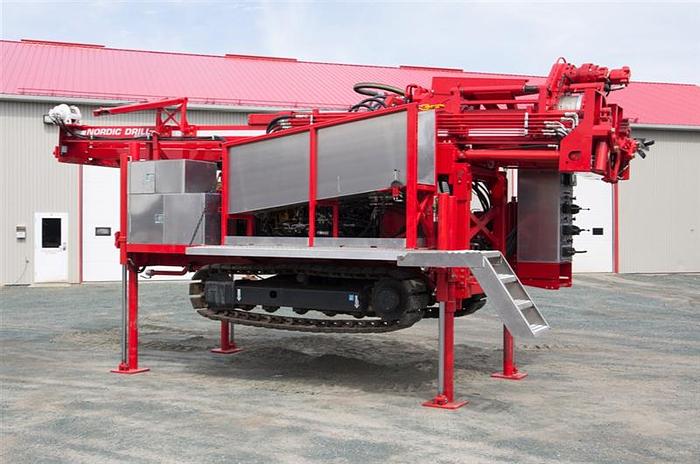

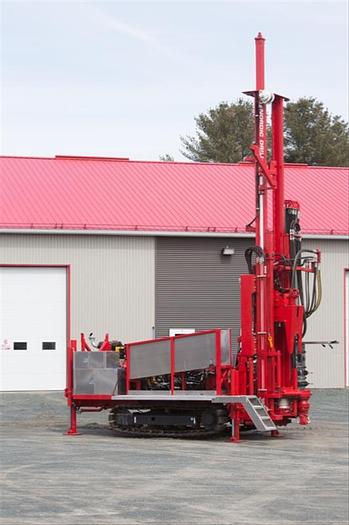

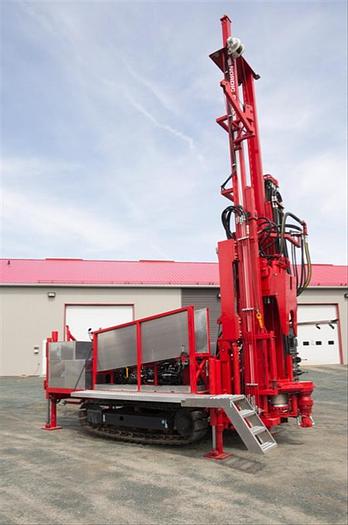

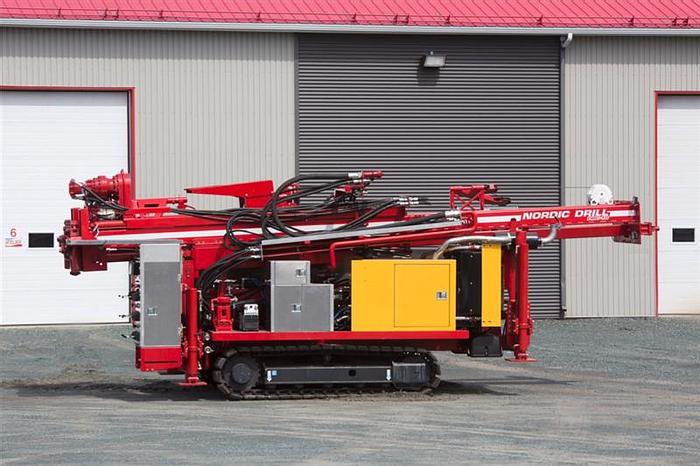

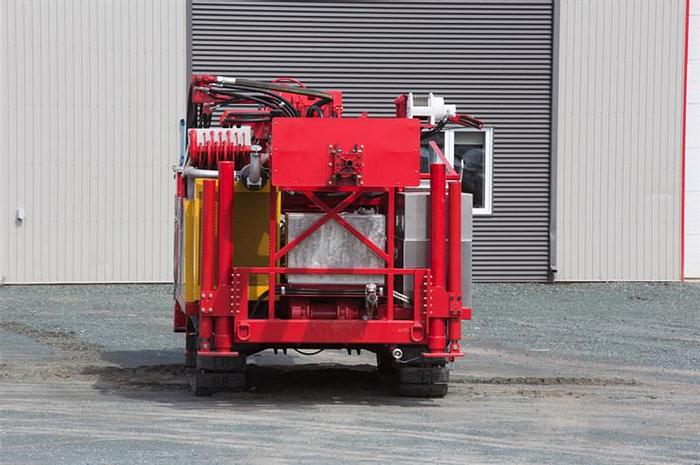

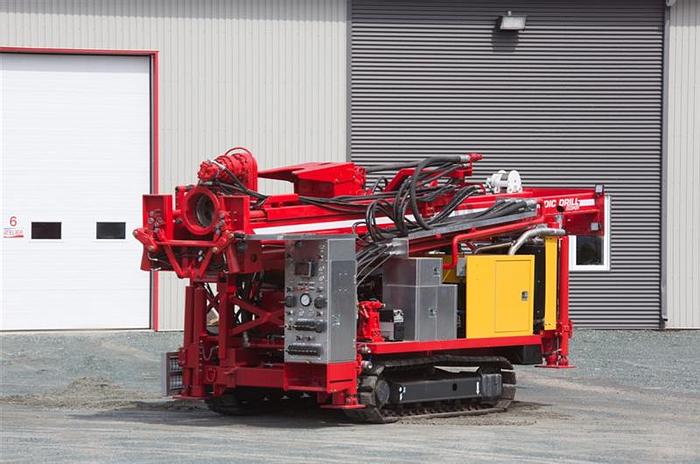

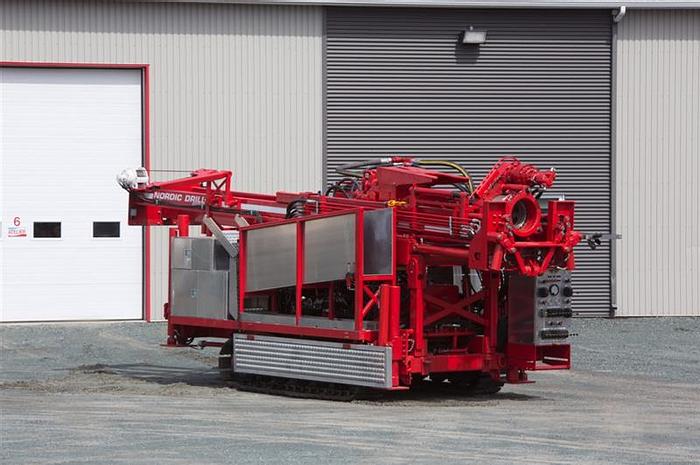

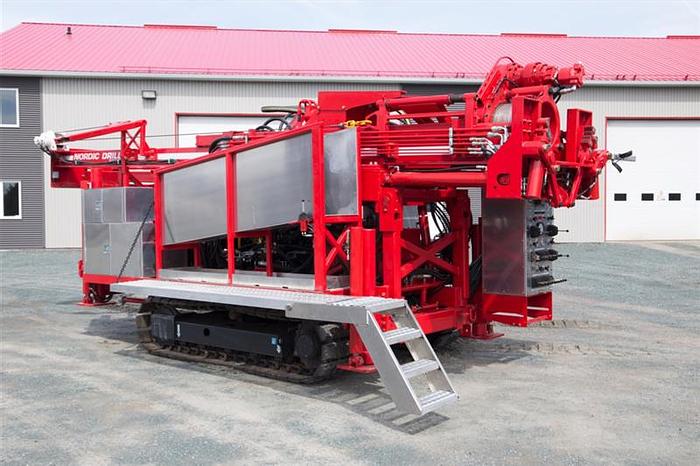

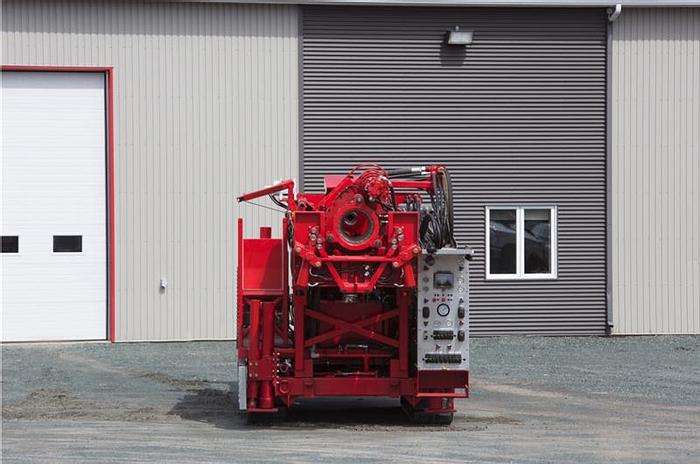

2019 Nordic Drill DRC-10-A Crawler Drill Rig

All in One Drilling Rig with Dual Rotary, Crawler Mounted Carrier, 12" Max Openings & Slide Angle Mast with Advantages Compared to a Conventional Air Rotary Drill:

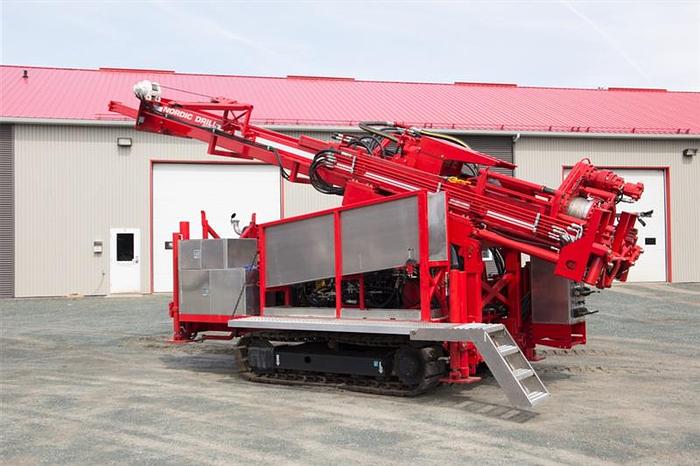

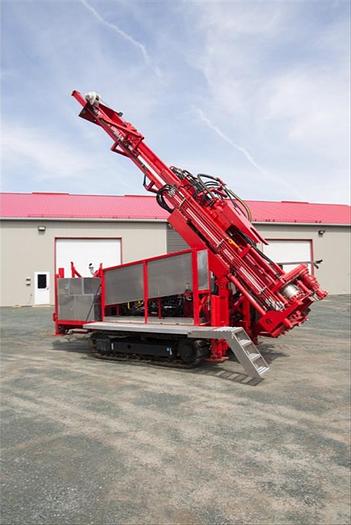

Angle Slide Package:

  • Allows Drilling Applications for Mining, RC (Reverse Circulation) Exploration, Anchors, Pilling, Geotechnical, Soil Samples, Etc.

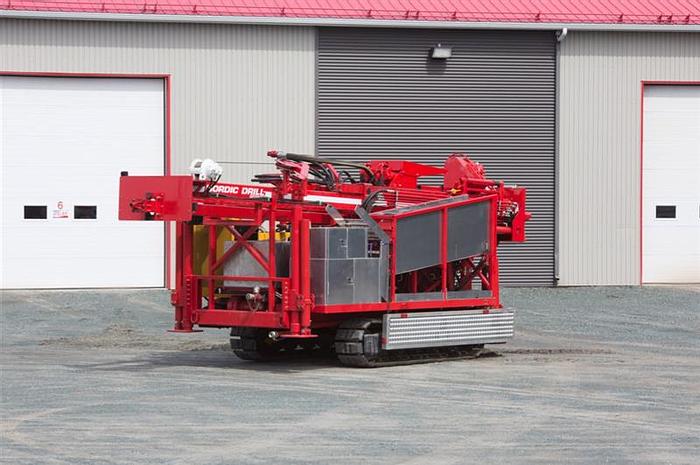

Crawler:

  • Light Weight & Small means less damage to the drilling sites, allows set up on difficult terrains & tight access sites, and less preparation for set up and break down.

Dual Rotary:

  • Allows Accuracy & Performance in Tough Overburden Conditions, Good Sampling & Screen Intallations, Facilitates The Extraction of Casing, Easy to Operate & Cleaninesss on Sites.

Safety:

  • Offers Safe Drilling Methods, Provided of an Anti-Rotation System.

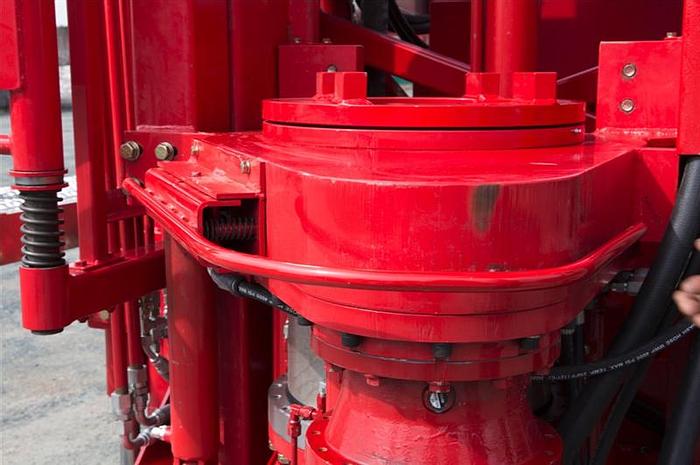

Top Drive:

  • Stroke: 16' ft
  • Hoist: 31,000 lbs
  • Hoist Speed: 53 ft/min
  • Pull Down: 23,500 lbs
  • Pull Down Speed: 71 ft/min
  • Torque: 6,000 ft x lbs
  • Rotation Speed: 0-90 RPM

Lower Drive:

  • Stroke: 10' ft
  • Hoist: 35,000 lbs
  • Hoist Speed: 47 ft/min
  • Pull Down: 26,500
  • Pull Down Speed: 63 ft/min
  • Torque: 21500 ft x lbs
  • Rotation Speed: 0-9 RPM

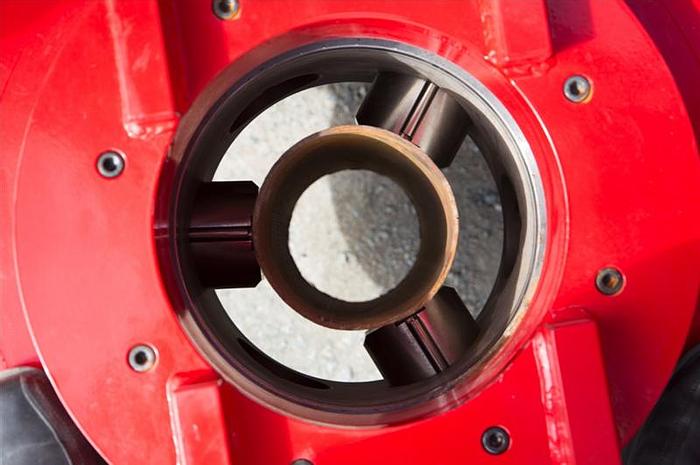

  • Maximum Opening: 12"
  • Engine: CAT C 6.6 Diesel @ 210 hp (Tier 3)
  • Sliding Mast Stroke: 36"

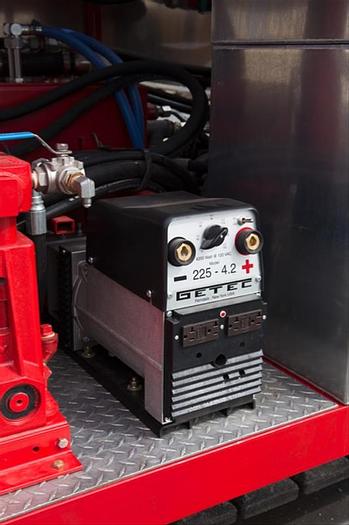

  • Welding machine: Hydraulic 225 AMP
  • Water Pump: Quad Bean 18 GPM
  • Hydrofrac Pump: 26 GPM @ 1800 psi / 13 GPM @ 2900 psi
  • Service Winch: 2,000 lbs
  • Front Winch: M12 12,000 lbs
  • Pipe Tub: 40 Pipes - 3-1/2"
  • Safety: Anti-Rotation Top Drive
  • Maxumum Speed: 3,1 MPH
  • Weight: approx. 37,400 lbs

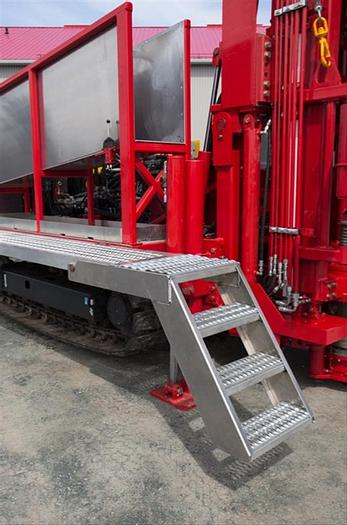

Aluminum stairs

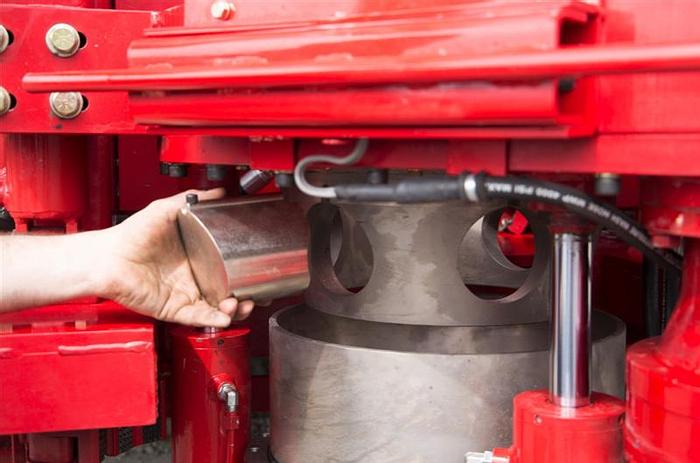

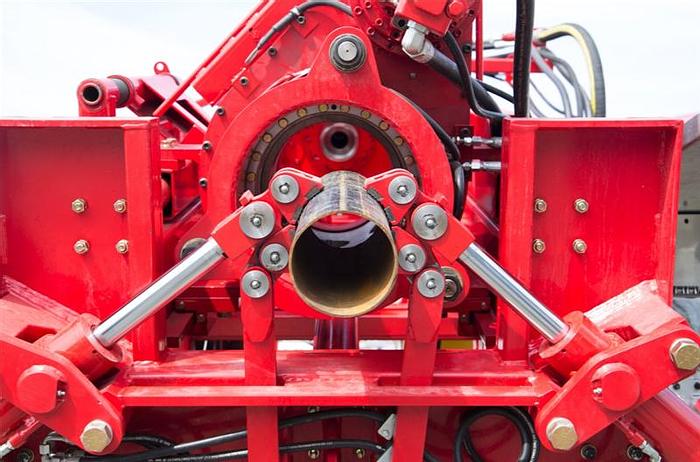

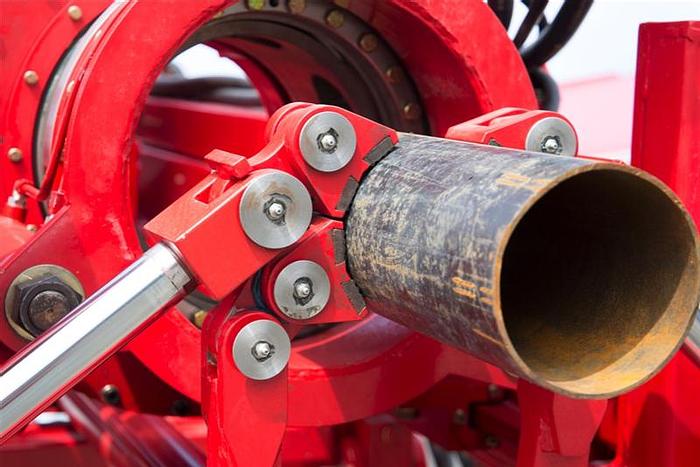

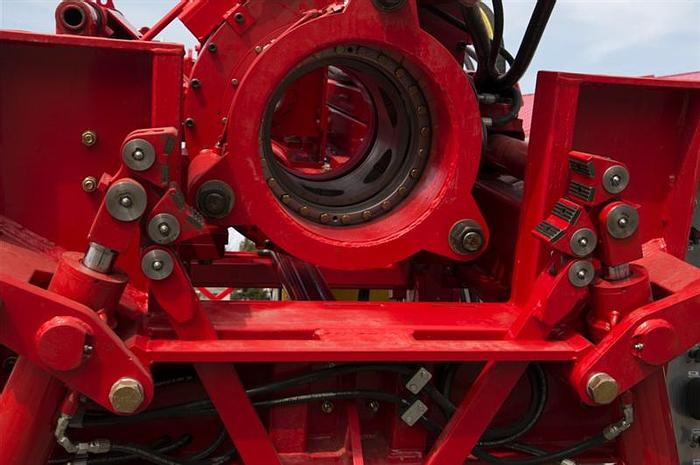

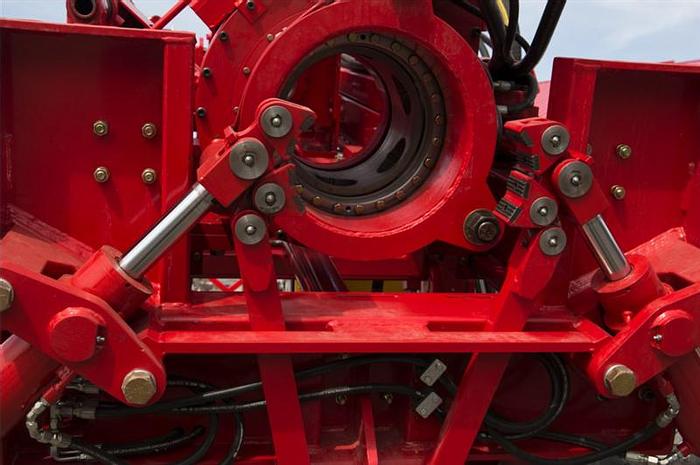

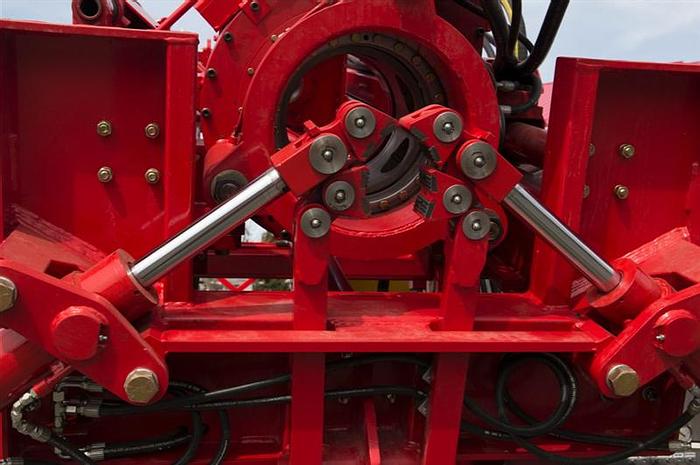

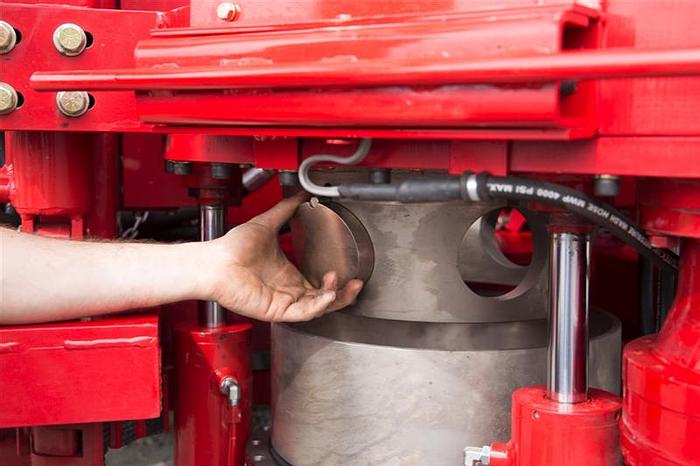

Casing clamps under the mast (to break joints, are use of threaded casing)

Cyclone installed on the drill

Located in Canada

Specifications

ManufacturerNordic Drill
ModelDRC-10-A Drill Rig
Year2019
ConditionUsed
Stock Number13427
Stroke10' ft
Hoist35,000 lbs
Hoist speed47 ft/min
Pull down26,500
Pull down speed63 ft/min
Torque21500 ft x lbs
Rotation speed0-9 RPM
Maximum opening12"
EngineCAT C 6.6 Diesel @ 210 hp (Tier 3)
Sliding mast stroke36"
Welding machineHydraulic 225 AMP
Water pumpQuad Bean 18 GPM
Hydrofrac pump26 GPM @ 1800 psi / 13 GPM @ 2900 psi
Service winch2,000 lbs
Front winchM12 12,000 lbs
Pipe tub40 Pipes - 3-1/2"
SafetyAnti-Rotation Top Drive
Maxumum speed3,1 MPH
Weightapprox. 37,400 lbs
StatusSold
