0 FMC L16 Piston Pump
Sold
Description
FMC (Bean) L16 Piston Pump
78 BHP Continuous Duty (105 BHP Intermittent Duty)
Gear Ratio: 3.94:1 Intermittent Duty
Standard Suction Size:
STD - 2.50 Inch NPT
HV - 3.00 Inch NPT
Standard Discharge Size:
STD - 1.25 Inch NPT
HV - 2.00 Inch NPT
Hydraulic Motor Mount:
SAE C - 2 Bolt with 1.25"-14T
SAE C - 4 Bolt with 1.25"-14T

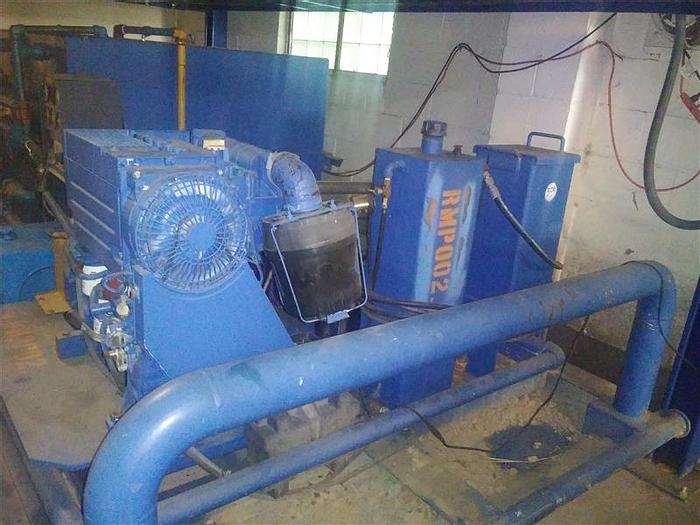

Powered by Deutz Diesel Engine (less than 500 hours) Two mixing tanks.
Specifications
| Manufacturer | FMC |
| Model | L16 Piston Pump |
| Condition | Used |
| Stock Number | 14344 |
| Pump model | L16 |
| Configuration | Horizontal Triplex Piston |
| Number of pistons | 3 |
| Stroke length | 4.0 Inches Internal |
| Speed rating | 1,100 RPM Ball Valve |
| Max speed rating | 750 |
| Rpm minimum speed | 394 RPM (Slower RPM can be achieved with the addition of a pressurized lubrication system) |
| Mechanical efficiency | 85% Lubrication |
| System (standard) | Splash, Gravity Return |
| Lube oil capacity | 10 Quarts Lube |
| Oil type | SAE 80W90 |
| Maximum fluid temperature | 140 °F (250 °F Capability) |
| Minimum fluid temperature | 0 °F (-20 °F Capability) |
| Fluid end material | Ductile Iron, Nickel Aluminum Bronze |
| Valve types | Disc Valves, Ball Valves, Abrasion Resistant (AR) Valves |
| Status | Sold |
