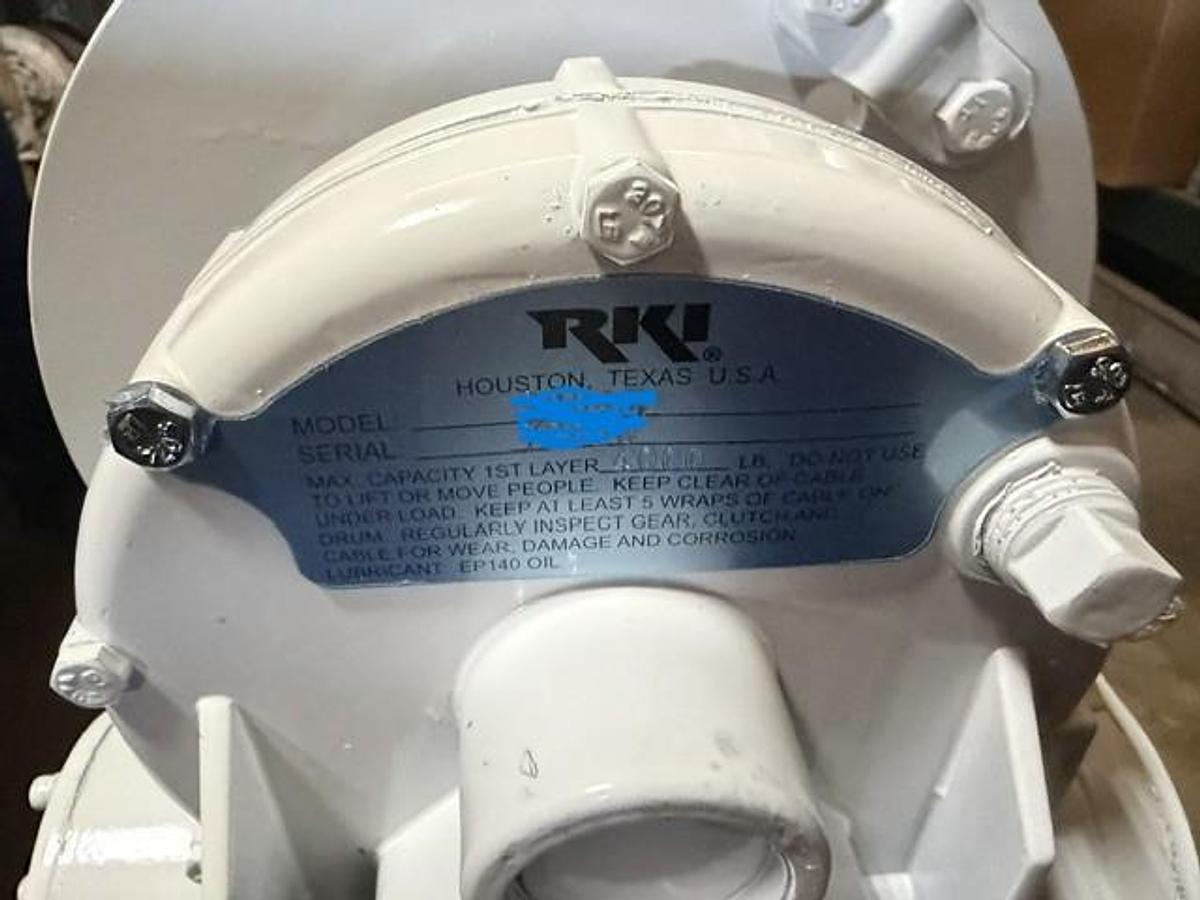

Ingersoll-Rand Winch - 52263159

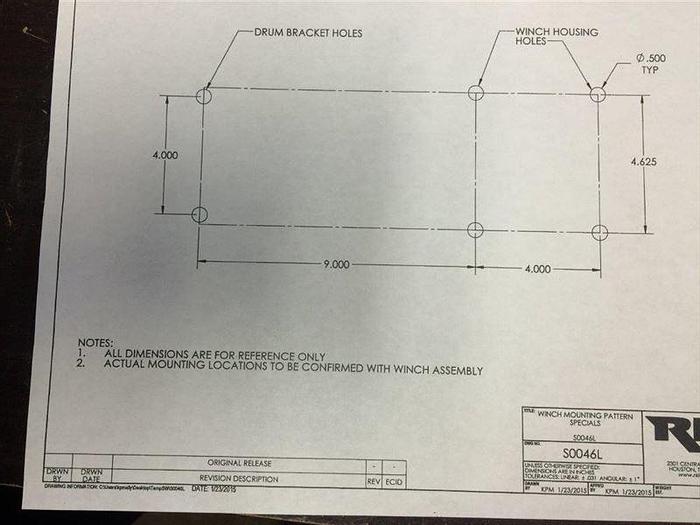

Ingersoll-Rand 52263159 RKI Winch S0046L Ingersoll-Rand 52263159 Winch Atlas Copco Epiroc 2652263159 Hoist RKI 08H Series Winch Load Pulling Capacity Of All Ratio Is 4,000 LB. Holding Capacity of First Layer, with a Worm Brake, Pressure: Start: 1650 PSIRun: 1200 PSI 1st Layer Max. Load: 8000* lb. Length: 23 ft. Line Speed: 16 FPM 2nd Layer Max. Load: 6870 lb. Length: 50 ft. Line Speed: 18 FPM 3rd Layer Max. Load: 6020 lb. Length: 79 ft. Line Speed: 21 FPM 4th Layer Max. Load: 5360 lb. Length: 113 ft. Line Speed: 24 FPM Can be converted to faster gear ratio, if needed. At faster gear ratios, specifications would be as follows: Pressure: Start: 2020 PSI 1st Layer Max. Load: 8000* lb. Length: 23 ft. Line Speed: 31 FPM 2nd Layer Max. Load: 6870 lb. Length: 50 ft. Line Speed: 36 FPM 3rd Layer Max. Load: 6020 lb. Length: 79 ft. Line Speed: 42 FPM 4th Layer Max. Load: 5360 lb. Length: 113 ft. Line Speed: 47 FPM Pressure: 1st Layer Max. Load: 8000* lb. Length: 23 ft. Line Speed: 38 FPM 2nd Layer Max. Load: 6870 lb. Length: 50 ft. Line Speed: 44 FPM 3rd Layer Max. Load: 6020 lb. Length: 79 ft. Line Speed: 50 FPM 4th Layer Max. Load: 5360 lb. Length: 113 ft. Line Speed: 56 FPM Motor Available at an additional cost Price Subject to Change without Notice FOB; Mifflinburg, PA. USA
