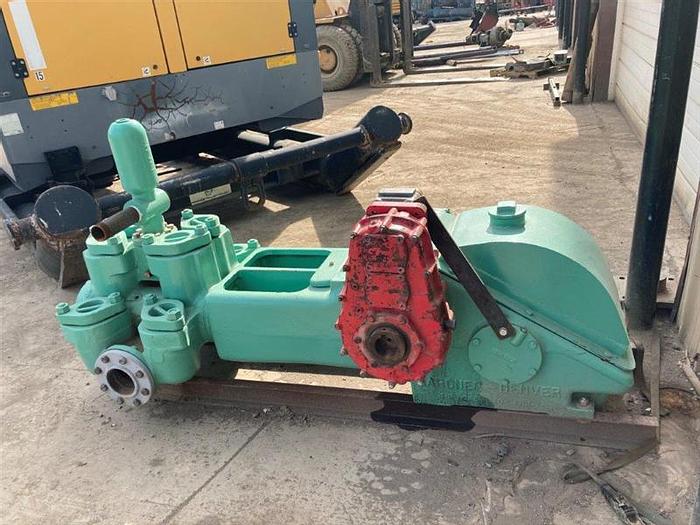

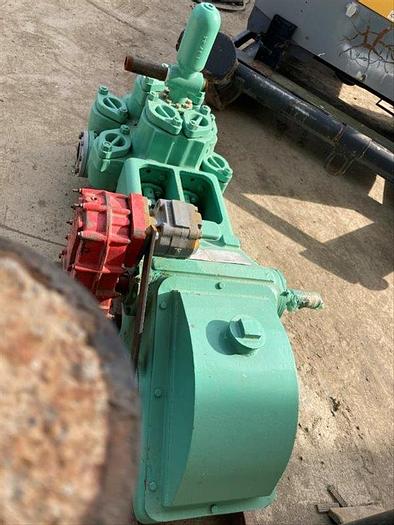

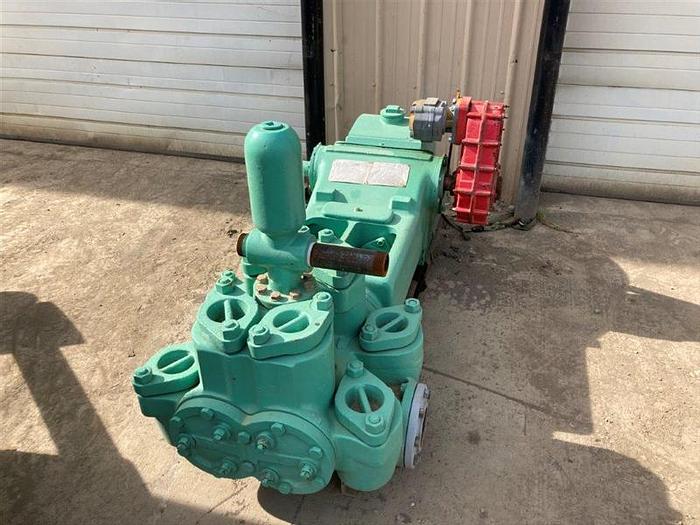

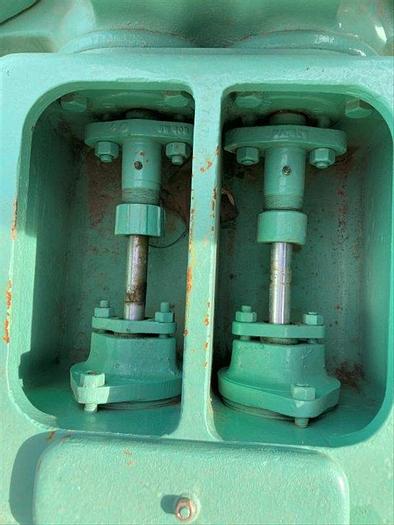

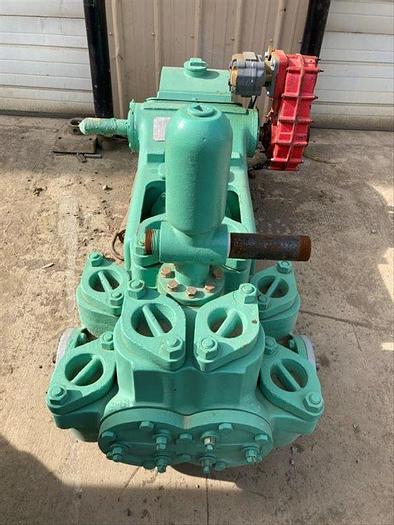

0 Gardner Denver FG-FXG 5X6 Duplex Mud Pump

Mifflinburg, Pennsylvania USA @ EWD Yard

Sold

Description

Gardner Denver FG-FXG 5X6 Duplex Mud Pump Hydraulic Drive FXGAABBFCF8 FXG (FG-FXG) DUPLEX POWER PUMP Hydraulically powered, complete with Gearbox Sauer-Danfoss 22-3806AN-ESBE Hydraulic Motor Surge Chamber & Pop-off valve Maximum BHP:  Mud Service: 32 (24 kw),  Ind'l. Service: 42.5 (32 kw) Maximum Jackshaft RPM: Mud Service: 354,  Ind'l. Service: 472 Located in Mifflinburg, PA yard USA
Show All

Specifications

ManufacturerGardner Denver
ModelFG-FXG 5X6 Duplex Mud Pump
ConditionUsed
Stock Number15632
No. of pistons2
Stroke length6" inch (152 mm)
Piston rod load6,122 lbs. (2,777 kg)
Oil capacity4.5 gallon (17 liters)
Pump weight2,300 lbs. (1,043 kg)
StatusAvailable
