1989 Simco 2800 HSHT Drill Rig

1

Mifflinburg, PA

Description

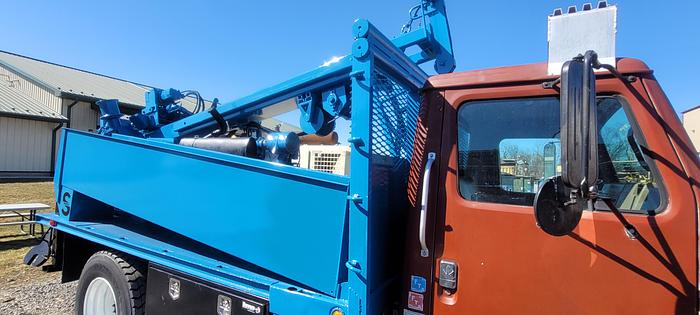

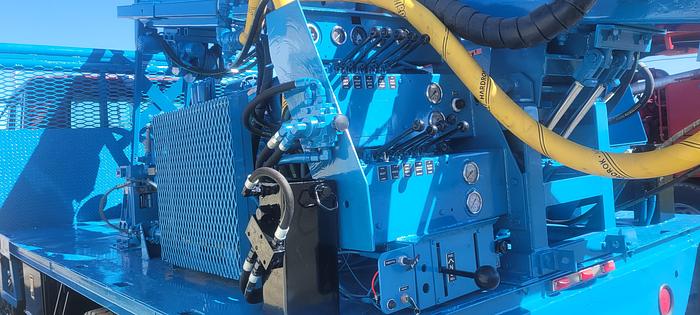

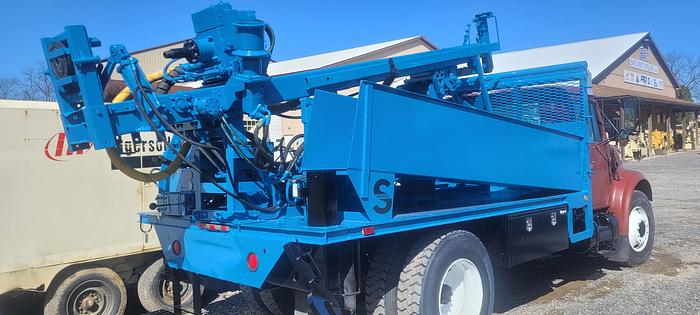

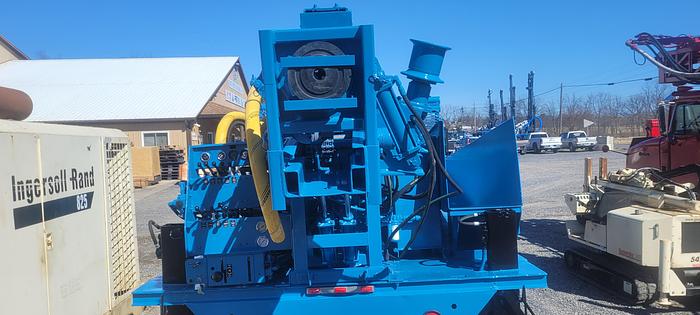

1989 Simco 2800 HSHT Drill Rig

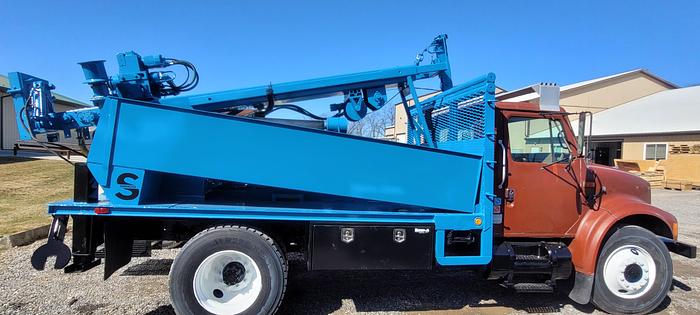

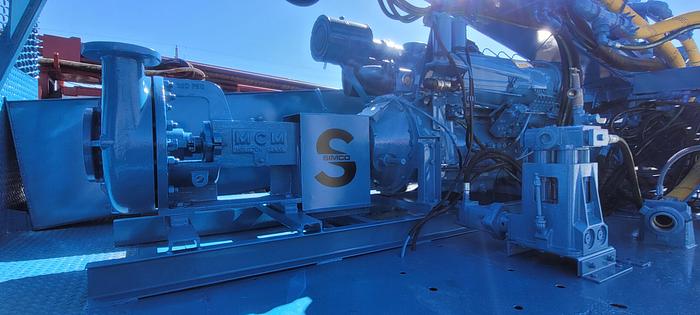

Drill Serial #: 891210 8805 hours Cathead Wisconsin VG4D gas deck engine - Serial#: 6231918 (needs to be replaced) 4x3 Centrifugal mud pump powered by Deutz F4L921 diesel engine (1853 hours) - Serial#: 7617580 Mounted on a 1999 GMC Sierra K3500 Truck - 4x4 454 gas 7.4L engine with 182,638 miles Rig has 10’ ft stroke

Single speed 1500 ft. lbs. and 125 Rpm top head

Previously drilled at 200ft plus used for geothermal boreholes

Drill Tooling, Pipe Package Available (items included in a package deal):

  • Quantity             Item

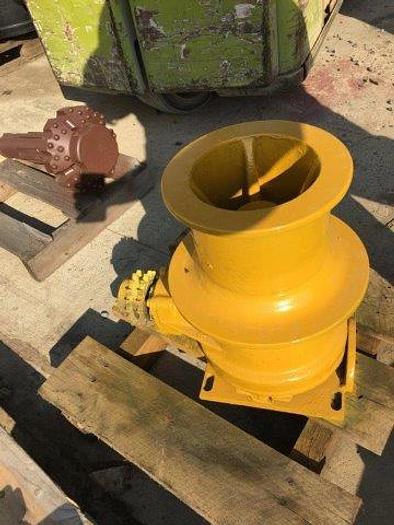

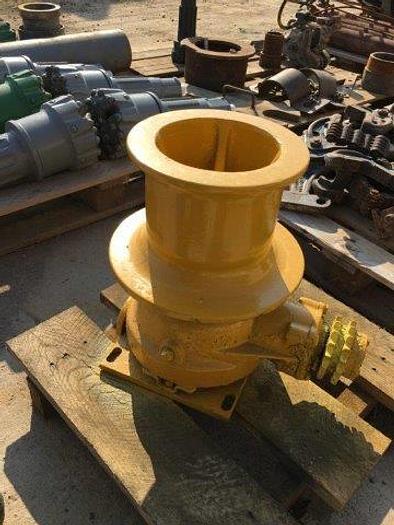

  • 1         Hydraulic Cathead for Mobile Drill / Acker / Diedrich / AMS and other Core / Auger / SPT drilling rigs. Purchased as good used but have not tested it, however it does turn nice and smooth when checked by hand
  • 2         New (old stock) 140# Soil Penetration Test Hammer / SPT Safety hammer NWJ CONN BOLT TYPE

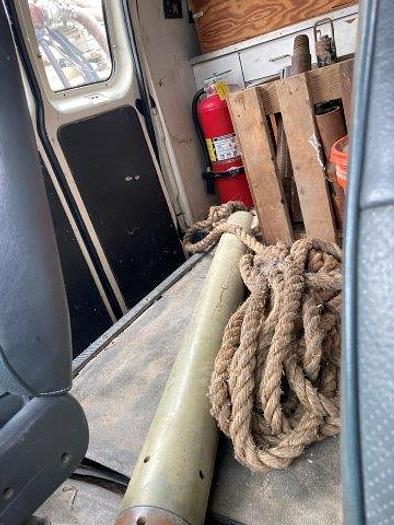

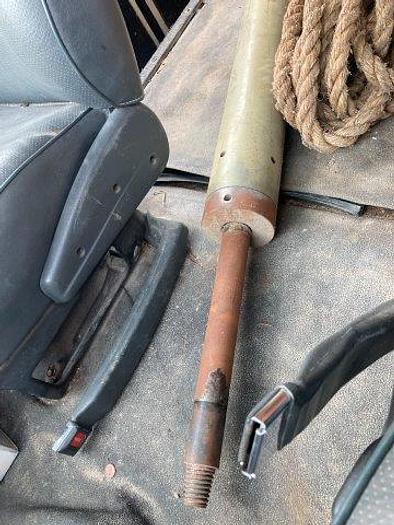

  • 1         CME 130 lb cathead operated geotechnical slide hammer with hemp rope
  • 5         24-inch split spoons

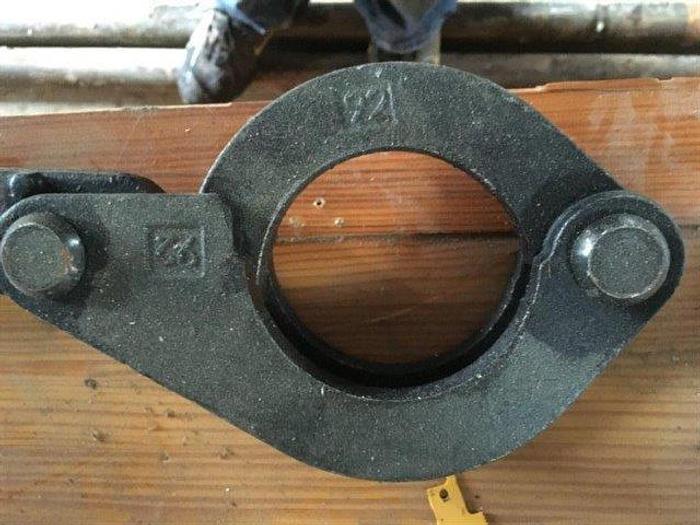

  • 1         AWJ Hoisting Ring
  • 22       AWJ Drill Rod – 5-ft
  • 1         AWJ Lifting Plug – Elevator
  • 1         Lifting hook

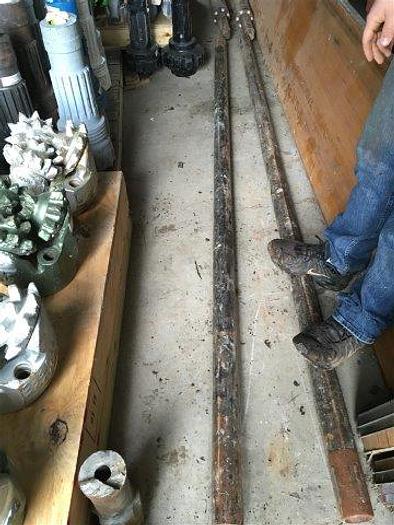

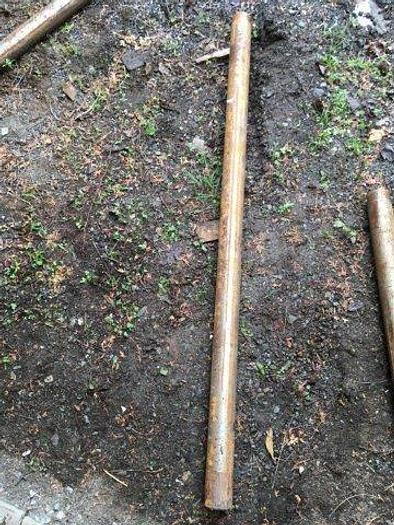

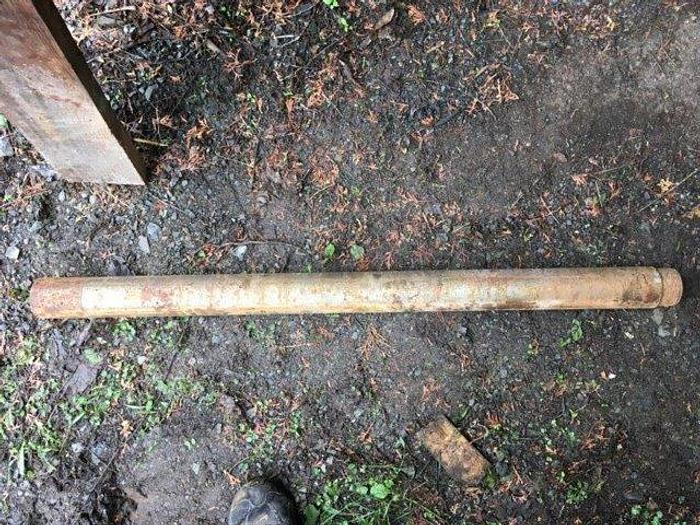

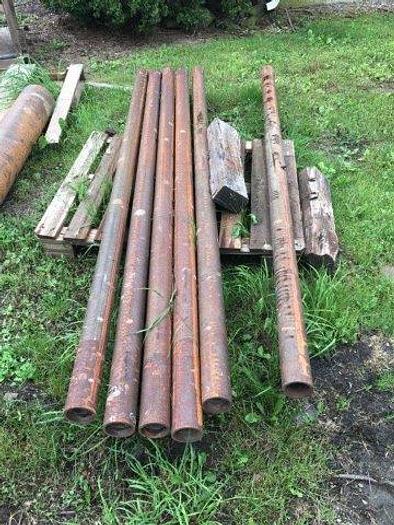

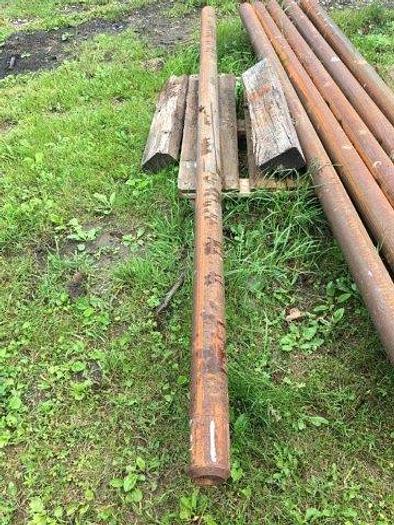

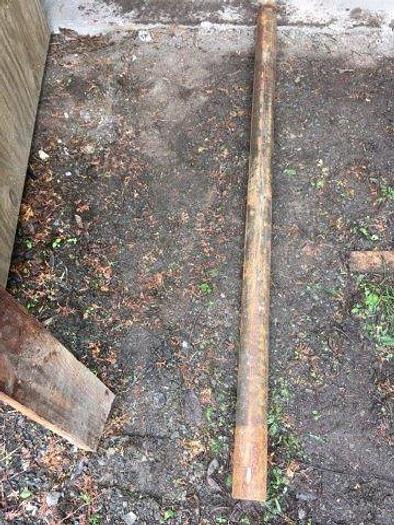

  • 31       NWJ Drill Rods – 10-ft
  • 1         NWJ Drill Rod – 5-ft
  • 1         NWJ Drill Rod – 2-ft
  • 1         NWJ Drill Rod – 1-ft
  • 1         NWJ 5-ft Plug Popper
  • 1         NWJ x 2-4-in taper tap
  • 1         NWJ Lifting Ring
  • 2         NWJ Lifting Plug – Elevator
  • 1         NWJ x 3-1/2 API Reg Sub
  • 1         NWJ x AWJ Sub (box x box)
  • 1         NWJ x AWJ Sub (box x pin)
  • 1         NWJ x 2-7/8 API Reg Sub
  • 1         NWJ x 3-1/2 API Reg Sub
  • 1         NWJ x 2-3/8 Mayhew Jr. Sub
  • 1         NWJ x 2-3/8 API Reg Sub
  • 1         Simco Flange x NWJ (Pin down)
  • 1         9-inch, 3-wing step bit (NWJ box)
  • 1         5-inch, 4-wing step bit (NWJ box)
  • 1         3-1/2 roller cone x NW Pin
  • 88       2-3/8 Mayhew Jr. x 10-ft drill rod
  • 3         Simco Flange x 2-3/8 Mayhew Jr. Saver Sub
  • 1         2-3/8 Mayhew Jr x 3-1/2 API Reg Sub
  • 1         2-3/8 Mayhew Jr x 2-7/8 API Reg Sub
  • 2         2-3/8 Mayhew Jr x 2-3/8 API Reg
  • 1         2-3/8 Mayhew Jr x NWJ Sub
  • 1         2-3/8 Mayhew Jr x 2-inch taper tap
  • 3         2-3/8 Mayhew Jr Flats Wrench
  • 1         2-3/8 Mayhew Jr Saver Sub
  • 1         2-3/8 Mayhew Jr Murphy Fast Plug

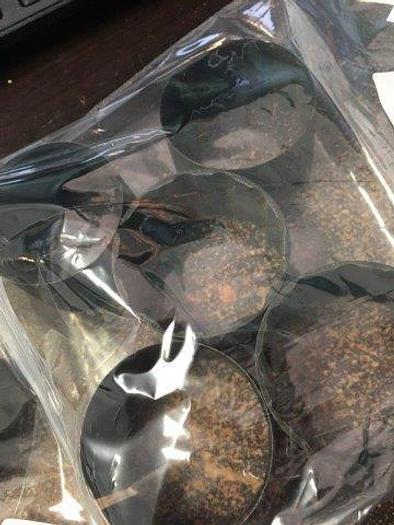

  • 2         New Unused (old stock) NQ core lifters with cases for NV Barrels

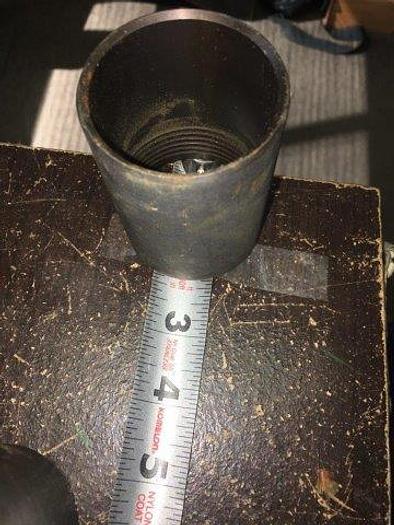

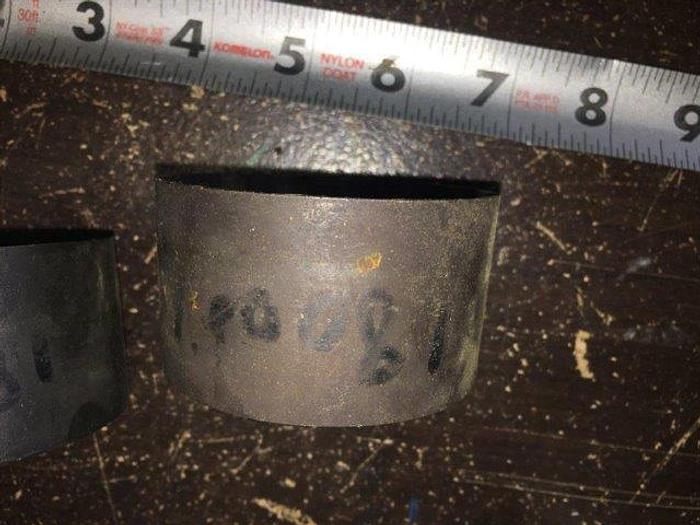

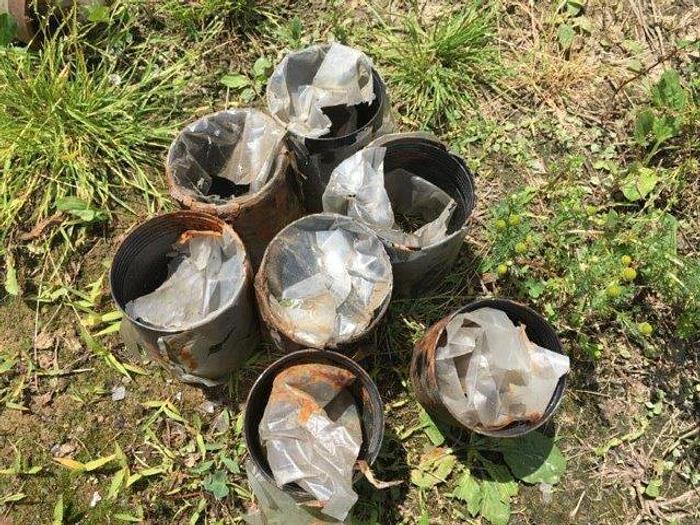

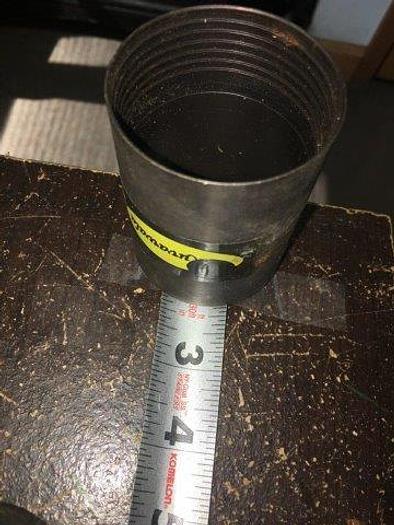

  • 7         NEW (old stock) Core lifter cases (HQ?; ID opposite of the threads is 2-5/8")
  • 2         New (old stock) STOP RINGs for Core Barrel (Core Lifters HWL stop rings 12-21-532)

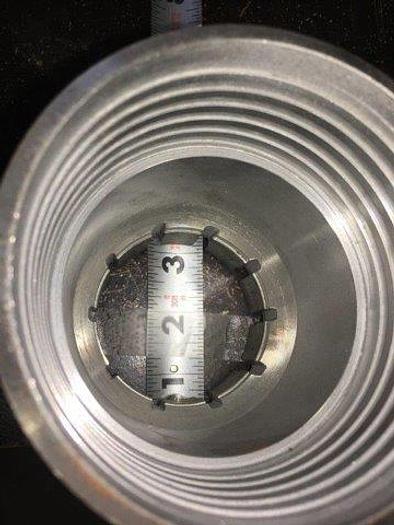

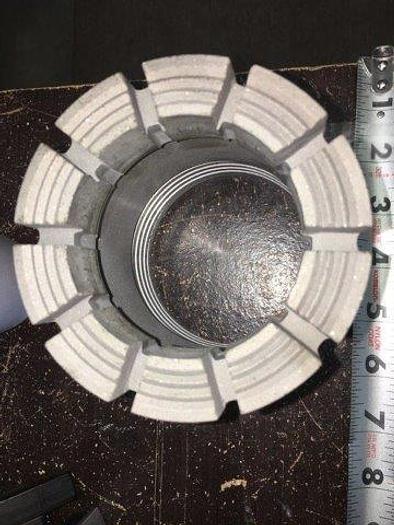

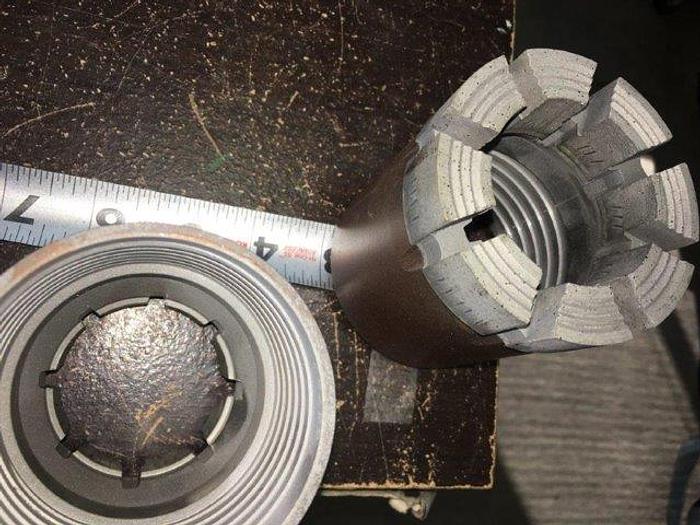

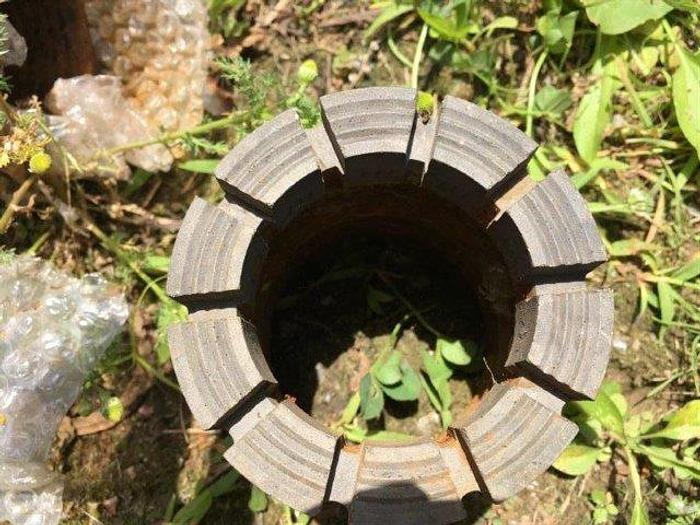

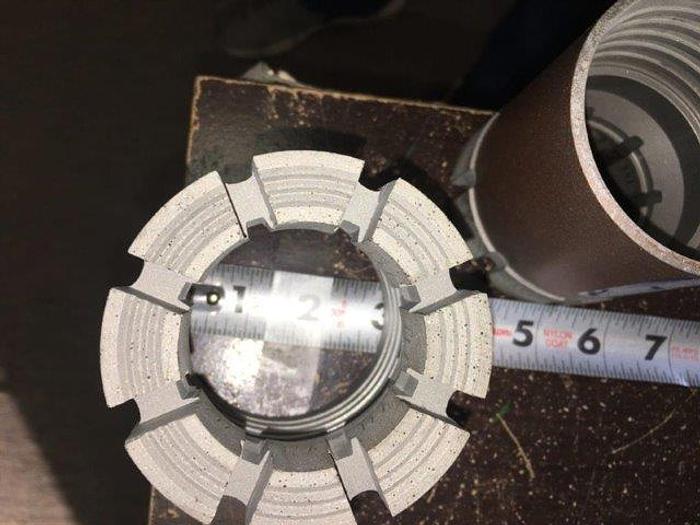

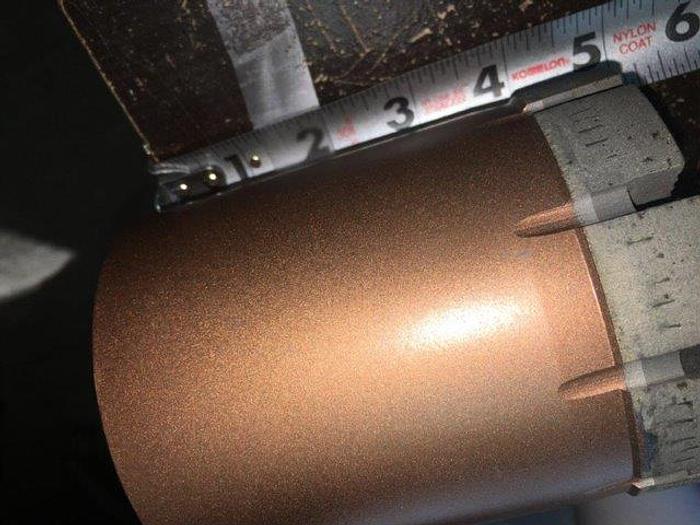

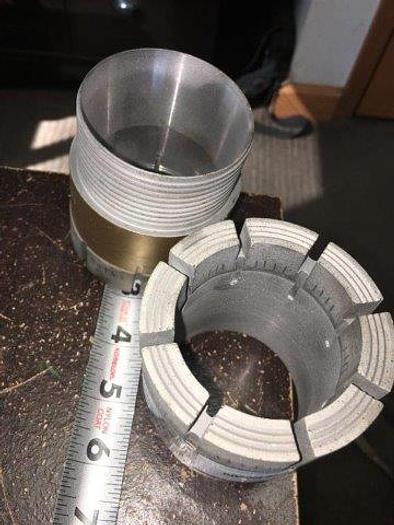

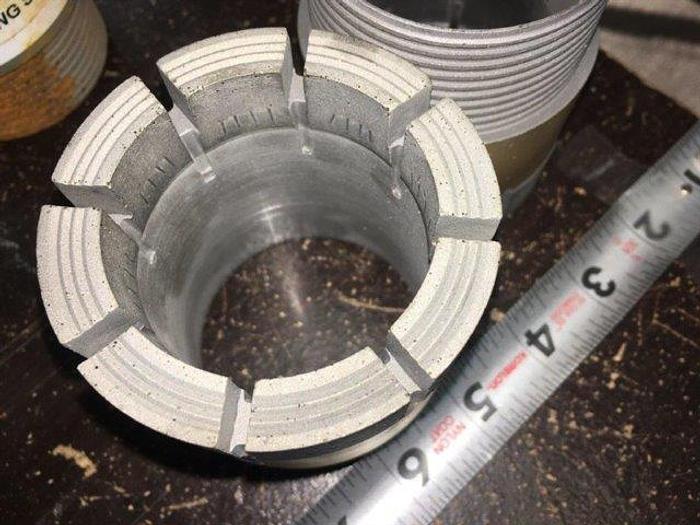

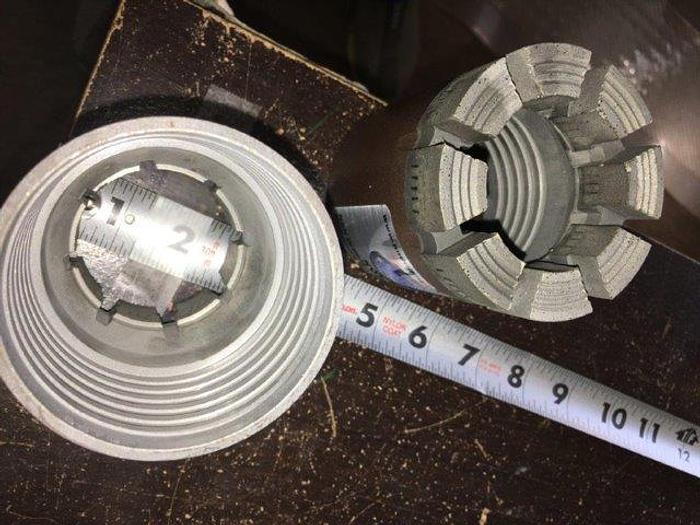

  • 1         New (old stock) HWL Series 6 Diamond Core Drilling Bit

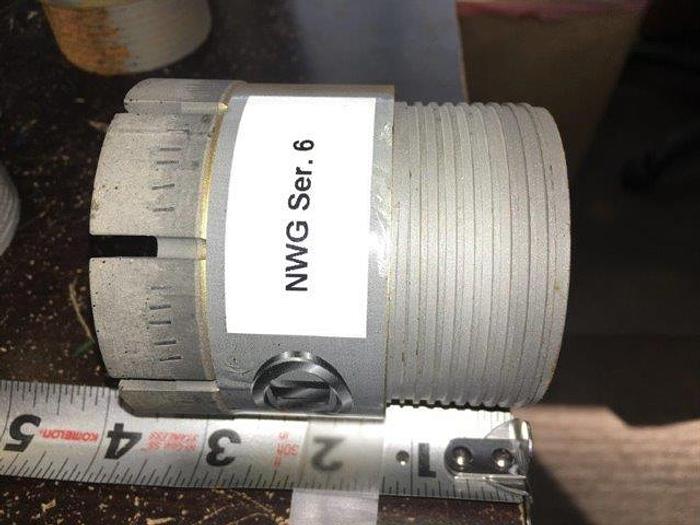

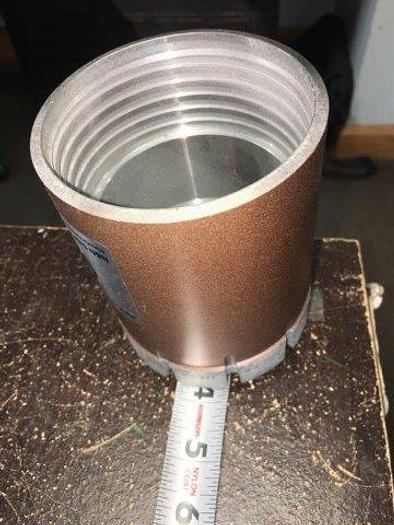

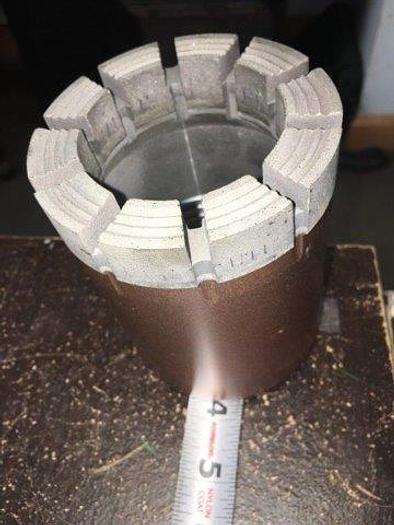

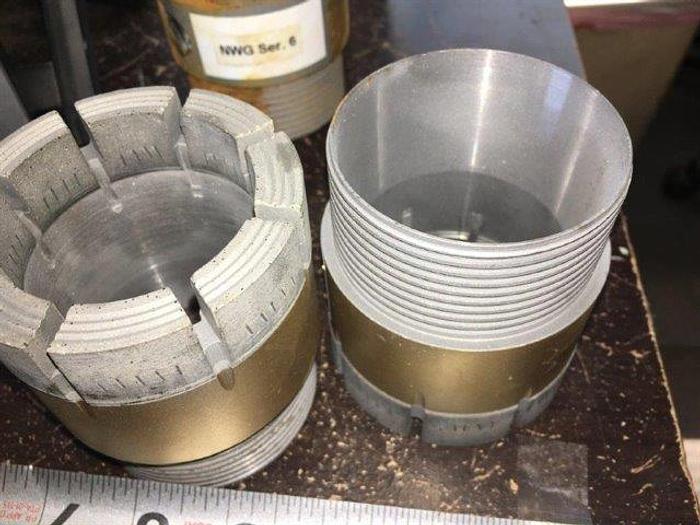

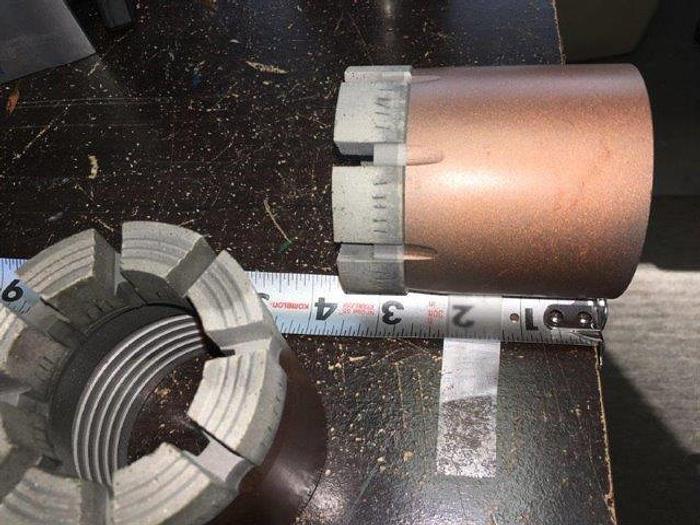

  • 3         New (old stock) NWG Series 6 Diamond Core Drilling Bit

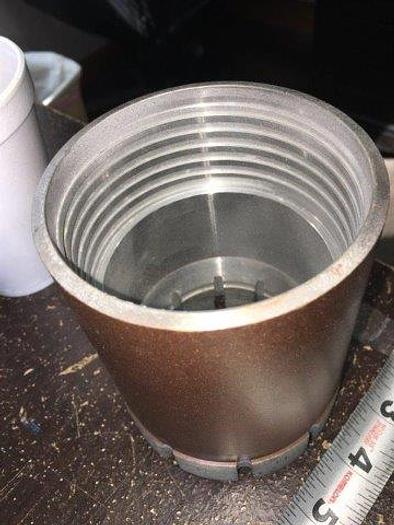

  • 2         New (old stock) NWL Series 6 Diamond Core Drilling Bit

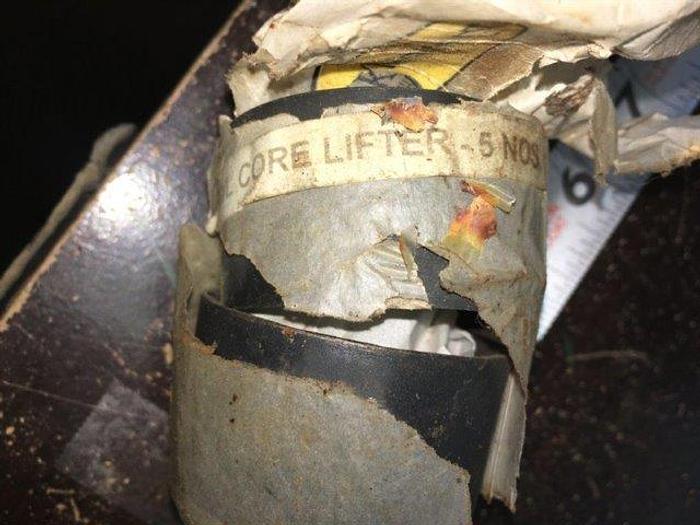

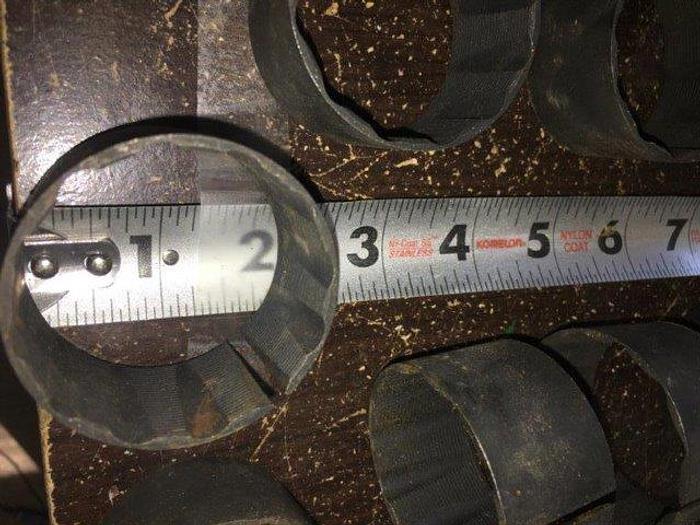

  • 2         New (old stock) CORE LIFTER

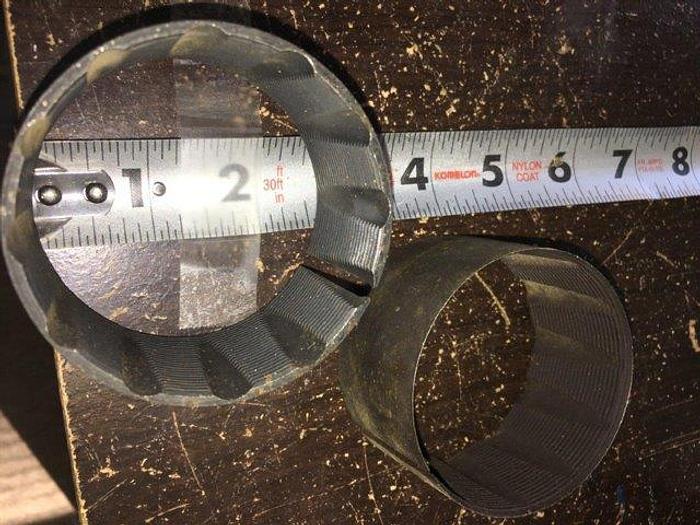

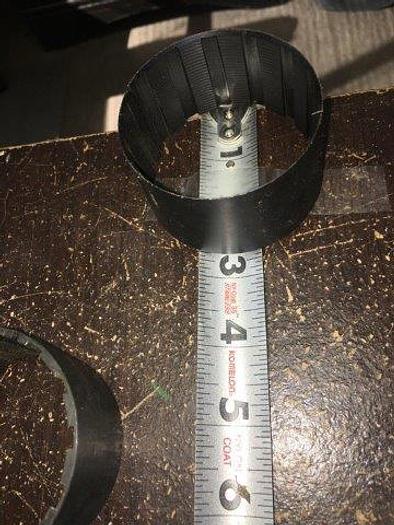

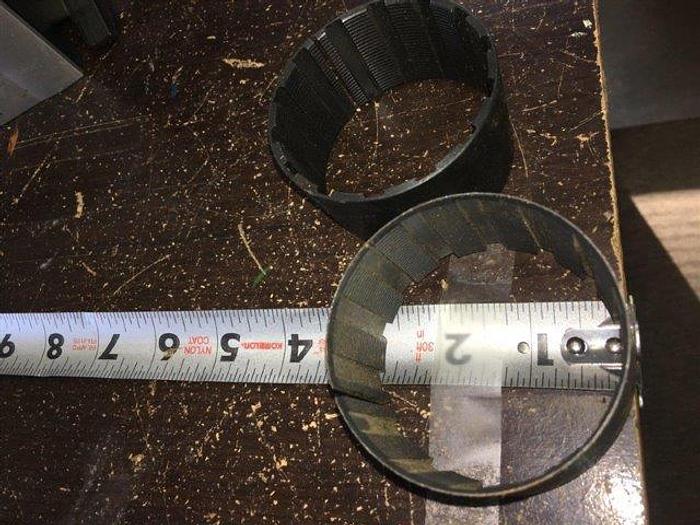

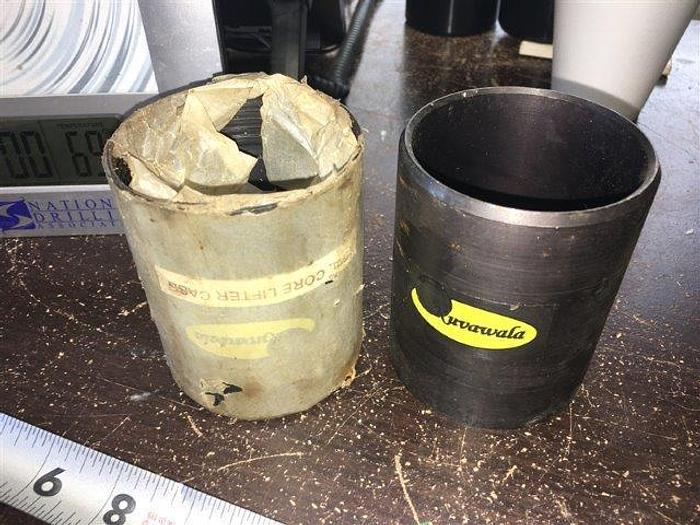

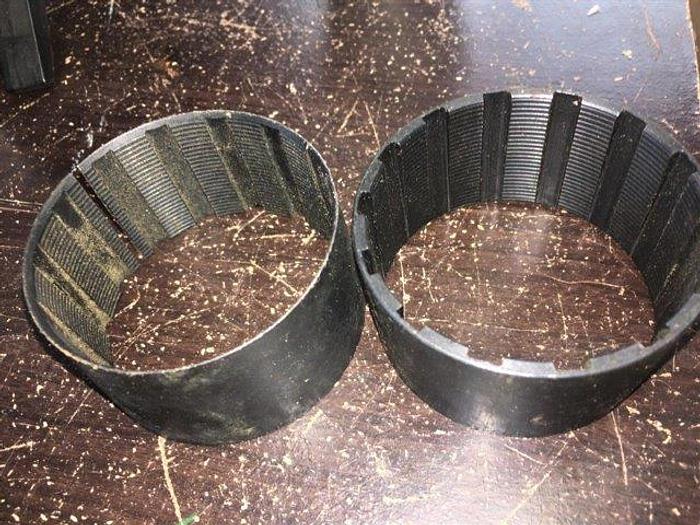

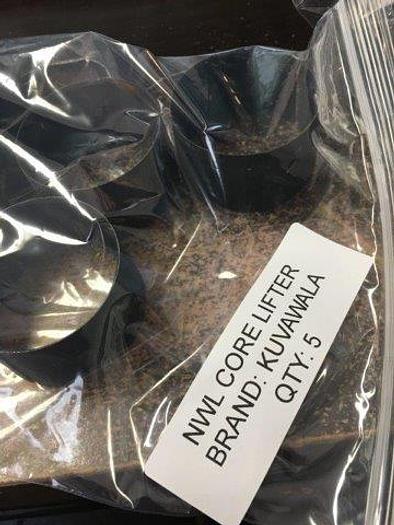

  • 10       New (old stock) Kuvawala 16-03-032 NWL Core Lifter

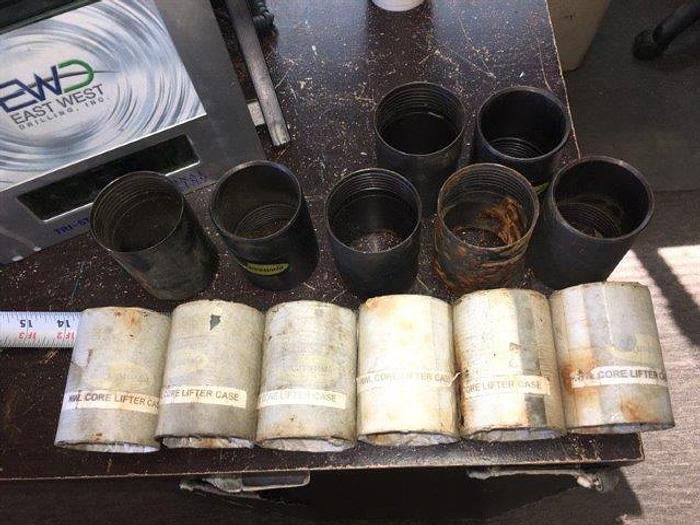

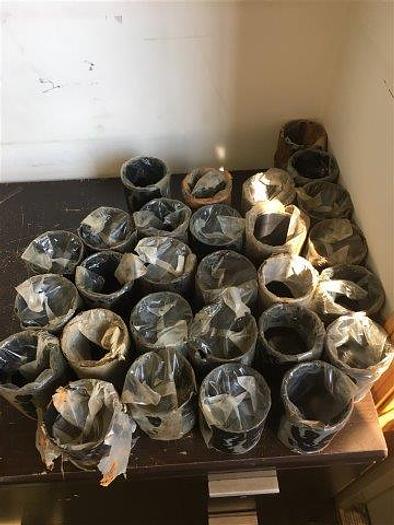

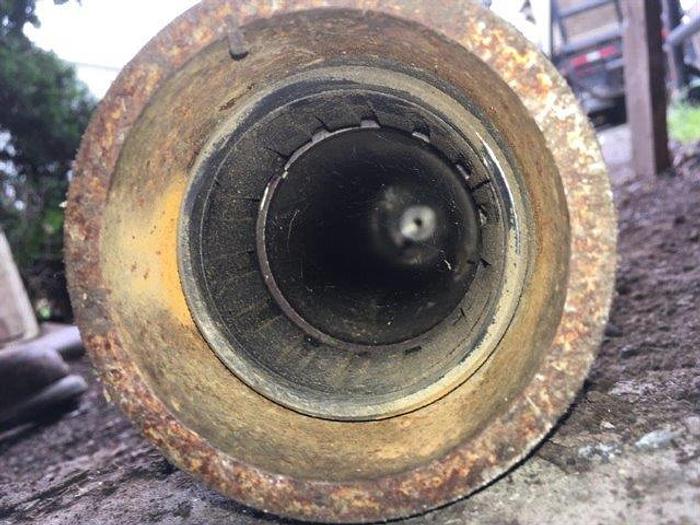

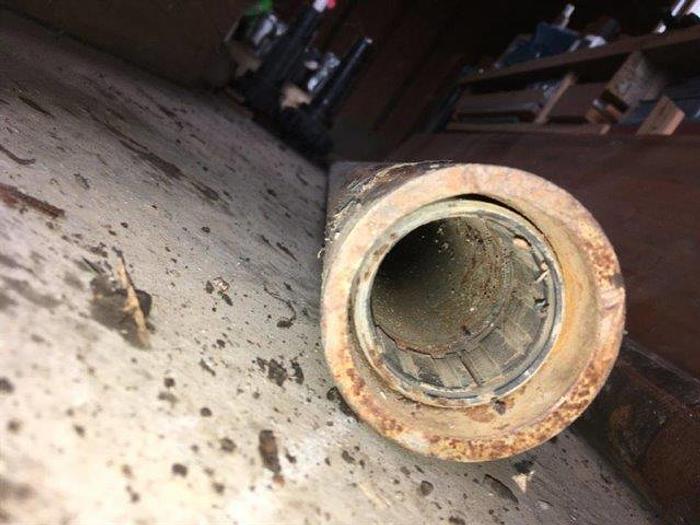

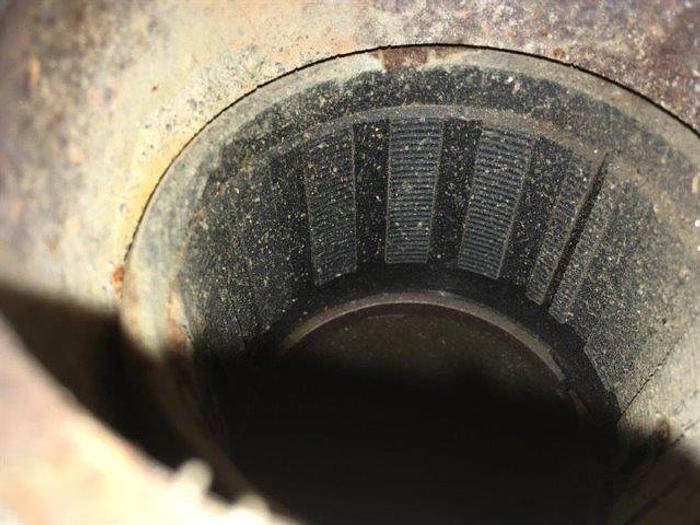

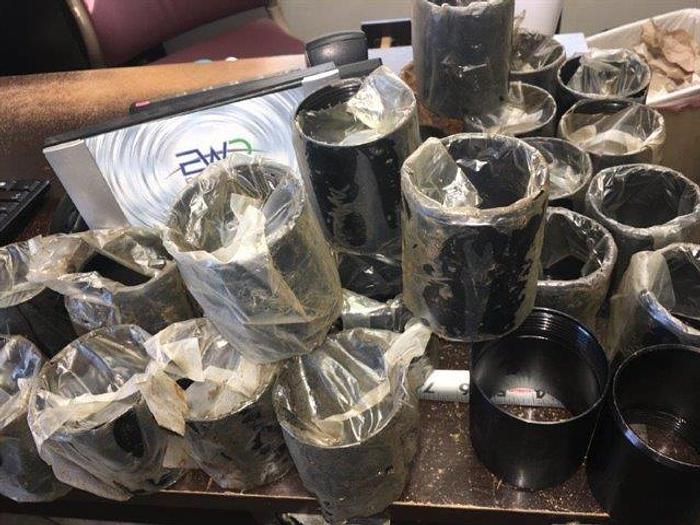

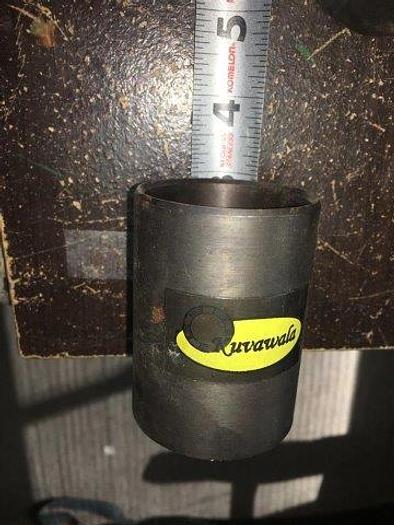

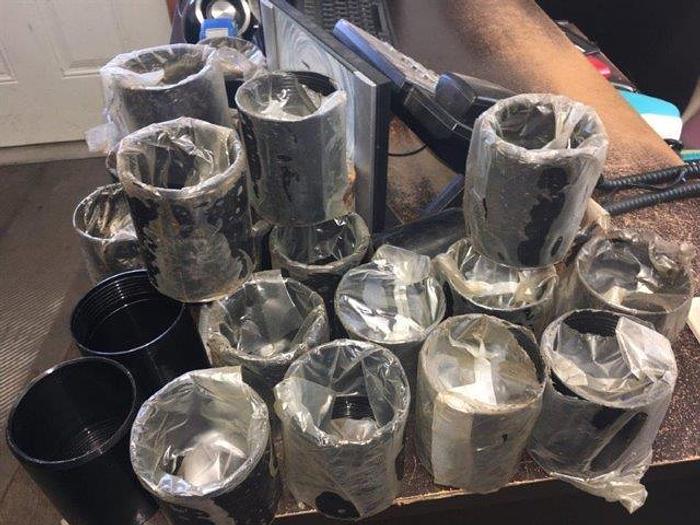

  • 24       New (old stock) NWL Core Lifter Case (1950000) NV Conventional Core Barrel Assembly, NWL V-Latch Core Barrel Assembly, or NWL Spring Latch Core Barrel Assembly
  • 13       New (old stock) Kuvawala 1950000 NWL Core Lifter Case for NV Conventional Core Barrel Assembly, NWL V-Latch Core Barrel Assembly, or NWL Spring Latch Core Barrel Assembly
  • 2         New (old stock) 1800016 CORE LIFTER, FLUTED for HWL Spring Latch Core Barrel or HV Conventional Core Barrel Assembly

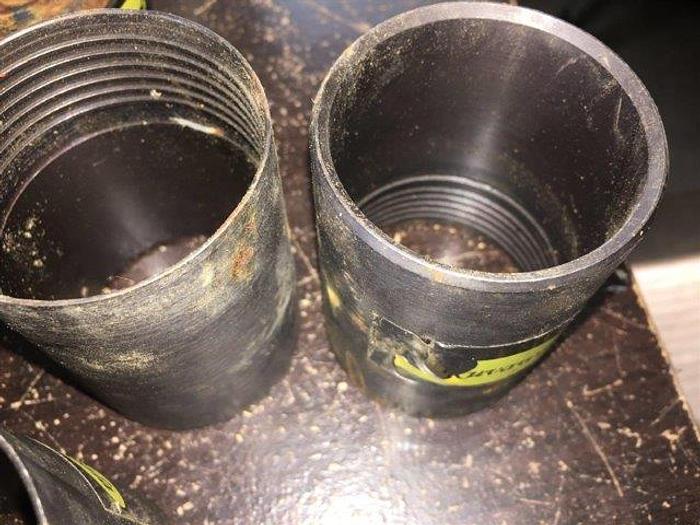

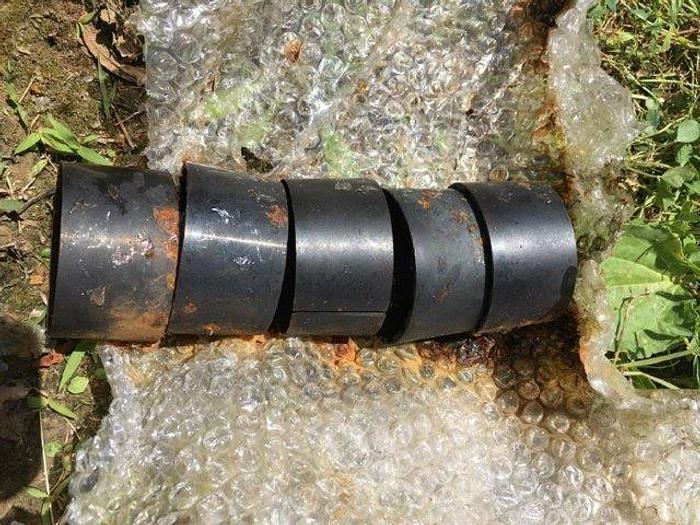

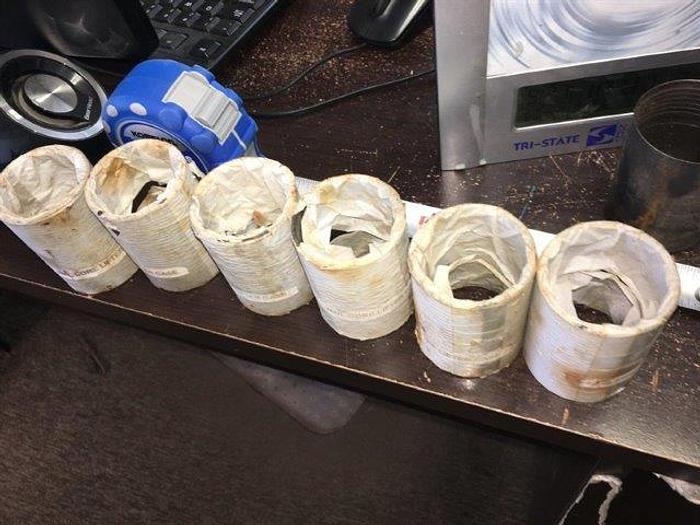

  • 5         New (old stock) HQ CORE LIFTER CASES FOR HV OR HWL BARRELS
  • 1         New (old stock) NQ Reaming Shell for NV Double-Tube Core Barrel (NWL or NWG Diamond)
  • 3         New (old stock) 3" HQ Bit for HV Core Barrel (HWL Series 6 Core Bit (12-HQ--6-WC).

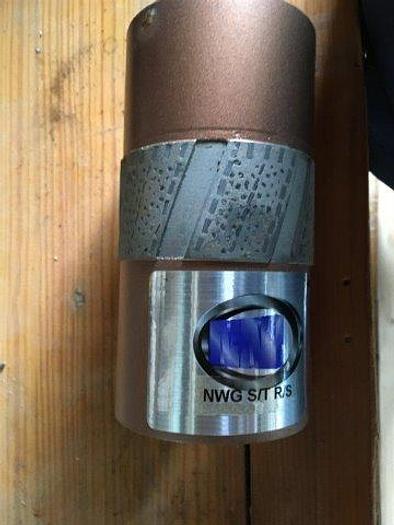

  • 1         New Unused (old stock) NWG Single Tube Reaming Shell for Core Barrel

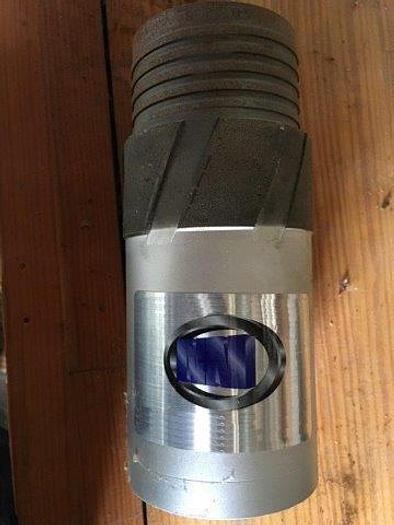

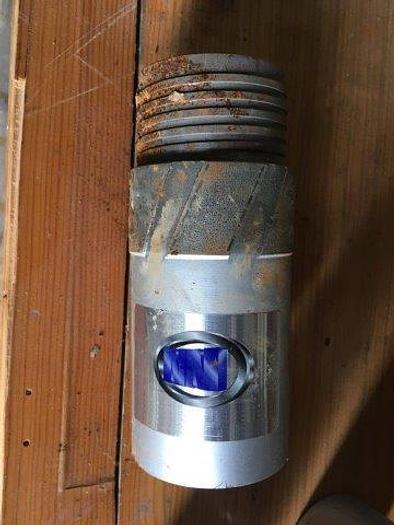

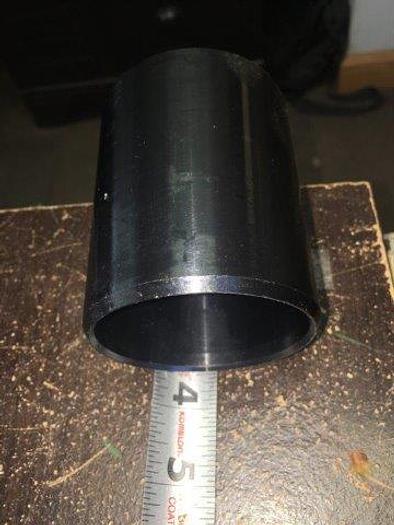

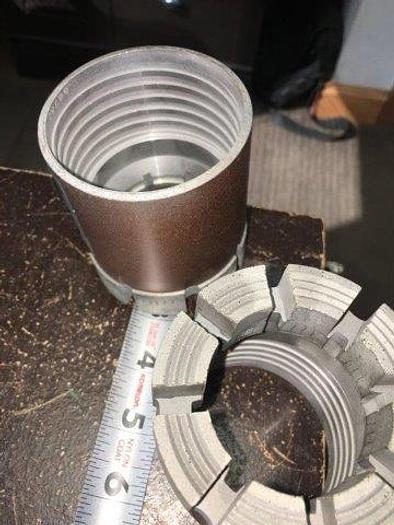

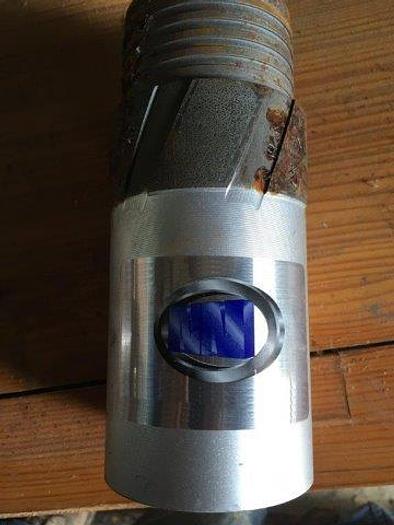

  • 11       New Unused (old stock) HQ R/S P-Type HWL Diamond Reaming Shell 12-HQRS-P (New / Old Stock) HQ reaming shell for conventional HV core barrel
  • 2         New Unused (old stock) HQ Diamond Reaming Shell For NV core barrel (NWL or NWG Diamond)

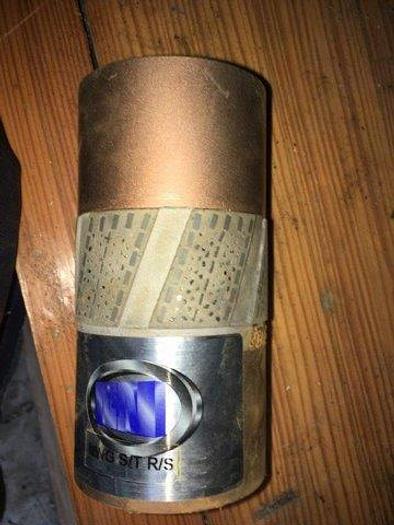

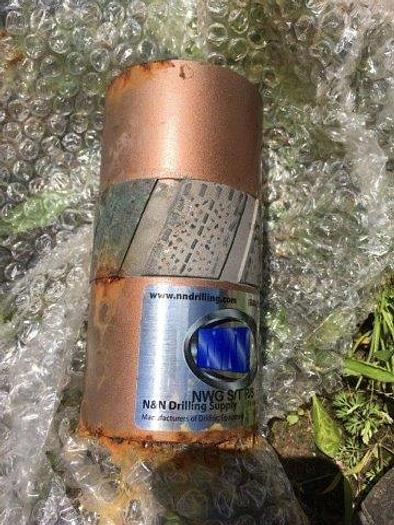

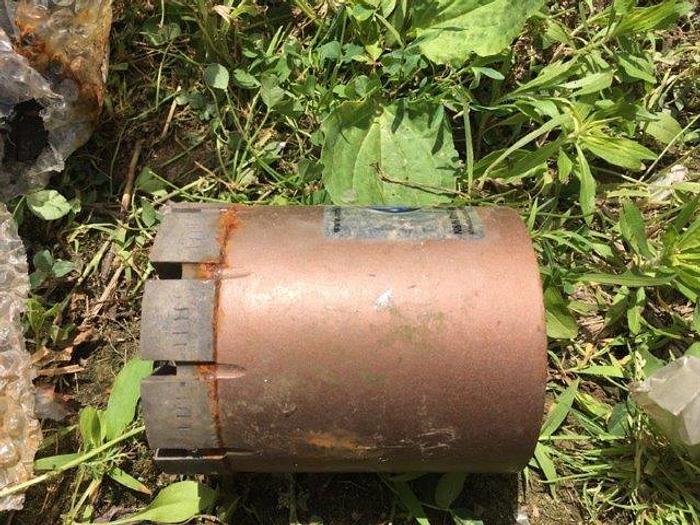

  • 2         New Unused (old stock) NQ NWG S/T R/S Reaming Shell Silver is NQ reaming shell for NV core barrel and copper shell is NWG for NWG single tube core barrel

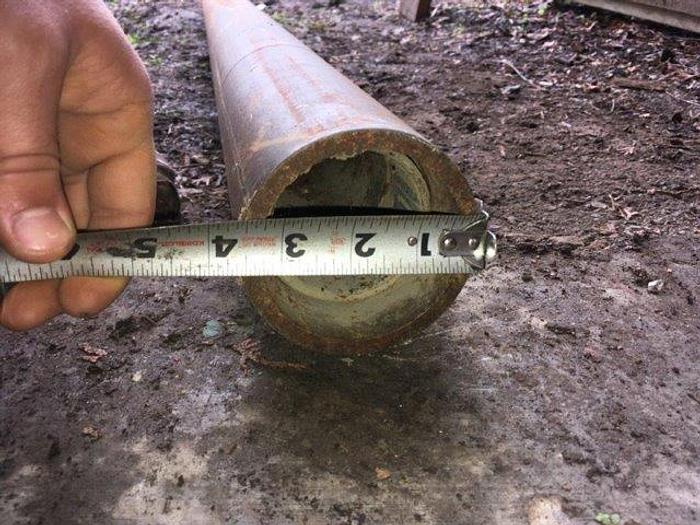

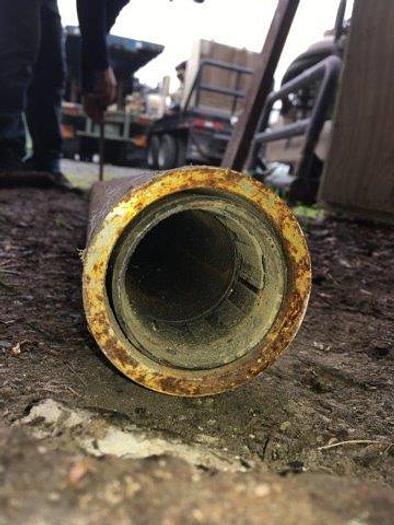

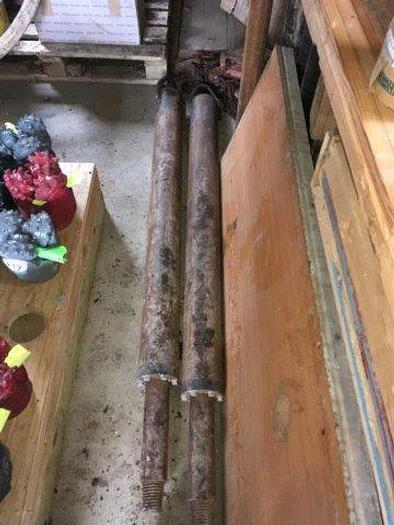

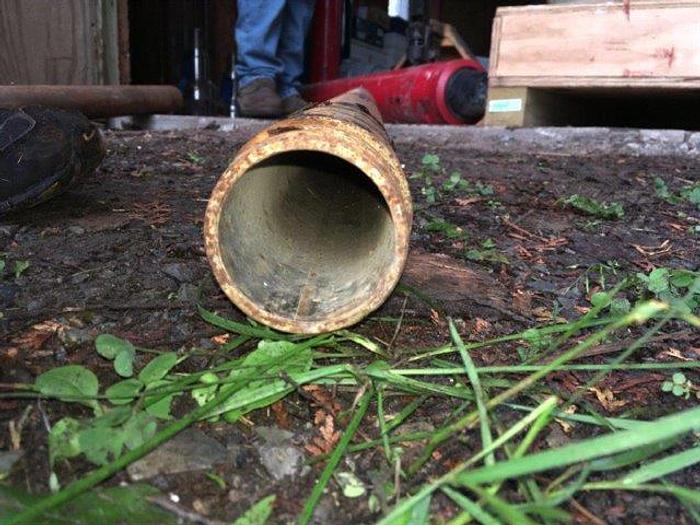

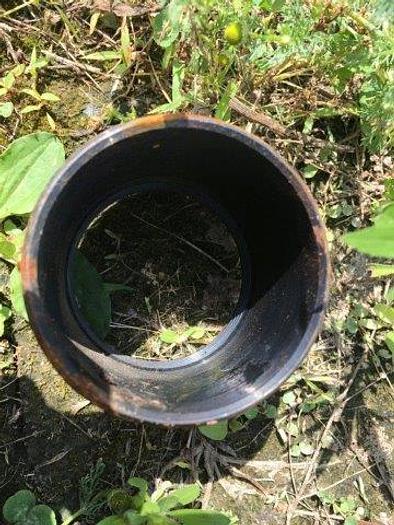

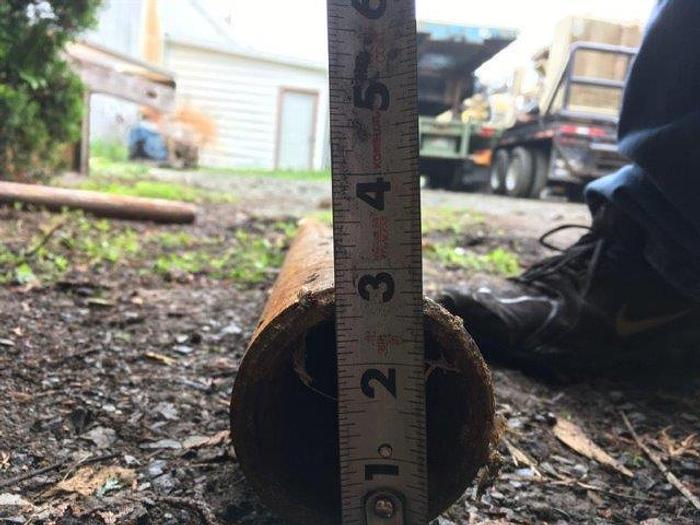

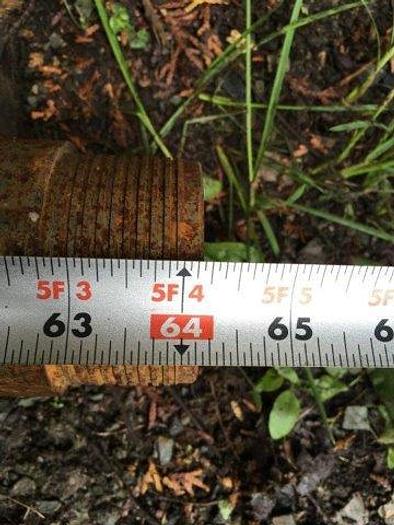

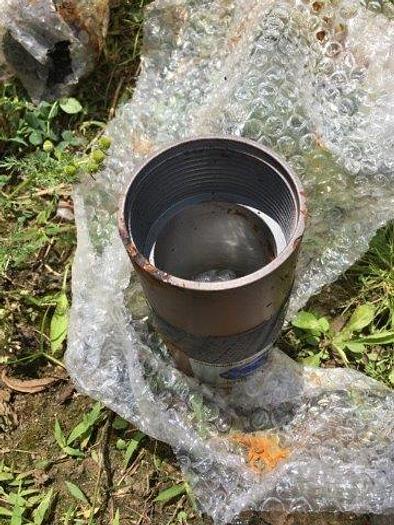

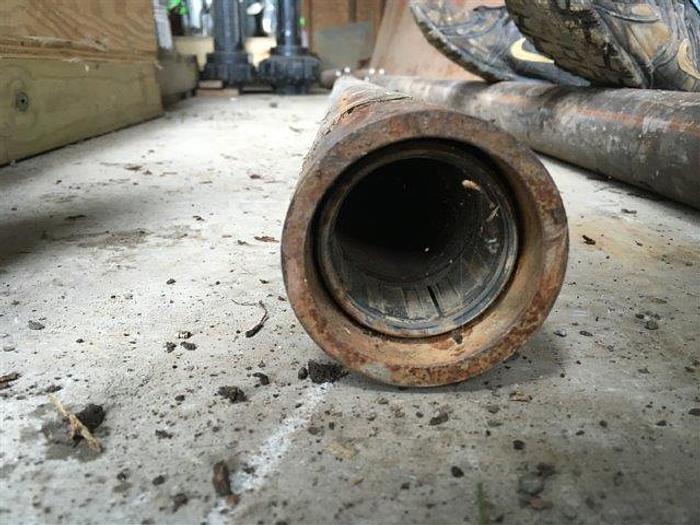

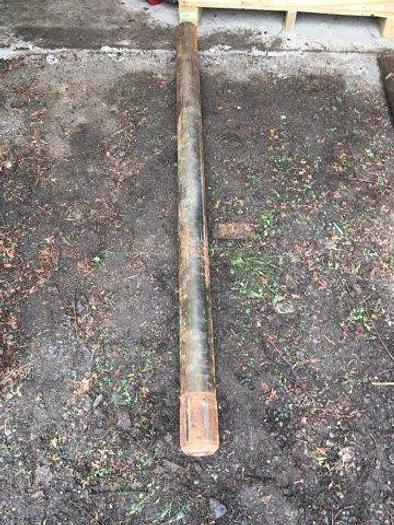

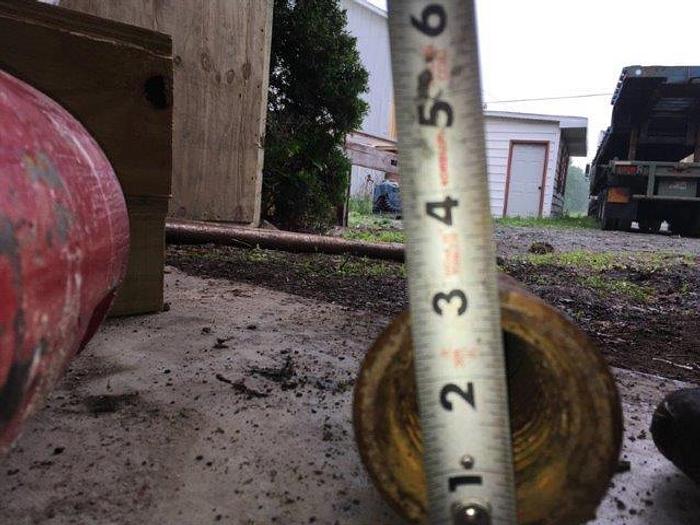

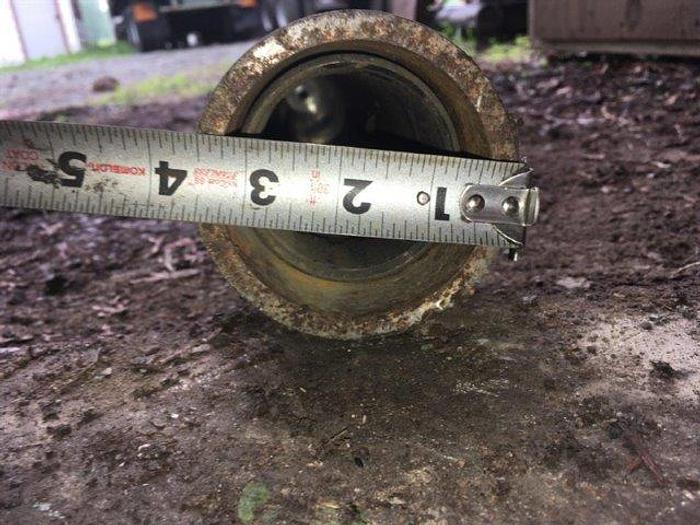

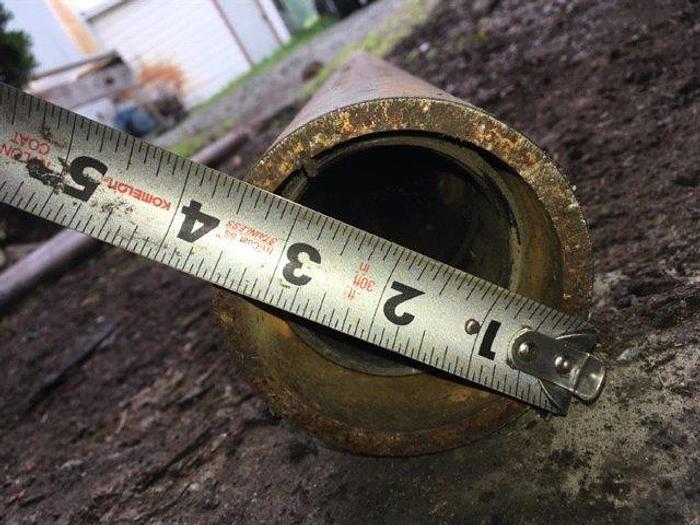

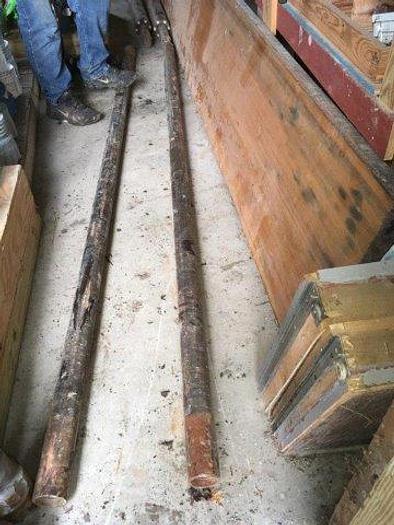

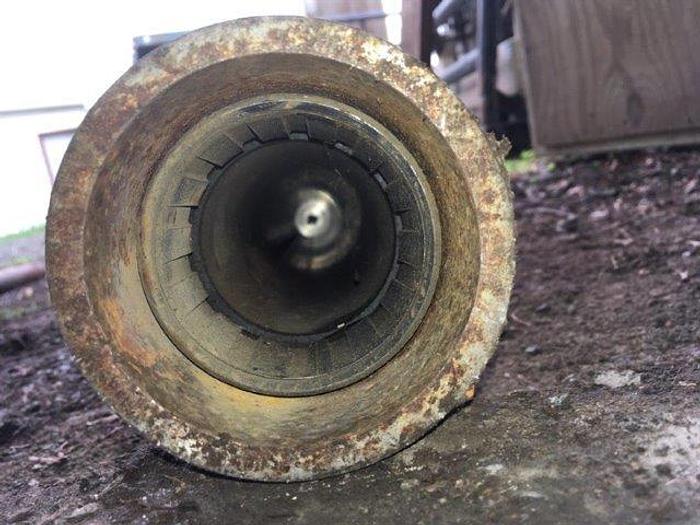

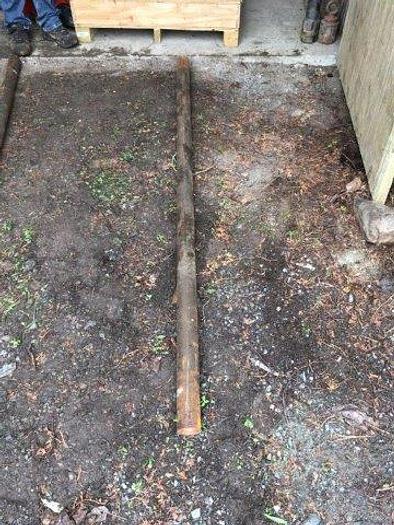

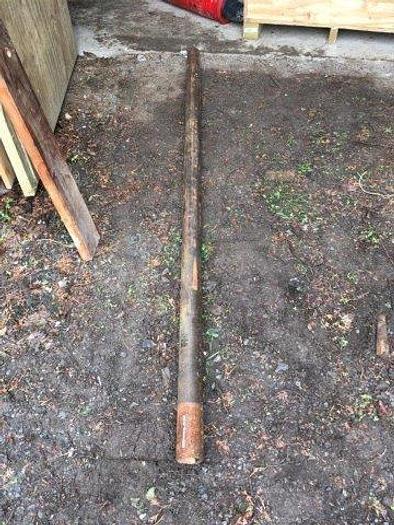

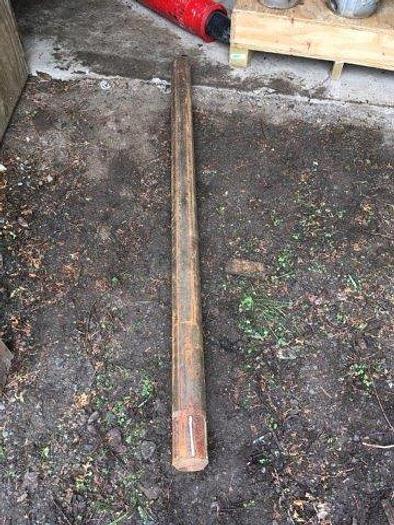

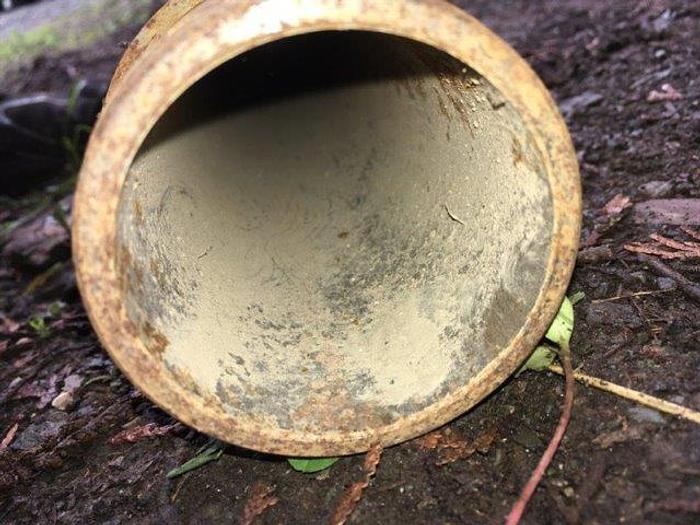

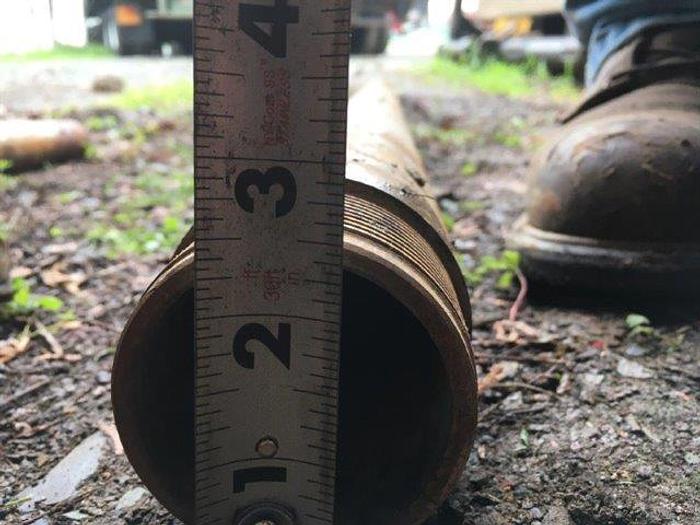

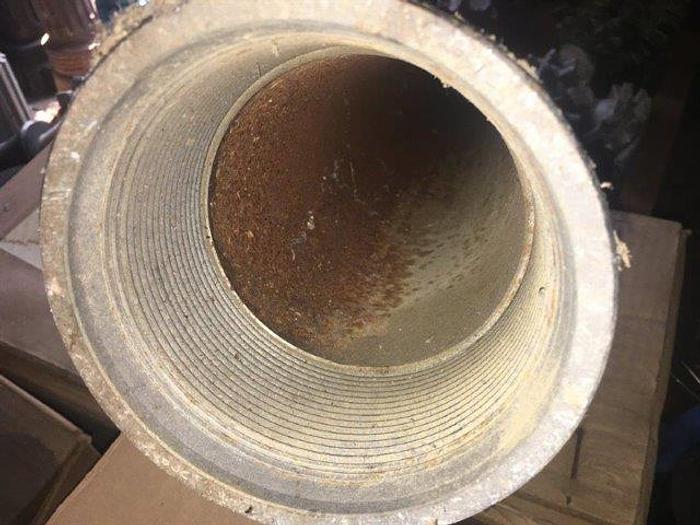

  • 6         New Unused (old stock) HV Conventional Core Barrel with NWJ Connection Approximately 108" Long (See pictures for accurate measurements or contact us for any additional details required)

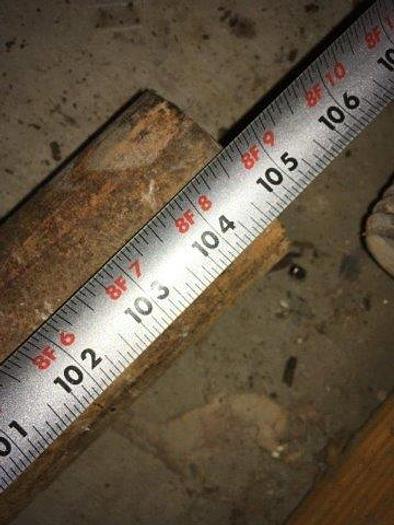

  • 1         New Unused (old stock) NV Core Barrel Approximately 104" Length see pictures for accurate measurements or contact us for any additional details required
  • 1         New Unused (old stock) NV Core Barrel, Complete, with NWJ Connection, 65" Long see pictures for accurate measurements or contact us for any additional details required
  • 4         New Unused (old stock) NV Core Barrel Complete with NWJ Connection Approximately 6’ Long
  • 2         New Unused (old stock) NV Core Barrel, Complete, with NWJ Connection, Approximately 86" Long See pictures for accurate measurements or contact us for any additional details required
  • 1         New Unused (old stock) NV Core Barrel Complete with NWJ Connection Approximately 89" Long See pictures for accurate measurements or contact us for any additional details required

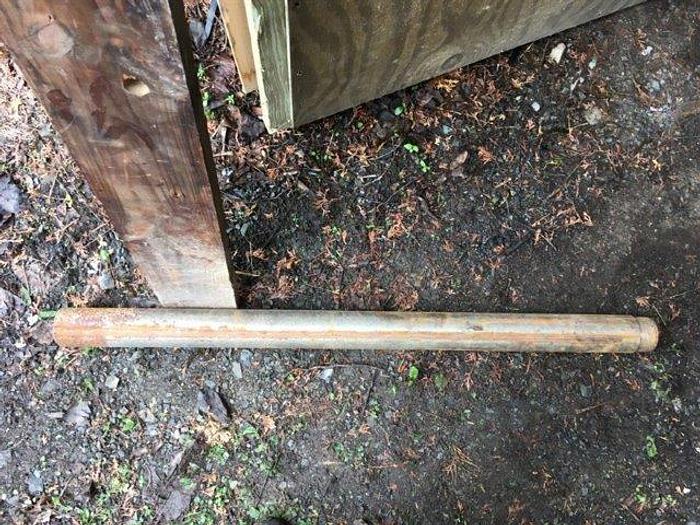

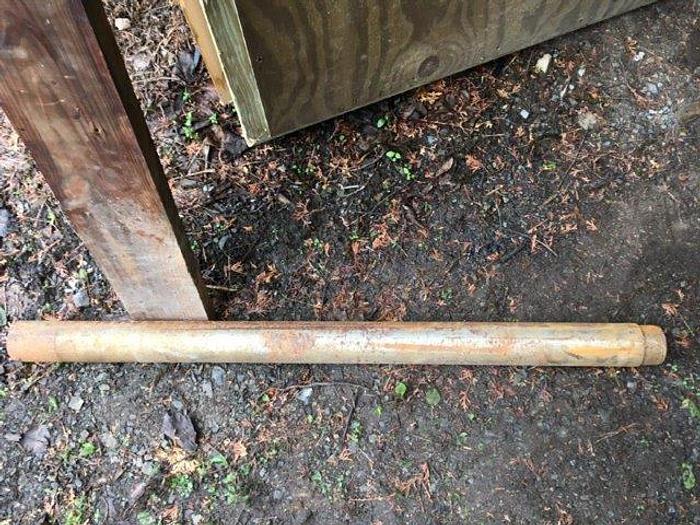

  • 2         New Unused (old stock) NV Single Tube Core Barrel Complete with NWJ Connection Approximately 43" Long See pictures for accurate measurements or contact us for any additional details required
  • 2         New Unused (old stock) NV Single Tube Core Barrel, Complete, with NWJ Connection Approximately 62" Long See pictures for accurate measurements or contact us for any additional details required

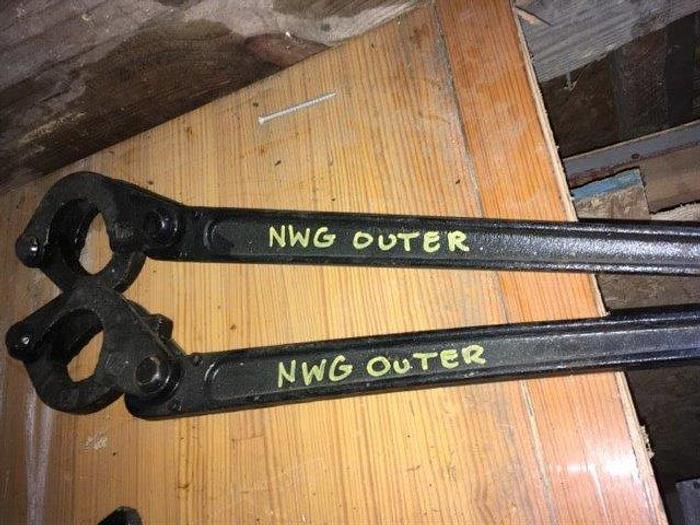

  • 2         New Unused (old stock) NWG Tube Outer Core Barrel Wrench

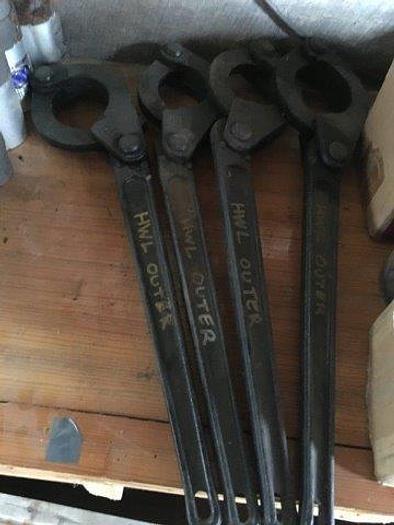

  • 4         New Unused (old stock) HWL Outer Core Barrel Wrench

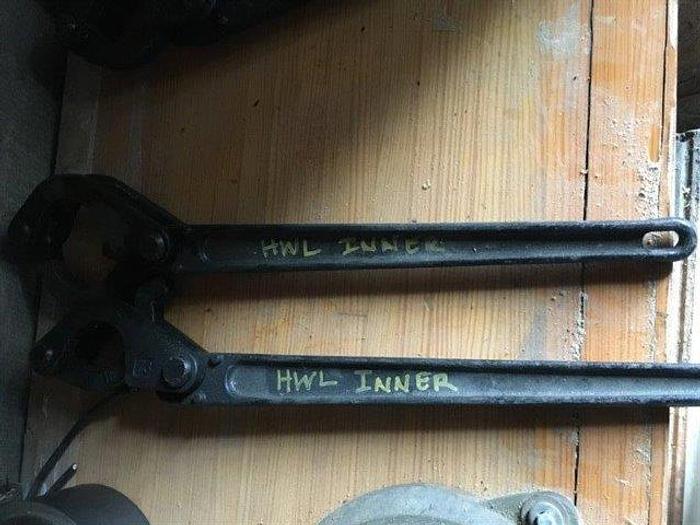

  • 2         New Unused (old stock) HWL Tube Inner Core Barrel Wrench - 12-21-461

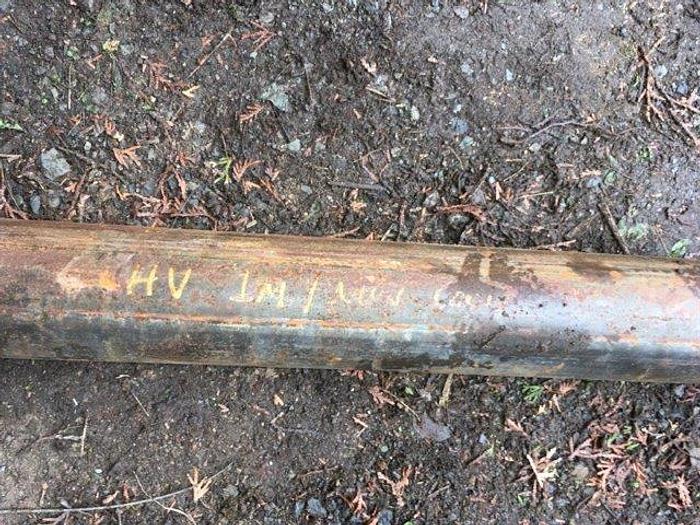

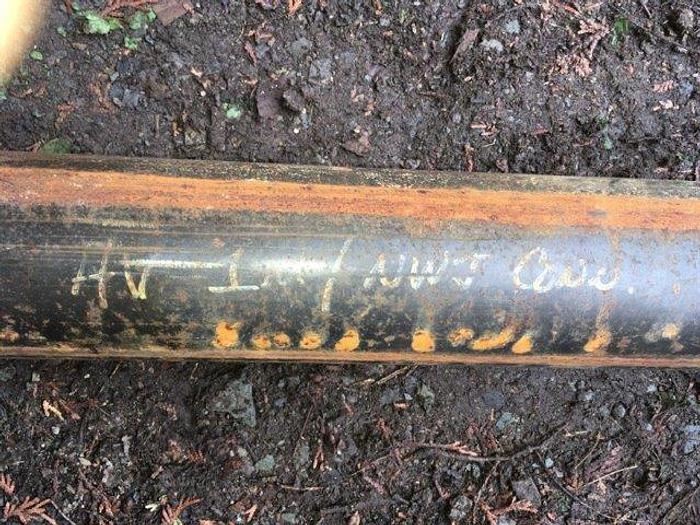

  • 4         New Unused (old stock) HV Core Barrel with NWJ Connection Approx 69" Length
  • 1         New Unused (old stock) HV Core Barrel with NWJ Connection, Approx 108" Length

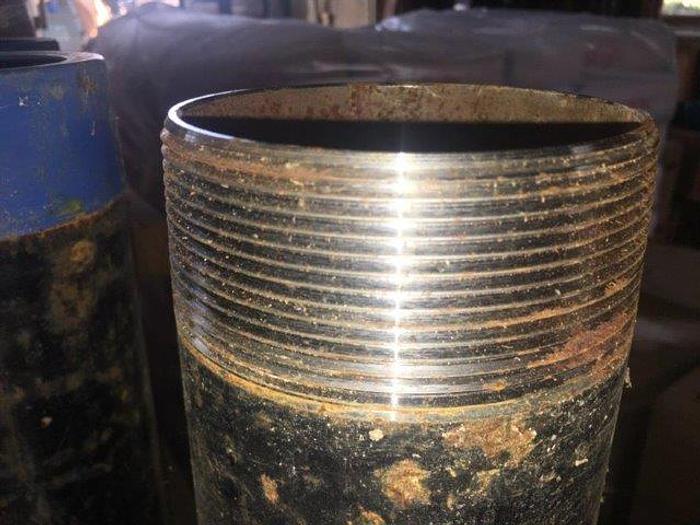

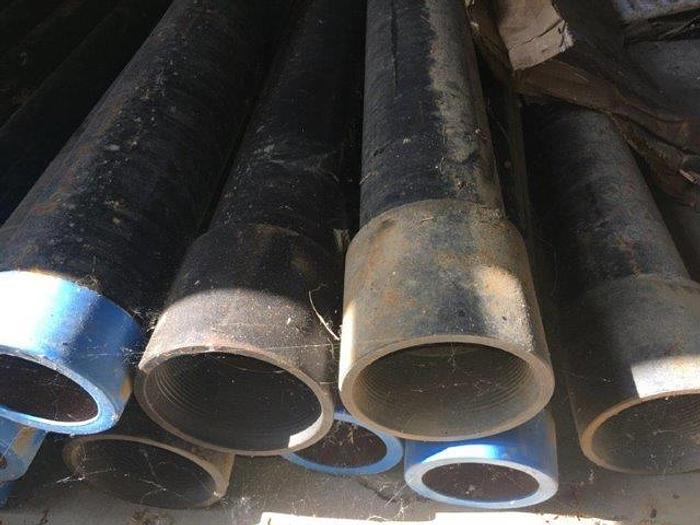

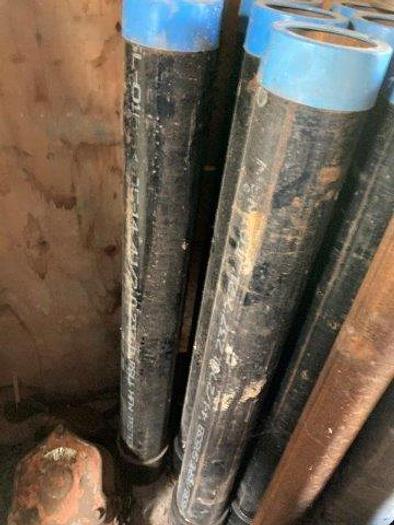

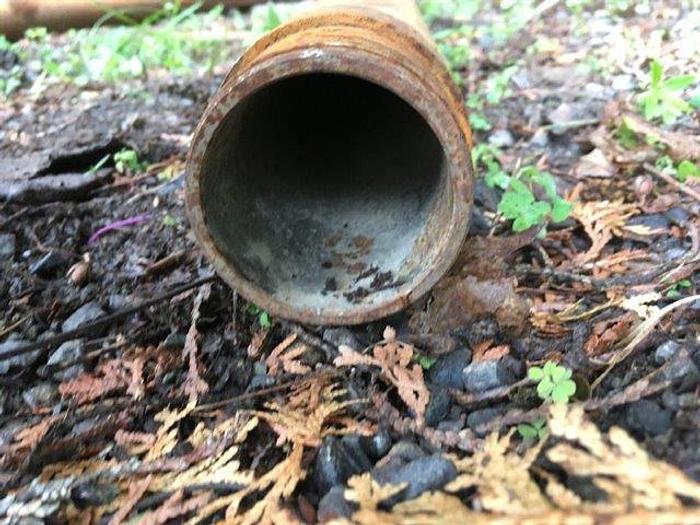

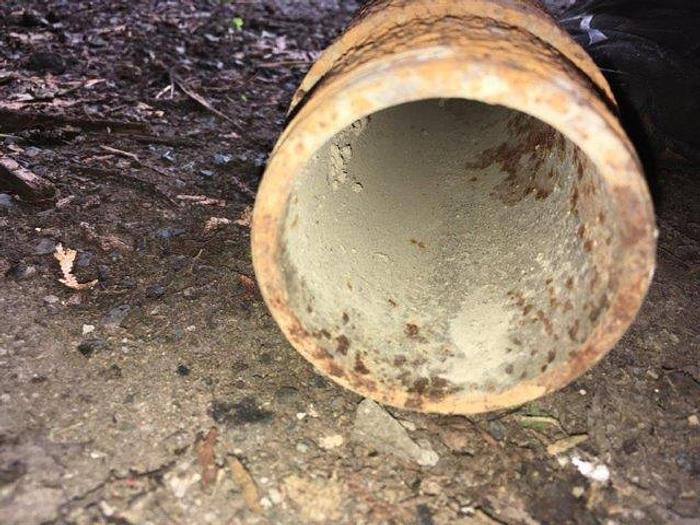

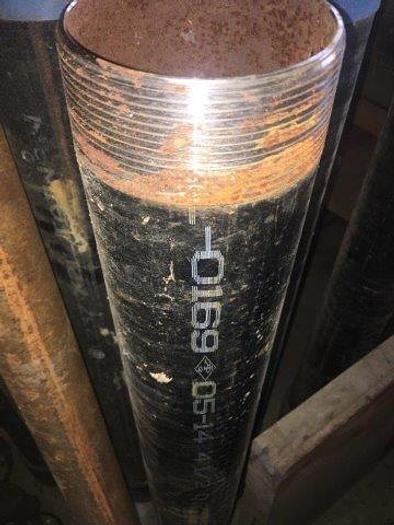

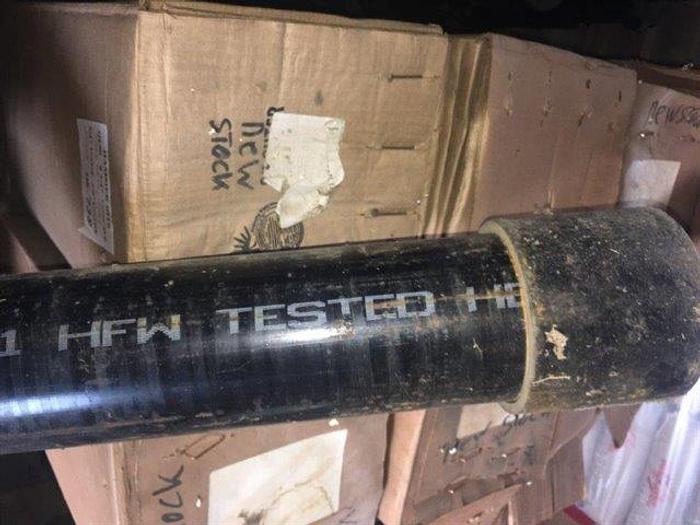

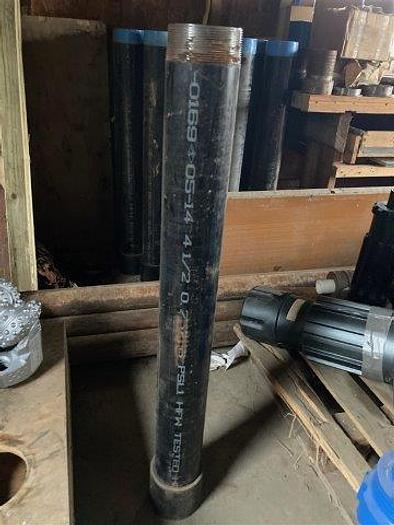

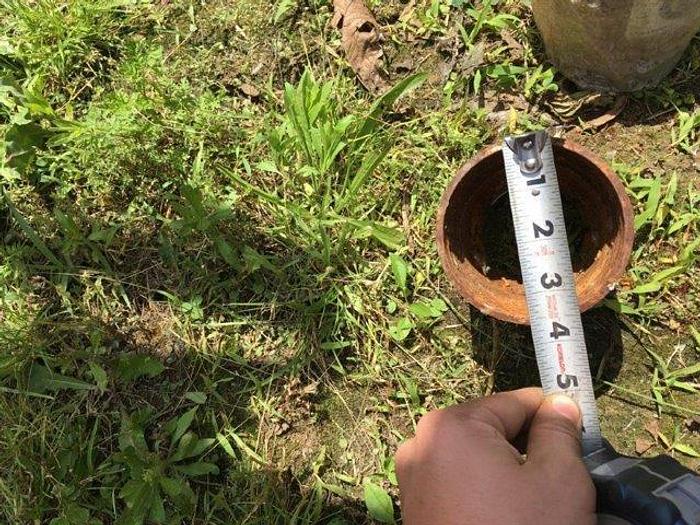

  • 14       New Unused (old stock) Well Casing 4-½" od x .237 wall api thread and couple 40" inches long -0169 05-14 PSL1 HFW TESTED

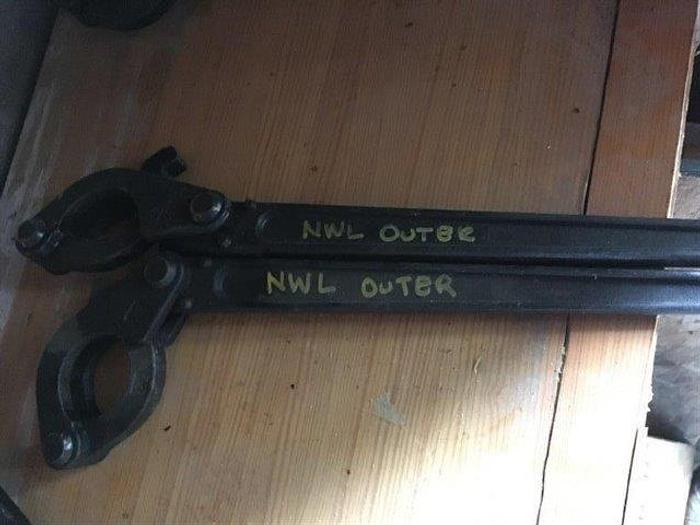

  • 2         New Unused (old stock) NWL Outer Core Barrel Wrench

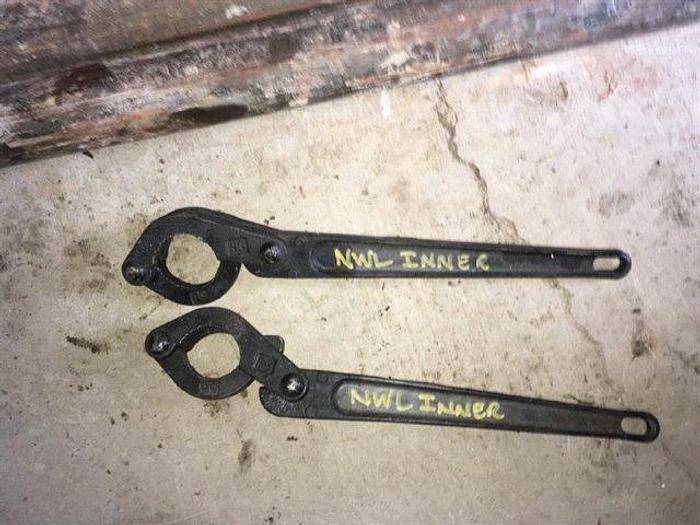

  • 2         New Unused (old stock) NWL Inner Core Barrel Wrench
  • 15       New Unused (old stock) NEW - NWJ Drill Rods .250 x 5' ft SIZE OF DRILL ROD / NWJ Outside Diameter: 2-5/8" Wall Thickness: 3/16" Bore OF Coupling/Pin: 1-1/8" No. Threads Per Inch: 4 Made in USA

Located in Mifflinburg, PA USA

Specifications

ManufacturerSimco
Model2800 HSHT Drill Rig
Year1989
ConditionUsed
Stock Number15117
Drill serial #891210
StatusAvailable
