2004 International UDR 1500 Range III Drill Rig

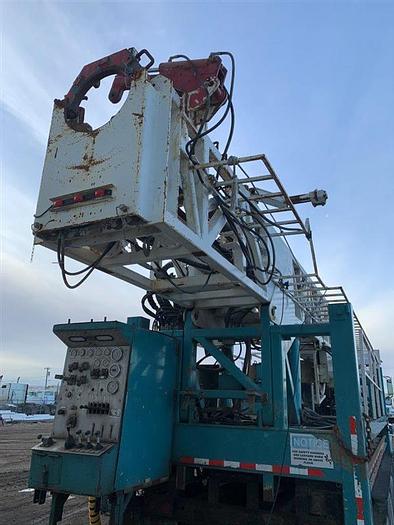

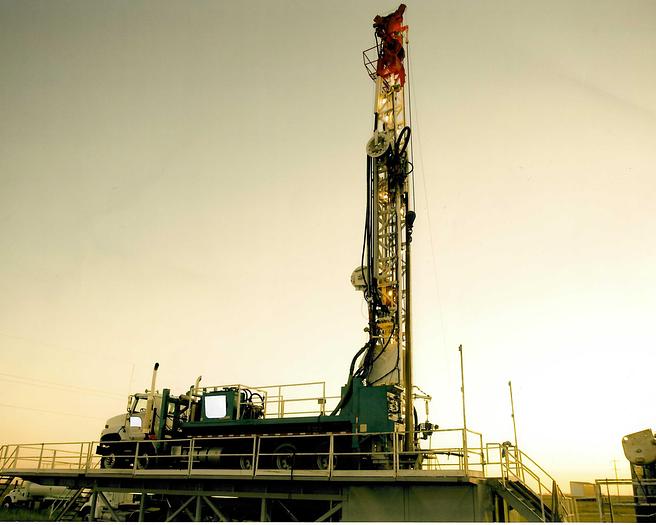

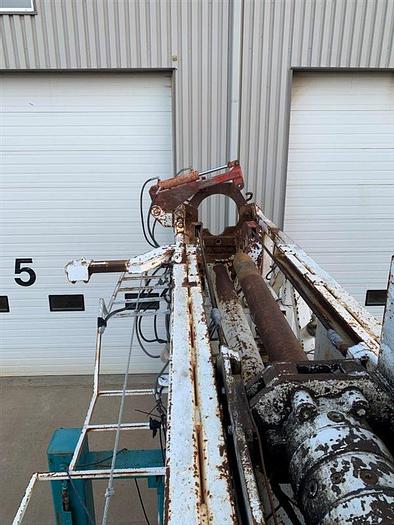

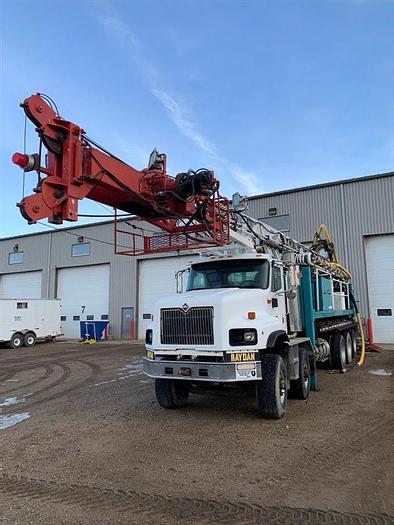

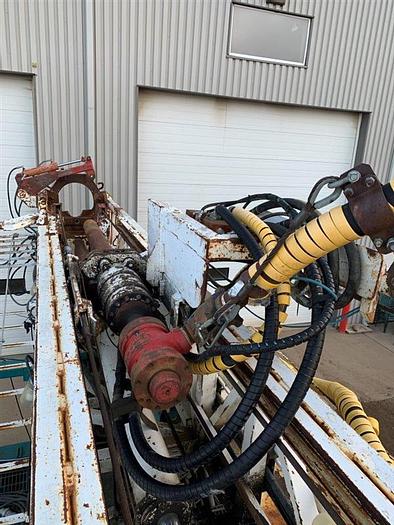

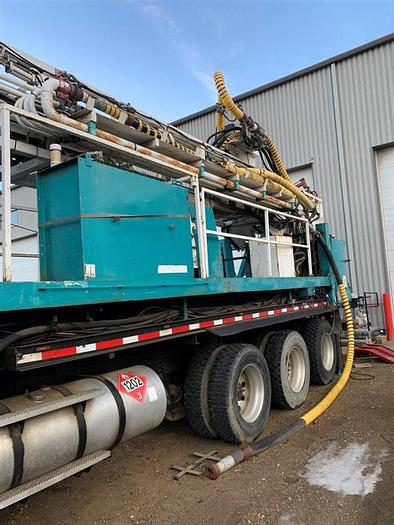

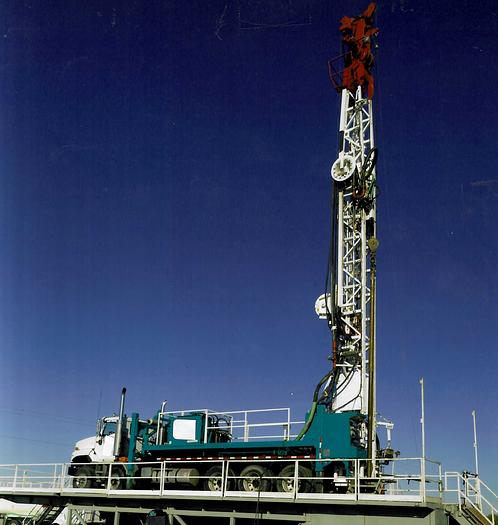

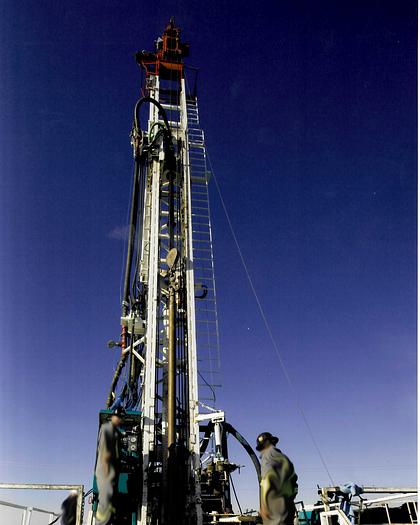

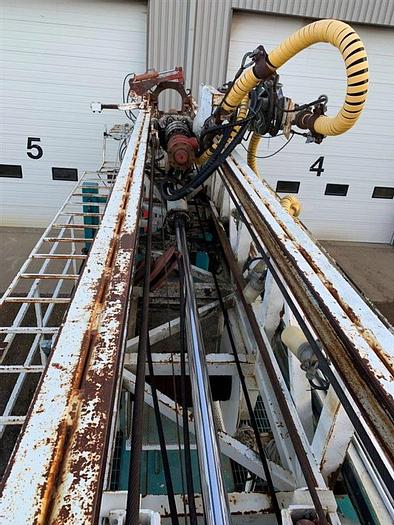

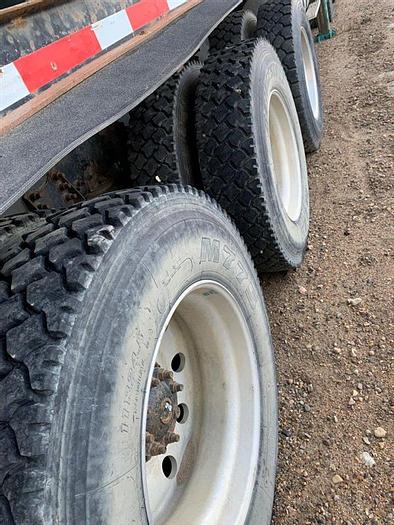

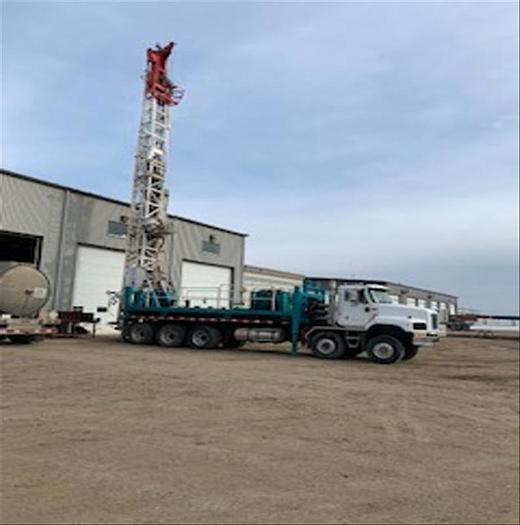

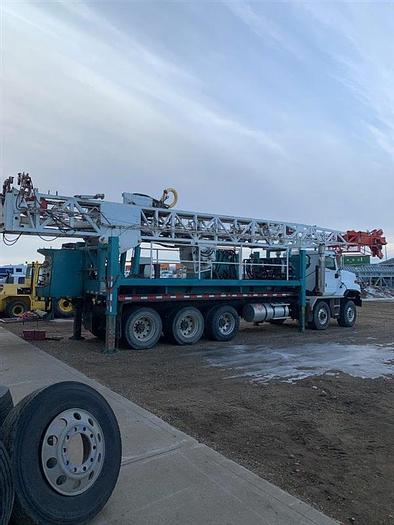

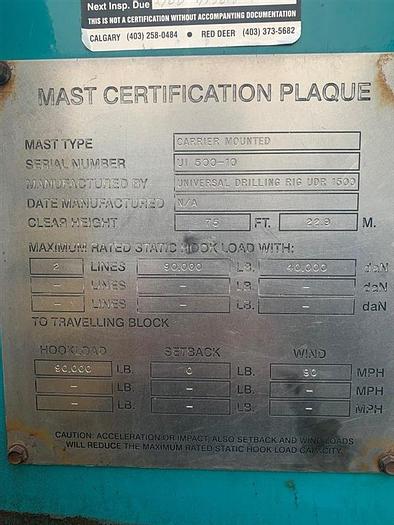

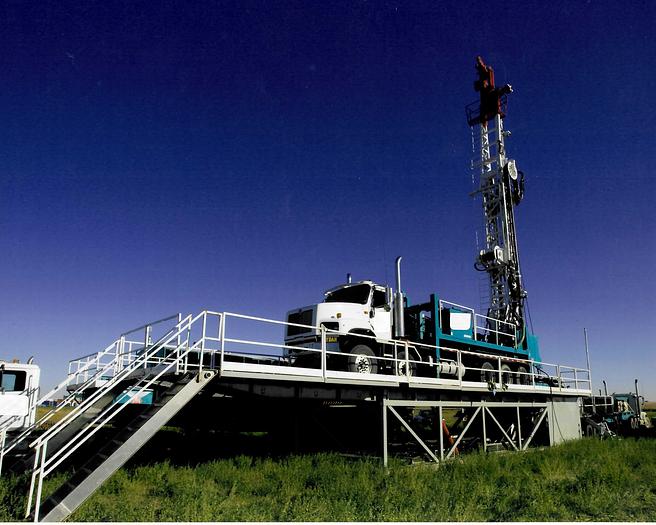

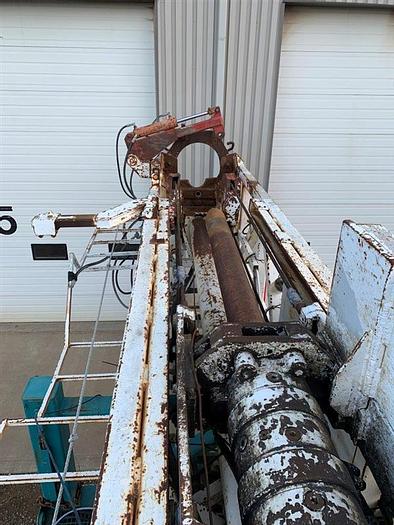

2004 International UDR 1500 Range III Mobile Drill Rig Mounted on a 2004 International 5600i Tri-Axle Truck 75’- 90,000 lb static hook load capacity hydraulic raise and lower mast Rexroth 44,000 lb draw works Top drive CAT C15 14.6L diesel engine 525 Adv horsepower Engine brake Eaton Fuller 18 speed manual transmission 352” wheel base 40,000 lb front axle 51,000 lb rears

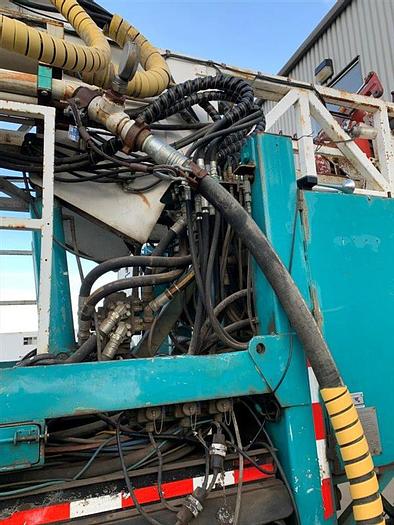

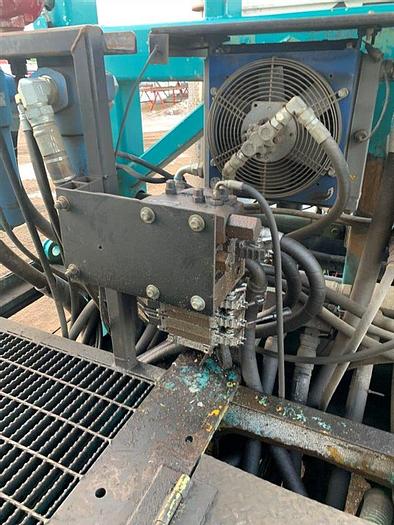

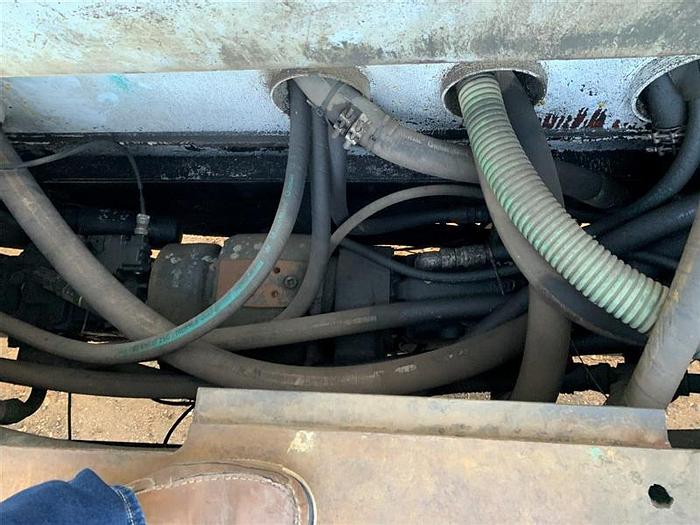

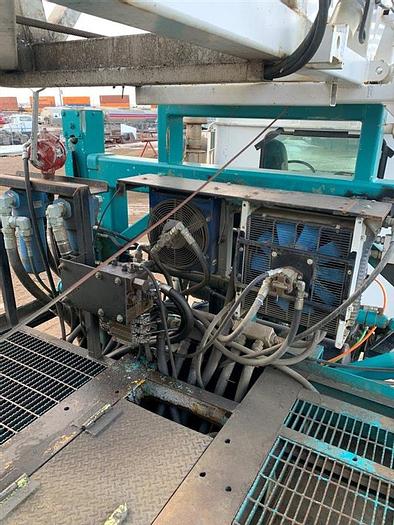

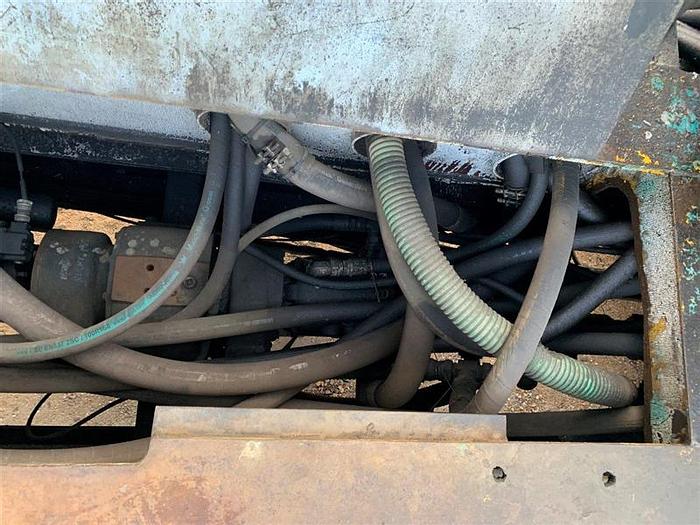

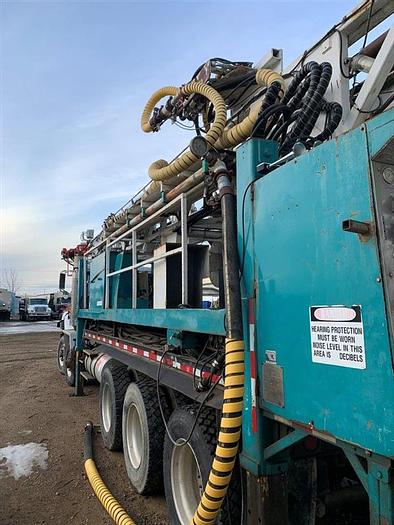

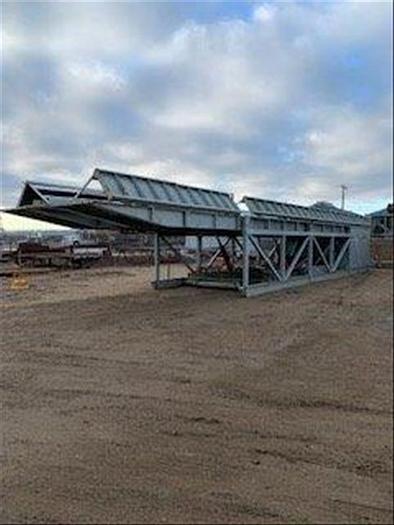

MATCO Sub Structure - cost extra if wanted Note: Rig was almost completely overhauled recently with Hydraulics, hoses, box  etc.

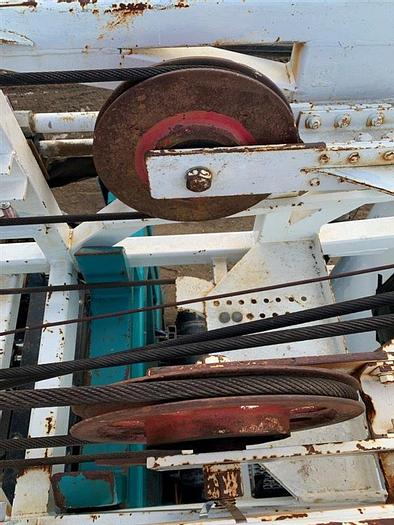

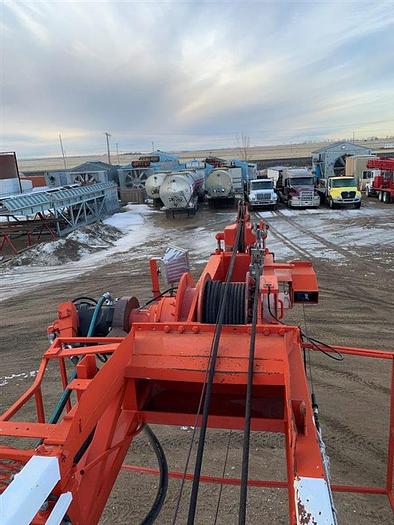

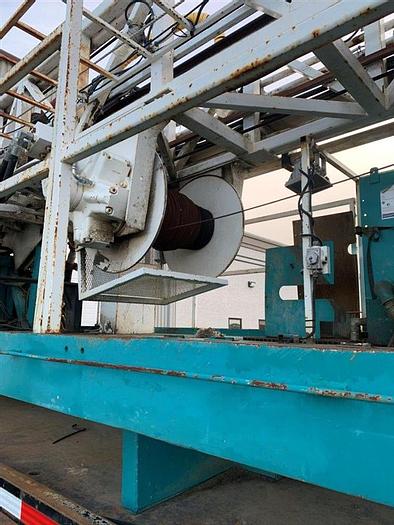

Notes as of 2/3/2022: Was set up for deep wireline coring, mud drilling, wireline cable of holding 6500 ft 3/8 wire rope.

No Mud Pump currently included but have available and can supply a rebuilt Gardner Denver 5-1/2 x 8, a Gardner Denver 5 x 6, or a hydraulic drive 4’’x 3’’x 13 ‘ centrifugal pumps or a portable D375 duplex Emsco mud pump in good shape skid unit. Rig is in shop replacing swivel and will be going out shortly on a 3 month job (unless it is purchased before then). 23 to 24 ft stroke

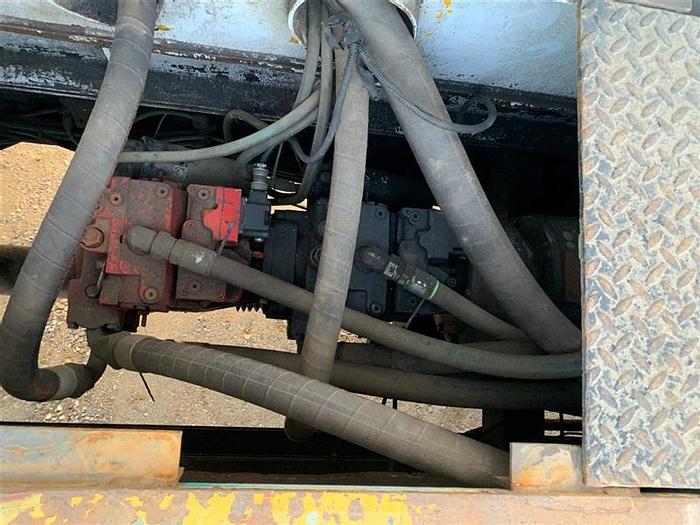

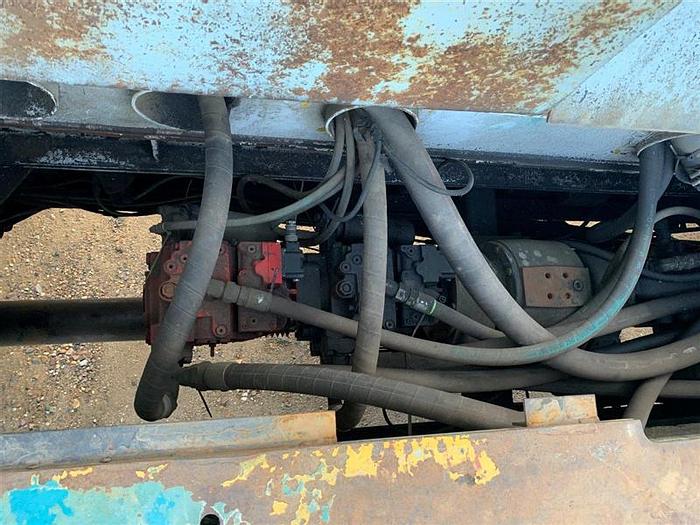

Code 61 Rineer/Siemen Hydraulic motor's USA  with High/low torque - Estimate

170 RPM plus

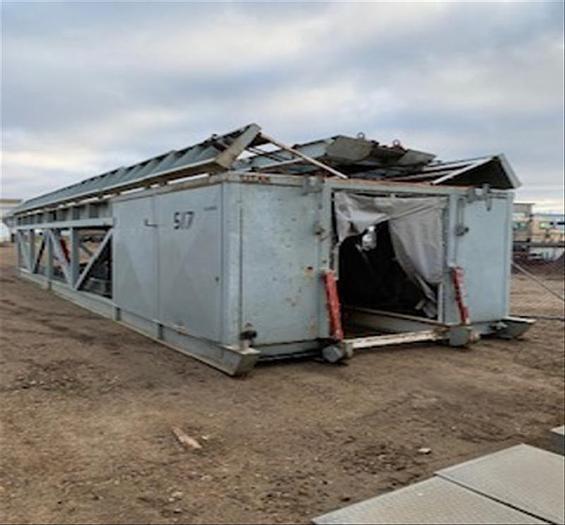

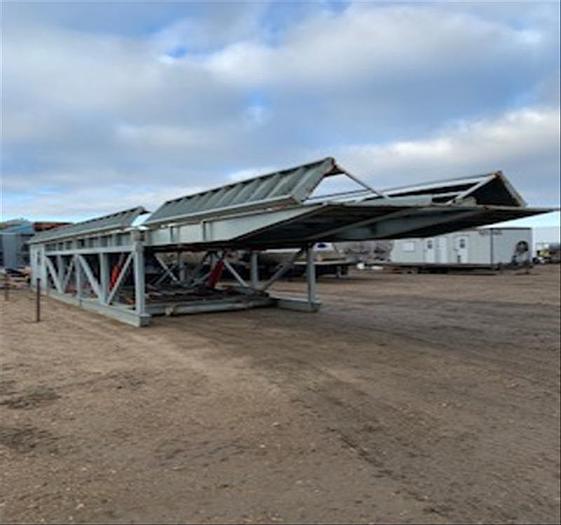

Substructure, Hydraulic's hook up to drill to operate sub hydraulic.

Everything is included, handrail's, flip over wings etc etc .

Casing size up to 16 inch for change out table bushings it also has addition scope out table, never used.  Probably with minimum changes to ID of bottom bushings pins it could run 24 inch casing.

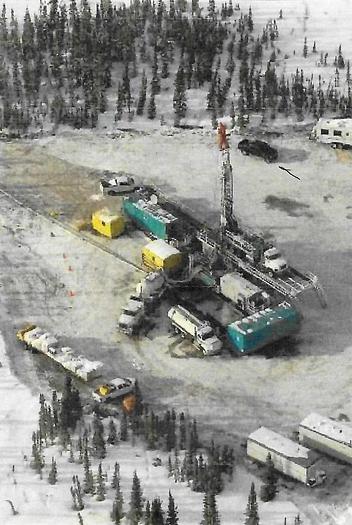

Great shallow gas rig. Rigs last project was for a gas well company so it had to be 100% safe, daily / yearly inspections, hydraulic hoses had to removed yearly and pressure tested or replaced if damaged, zero oil leaks etc.

Located in Canada


ModelUDR 1500 Range III Drill Rig
Stock Number15008
Engine hours11,804+
